MMC Cable Assemblies

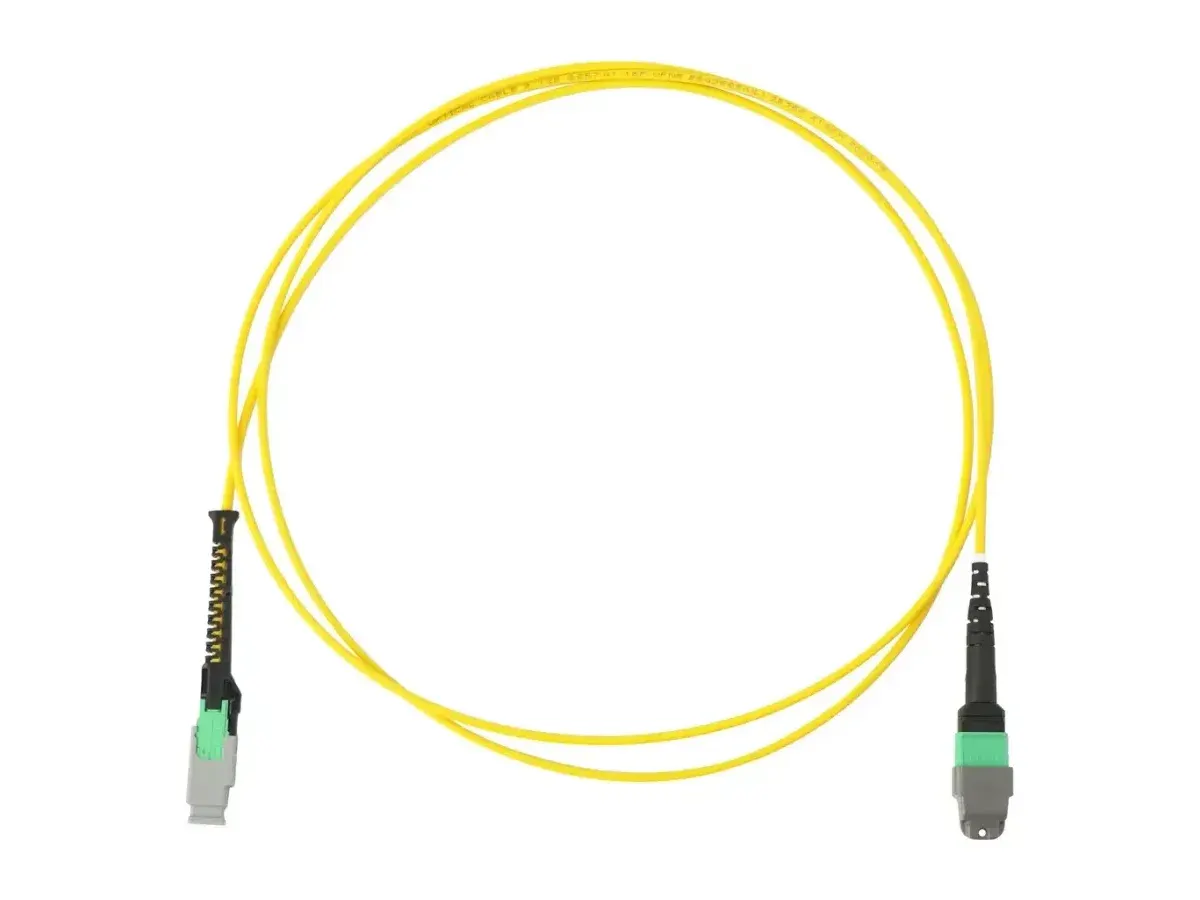

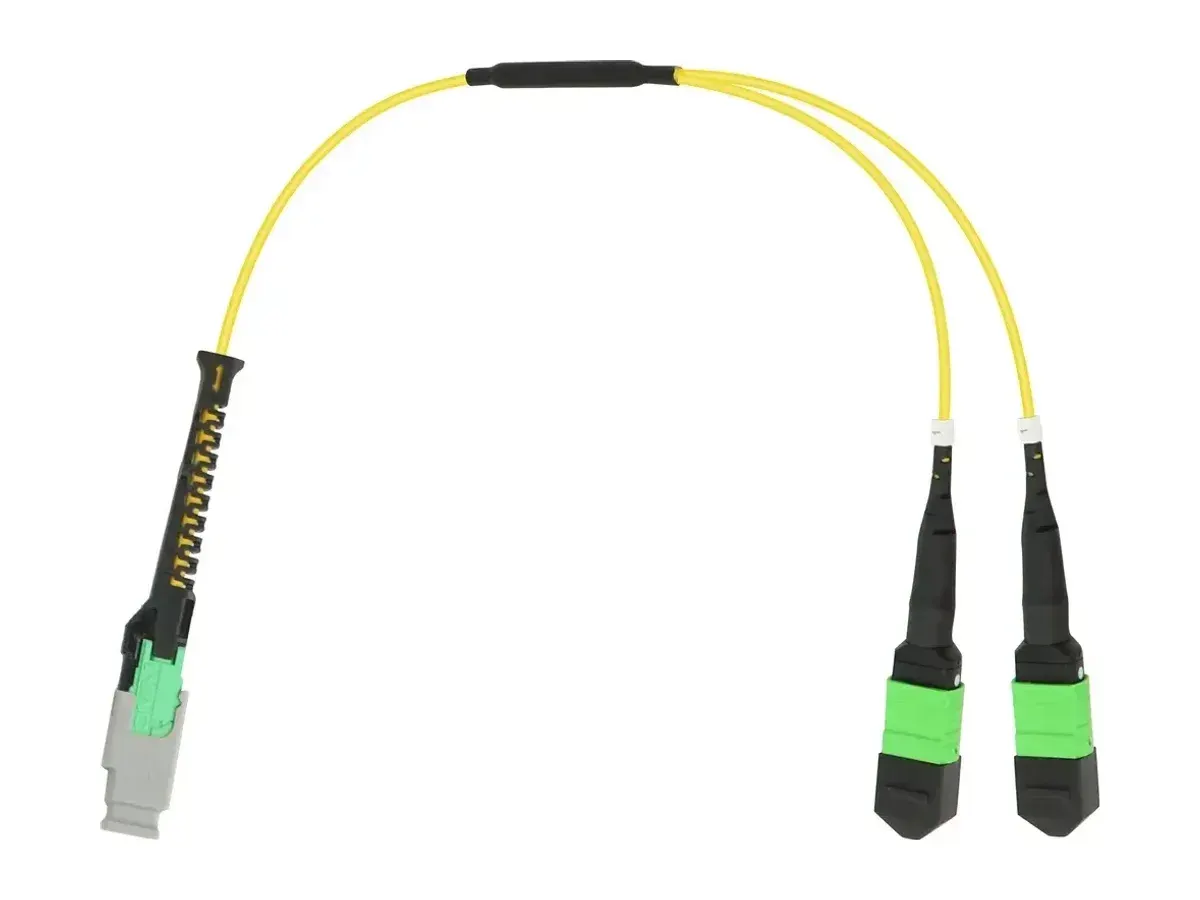

The MMC fiber cable is equipped with an MMC connector, a Very Small Form Factor (VSFF) multi-fiber optical connector designed to terminate single-mode and multimode fiber cables up to 2.5mm in diameter.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description
The MMC fiber cable is equipped with an MMC connector, a Very Small Form Factor (VSFF) multi-fiber optical connector designed to terminate single-mode and multimode fiber cables up to 2.5mm in diameter. It employs novel TMT ferrule technology harmonized with the MT/MT-16 alignment structure. Individual connector access in extremely dense connector environments is easily accomplished using push-pull boot technology.
MMC connectivity enables solutions that minimize the space required across multiple applications, including structured cabling, high fiber-count data center interconnects, and high-bandwidth applications. The product is also referred to as MMC Patch Cord.
Technical Specifications
Performance Characteristics
| Item | Single-mode | Multimode | Reference |
|---|---|---|---|
| Insertion loss (MMC) | ≤0.35 dB | ≤0.35 dB | IEC 61300-3-3, IEC 61300-3-6 |
| Return loss (MMC) | ≥60 dB (APC) | ≥35 dB (APC) | |
| Insertion loss (MDC) | ≤0.35 dB | ≤0.35 dB | |
| Return loss (MDC) | ≥50 dB (UPC); ≥60 dB (APC) | ≥30 dB (PC) | |
| Insertion loss (MTP) | ≤0.35 dB | ≤0.35 dB | |
| Return loss (MTP) | ≥60 dB (APC) | ≥30 dB (PC); ≥35 dB (APC) | |
| Insertion loss (Uniboot LC) | ≤0.35 dB | ≤0.35 dB | |
| Return loss (Uniboot LC) | ≥50 dB (UPC); ≥60 dB (APC) | ≥30 dB (PC) | |
| Operating temperature | -10 ℃ ~ +60 ℃ | ||
| Storage temperature | -20 ℃ ~ +70 ℃ |
Cable Characteristics
| Item | Value |
|---|---|
| Fiber number | 16 or 24 |
| Fiber type | SM, MM |
| Strength member | Aramid yarn |
| Outer jacket | LSZH, OFNR, OFNP or customized |
| Outer diameter | 2.5 ± 0.1 mm |
| Min bending radius (dynamic / static) | 20D / 10D |
| Max allowable tensile (short / long term) | 100 N / 30 N |
Optical Fiber Characteristics
| Fiber type | Attenuation 1310/1550nm typ (dB/km) | Attenuation 850/1300nm typ (dB/km) | Effective modal bandwidth 850nm (MHz·km) | Min bend radius (mm) |
|---|---|---|---|---|
| G.657A1 | 0.36 / 0.22 | — | — | 10 |
| G.657A2 | 0.36 / 0.22 | — | — | 7.5 |
| OM1 | — | 3.0 / 1.0 | — | 30 |
| OM2 | — | 3.0 / 1.0 | — | 30 |
| OM3 | — | 3.0 / 1.0 | ≥2000 | 30 |
| OM4 | — | 3.0 / 1.0 | ≥4700 | 30 |
| OM5 | — | 3.0 / 1.0 | ≥4700 | 30 |
Features
- VSFF MMC connector supports 3x cabling port density over the MPO format
- Top and bottom rails enable correct orientation to simplify installation and maintenance
- Utilizes proven MT/MT-16 mechanical and fiber alignment structures
- DirectConect™ push-pull boot for effortless connector insertion and extraction
- TMT Elite™ enables 0.35dB low IL and APC for superior return loss
- Bend-insensitive fiber allows tighter cable bends for slack storage and routing
- Tested to Telcordia GR-1435
- Supports data center structured cabling and high-bandwidth applications
- 250µm pitch for standard 250µm and smaller OD SM and MM fibers
- Available in 1×16 and 2×12 fiber count configurations
- Pulling eyes provided as an option to protect fiber ends during installation
Applications
- Data center structured cabling
- High fiber-count data center interconnects
- High-bandwidth applications
