MPO/MTP Data Center Cabling
MPO/MTP Cassettes
The MPO/MTP cassette is capable of accepting 6–24 fibers and is suitable for use with single-mode, multimode 62.5 and 50µm, as well as laser-optimized OM3 applications. It is available in LC, SC, ST, FC, and MTRJ connector types.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

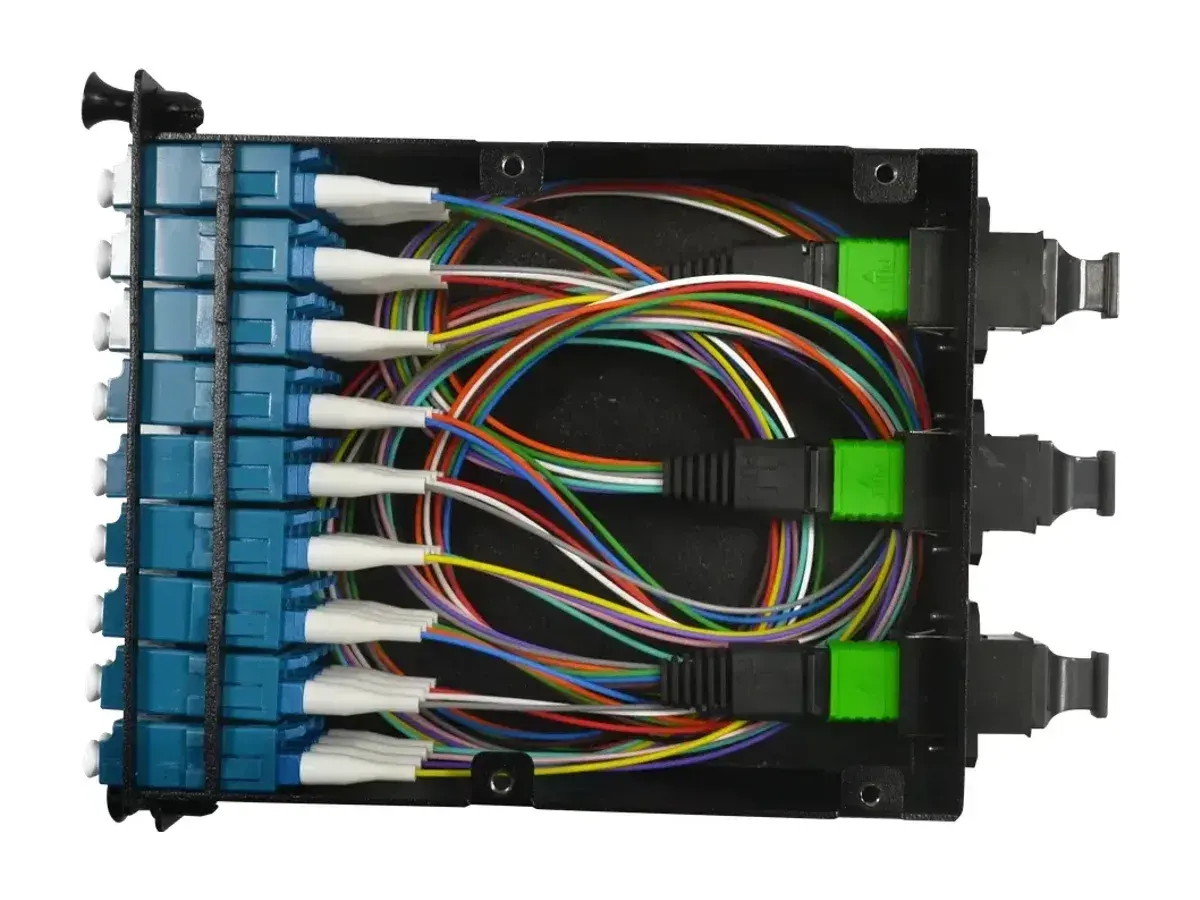

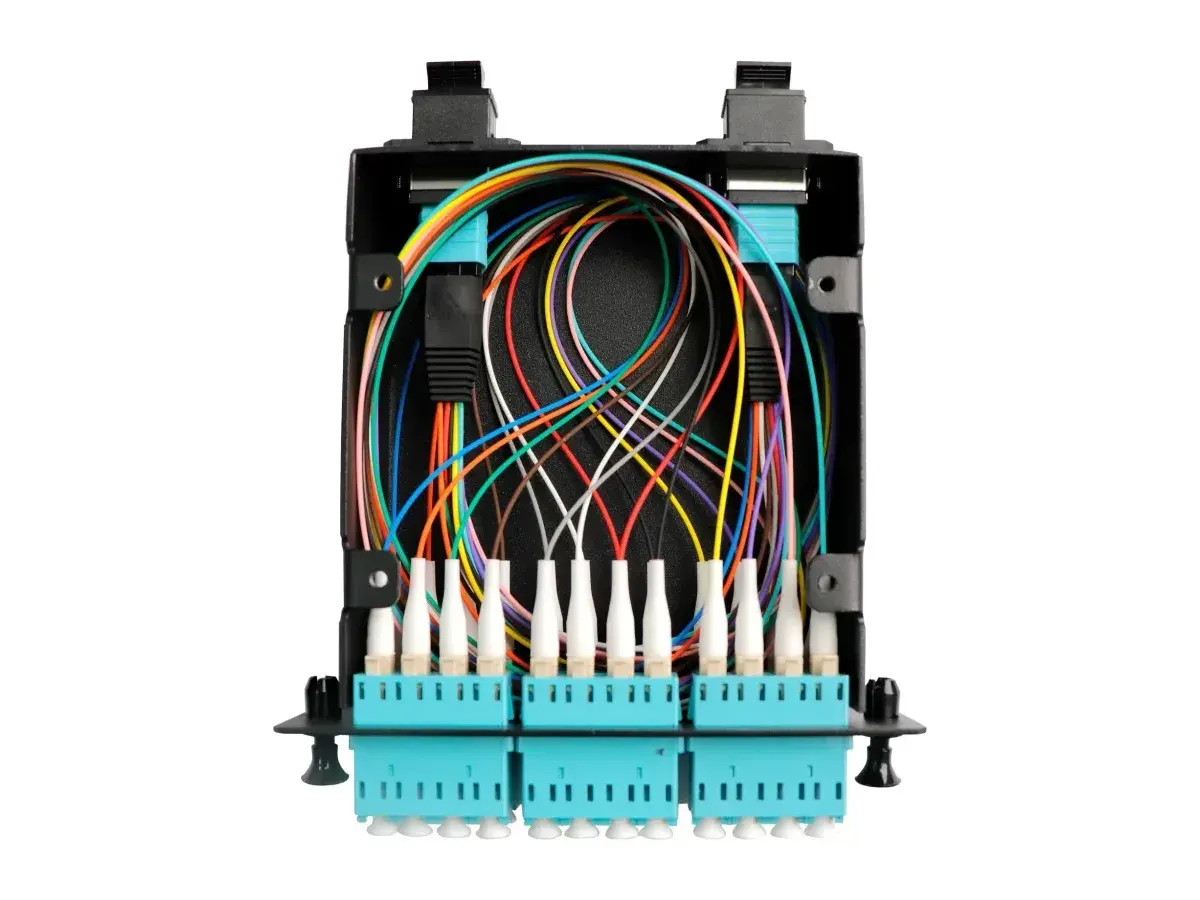

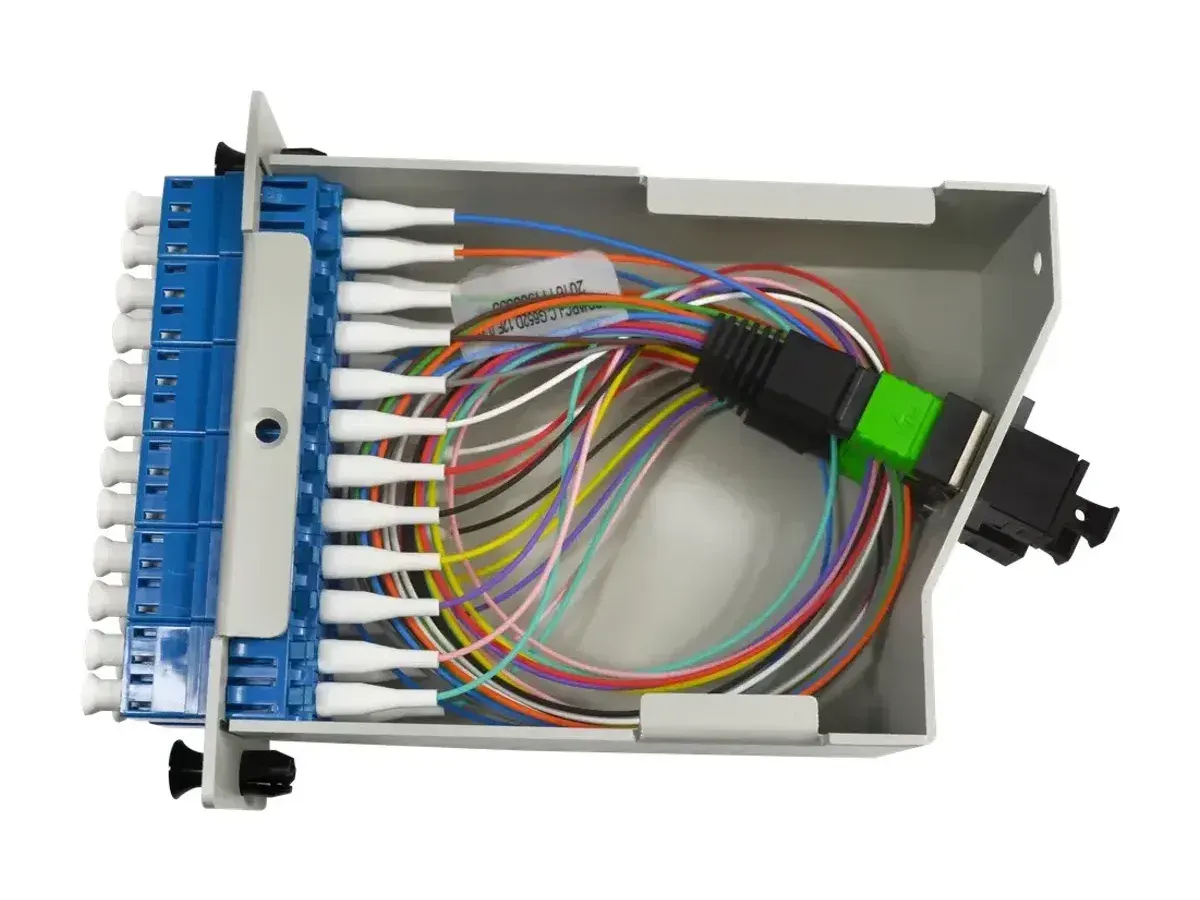

The MPO/MTP cassette is capable of accepting 6–24 fibers and is suitable for use with single-mode, multimode 62.5 and 50µm, as well as laser-optimized OM3 applications. It is available in LC, SC, ST, FC, and MTRJ connector types. The cassette comes pre-installed with the required adapters featuring zirconia ceramic sleeves for enhanced compatibility with all applications. Adapters are color-coded according to the application in use (Blue = 9/125; Beige = 62.5 and 50µm; Aqua = OM3; Green = APC), and all adapters come standard with dust covers.
Technical Specifications
| Item | Specification |
|---|---|
| Fiber capacity | 6–24 fibers |
| Fiber type | Single-mode; multimode 62.5/50µm; OM3 (laser optimized) |
| Connector types | LC, SC, ST, FC, MTRJ |
| Adapter sleeves | Zirconia ceramic |
| Adapter color code | Blue = 9/125; Beige = 62.5/50µm; Aqua = OM3; Green = APC |
| Dust covers | Standard on all adapters |
| Network support | 40G and 100G applications |
Features
- 100% pre-terminated and tested in factory to ensure transfer performance
- Rapid configuration and networking, reduces installation time
- Supports 40G and 100G network applications
Applications
- Implementation of structured cabling in data centers
