FTTA Cabling Series

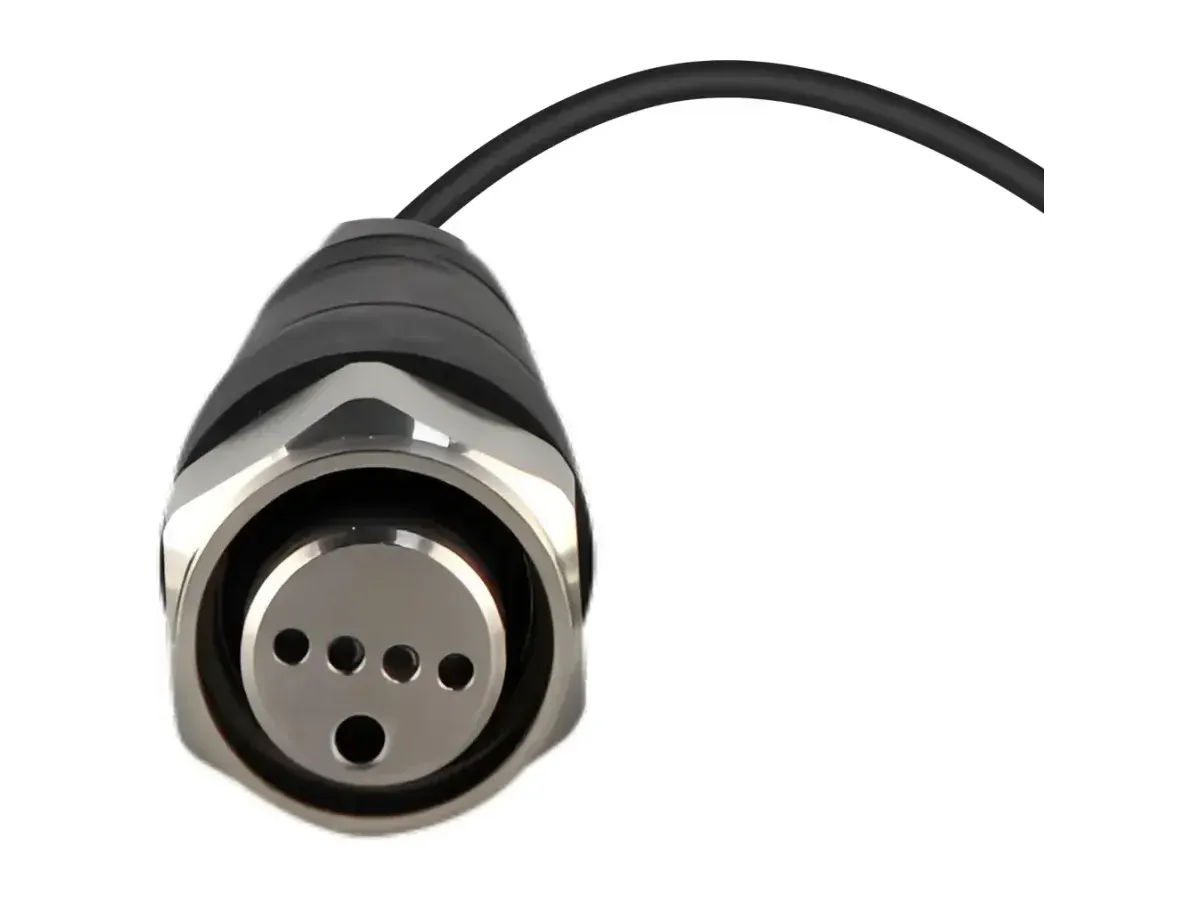

AARC Outdoor Waterproof Connector
The AARC outdoor cable assembly is a multi-purpose connector for connection between the distribution box and the RRH in Remote Radio Head cell tower applications and other harsh environments.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description
The AARC outdoor cable assembly is a multi-purpose connector for connection between the distribution box and the RRH in Remote Radio Head cell tower applications and other harsh environments. Its metal housing provides improved EMI protection along with bird-proof and rodent-resistant construction, and it is available with single-mode or multimode fiber.
Technical Specifications
Optical & Performance Parameters
| Item | SM-UPC (Typical / MAX) | MM-UPC (Typical / MAX) |
|---|---|---|
| Insertion loss | ≤0.5 / ≤0.7 dB | ≤0.5 / ≤0.7 dB |
| Return loss | Min. 50 dB | Min. 30 dB |
| Item | Single mode | Multi mode |
|---|---|---|
| Operating wavelength | 1310 nm ~ 1550 nm | 850 nm ~ 1300 nm |
| Test wavelength | 1310 nm & 1550 nm | 850 nm & 1300 nm |
| Item | Parameter |
|---|---|
| Durability | 200 cycles |
| Operating temperature | -20 to +70 °C |
| Storage temperature | -40 to +85 °C |
| Installation temperature | -20 to +70 °C |
| Waterproofing grade | IP67 |
| Cable diameter range | 4.8 mm ~ 7.0 mm |
| Standards | Comply to GR-1320, IEC 61753-1, IEC 61754-4 |
Assembly
| Item | SM-UPC | SM-APC | MM-UPC |
|---|---|---|---|
| Insertion loss | Max. 0.3 dB + 0.35 dB/km × L | Max. 0.3 dB + 0.35 dB/km × L | Max. 0.3 dB + 3.0 dB/km × L |
| Return loss | Min. 50 dB | Min. 60 dB | Min. 30 dB |
Features
- IP67 waterproof, dust proof, bird proof and rodent resistant
- Metal housing provides improved EMI protection
- Available with singlemode or multimode fiber
- Flange, jam-nut, or in-line type receptacle assemblies
- RoHS compliant
Applications
- Multi-purpose outdoor
- Connection between distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
- Harsh environment
Related products

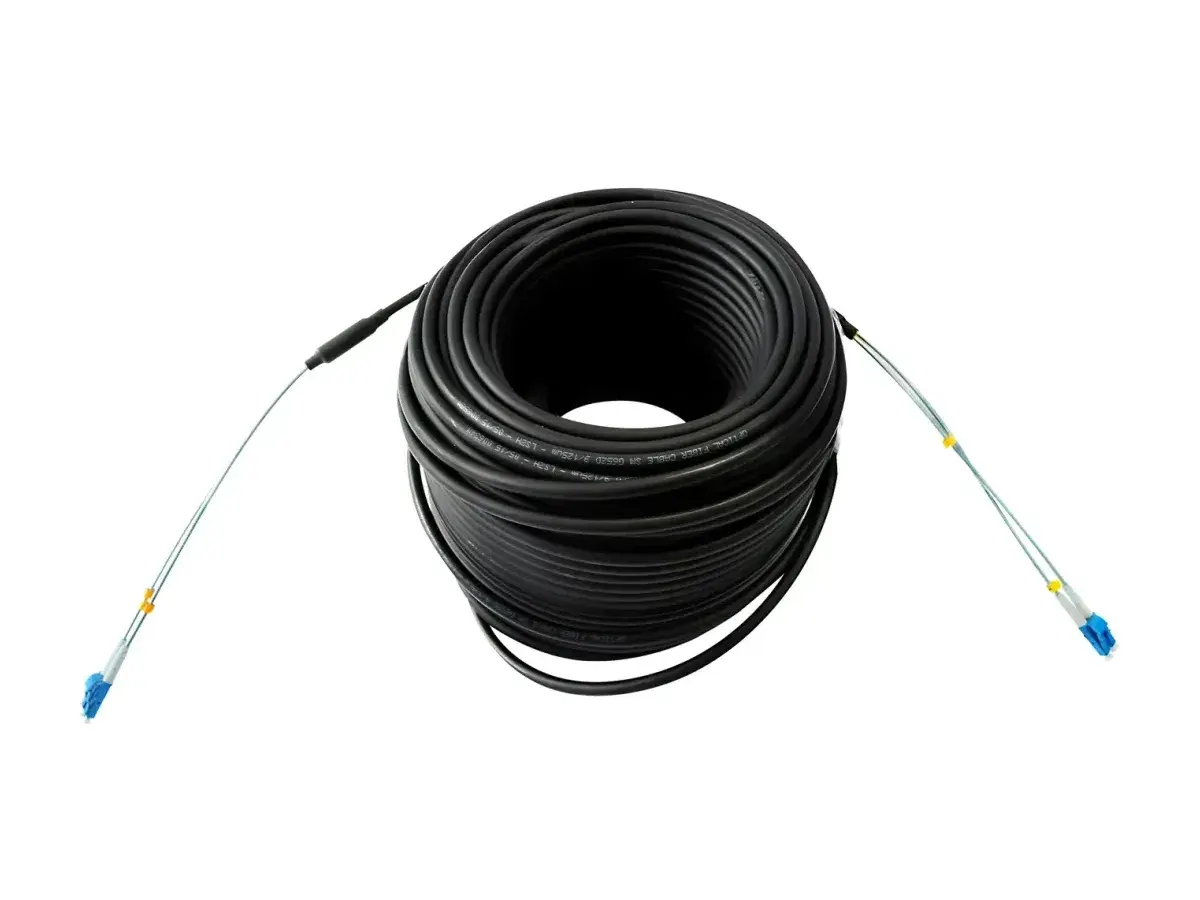

CPRI LC Outdoor Waterproof Connector
Outdoor LC connector to IEC 61754-20 for BBU-to-RRH jumpers — add or expand fibre links without reopening the radio.
View details

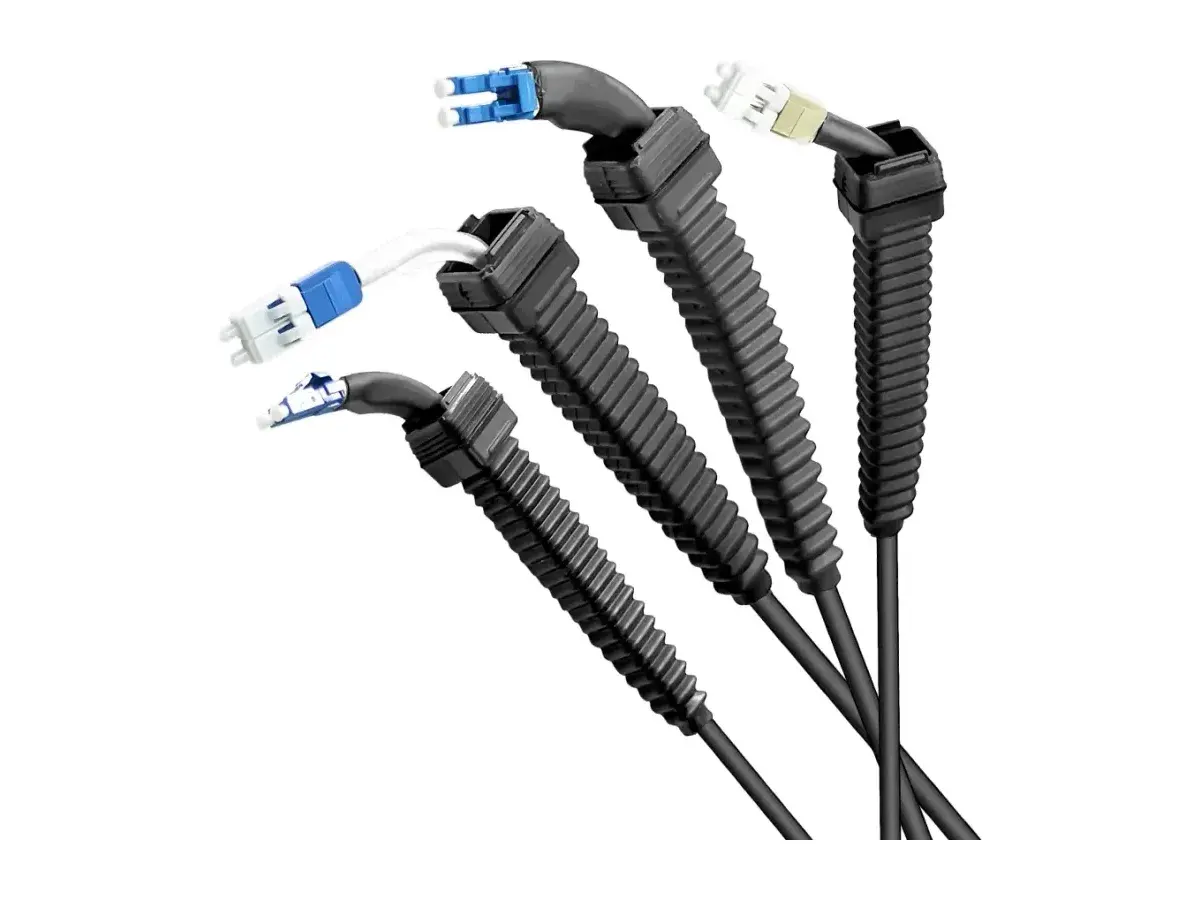

NSN Boot Duplex LC Outdoor Connector
IP67 NSN-style duplex LC assembly for 1–3 fibre-pair RRH runs — armored or non-armored, UV-resistant sheath.
View details
FULLX (LC) Outdoor Waterproof Connector
IP68 LC connector with an open bulkhead — swap the SFP transceiver without opening the RRH; floating Z-axis plug.
View details

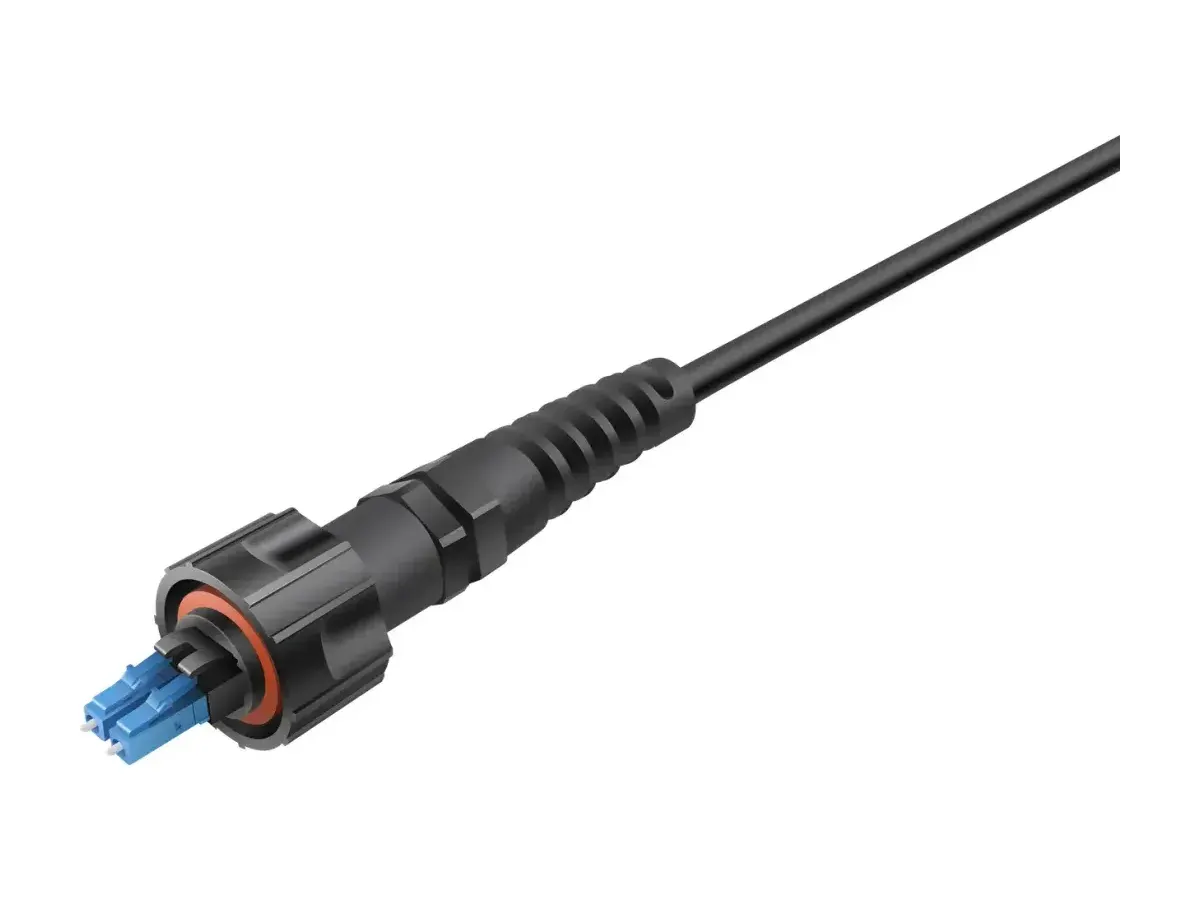

ODVA Connector (SC, LC, MPO)
