HM Outdoor Cable Assemblies
HM Hardened Multicore Waterproof Connector Assembly adopts field‑proven MTP® multi‑fiber connector technology with hardened sealed outdoor housing, supporting up to 24 fibers for one‑time mating. HM connector is compatible with OptiTap connector.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

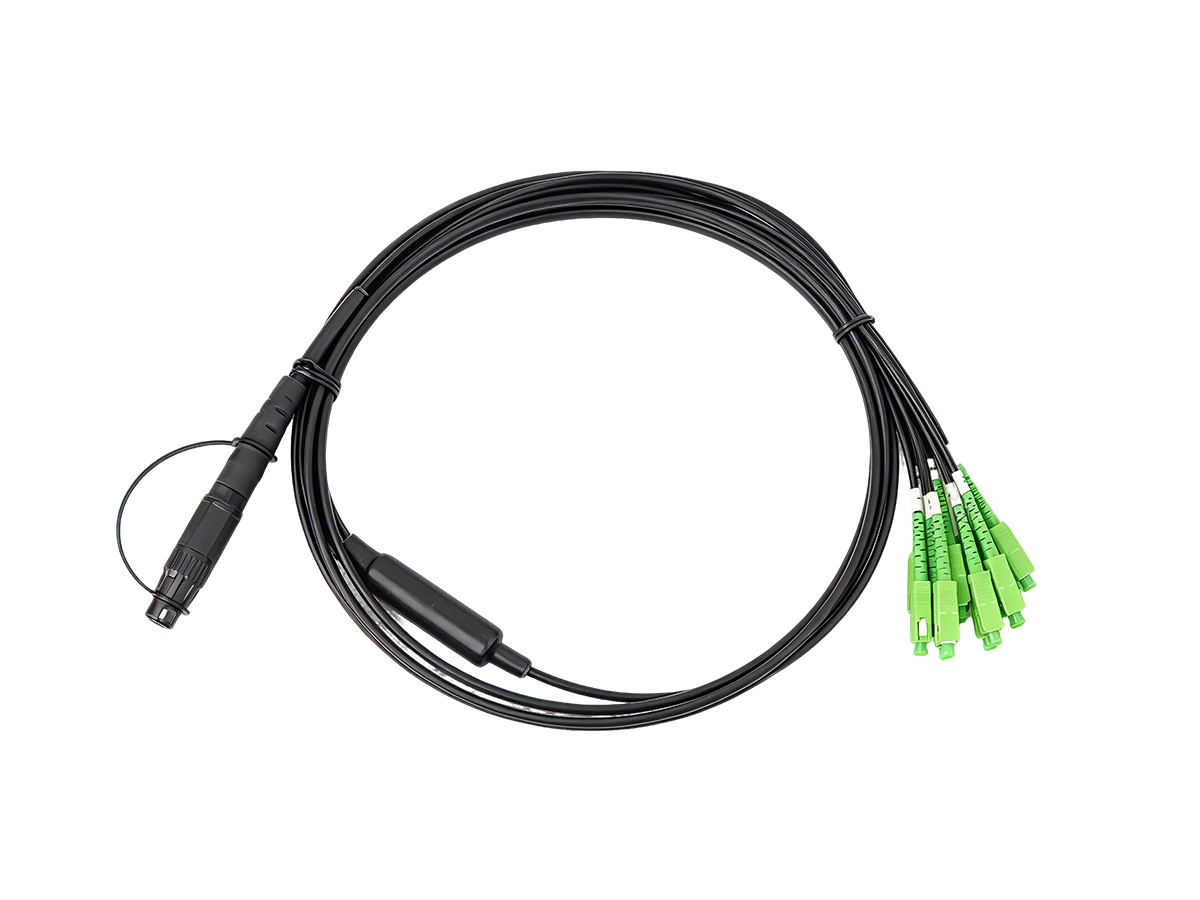

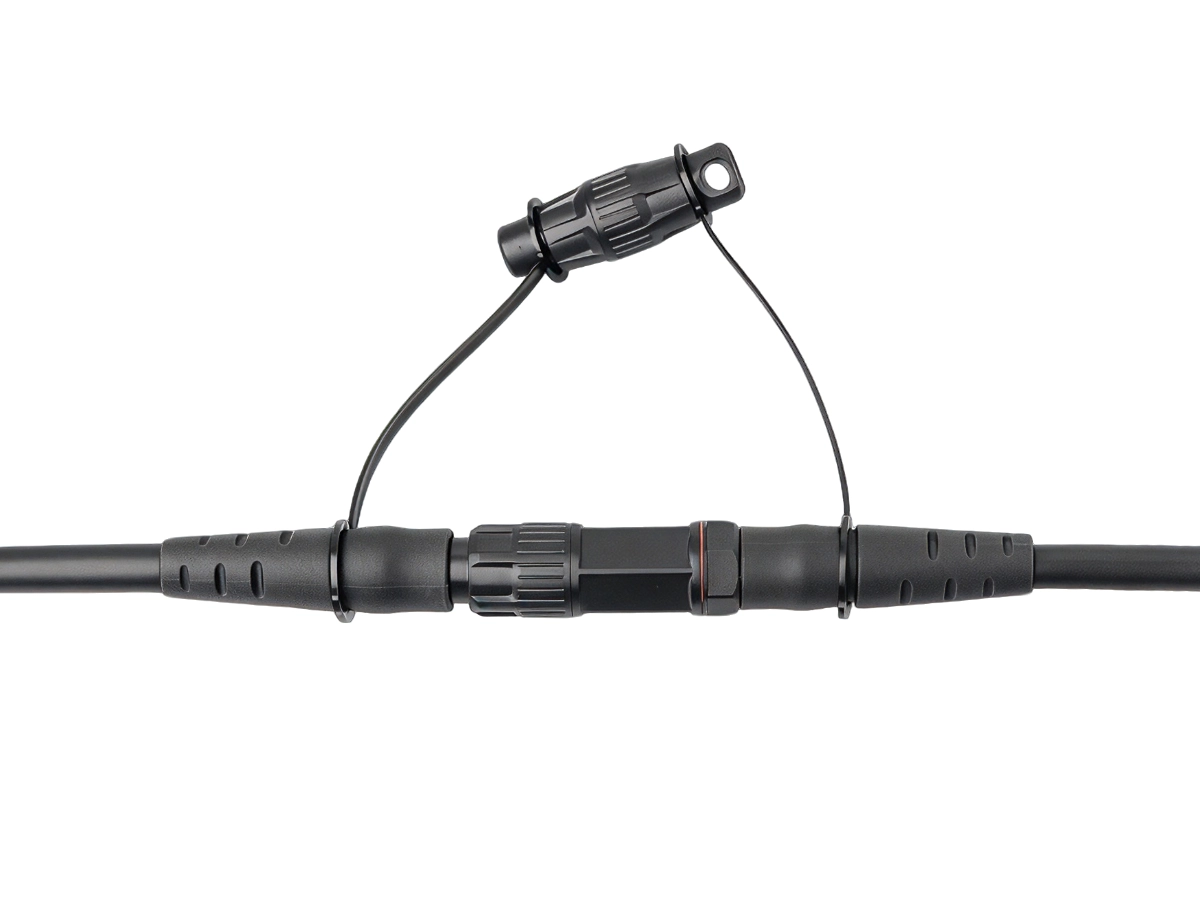

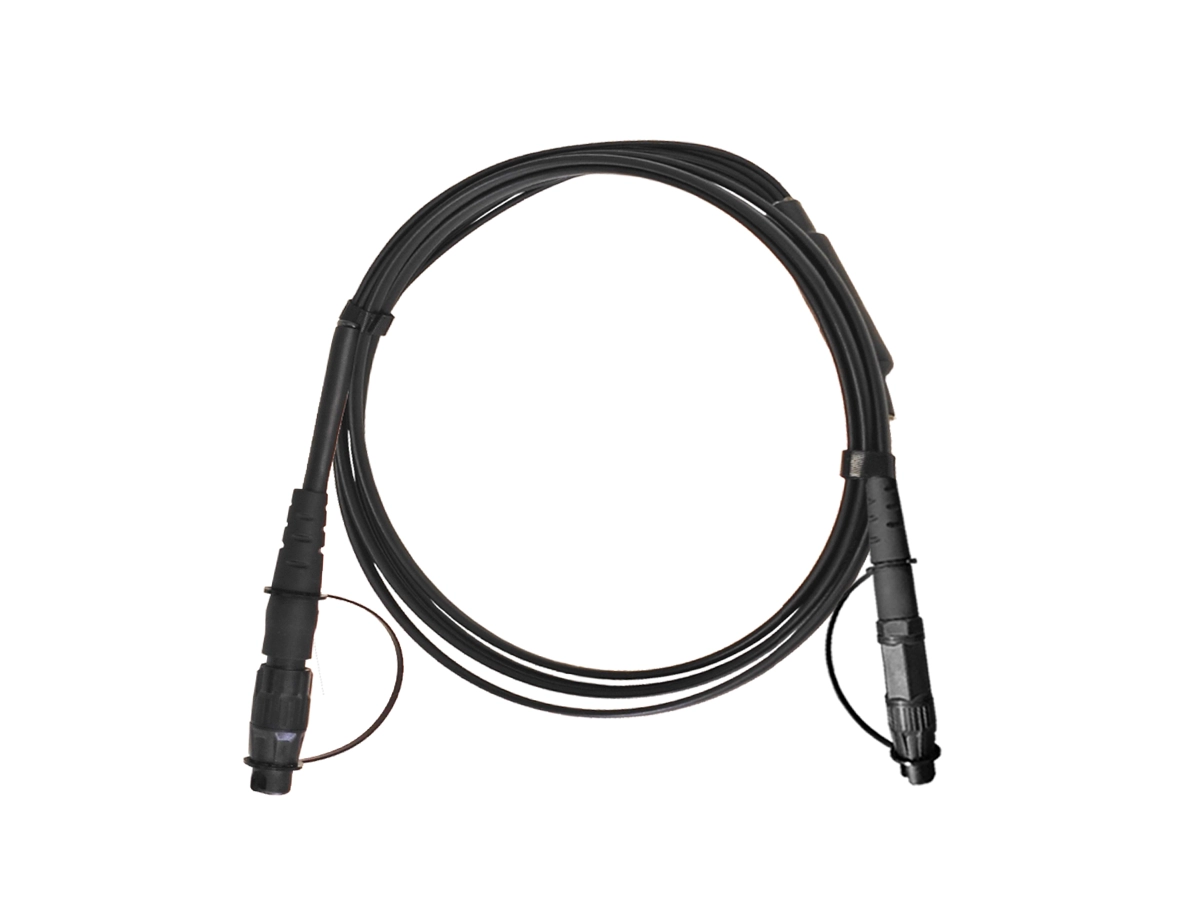

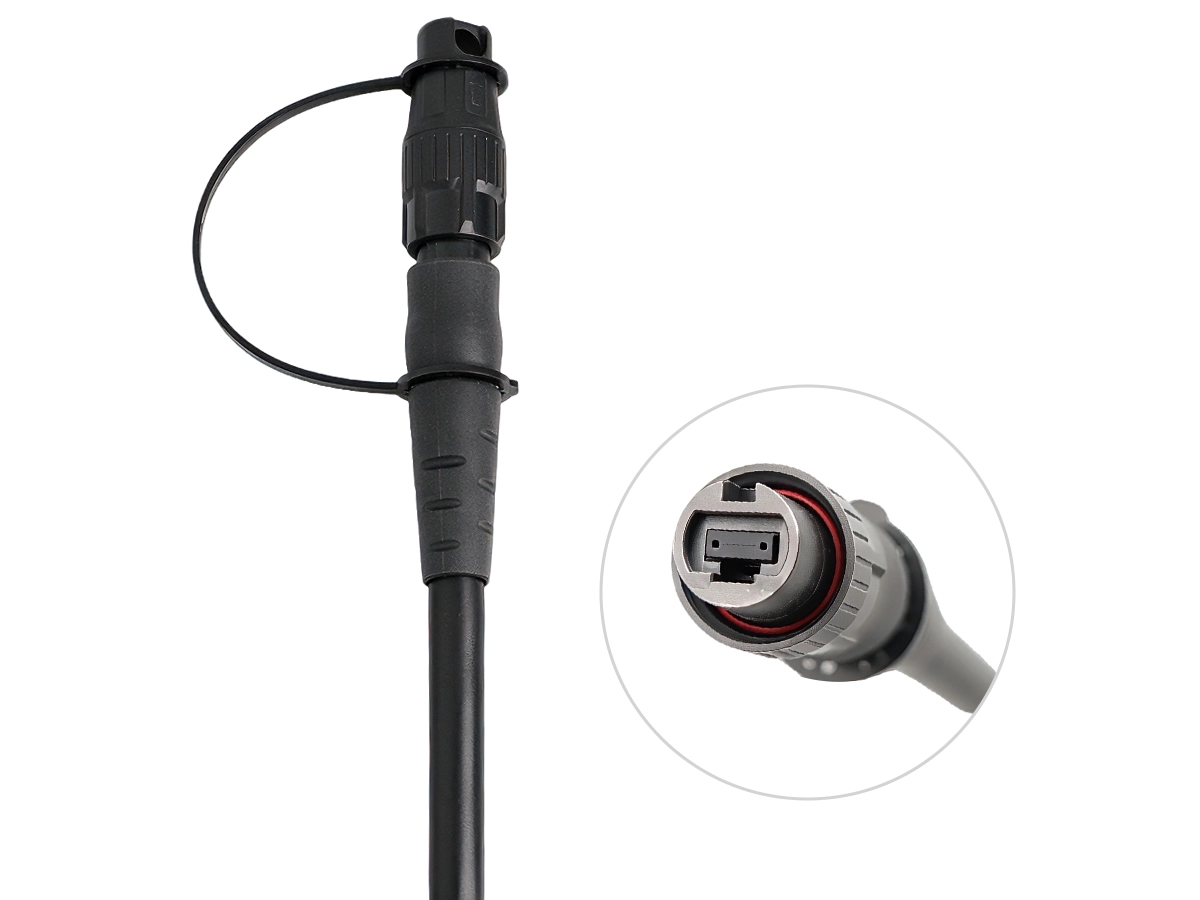

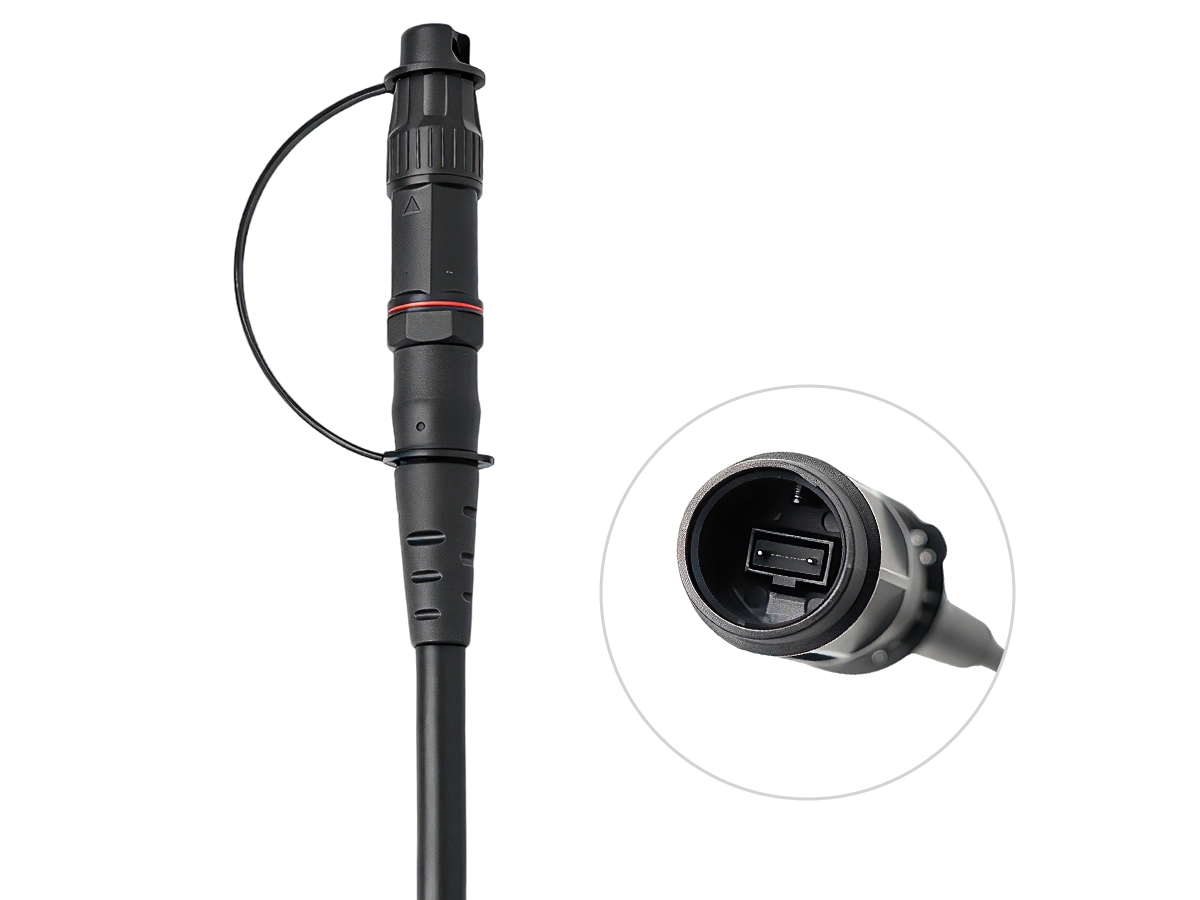

HM Hardened Multicore Waterproof Connector Assembly adopts field‑proven MTP® multi‑fiber connector technology with hardened sealed outdoor housing, HM connector is compatible with OptiTap connector. supporting up to 24 fibers for one‑time mating. It consists of male (pinned) and female (non‑pinned) connectors with one‑step quick connection by push‑pull insertion plus nut‑style mechanical latch. Factory‑terminated and fully optically‑tested, available in armored or non‑armored cable versions with IP68 high‑grade waterproof performance. It delivers cost‑effective & high‑efficiency fiber‑optic deployment for outside‑plant distribution networks.
Technical Specifications
Item | Parameter |
|---|---|
Insertion loss | Elite≤0.35dB , Standard≤0.65 dB |
Return loss | Min. 60 dB |
Durability | 1000 cycles |
Operating Temperature | -40 ℃ ~ +70 ℃ |
Storage Temperature | -40 ℃ ~ +70 ℃ |
Installation Temperature | -40 ℃ ~ +70 ℃ |
Waterproofing grade | IP68 (1M,1hour) |
Tensile Strength | 100 lb when factory installed on SST-Drop™ or FREEDM® Flat-Drop Cable |
Cable diameter range | Ø 3.0mm - Ø 7.0 mm; Butterfly;4×7mm flat |
Housing material | PPS |
Boot material | TPV |
Parameter | Standards | |
Connector | Comply to GR-3120 , GR-3152 , IEC61753-1, IEC61754-4 | |
Pull | FRP (Pull≥150N) | IEC 61300-2-4 |
Steel wire (Pull≥250N) | ||
Kevlar (Pull≥150N) | ||
Vibration | IEC 61300-2-1 | |
Impact | IEC 61300-2-12 | |
Temperature |
| IEC 61300-2-22 |
Damp heat |
| IEC 61300-2-19 |
Features
Multi-core quick mating: A single connector supports up to 24 fibers for simultaneous mating, greatly cutting field construction time and delivering higher efficiency than traditional on-site fusion splicing.
IP68 waterproof protection: Rated IP68, suitable for harsh outdoor conditions including rain, standing water and humid environments.
Flexible compatibility: HM connector is compatible with OptiTap connector.
Reliable optical performance: Factory pre-terminated and tested before delivery to ensure stable optical performance.
Easy operation, reliable installation and cost-effective: Push-pull insertion plus nut mechanical locking design. The male and female ends can be rapidly locked to realize waterproof through or terminal connection.
Robust housing material: Housing made of PPS and strain relief boot of TPV, featuring anti-aging and weather resistance. Compatible with various cable specifications, supporting armored and non-armored optical cables.
Standards compliance: Complies with industry standards including GR‑3120, GR‑3152, IEC61753‑1 and IEC61754‑4. Passed full environmental tests such as vibration, shock, temperature cycling and damp heat.
Applications
1. Interconnection for Remote Radio Units (RRU/RRH) of wireless base stations
2. FTTA base‑station fiber remote deployment & FTTH outdoor fiber‑to‑the‑home wiring
3. Outdoor communication equipment & field communication sites
4. Outside‑plant distribution networks, outdoor cable splicing & termination points
5. Outdoor optical communication link deployment under harsh environmental conditions
