MPO/MTP Data Center Cabling
DYS data center cabling delivers the density and signal integrity that 400G and 800G fabrics demand. The portfolio spans the MPO/MTP series — trunks, fanouts, harnesses, cassettes, patch panels and loopbacks — plus MT assembly, pre-terminated cable, LC Uniboot, MMC and SN-MT assemblies. Every assembly is 100% insertion-loss and return-loss tested with traceable data, produced at up to 50,000 terminations per day under a TL 9000 quality system.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
13 Products in this range

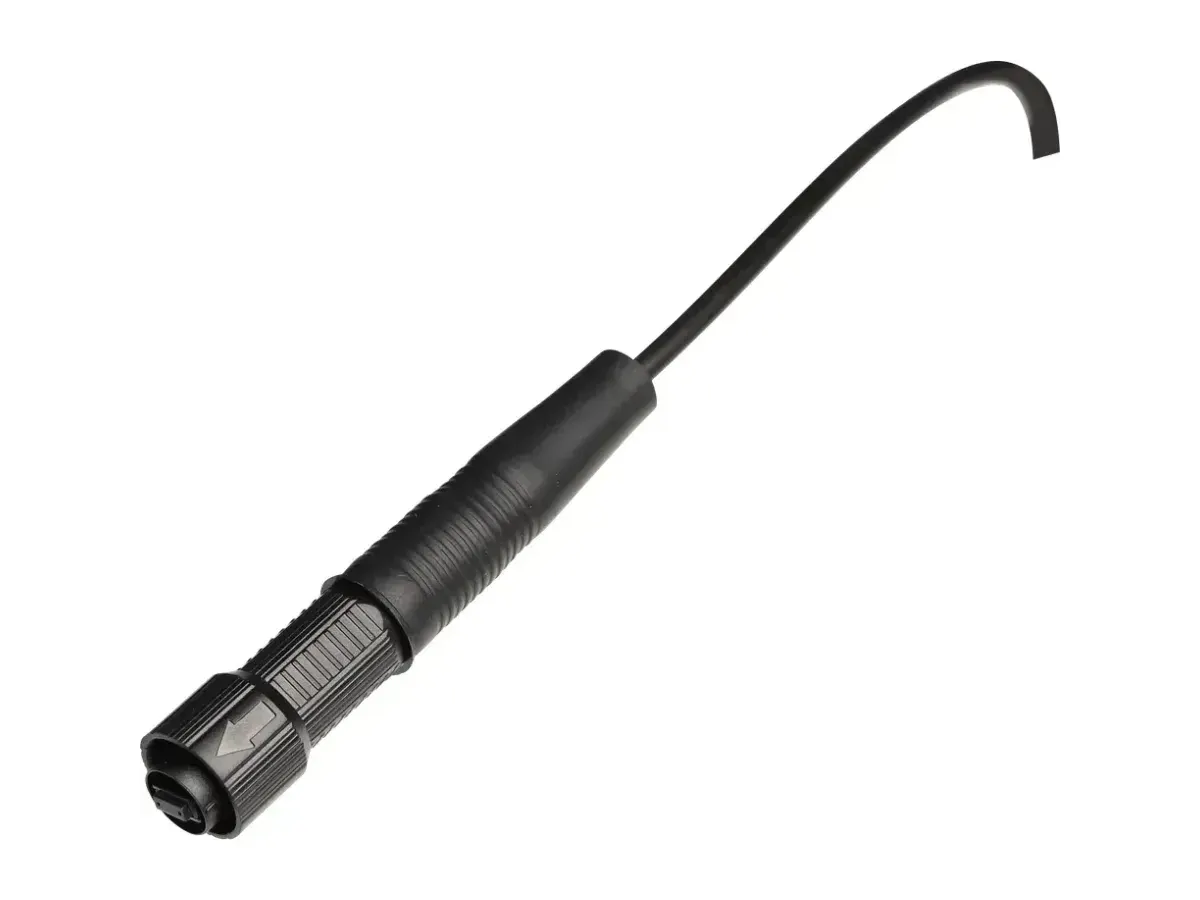

IP-Series MPO/MTP Assemblies
The IP-Series provides standard or low-loss MPO/MTP interfaces protected by a housing that fulfills IP67 environmental sealing, with a bayonet locking design rated to IP68.
View details
LC Uniboot
The LC Uniboot uses a single housing for a duplex connection together with a unique push-pull design and function, making it easy to assemble and use.
View details
MMC Cable Assemblies
The MMC fiber cable is equipped with an MMC connector, a Very Small Form Factor (VSFF) multi-fiber optical connector designed to terminate…
View details

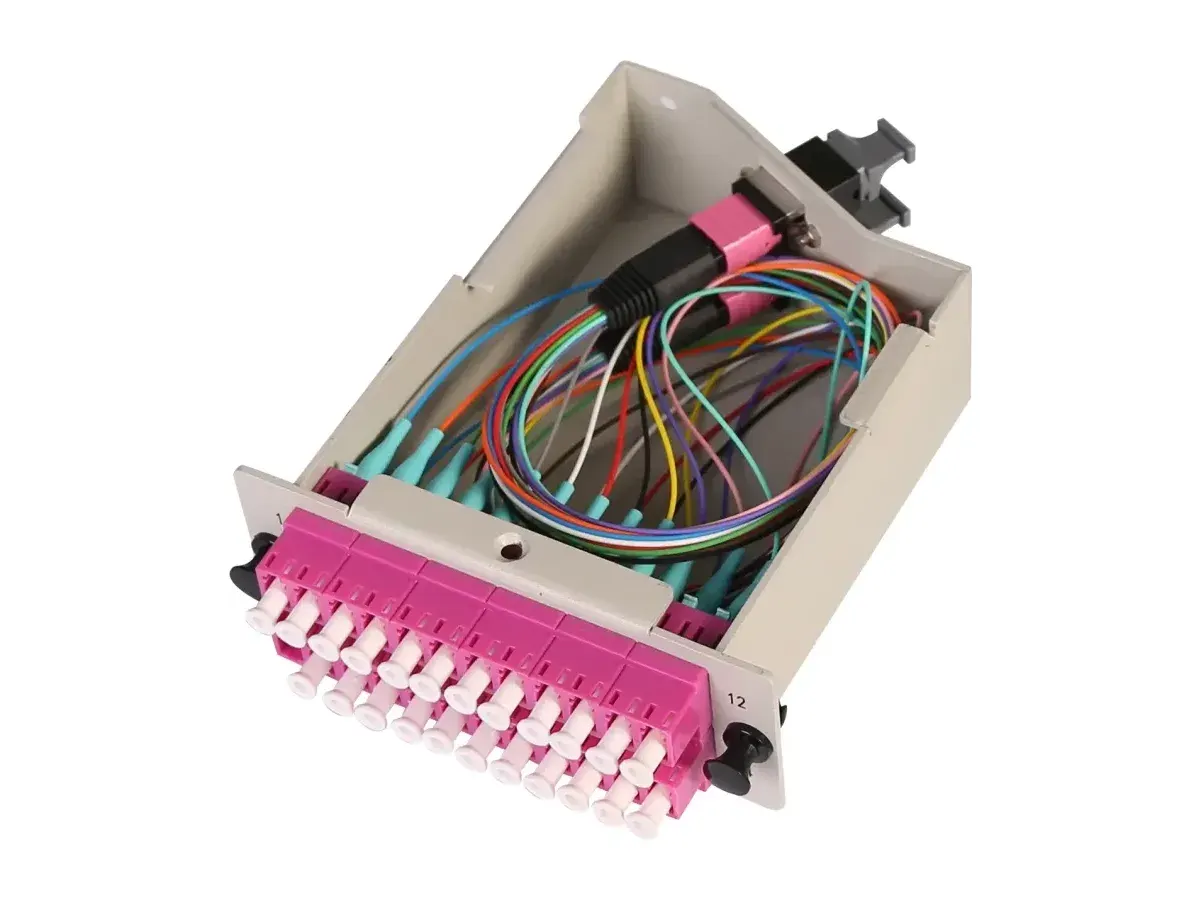

MPO/MTP Cassettes
The MPO/MTP cassette is capable of accepting 6–24 fibers and is suitable for use with single-mode, multimode 62.5 and 50µm, as well as laser-optimized OM3 applications.
View details

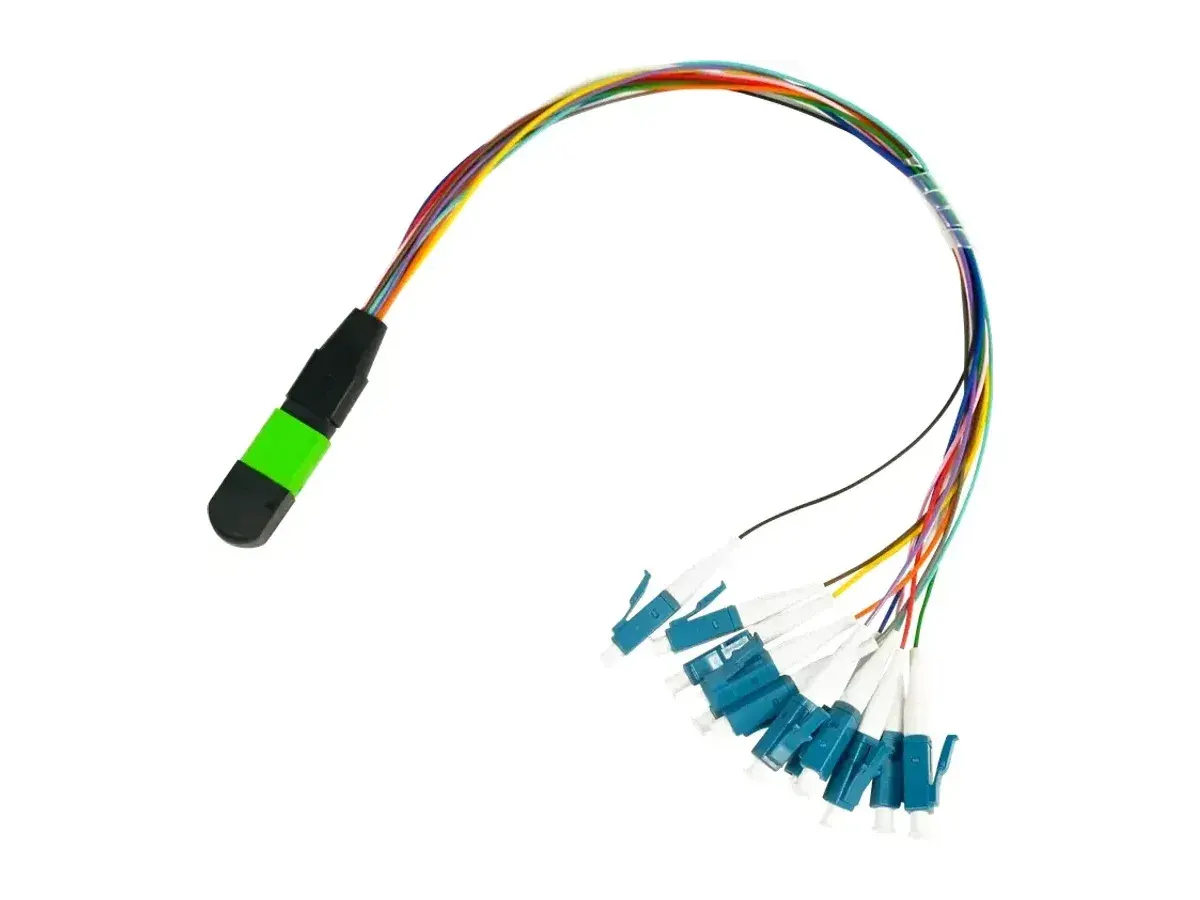

MPO/MTP Fan-out 0.9mm Patch Cord
The fan-out design is engineered for both low-loss and standard-loss SM and MM applications.
View details

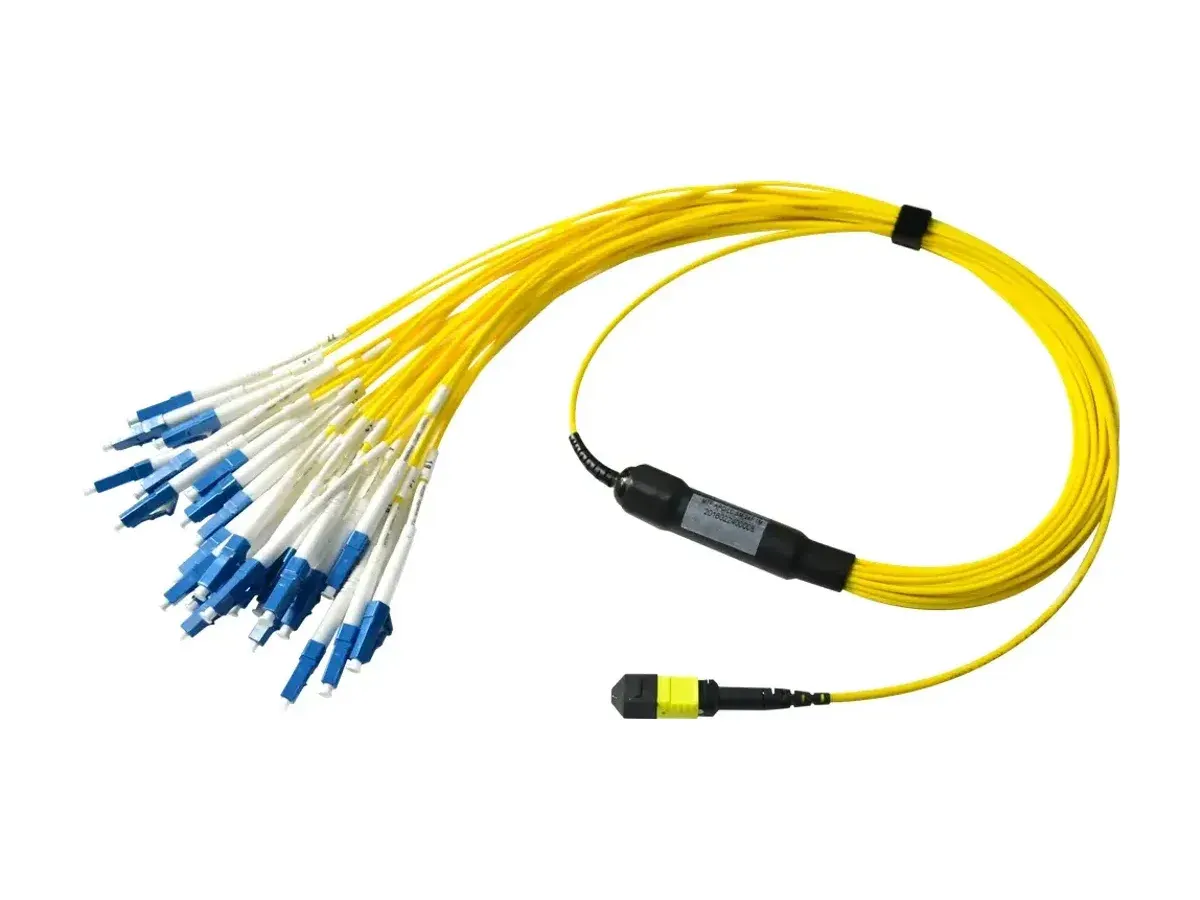

MPO/MTP Harnesses Cable
These harness cables are 100% pre-terminated and factory-tested to guarantee transfer performance, enabling rapid configuration and reduced installation time.
View details
MPO/MTP Loopback
These loopbacks are offered in a wide variety of wiring configurations and fiber types, and all units meet TIA/EIA and IEC intermateability standards.
View details

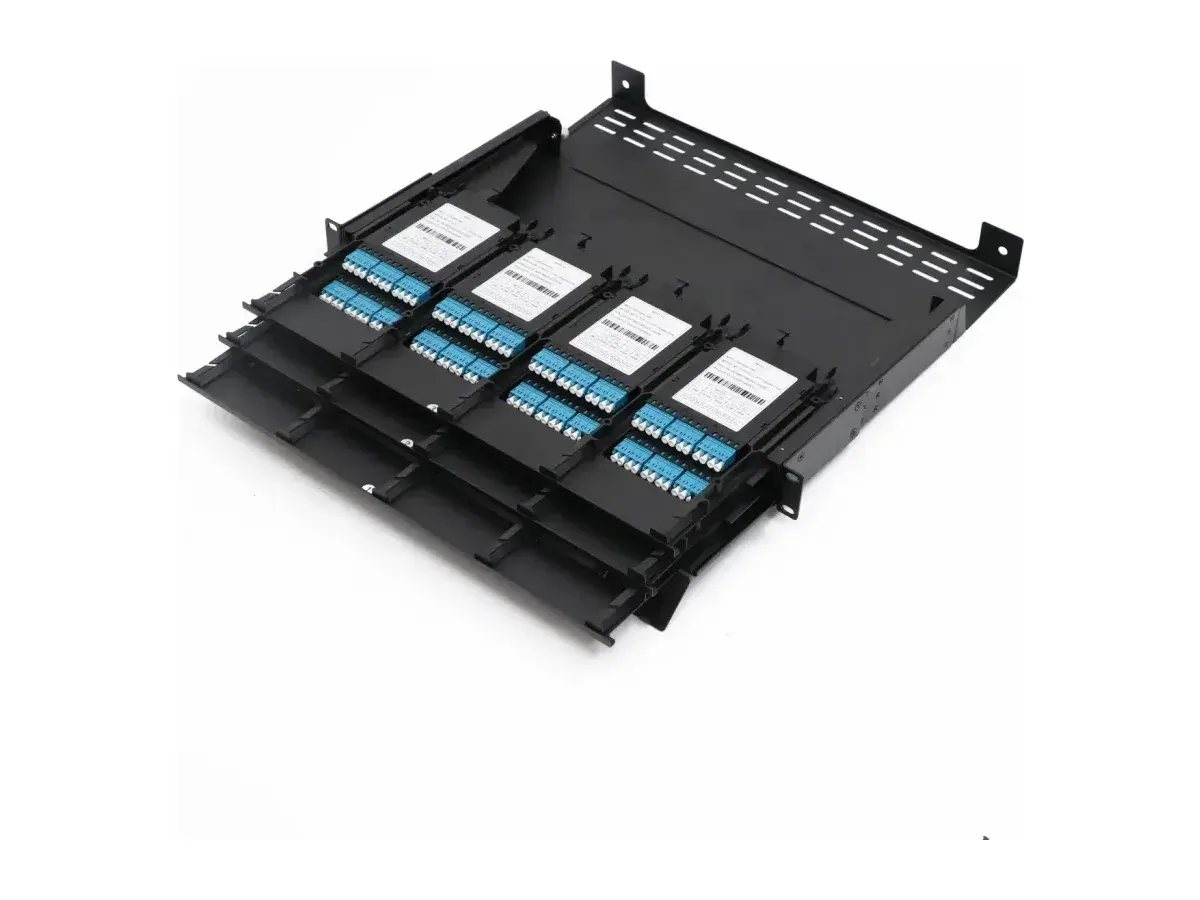

MPO/MTP Patch Panel
DYS's HD Series patch panels offer an extra slot that accepts up to four adapter panels or MPO cassettes in the 1RU footprint, achieved by staggering the mounting ears.
View details

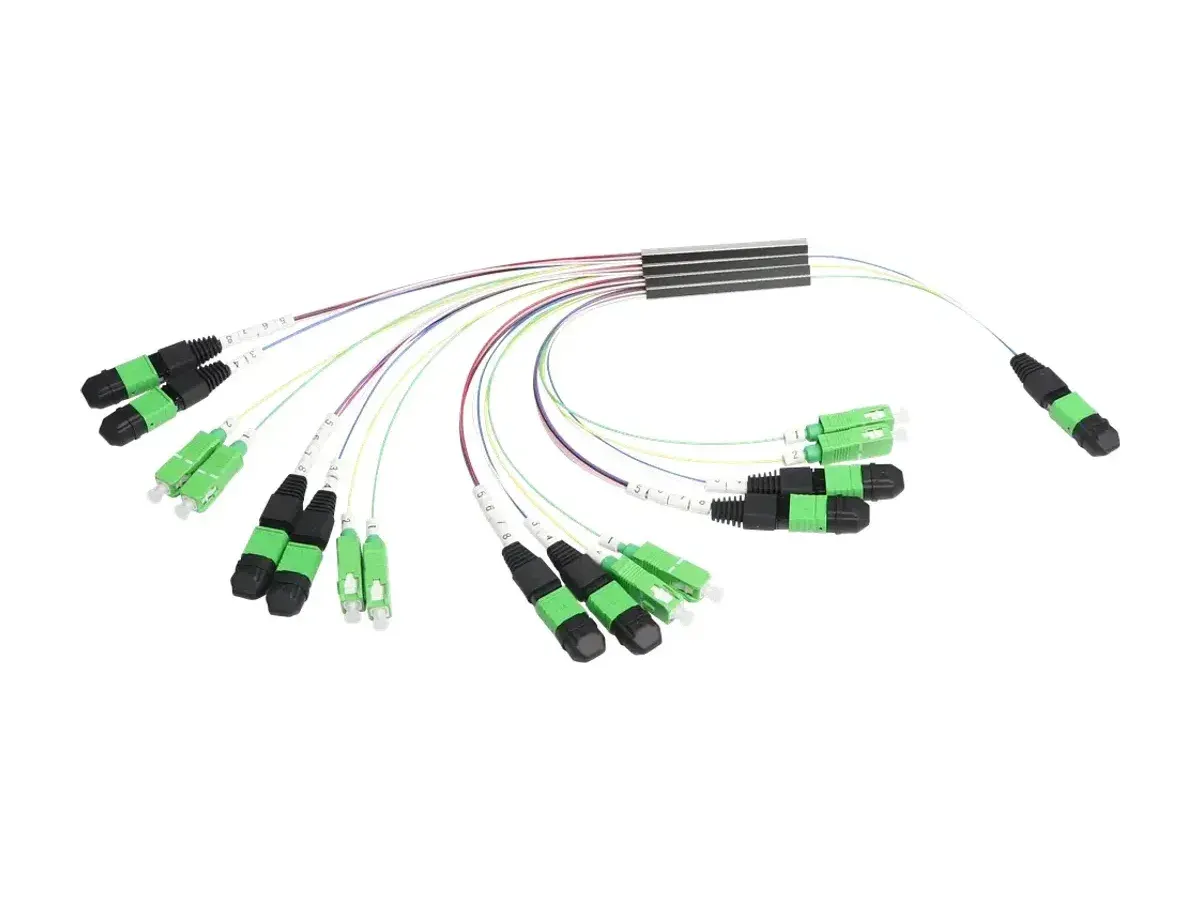

MPO/MTP Type PLC Splitter
These PLC splitters combine high-density, plug-and-play fiber optic interconnects with pre-terminated cable assemblies that eliminate field…
View details

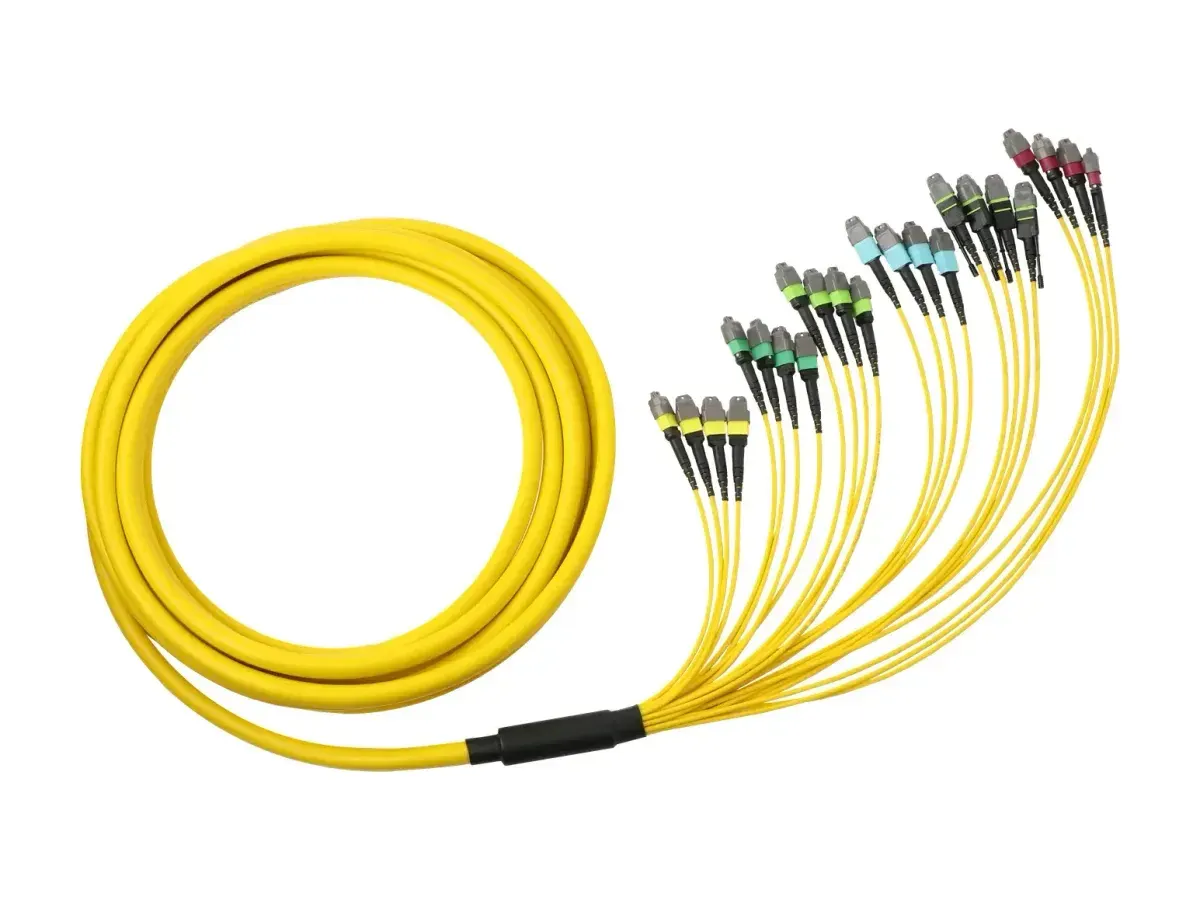

MPO/MTP Trunk Cable
These MPO/MTP trunk cables are 100% pre-terminated and factory-tested to guarantee transfer performance, enabling rapid configuration and reduced installation time.
View details
MT Assembly
The MT assembly family covers passive optical interconnect components built on the MT ferrule for QSFP, SFP+ active optical cables, parallel optical…
View details

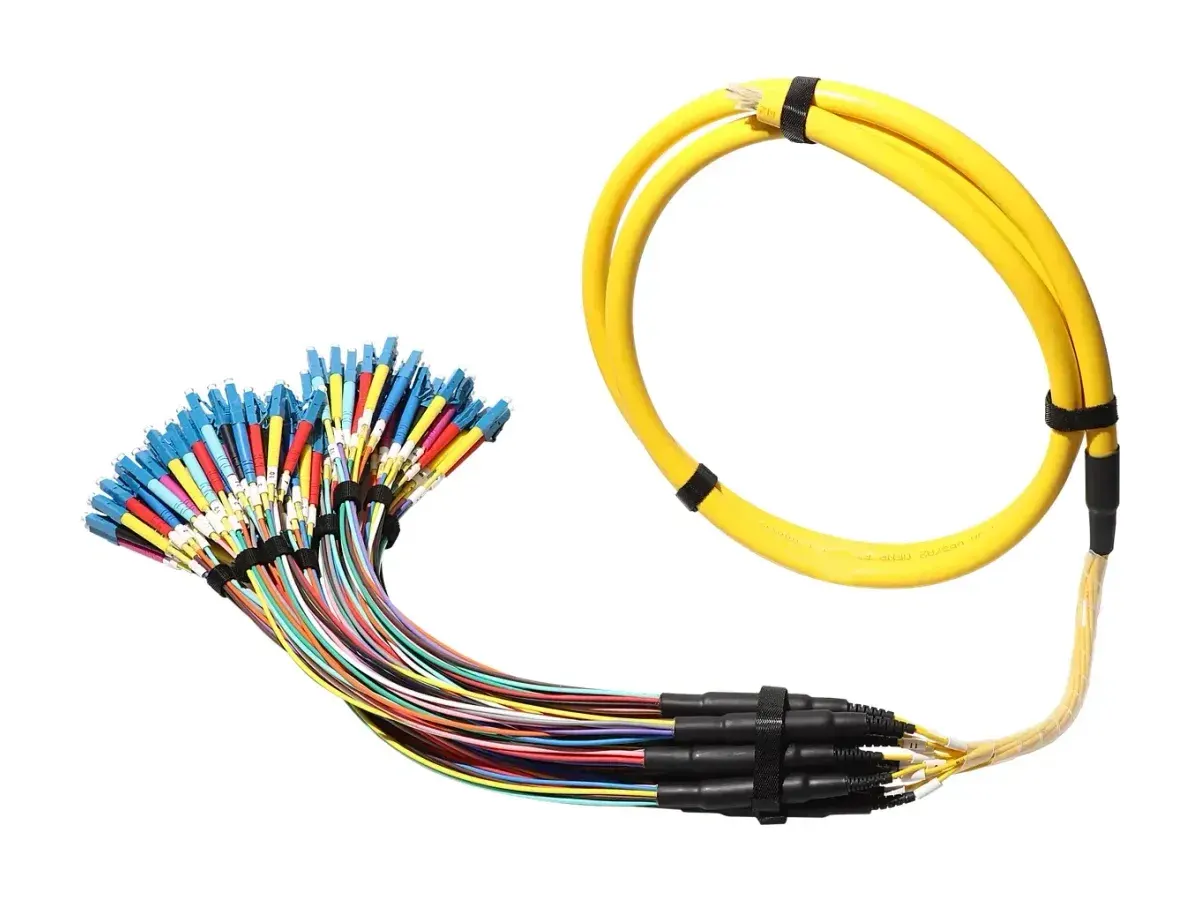

Pre-terminated Cable
DYS has long provided high-quality pre-terminated cables for indoor and/or outdoor applications, with fanout numbers ranging from 12 to 144.
View details
SN-MT Assembly
The SN-MT connector is a popular fiber optic connector used across data centers, telecommunications, and optical networking.
View detailsApplications
Where MPO/MTP assemblies are used
- 40G / 100G spine-and-leaf — MPO/MTP trunks carry parallel-optic channels between switch tiers.
- High-density backbone — 12–144-fiber pre-terminated trunks replace field splicing between patch panels.
- Equipment breakout — harnesses and fan-outs split an MPO trunk down to duplex LC / SC ports.
- Ruggedized / outdoor links — IP67/68 IP-Series assemblies extend MPO connectivity outside the white space.
Choosing the right product
Spec an MPO/MTP link in three steps:
- Fiber count → 12F for a single 40/100G breakout; 24F / 48F for higher-density parallel channels.
- Loss grade → Standard for short structured links; Elite (low-loss) for long channels or when many connectors stack up in one path.
- Fiber type → OM4 multimode for in-row reach, OS2 single-mode for building or campus spans; add IP-Series ruggedized housings for outdoor runs.
How to choose
DYS pre-terminated MPO/MTP assemblies come in four forms, all built to GR-326 / GR-1435 and available in OM3, OM4 or single-mode:
Product | Terminations | Use |
|---|---|---|
Trunk cable | MPO ↔ MPO | Panel-to-panel backbone, 12–144F |
Harness | MPO → LC / SC | Breakout to duplex equipment |
Fan-out (0.9 mm) | MPO → 0.9 mm legs | Patch-field breakout |
IP-Series | Ruggedized MPO (IP67/68) | Outdoor / industrial links |
Insertion loss comes in two grades — specify Elite (low-loss) where a channel stacks many mated pairs or a high split ratio:
Grade | SM 12F/APC insertion loss | Return loss |
|---|---|---|
Standard | ≤0.70 dB | ≥60 dB |
Elite | ≤0.35 dB | ≥60 dB |
Frequently Asked Questions
Common questions about mpo/mtp data center cabling — specs, options, and ordering.
