Outdoor Fiber Optic Cable
DYS outdoor fiber optic cables are built for harsh-environment routes — direct burial, aerial, duct and self-supporting. The range spans steel-armored and all-dielectric ADSS designs in GYTA53, GYTS, GYXTW and figure-8 constructions, from 2 to 288 cores. Every cable is engineered for moisture, crush, rodent and UV resistance over a 20-year-plus outdoor service life, and ships factory-direct with full test data.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
8 Products in this range
GYDXTW Outdoor Cable
GYDXTW is an Aerial or Duct use fiber optic cable. We supply GYDXTW cable from 2 cores to 144 cores with both single mode and multi mode types.
View details

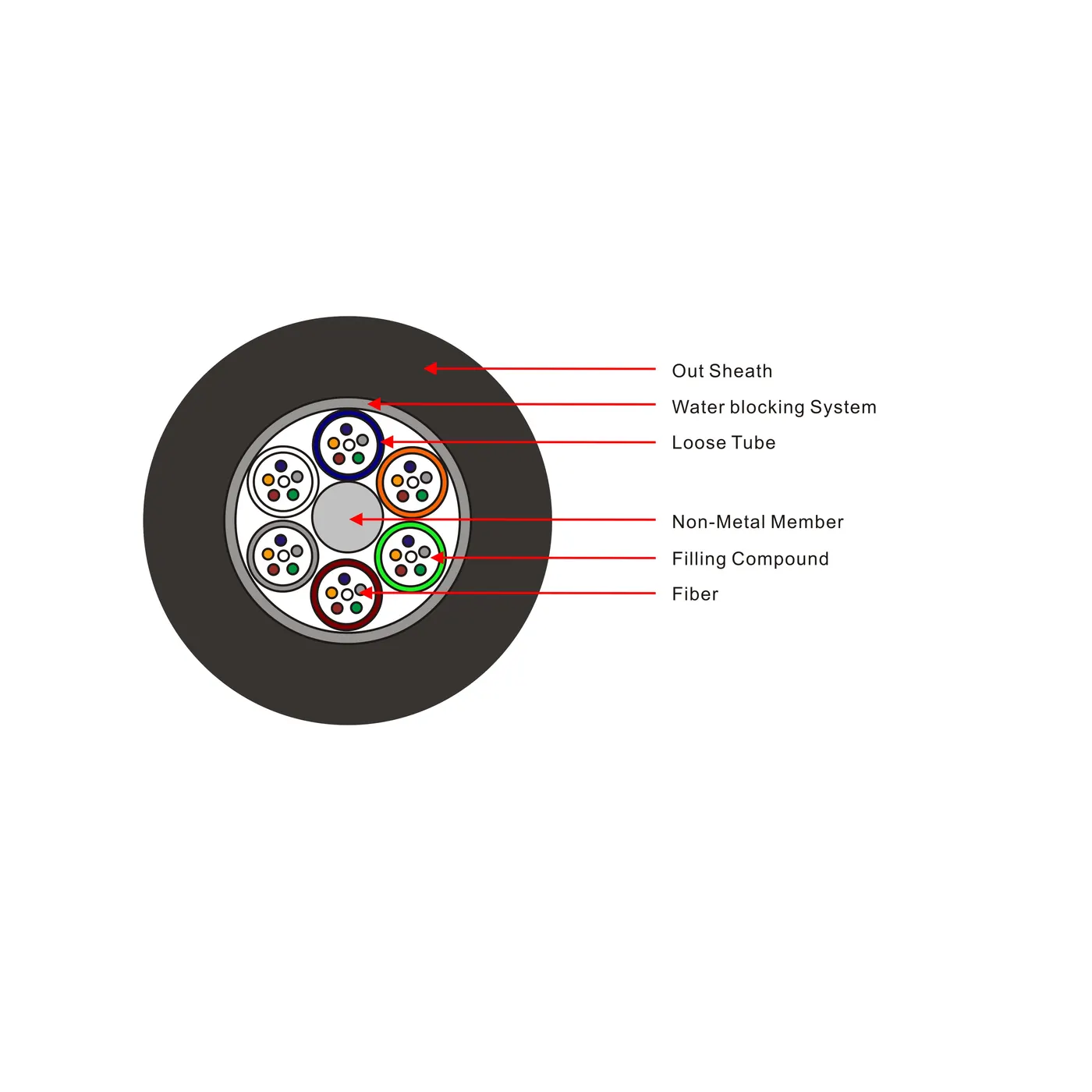

GYFTY Outdoor Cable
GYFTY fiber optic cable is a non-metallic cable used for power transmission system, excessive thunder areas and high electromagnetic interface.
View details
GYFTY53 Outdoor Cable
GYFTY53 fiber optic cable is Stranded Loose Tube Non-metallic Strength Member Water-blocking Armored Cable designed for direct-buried installation,…
View details
GYTA53 Outdoor Cable
GYTA53 Outdoor Cable used for Double-jacket structure provide the cable nice properties of moisture resistance and crush resistance.
View details

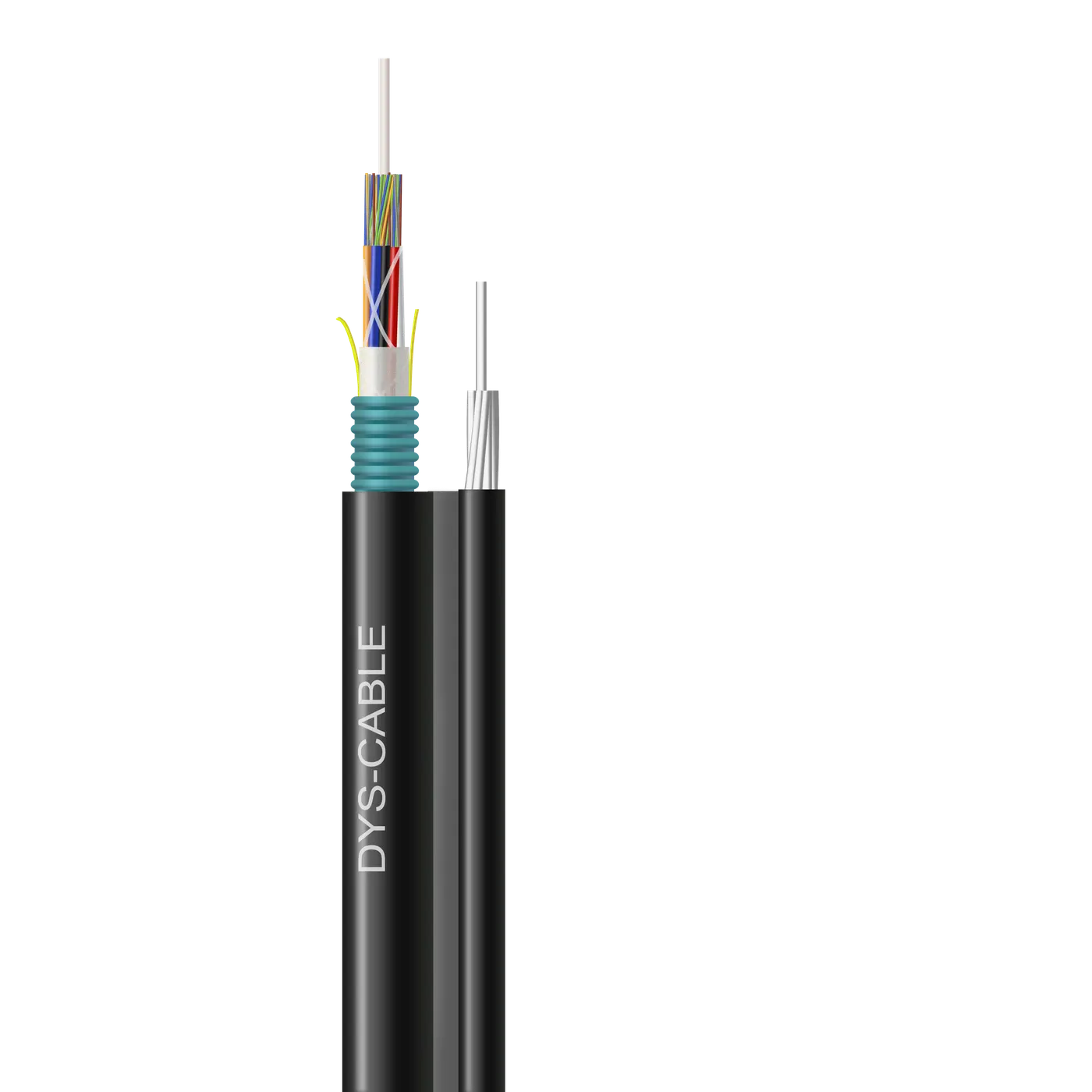

GYTC8S Outdoor Cable
GYTC8S is a typical outdoor use fiber optic cable for aerial applications. GYTC8S is also called the figure 8 cable because of its structure looks like the figure 8.
View details

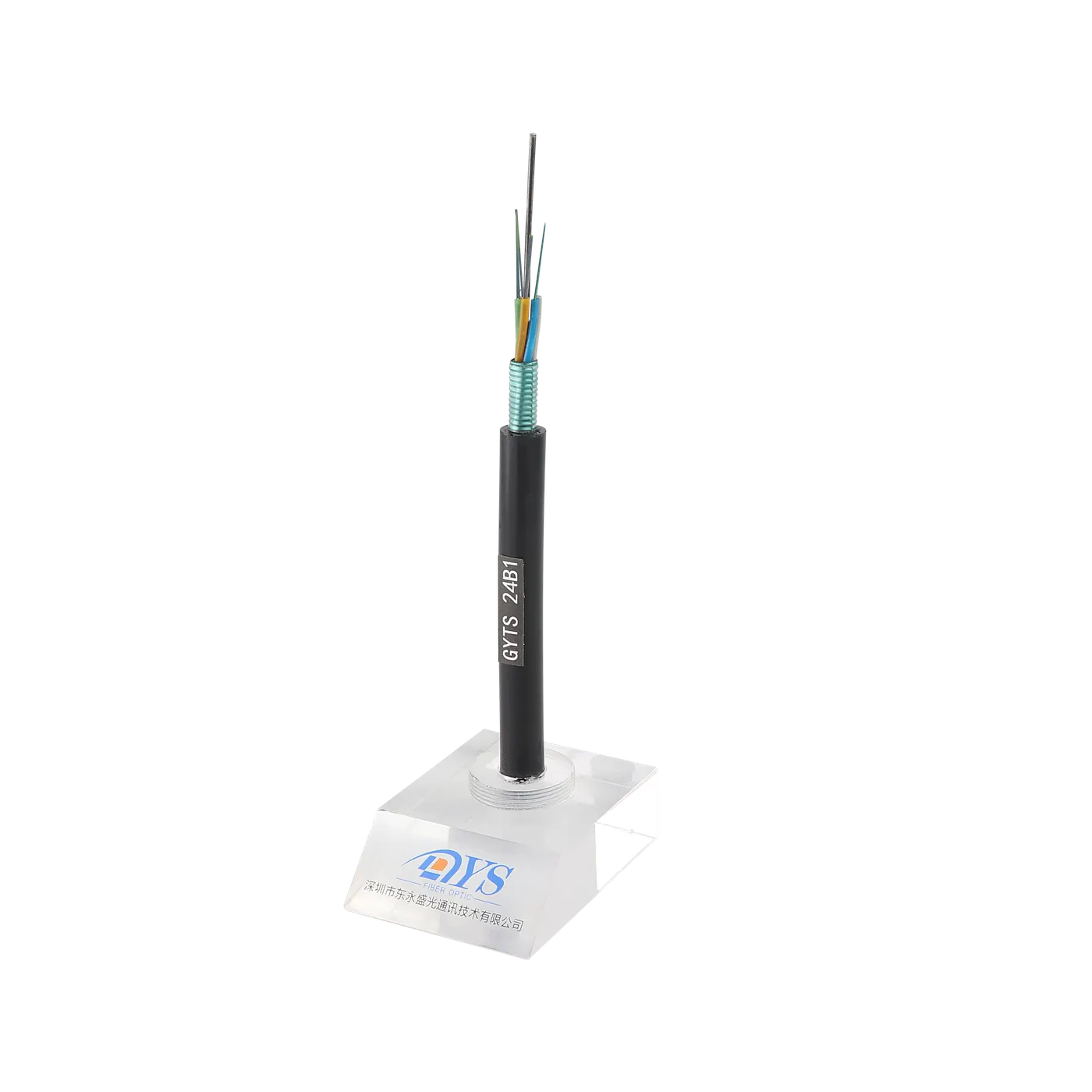

GYTS Outdoor Cable
GYTS is the outdoor fiber optic cable type used for duct and aerial applications.
View details
GYXTC8S Outdoor Cable
GYXTC8S fiber optic cable is a figure 8 structure cable suitable for installation in aerial environment for long haul communications.
View details
GYXTS Outdoor Cable
GYXTS cable structure is to insert a single or multimode fiber loose tube, made of high modulus plastic it external wire winding layers of…
View detailsApplications
- Long-haul backbone and metro networks
- Aerial pole-to-pole runs
- Direct-buried trunk routes
- Underground duct and pipeline installations
Choosing the right product
Requirement | Recommended series |
|---|---|
Direct buried, rodent risk | GYTA53, GYFTY53 |
Aerial with messenger | GYTC8S (figure-8), GYXTC8S |
All-dielectric (no metal) for EMI-sensitive routes | GYFTY, GYFTY53 |
Duct, light-duty | GYDXTW, GYXTS |
Standard duct / buried (metallic OK) | GYTS, GYXTS |
How to choose
All DYS outdoor cables run −40 to +70 °C, bend to 20× OD (dynamic) / 15× OD (static) and ship on 2–3 km reels. They differ by how they are installed and armored:
Model | Best for | Construction | OD (mm) | Tensile short / long (N) |
|---|---|---|---|---|
GYXTC8S | Aerial self-support (figure-8) | MDPE jacket, integrated messenger | 7.0 × 13.5 | 4800 / 2500 |
GYTS | Duct & aerial | Corrugated steel-tape armor, PE sheath | 10.5–15.8 | 1500 / 600 |
GYTA53 | Direct burial & duct | Double steel armor, rodent-resistant | 14.5–22.5 | 3000 / 1000 |
GYFTY | Aerial & duct near power lines | All-dielectric (FRP), anti-EMI | 8.4–15.0 | 1500 / 600 |
Not sure which outdoor cable fits your route? Get a 24-hour quote →
