GYTC8S Outdoor Cable

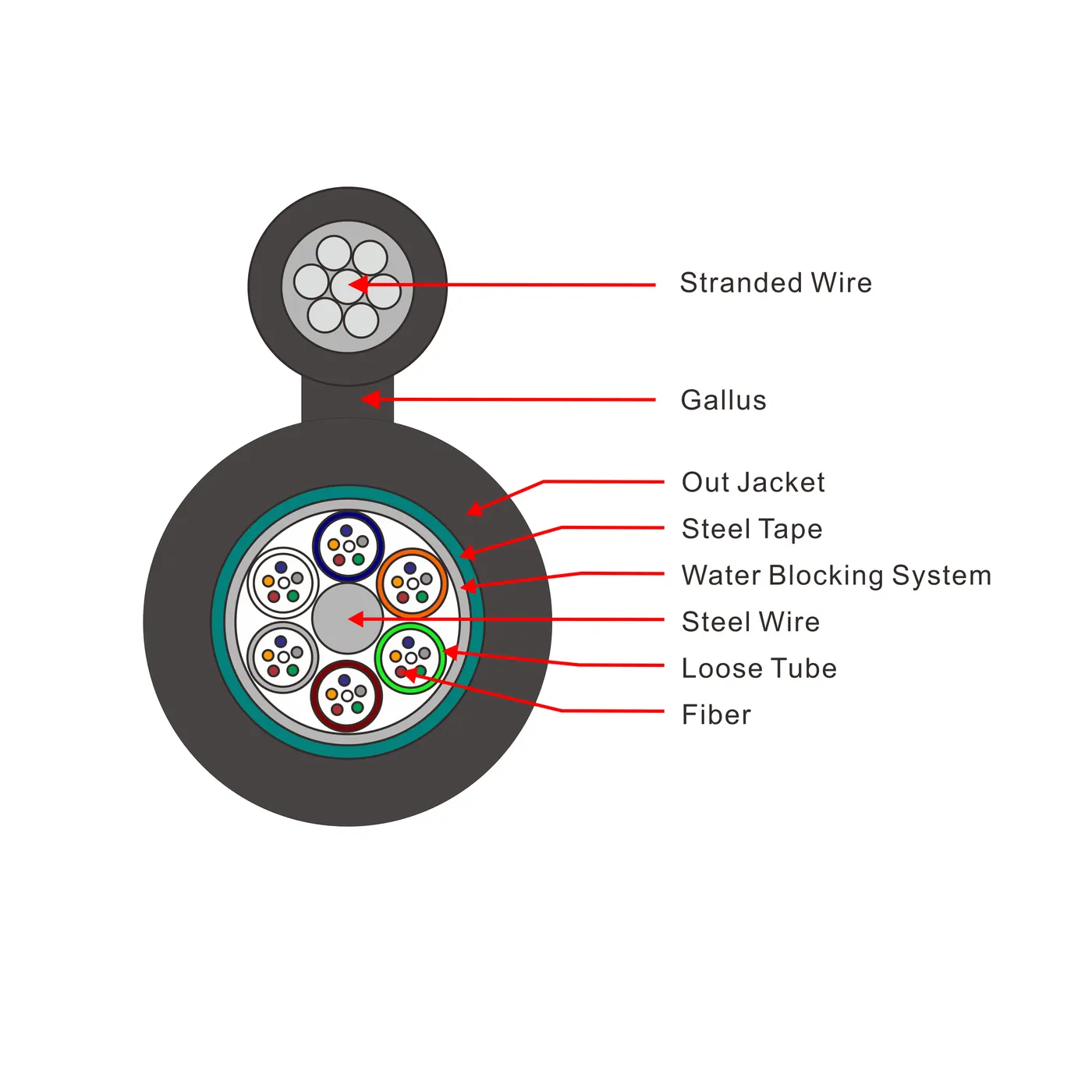

GYTC8S is a typical outdoor use fiber optic cable for aerial applications. GYTC8S is also called the figure 8 cable because of its structure looks like the figure 8.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description
GYTC8S is a typical outdoor use fiber optic cable for aerial applications. GYTC8S is also called the figure 8 cable because of its structure looks like the figure 8. We supply single mode and multi mode GYTC8S fiber cables from 2-fiber type to 144-fiber type.
Technical Specifications
Cable type | OD(mm) | Nominal Weight (Kg/Km) | Tensile Strength(N) | Crush Resistance (N/100MM) | Bending Radius(mm) |
|---|
|
|
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static |
GYTC85-12~60Xn | （11.0±0.1）*（20.8±0.5） | 212.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
GYTC85-62~72Xn | （11.0±0.1）*（20.8±0.5） | 248.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
GYTC85-74~96Xn | （11.0±0.1）*（20.8±0.5） | 285.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
GYTC85-98~120Xn | （11.0±0.1）*（20.8±0.5） | 332.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
GYTC85-122~144Xn | （11.0±0.1）*（20.8±0.5） | 397.0 | 4950 | 2500 | 2000 | 1000 | 20D | 15D |
Storage/Working temperature(℃) | -40~+70 |
|
|
|
|
Notes:
- Note: Xn is fiber optic model and D is the diameter of optical cable.
Features
- Used for long-haul communication.
- Steel-wire strength member ensures tensile strength.
- Water blocking system to improve the water proof ability.
- Corrugated steel tape and the PE outer sheath ensure crush resistance.
Applications
- Aerial application, Used for LAN communication.
- CATV & Computer networks system.
- Junction communication systems.
Packing
- Standard wooden drum with protection.
- Standard reel length: 2/3 km/reel, other length is also available.
