Outdoor Fiber Optic Cable
GYFTY53 Outdoor Cable
GYFTY53 fiber optic cable is Stranded Loose Tube Non-metallic Strength Member Water-blocking Armored Cable designed for direct-buried installation, can be buried directly into the ground in a trencher using a vibratory…
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

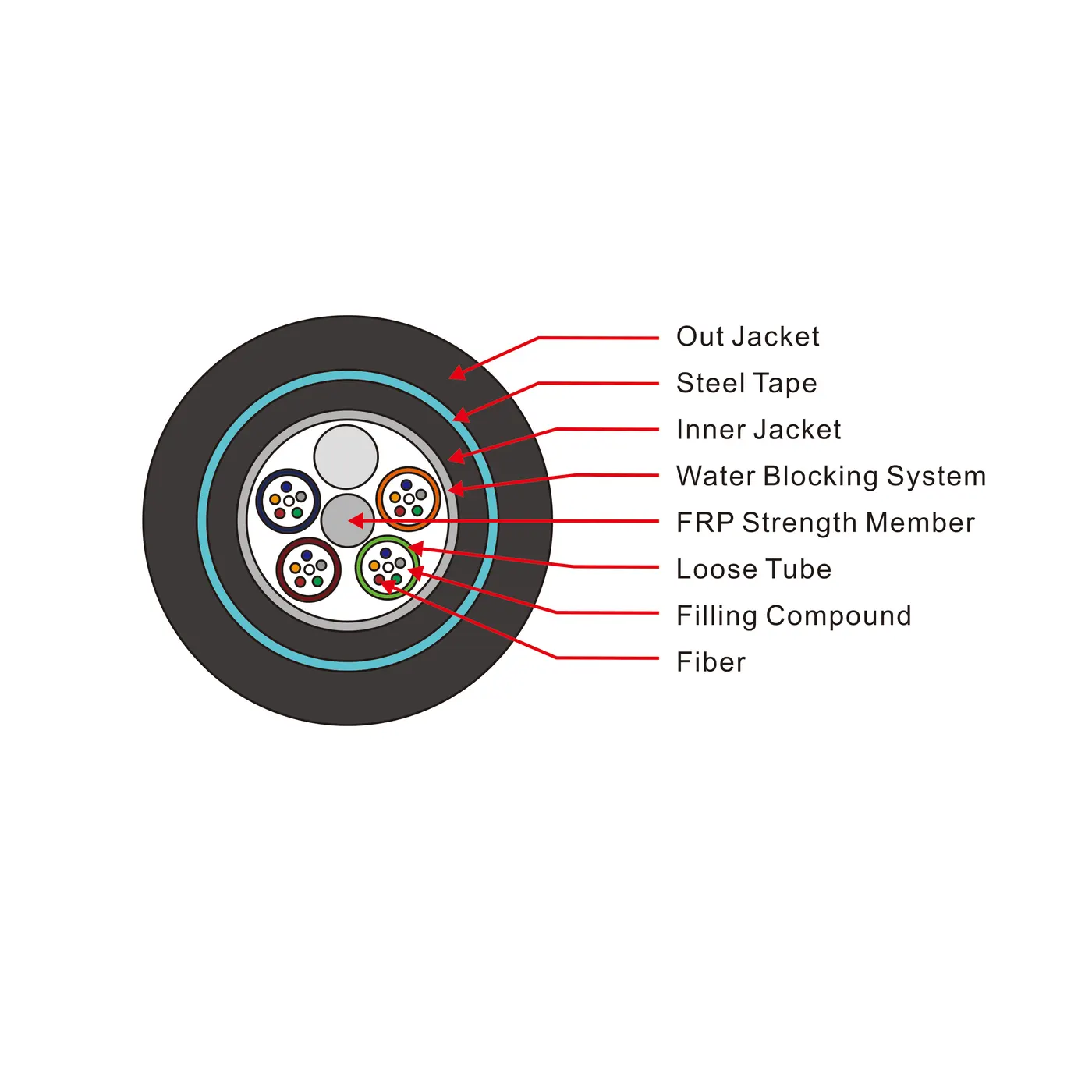

GYFTY53 fiber optic cable is Stranded Loose Tube Non-metallic Strength Member Water-blocking Armored Cable designed for direct-buried installation, can be buried directly into the ground in a trencher using a vibratory plow, suitable for frequent lightning area and anti electric field.
Technical Specifications
Cable type | OD(mm) | Nominal Weight (Kg/Km) | Tensile Strength(N) | Crush Resistance (N/100MM) | Bending Radius(mm) |
|---|
|
|
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static |
GYFTY53-12~48Xn | 12.0±0.3 | 131.0 | 3000 | 1000 | 1000 | 300 | 20D | 15D |
GYFTY53-60~72Xn | 13.0±0.3 | 171.0 | 3000 | 1000 | 1000 | 300 | 20D | 15D |
GYFTY53-74~96Xn | 14.0±0.3 | 205.0 | 3000 | 1000 | 1000 | 300 | 20D | 15D |
GYFTY53-98~120Xn | 16.0±0.3 | 245.0 | 3000 | 1000 | 1000 | 300 | 20D | 15D |
GYFTY53-122~144Xn | 18.5±0.3 | 335.0 | 3000 | 1000 | 1000 | 300 | 20D | 15D |
Storage/Working temperature(℃) | -40~+70 |
|
|
|
|
Notes:
- Note: Xn is fiber optic model and D is the diameter of optical cable.
Features
- Double sheath.
- Good moisture-resistance.
- Good ultra violet radiation resistant property.
- Steel Wire strength, filler protect tube fiber, steel tape armor.
Applications
- Adopted to outdoor distribution.
- Suitable for aerial, pipeling laying method.
- Long distance and local area network communication.
Packing
- Standard wooden drum with protection.
- Standard reel length: 2/3 km/reel, other length is also available.
