PDLC Outdoor Waterproof Connector
The PDLC outdoor cable assembly is a multi-purpose connector for connection between the distribution box and the RRH in Remote Radio Head cell tower applications.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

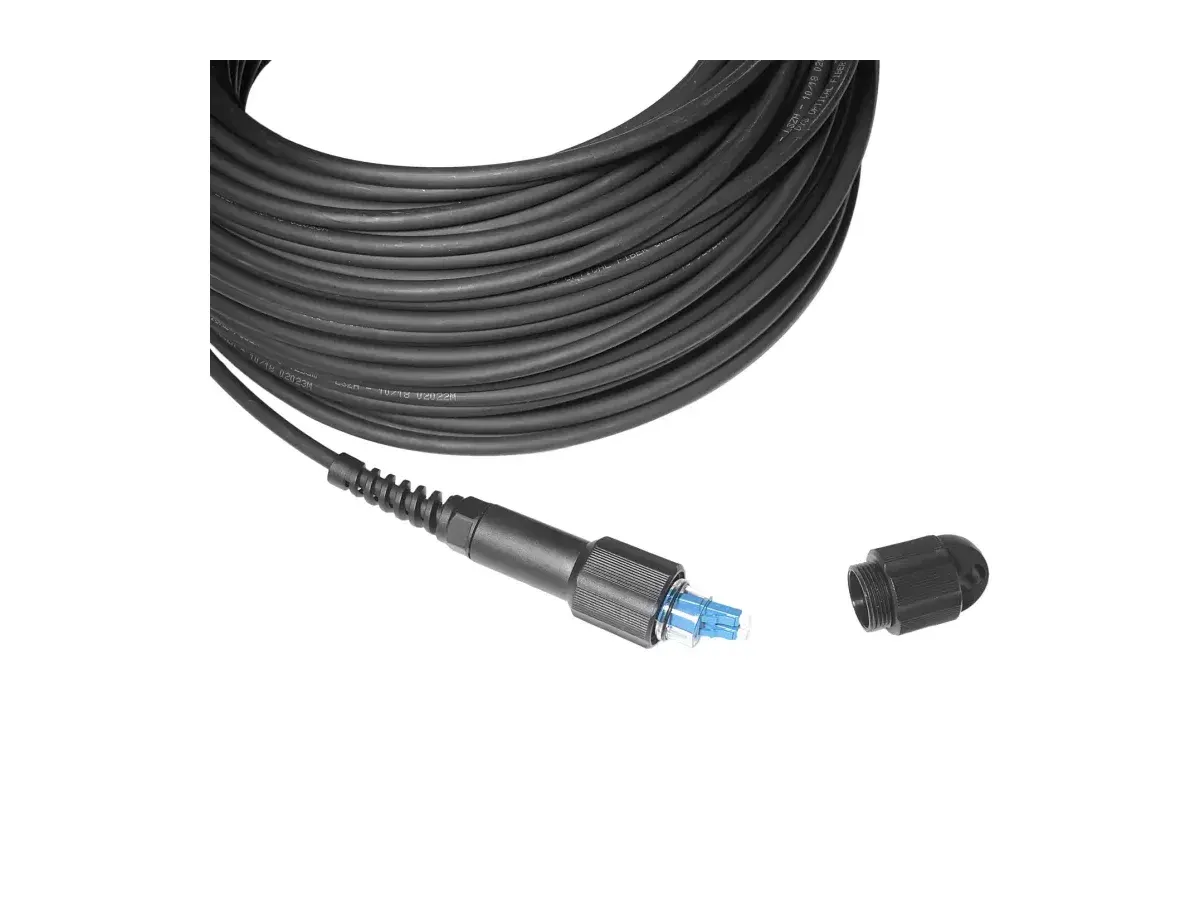

The PDLC outdoor cable assembly is a multi-purpose connector for connection between the distribution box and the RRH in Remote Radio Head cell tower applications. Its standard DLC connector mates with standard LC adapters, and its compact design supports a broad temperature range and a wide range of indoor and outdoor cables for easy, reliable and cost-effective installation.
Technical Specifications
Optical & Performance Parameters
| Item | SM-UPC (Typical / MAX) | SM-APC (Typical / MAX) | MM-UPC (Typical / MAX) |
|---|---|---|---|
| Insertion loss | ≤0.15 / ≤0.3 dB | ≤0.15 / ≤0.3 dB | ≤0.15 / ≤0.3 dB |
| Return loss | Min. 50 dB | Min. 60 dB | Min. 30 dB |
| Item | Single mode | Multi mode |
|---|---|---|
| Operating wavelength | 1310 nm ~ 1550 nm | 850 nm ~ 1300 nm |
| Test wavelength | 1310 nm & 1550 nm | 850 nm & 1300 nm |
| Item | Parameter |
|---|---|
| Durability | 200 cycles |
| Operating temperature | -20 to +70 °C |
| Storage temperature | -40 to +85 °C |
| Installation temperature | -20 to +70 °C |
| Waterproofing grade | IP68 |
| Cable diameter range | 7.0 mm |
| Standards | Comply to GR-1320, IEC 61753-1, IEC 61754-4 |
Assembly
| Item | SM-UPC | SM-APC | MM-UPC |
|---|---|---|---|
| Insertion loss | Max. 0.3 dB + 0.35 dB/km × L | Max. 0.3 dB + 0.35 dB/km × L | Max. 0.3 dB + 3.0 dB/km × L |
| Return loss | Min. 50 dB | Min. 60 dB | Min. 30 dB |
Features
- Standard DLC connector, mates with standard LC adapter
- Available single mode and multimode
- IP68 water and dust protection
- Compact design
- Broad temperature range and wide range of indoor and outdoor cables
- Easy operation, reliable and cost-effective installation
Applications
- Multi-purpose outdoor
- Connection between distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
Related products
CPRI LC Outdoor Waterproof Connector

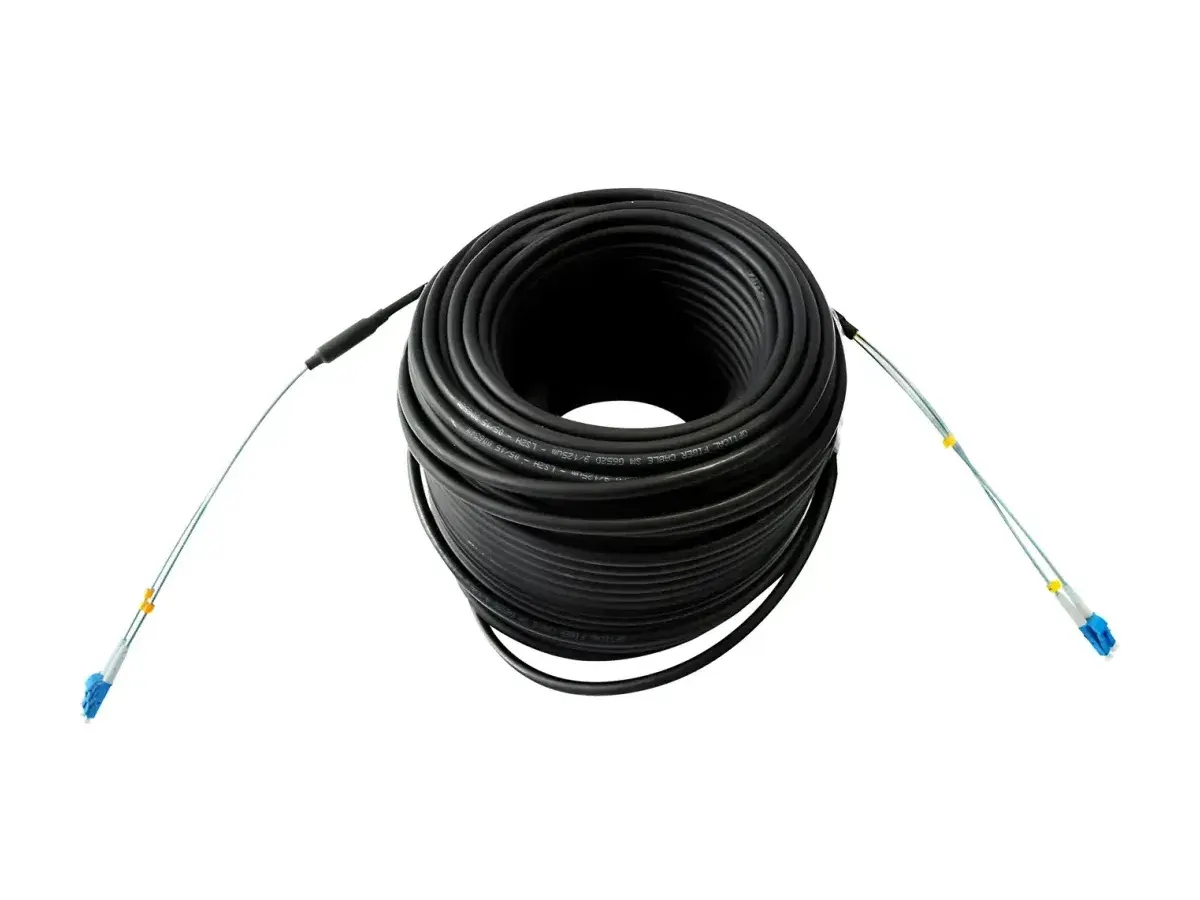

Outdoor LC connector to IEC 61754-20 for BBU-to-RRH jumpers — add or expand fibre links without reopening the radio.
View details
NSN Boot Duplex LC Outdoor Connector

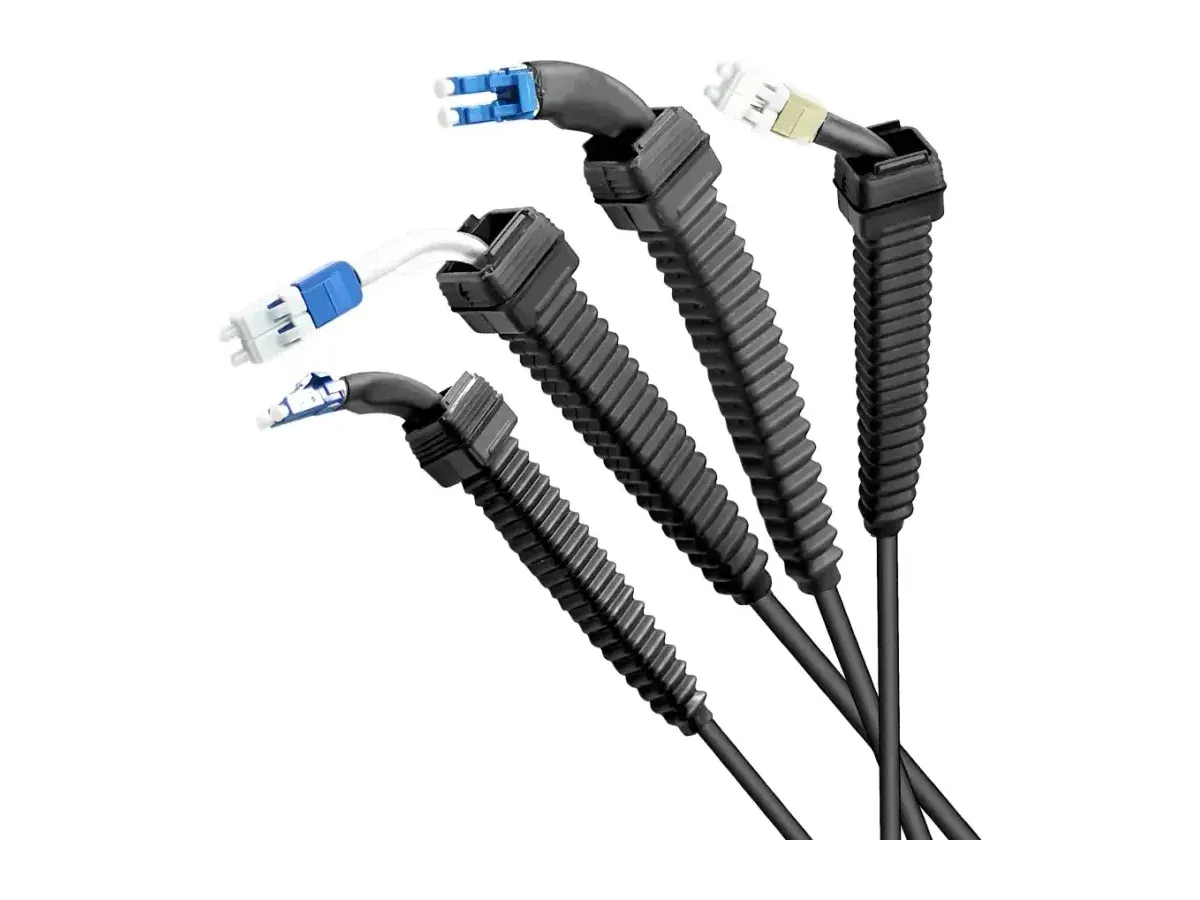

IP67 NSN-style duplex LC assembly for 1–3 fibre-pair RRH runs — armored or non-armored, UV-resistant sheath.
View details
FULLX (LC) Outdoor Waterproof Connector
IP68 LC connector with an open bulkhead — swap the SFP transceiver without opening the RRH; floating Z-axis plug.
View details
ODVA Connector (SC, LC, MPO)

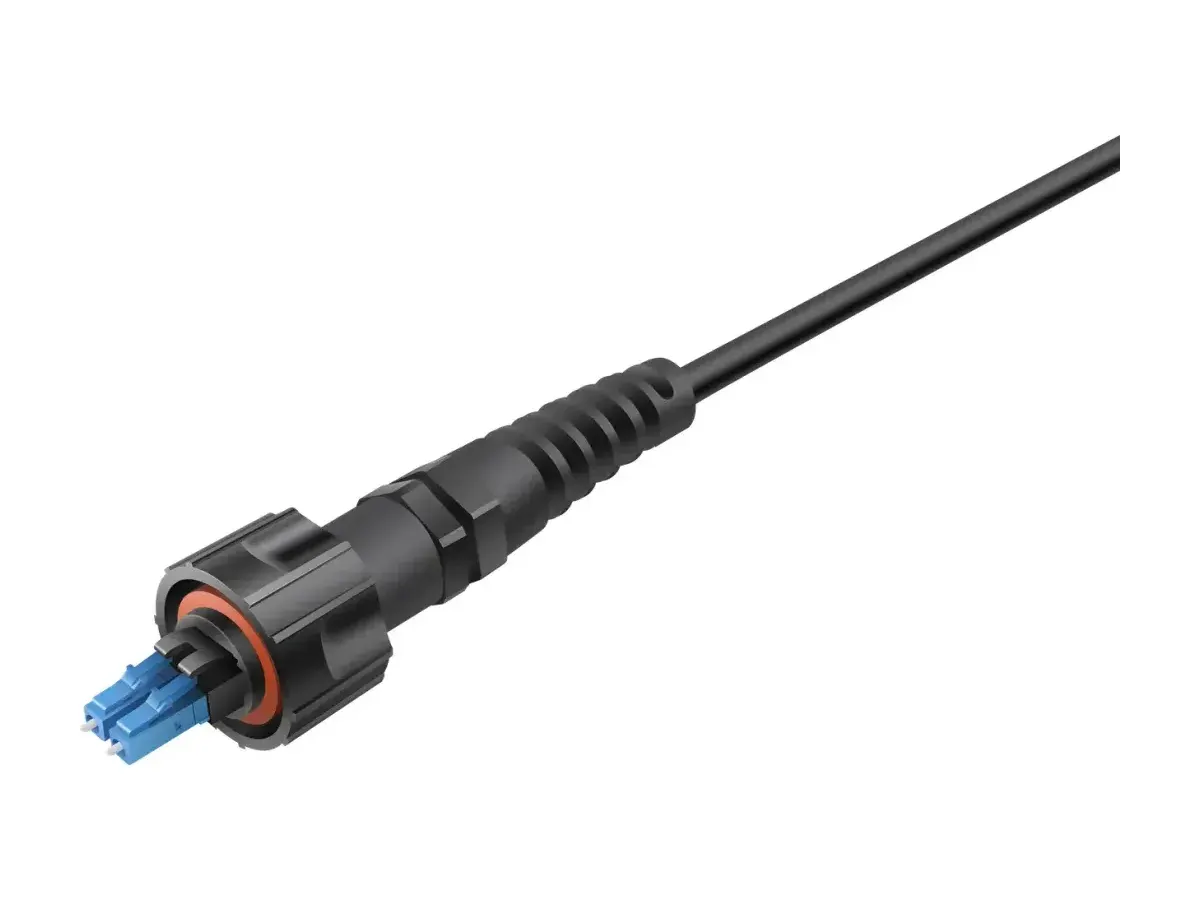

Cost-effective IP68 industrial-LC (ODVA) connector — intermatable with IEC 61076-3-106 adapters, field-installable without special tools.
