FTTH Cabling Series

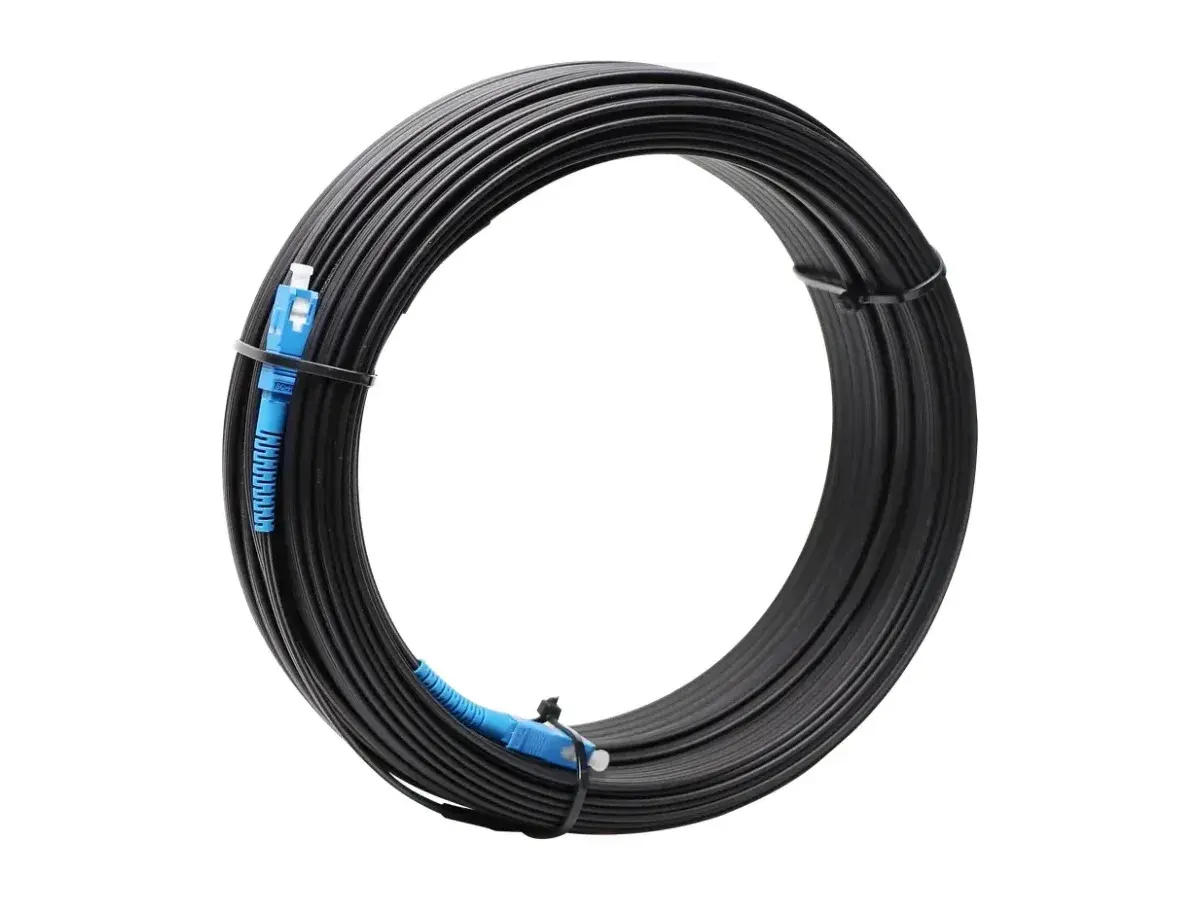

FTTH Drop Patch Cord
The FTTH Drop Patch Cord is a cost-effective solution for in-house termination within FTTH networks for indoor and outdoor use, local area networks and building cabling networks.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

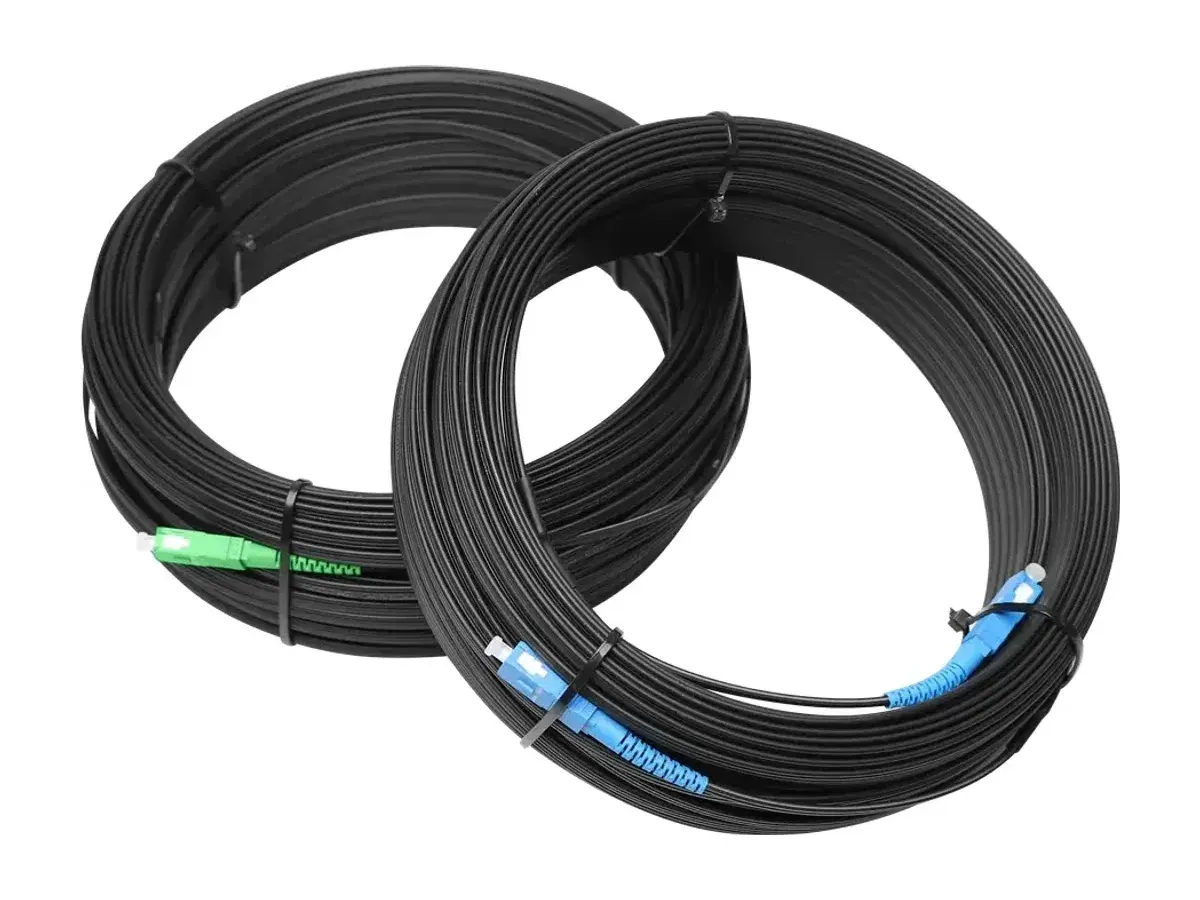

The FTTH Drop Patch Cord is a cost-effective solution for in-house termination within FTTH networks for indoor and outdoor use, local area networks and building cabling networks. Built on butterfly and flat drop cable with a UV-resistant outer material, it provides low-insertion-loss interconnection between instruments, terminal boxes and communication equipment, and is RoHS/REACH compliant.
Technical Specifications
Item | SM-UPC (Typ. / Max) | SM-APC (Typ. / Max) | MM-UPC (Typ. / Max) |
|---|---|---|---|
Insertion Loss | ≤0.15 / ≤0.3 dB | ≤0.15 / ≤0.3 dB | ≤0.15 / ≤0.3 dB |
Return Loss | Min. 50 dB | Min. 60 dB | Min. 30 dB |
Item | Parameter |
|---|---|
Operating Wavelength | SM 1310–1550 nm; MM 850–1300 nm |
Test Wavelength | SM 1310 & 1550 nm; MM 850 & 1300 nm |
Durability | 200 cycles |
Operating Temperature | -20 to +70 ℃ |
Storage Temperature | -40 to +85 ℃ |
Installation Temperature | -20 to +70 ℃ |
Cable Diameter Range | 3.0–5.0 mm; 2×3 mm butterfly; 2×5 mm butterfly; 4×7 mm flat |
Standards | GR-1320, IEC 61753-1, IEC 61754-4 |
Assembly performance
Item | SM-UPC | SM-APC | MM-UPC |
|---|---|---|---|
Insertion Loss | Max. 0.3 dB + 0.35 dB/km·L | — | Max. 0.3 dB + 3.0 dB/km·L |
Return Loss | Min. 50 dB | Min. 60 dB | Min. 30 dB |
Features
- Cost-effective solution for in-house termination
- Low insertion loss
- UV-resistant patch cord material
- Mechanical performance to IEC 61754-4 standard
- RoHS and REACH materials compliant
Applications
- FTTH network for indoor and outdoor use
- Local area network and building cabling network
- Interconnection between instruments, terminal box and communication equipment
