FTTH-144 HUB Box

Name: FTTH-144 HUB Box
Brand: DYS Fiber Optic
SKU: ftth-144-hub-box

The FTTH-144 pre-connectorized optical distribution box is an advanced FTTx network distribution node, providing quick and reliable connection along with good protection and management for the FTTx network.

Request a Quote Customize this product

Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.

100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof

Description

Technical Specifications

General

Item	Specification	Remark
Material of housing	PP
Material of internal components	PC+ABS / ABS
Material of metal accessory	High-quality stainless steel
External dimension	271 × 218 × 97 mm	A×B×C
Color	Black

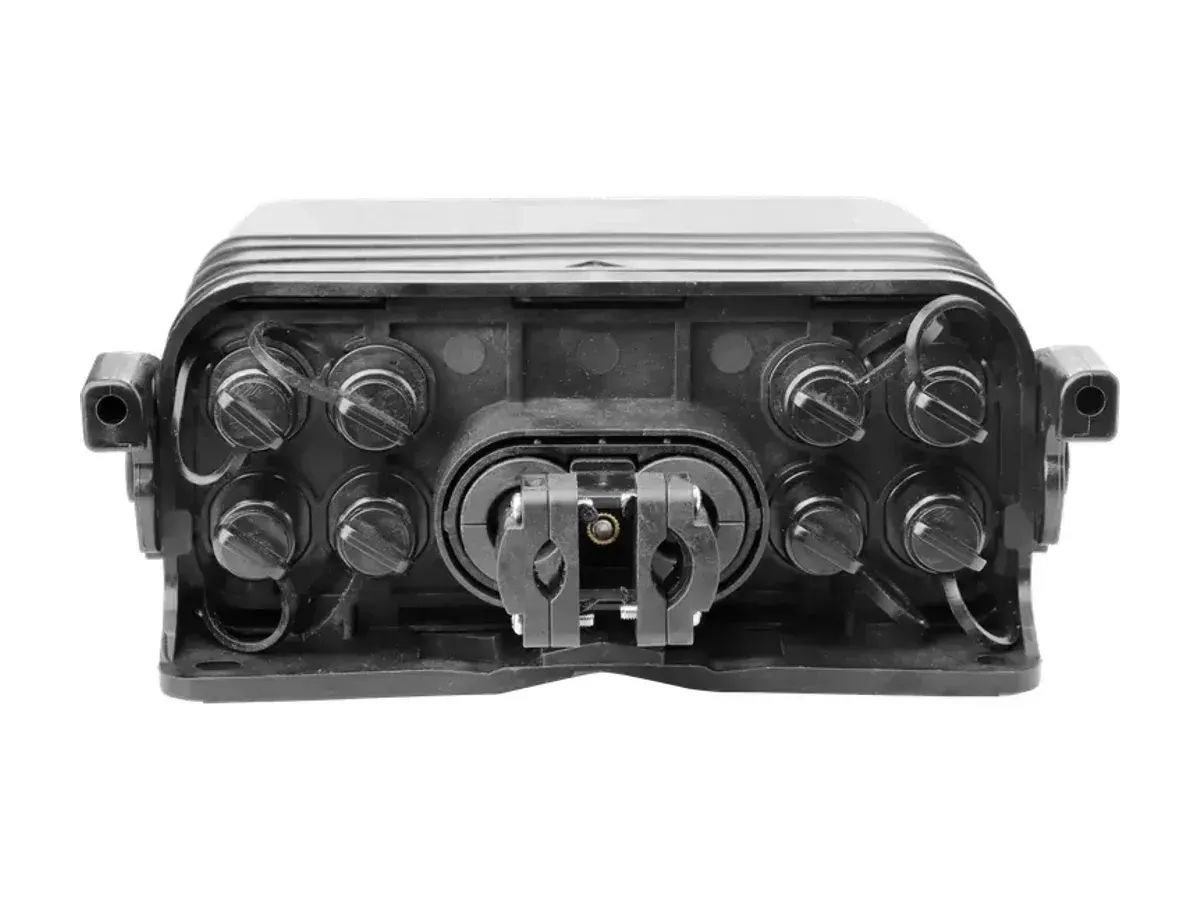

Pre-connectorized ports	12 (SC/APC) + 1 (MPO)
IP grade	IP68
Flammability	UL-94HB	Default
Neutral salt spray test (NSS)	48 h

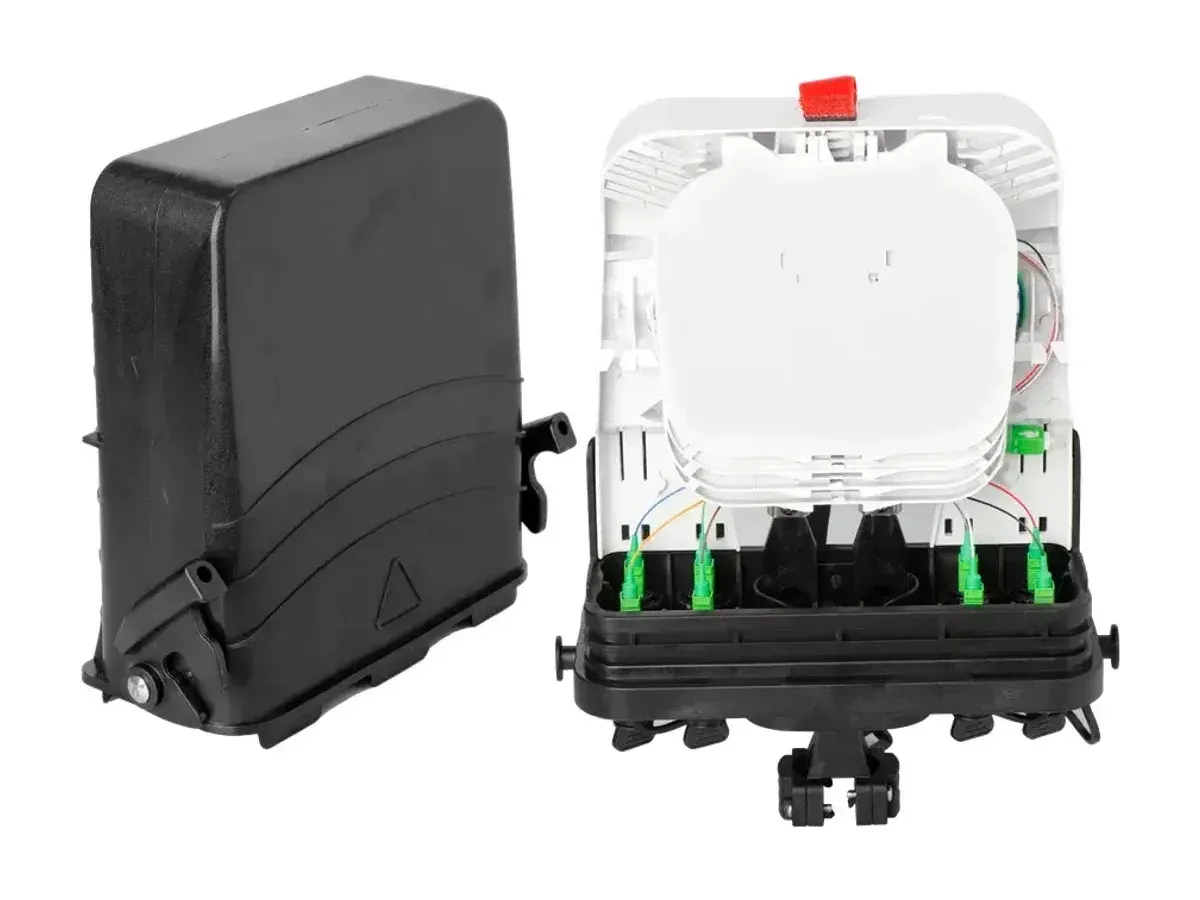

Fusion Capacity

Max cores	Configuration
48	Tray A, 12×4 = 48, 2 layers of heat-shrinkable splice protection sleeve
64	Tray B, 8×8 = 64, 1 layer of heat-shrinkable splice protection sleeve
96	Tray D, 24×4 = 96, 2 layers of heat-shrinkable splice protection sleeve

Micro PLC Splitter Options

Splitter	Notes
1×2 / 1×4 / 1×8	Splitter size 60×7×4 mm. Installs in type A, type C, and type D splicing trays — 1 pc per tray
1×16	Splitter size 60×12×4 mm. Installs in type A-1 and type E-1 splicing trays — 1 pc per tray

Application Environment

Item	Value
Operation temperature	-40 ℃ ~ +65 ℃
Installation temperature	-15 ℃ ~ +40 ℃
Storage temperature	-45 ℃ ~ +75 ℃
Relative humidity	≤85% (+30 ℃)
Atmospheric pressure	70 kPa ~ 106 kPa

Optical Specifications (default values, customizable)

Component	IL — pigtail/splitter (dB)	IL — distribution box (dB)	RL (dB)
Pigtail SC/APC SM (G657A2, 1.5 m)	≤0.3	≤0.5	≥55
1×2 PLC splitter, SC/APC	≤4.0	≤4.2	≥55
1×4 PLC splitter, SC/APC	≤7.4	≤7.6	≥55
1×8 PLC splitter, SC/APC	≤10.5	≤10.7	≥55
1×16 PLC splitter, SC/APC	≤13.5	≤13.7	≥55

Test method — IL: IEC 61300-3-4 Method B; RL: IEC 61300-3-6 Method 1. This product complies with the RoHS environmental protection directive.

Features

Advanced structure design, easy operation and reasonable routing.
Material: PP.
Moisture proof, waterproof, dust-proof, anti-aging.
Protection level up to IP68.
13 pre-connected adapters.
A variety of tray types are optional and can even be mixed (two tray installation) according to configuration demand.
Installation methods: pole-mounted, aerial-mounted, wall-mounted.

Applications

Fiber to the Home (FTTH) and FTTx network distribution nodes
Outdoor pole, aerial, and wall-mounted access points
Broadband access and last-mile distribution

Packing

Item	Material	Size (mm)	Quantity	Gross weight (kg)
Independent product packaging	Carton	280 × 220 × 105	1	1.7
Outer packaging carton	Carton	460 × 290 × 570	10	17.8
