Outdoor Terminal Box
DYS outdoor terminal boxes manage splices and drops across the access network — SUB, MST and HUB distribution enclosures from 2 to 144 cores. IP65–IP68 weatherproof housings in PC+ABS and PP+glass-fiber protect connections in aerial, wall-mount and pedestal deployments, with integrated splitter and adapter options and pre-connectorized ports.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
6 Products in this range
FTTH-061 SUB Box
DYS Model No. FTTH-061 connects the drop cable with feeder cable as the termination point in the FTTx network, able to meet at least 8 and 9 user requirements.
View details
FTTX-A MST Box
The FTTX-A multiport service terminal connects a feeder cable to multiple distribution cables as a compact, weather-resistant junction point for fiber access networks.
View details

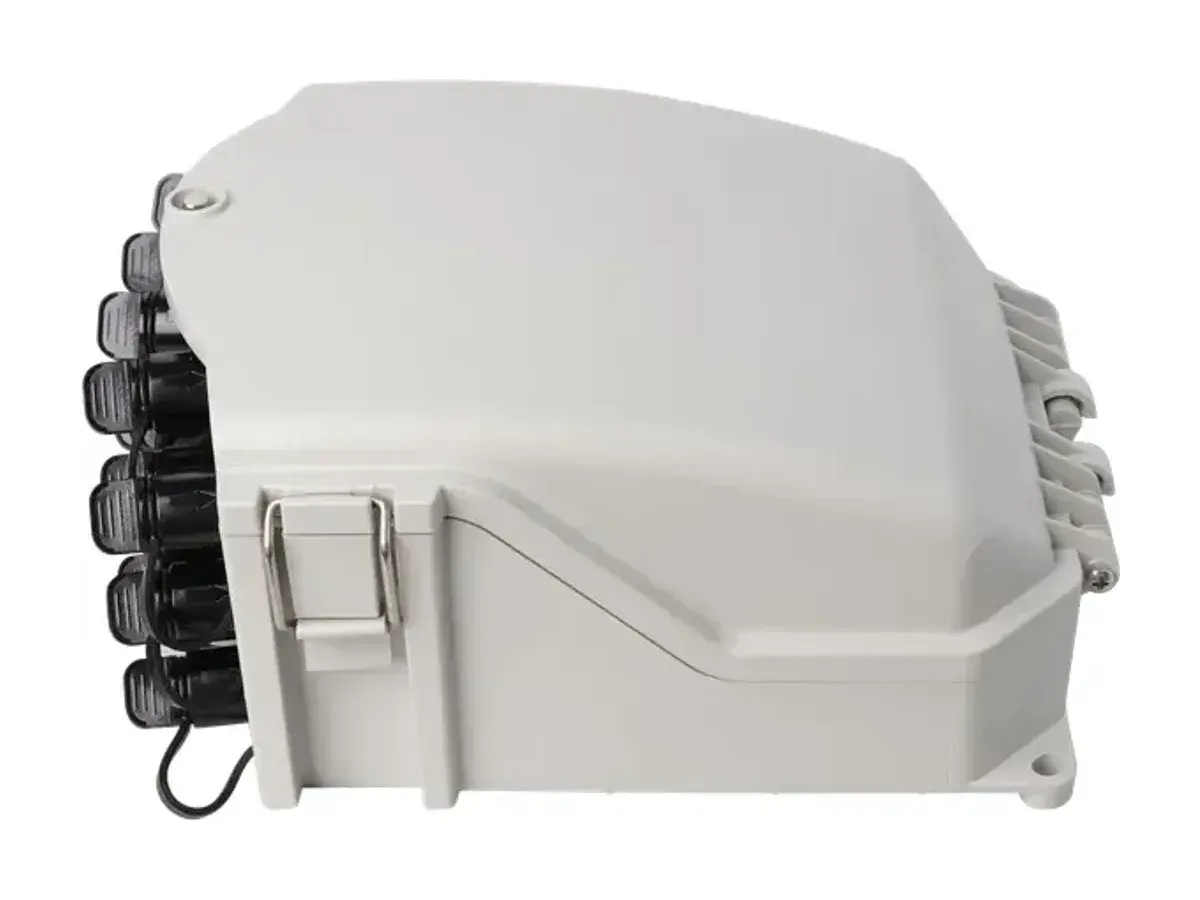

FTTH-047 HUB Box
FTTH-047 is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network systems.
View details

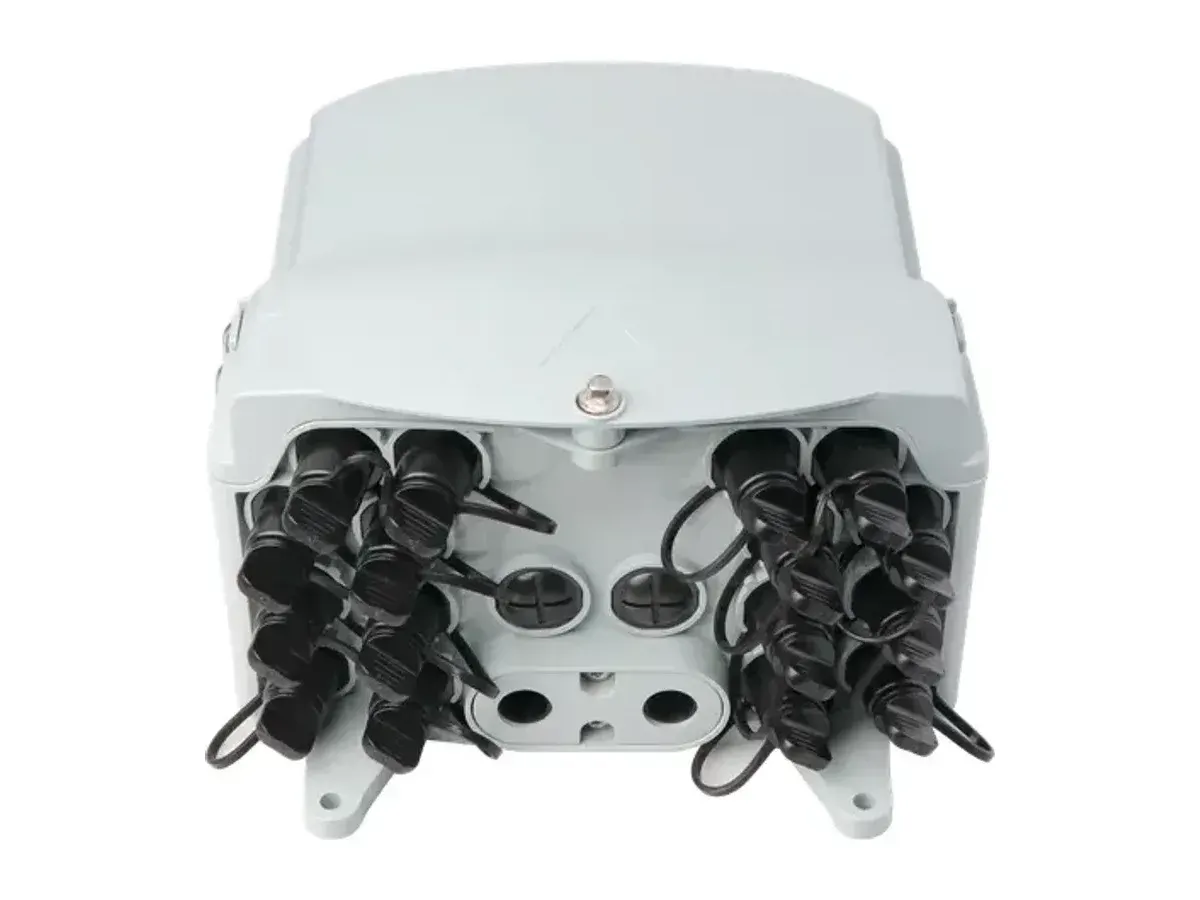

FTTH-103 HUB Box
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network systems.
View details
FTTH-144 HUB Box
The FTTH-144 pre-connectorized optical distribution box is an advanced FTTx network distribution node, providing quick and reliable connection along…
View details

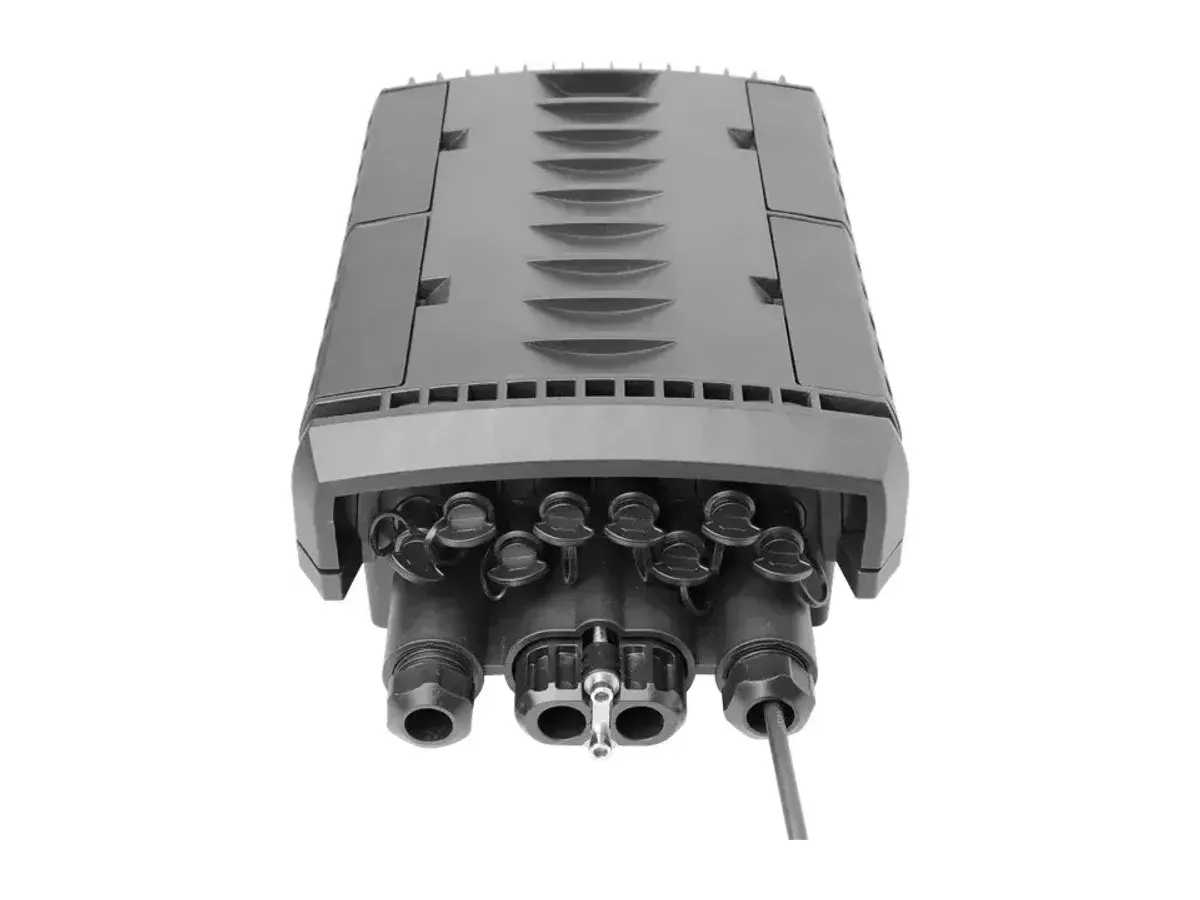

FTTH-154 HUB Box
The FTTH-154 is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network systems.
View detailsApplications
Where fiber terminal boxes are used
- FTTH last-mile distribution — house the splitter and splice trays between the feeder and the subscriber drops.
- Aerial, pole and wall mounting — sealed enclosures for outdoor spans, building faces and street cabinets.
- MDU and campus — floor or riser distribution points aggregating drops to multiple units.
- Multiport plug-and-play — pre-connectorized MST / hardened-adaptor taps for fast field drops without splicing.
Choosing the right product
Pick by where the box sits in the network:
- Subscriber drop / small splice point → FTTH-061 — compact, IP68-sealed, 8–9 cores.
- Splitter housing (1×16) → FTTH-047 or FTTH-103 — hub boxes with integrated splitter tubes.
- Fast, plug-and-play field drops → FTTH-144 pre-connectorized hub or FTTX-A multiport MST — hardened SC/APC or ODVA ports, no field splicing.
- High-count distribution → FTTH-154 — 24 cores with mini-PLC and SC/LC duplex adaptors.
Need a box matched to your splitter and drop count? Get a 24-hour quote →
How to choose
DYS terminal boxes span drop-side subscriber boxes through high-count distribution hubs, sealed from IP65 to IP68. Match capacity, ingress rating and mounting to the deployment:
Model | Type | Capacity | IP | Material | Dimensions (mm) |
|---|---|---|---|---|---|
FTTH-061 | Subscriber / drop | 8–9 cores | IP68 | PC+ABS | 209 × 205 × 86 |
FTTH-047 | Splitter hub | 16 cores (1×16) | IP65 | PC+ABS | 208 × 241 × 117 |
FTTH-103 | Splitter hub | 16 cores | IP65 | PC+ABS | 320.6 × 218 × 133.5 |
FTTH-144 | Pre-connectorized hub | 12× SC/APC + MPO, ≤96 splice | IP68 | PP | 271 × 218 × 97 |
FTTH-154 | Distribution hub | 24 cores | — | PP+GF | 385 × 240 × 155 |
FTTX-A | Multiport MST | 4 / 8 / 12-port ODVA | IP68 | PC | 200–418 × 120 × 85 |
