Outdoor Terminal Box

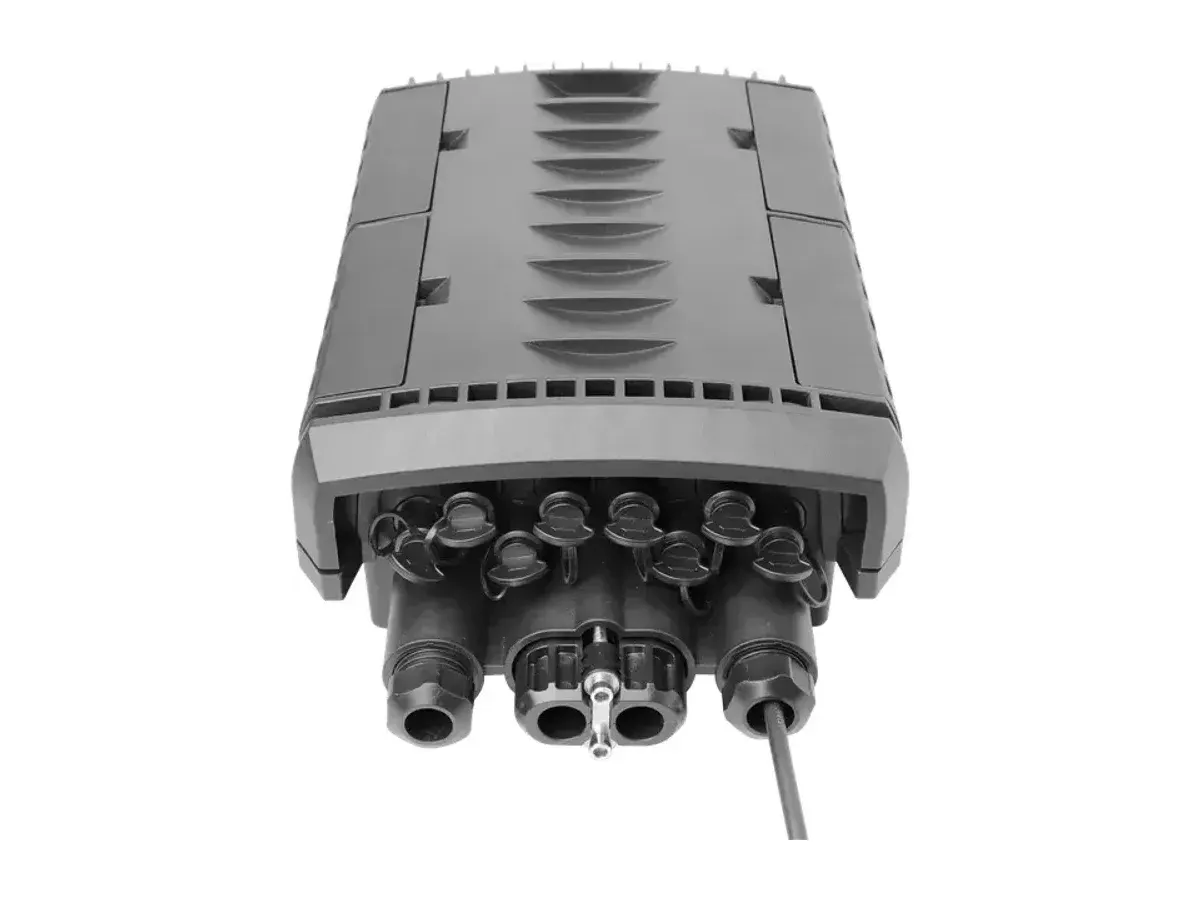

FTTH-154 HUB Box
The FTTH-154 is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network systems.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

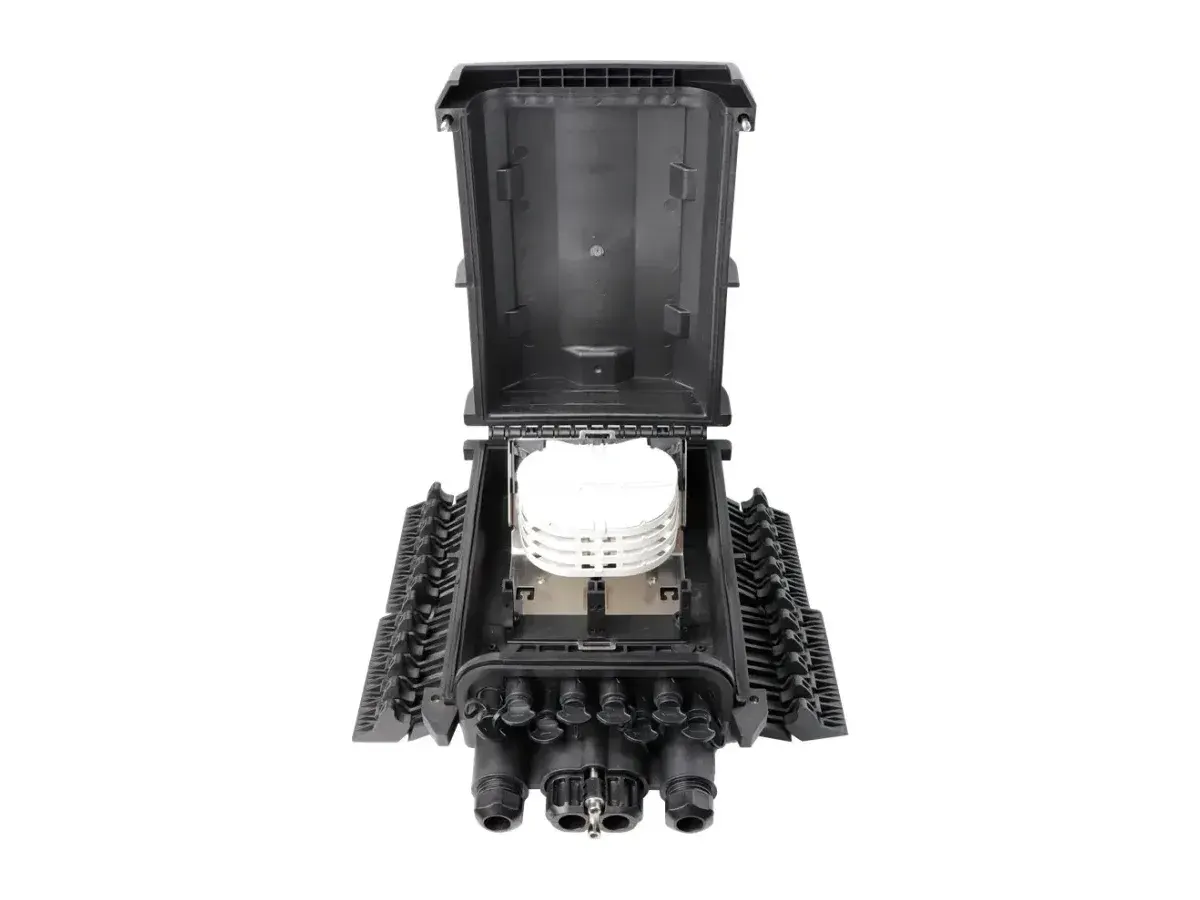

The FTTH-154 is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network systems. Fiber splicing, splitting, and distribution can all be done in this box, while it provides solid protection and management for the FTTx network buildout.
Technical Specifications
| Item | Value |
|---|---|
| Inlet / outlet ports | 4 / 24 |
| Dimensions | 385 × 240 × 155 mm |
| PLC installation | Mini PLC |
| Color | Black |
| Heat shrink capacity | 24 |
| Material | PP+GF |

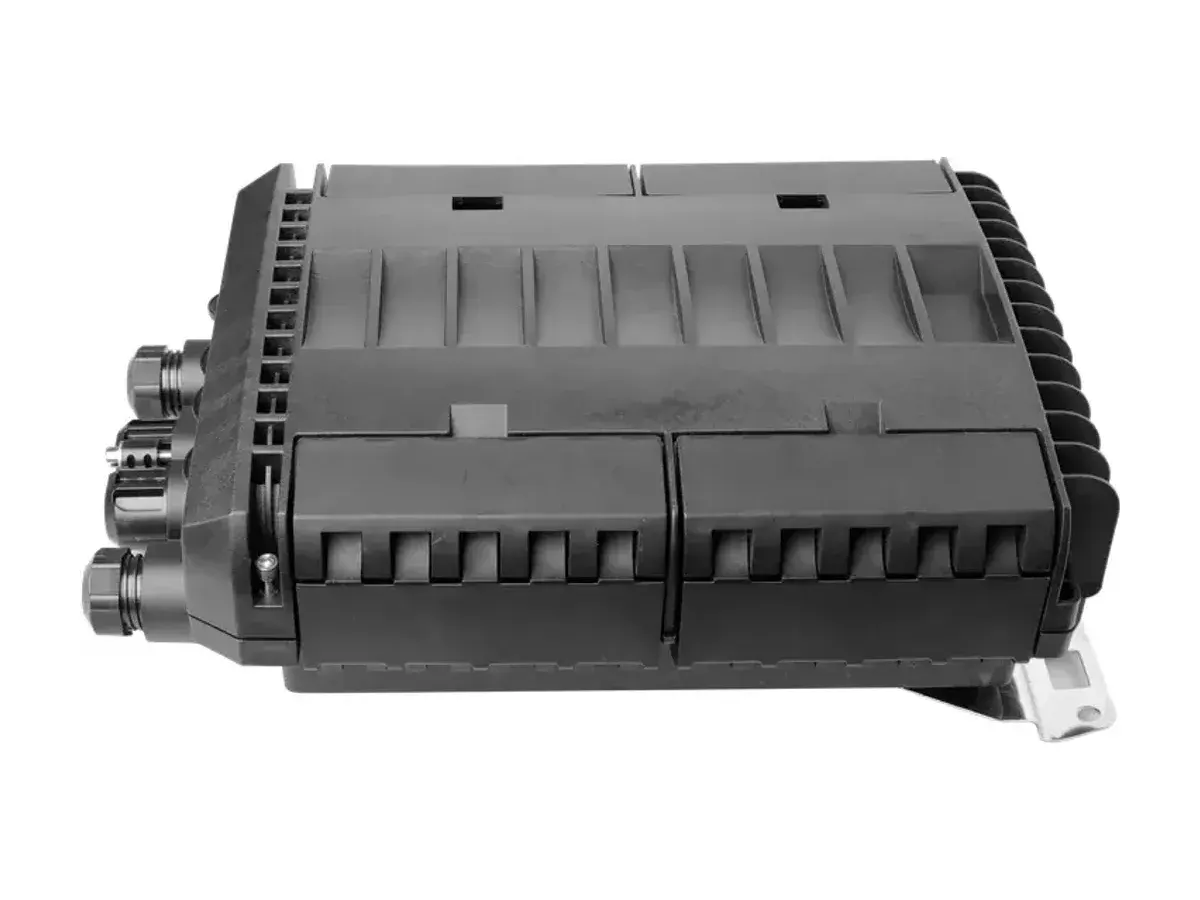

| Application | Outdoor wall-mounted or pole-mounted |
| Network | FTTH network |
Dimensions in mm; tolerance not stated: ±3 mm.
Features
- Total enclosed structure, in a clean shape.
- Protects and manages cable effectively.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, and distribution all in one.
- Secured with an anti-theft locking mechanism.
- Suitable for SC and LC duplex adaptor and pigtail.
- Standard size, light weight.
- Easy to operate.
- High quality PP+GF material.
- Wall and pole mountable (accessories optional).
- Good dust and moisture proofing.
- Suitable for both outdoor and indoor use.
Applications
- Telecommunication subscriber loop
- Fiber to the Home (FTTH)
- LAN / WAN
