DYS H Optic SC/APC IP68 outdoor cable assembly for FTTH

FTTH Cabling Series

H Optic (SC/APC) Outdoor Cable Assemblies

H Optic (SC/APC) outdoor cable assemblies are single-fiber, SC-based connectors built for FTTH and other outdoor or harsh-environment applications.

Request a QuoteCustomize this product

Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.

  • 100% Pre-Shipment Tested

    Insertion & return loss (IL/RL) verified on every assembly

  • 17-Year Manufacturer

    Three in-house factories with 100+ production lines

  • Vertically Integrated

    Cable extrusion, molds and assembly under one roof

Description

H Optic (SC/APC) outdoor cable assemblies are single-fiber, SC-based connectors built for FTTH and other outdoor or harsh-environment applications. With IP68 water and dust protection and a threaded-style coupling, they require no installation tools and support in-line connection, with a low-profile in-line receptacle option available.

Technical Specifications

Item SM-UPC (Typ. / Max) SM-APC (Typ. / Max) MM-UPC (Typ. / Max)
Insertion Loss ≤0.15 / ≤0.3 dB ≤0.15 / ≤0.3 dB ≤0.15 / ≤0.3 dB
Return Loss Min. 50 dB Min. 60 dB Min. 30 dB
Item Parameter
Operating Wavelength SM 1310–1550 nm; MM 850–1300 nm
Test Wavelength SM 1310 & 1550 nm; MM 850 & 1300 nm
Durability 200 cycles
Operating Temperature -40 to +85 ℃
Storage Temperature -40 to +85 ℃
Installation Temperature -20 to +70 ℃
Waterproofing Grade IP68 (1 m, 1 hour)
Cable Diameter Range 3.0–5.0 mm; 2×2 mm butterfly; 2×5 mm butterfly; 4×7 mm flat
Standards GR-1320, IEC 61753-1, IEC 61754-4

Assembly performance

Item SM-UPC SM-APC MM-UPC
Insertion Loss Max. 0.3 dB + 0.35 dB/km·L — Max. 0.3 dB + 3.0 dB/km·L
Return Loss Min. 50 dB Min. 60 dB Min. 30 dB

Features

  • Single fiber, SC-based connector
  • Waterproof IP68 (1 m, 1 hour)

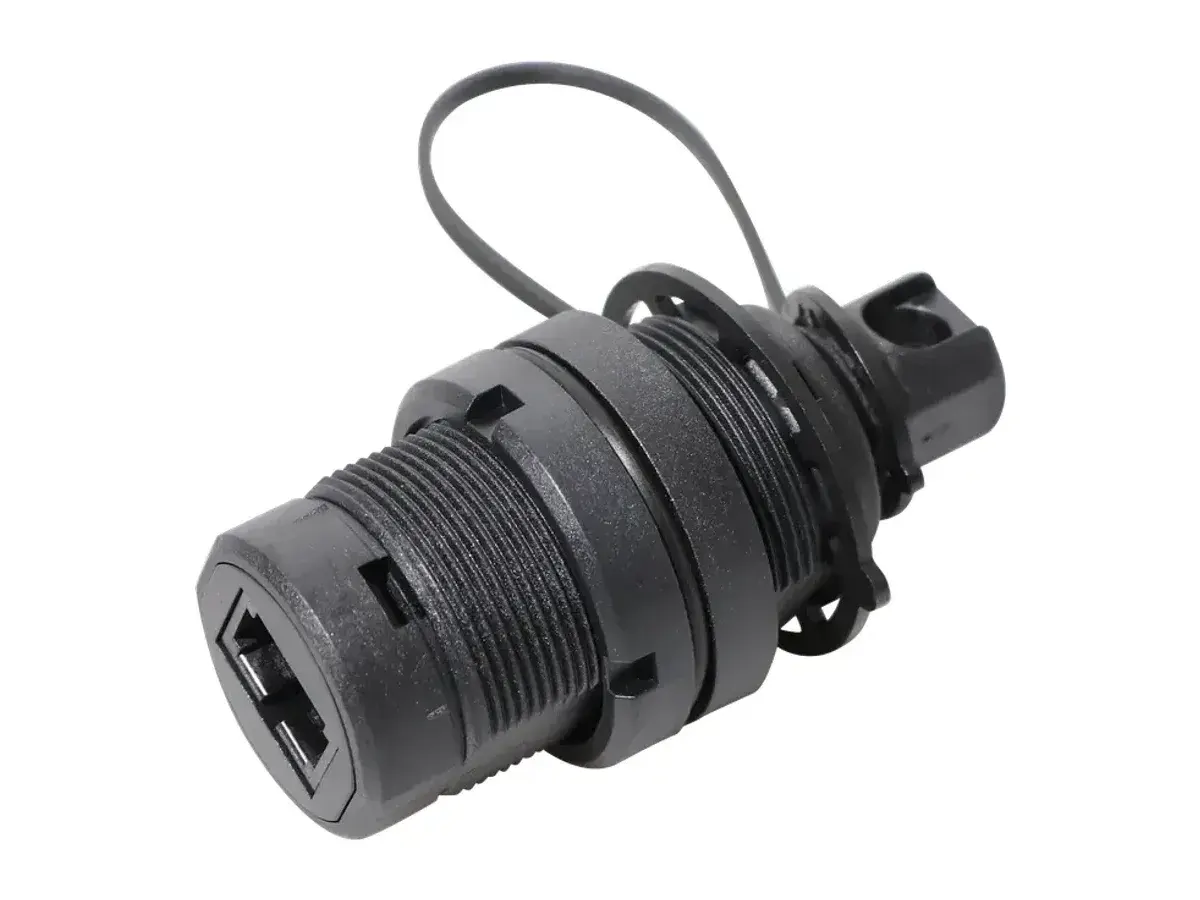

  • Low-profile in-line receptacle available
  • No installation tools required
  • In-line connection available
  • Threaded-style coupling

Applications

  • FTTH
  • Outdoor areas
  • Harsh environments
