FTTA Cabling Series

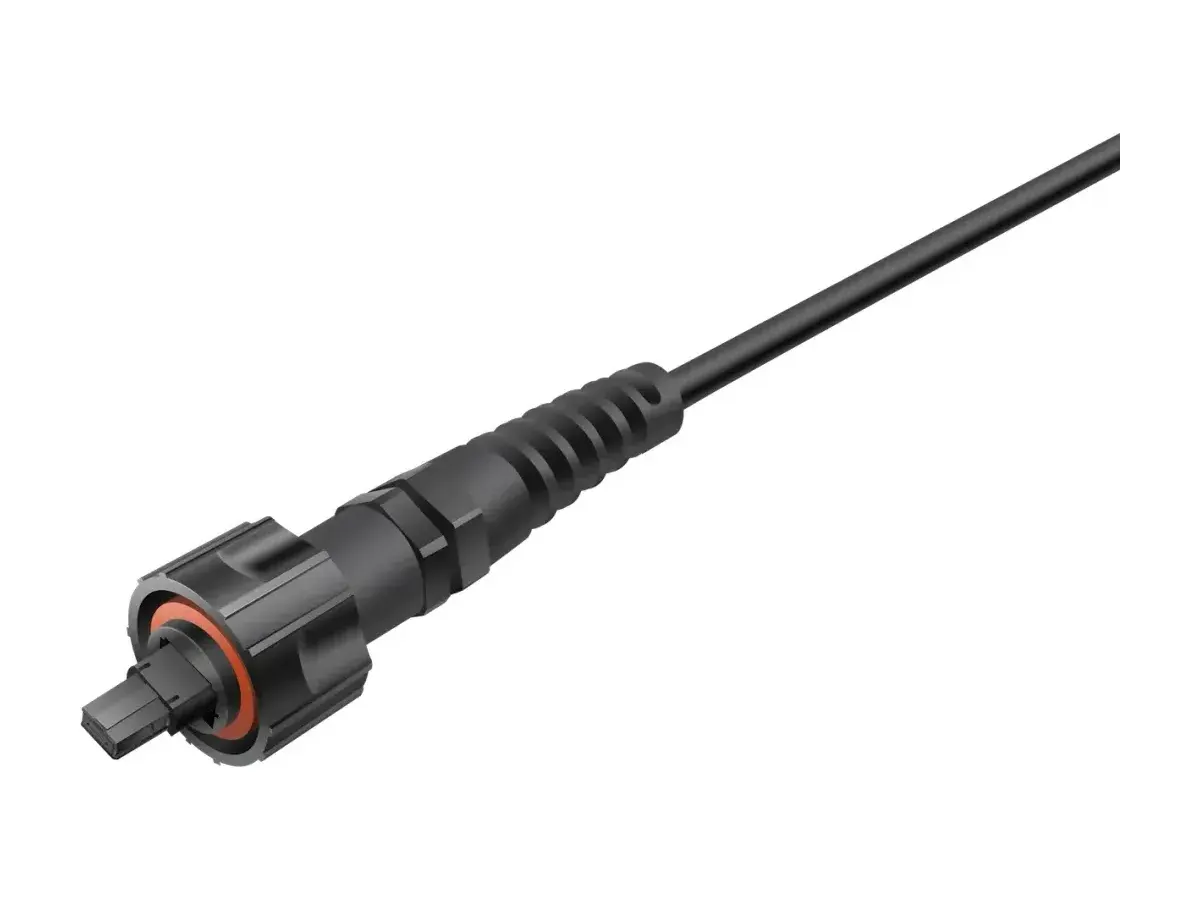

ODVA Connector (SC, LC, MPO)

Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.

100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof

Description

The ODVA (SC, LC, MPO) outdoor cable assembly is a cost-effective solution for in-house termination, offering IP68 waterproof, salt-mist and humidity protection across a -40 to +85 °C outside-plant operating range. It is intermatable with other industrial-LC adapters per IEC 61076-3-106 and installs and removes without special tools.

Technical Specifications

Optical & Performance Parameters

Item	SM-UPC (Typical / MAX)	SM-APC (Typical / MAX)	MM-UPC (Typical / MAX)
Insertion loss	≤0.15 / ≤0.3 dB	≤0.15 / ≤0.3 dB	≤0.15 / ≤0.3 dB
Return loss	Min. 50 dB	Min. 60 dB	Min. 30 dB

Item	Single mode	Multi mode
Operating wavelength	1310 nm ~ 1550 nm	850 nm ~ 1300 nm
Test wavelength	1310 nm & 1550 nm	850 nm & 1300 nm

Item	Parameter
Durability	200 cycles
Operating temperature	-20 to +70 °C
Storage temperature	-40 to +85 °C
Installation temperature	-20 to +70 °C
Waterproofing grade	IP68 (1 m, 1 hour)
Cable diameter range	4.8 mm ~ 7.0 mm
Standards	Comply to GR-1320, IEC 61753-1, IEC 61754-4

Assembly

Item	SM-UPC	SM-APC	MM-UPC
Insertion loss	Max. 0.3 dB + 0.35 dB/km × L	Max. 0.3 dB + 0.35 dB/km × L	Max. 0.3 dB + 3.0 dB/km × L
Return loss	Min. 50 dB	Min. 60 dB	Min. 30 dB

Features

Cost-effective solution for in-house termination
IP68 waterproof, salt-mist proof, humidity proof
Wide range of operational temperature for outside plant -40 to +85 °C
Available in single mode and multimode styles to work with any common fiber type
Intermatable to other industrial-LC adapter per IEC 61076-3-106
Easy installation and removal, no special tools required
