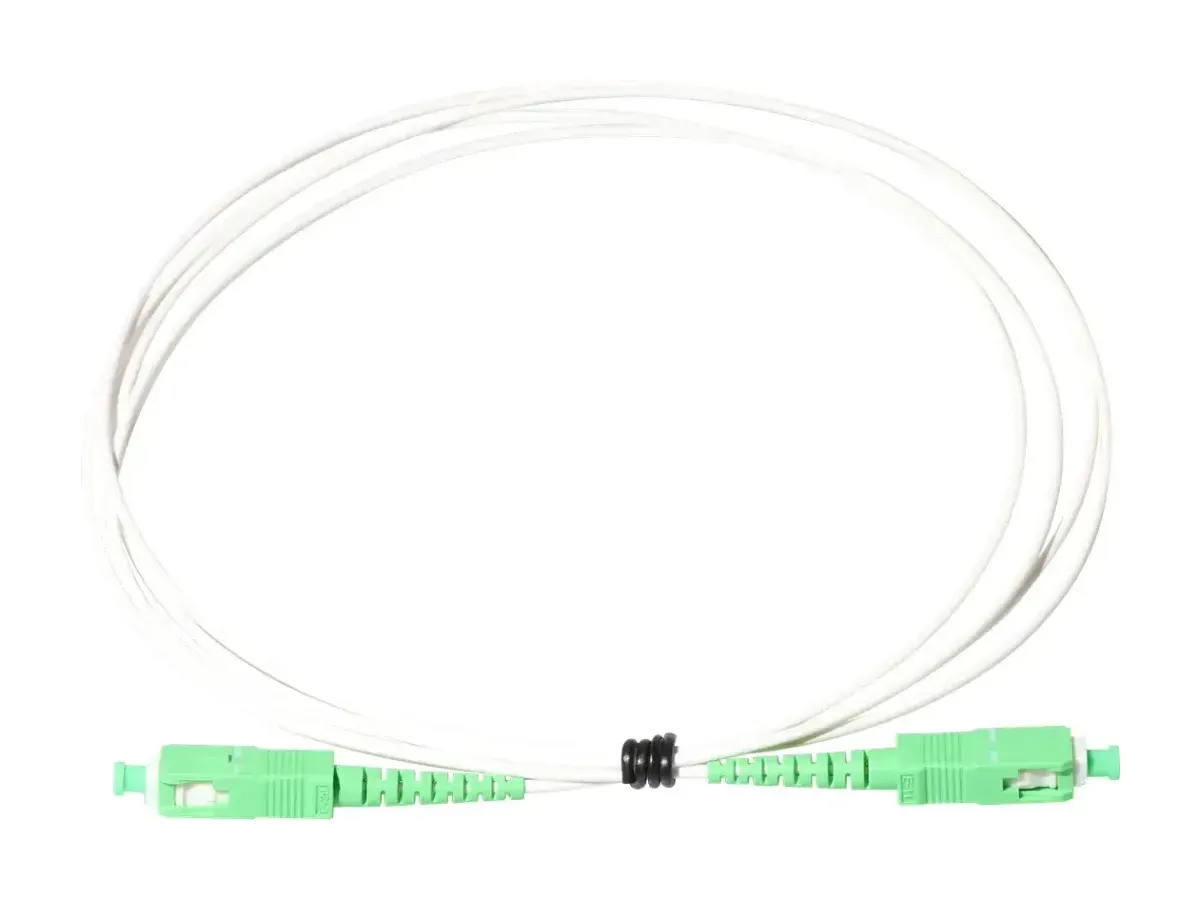

DYS FTTH round patch cord with SC/APC connector for indoor and outdoor networks

FTTH Cabling Series

FTTH Round Patch Cord

The FTTH Round Patch Cord is a cost-effective solution for in-house termination within FTTH networks for indoor and outdoor use, local area networks and building cabling networks.

Request a QuoteCustomize this product

Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.

  • 100% Pre-Shipment Tested

    Insertion & return loss (IL/RL) verified on every assembly

  • 17-Year Manufacturer

    Three in-house factories with 100+ production lines

  • Vertically Integrated

    Cable extrusion, molds and assembly under one roof

Description

The FTTH Round Patch Cord is a cost-effective solution for in-house termination within FTTH networks for indoor and outdoor use, local area networks and building cabling networks. It provides low-insertion-loss interconnection between instruments, terminal boxes and communication equipment, with a UV-resistant outer material and RoHS/REACH-compliant construction.

Technical Specifications

Item SM-UPC (Typ. / Max) SM-APC (Typ. / Max) MM-UPC (Typ. / Max)
Insertion Loss ≤0.15 / ≤0.3 dB ≤0.15 / ≤0.3 dB ≤0.15 / ≤0.3 dB
Return Loss Min. 50 dB Min. 60 dB Min. 30 dB
Item Parameter
Operating Wavelength SM 1310–1550 nm; MM 850–1300 nm
Test Wavelength SM 1310 & 1550 nm; MM 850 & 1300 nm
Durability 200 cycles
Operating Temperature -20 to +70 ℃
Storage Temperature -20 to +70 ℃
Installation Temperature -10 to +70 ℃
Cable Diameter Range 0.9–5.0 mm
Standards GR-1320, IEC 61753-1, IEC 61754-4

Assembly performance

Item SM-UPC SM-APC MM-UPC
Insertion Loss Max. 0.3 dB + 0.35 dB/km·L — Max. 0.3 dB + 3.0 dB/km·L
Return Loss Min. 50 dB Min. 60 dB Min. 30 dB

Features

  • Cost-effective solution for in-house termination
  • Low insertion loss
  • UV-resistant patch cord material
  • Mechanical performance to IEC 61754-4 standard
  • RoHS and REACH materials compliant

Applications

  • FTTH network for indoor and outdoor use
  • Local area network and building cabling network
  • Interconnection between instruments, terminal box and communication equipment
