FTTA Cabling Series
CPRI LC Outdoor Waterproof Connector

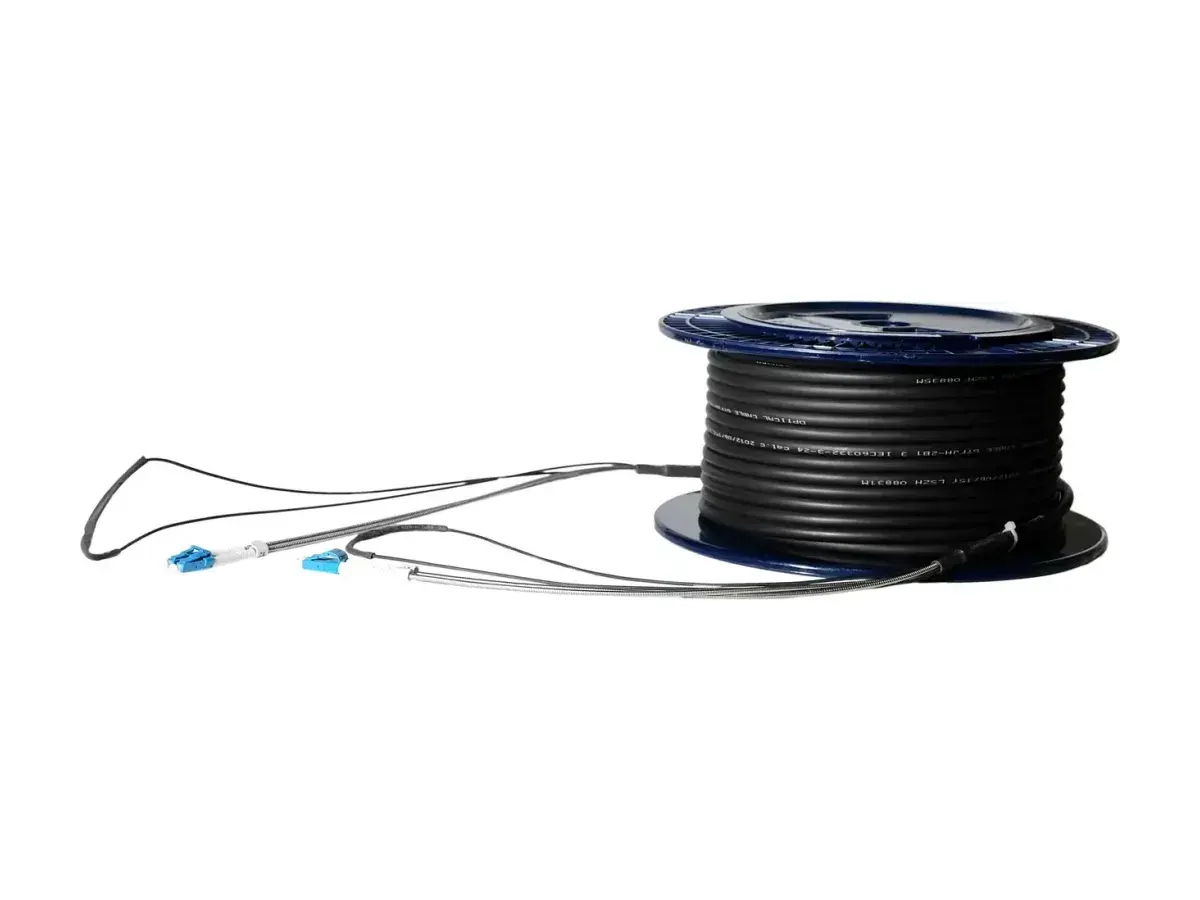

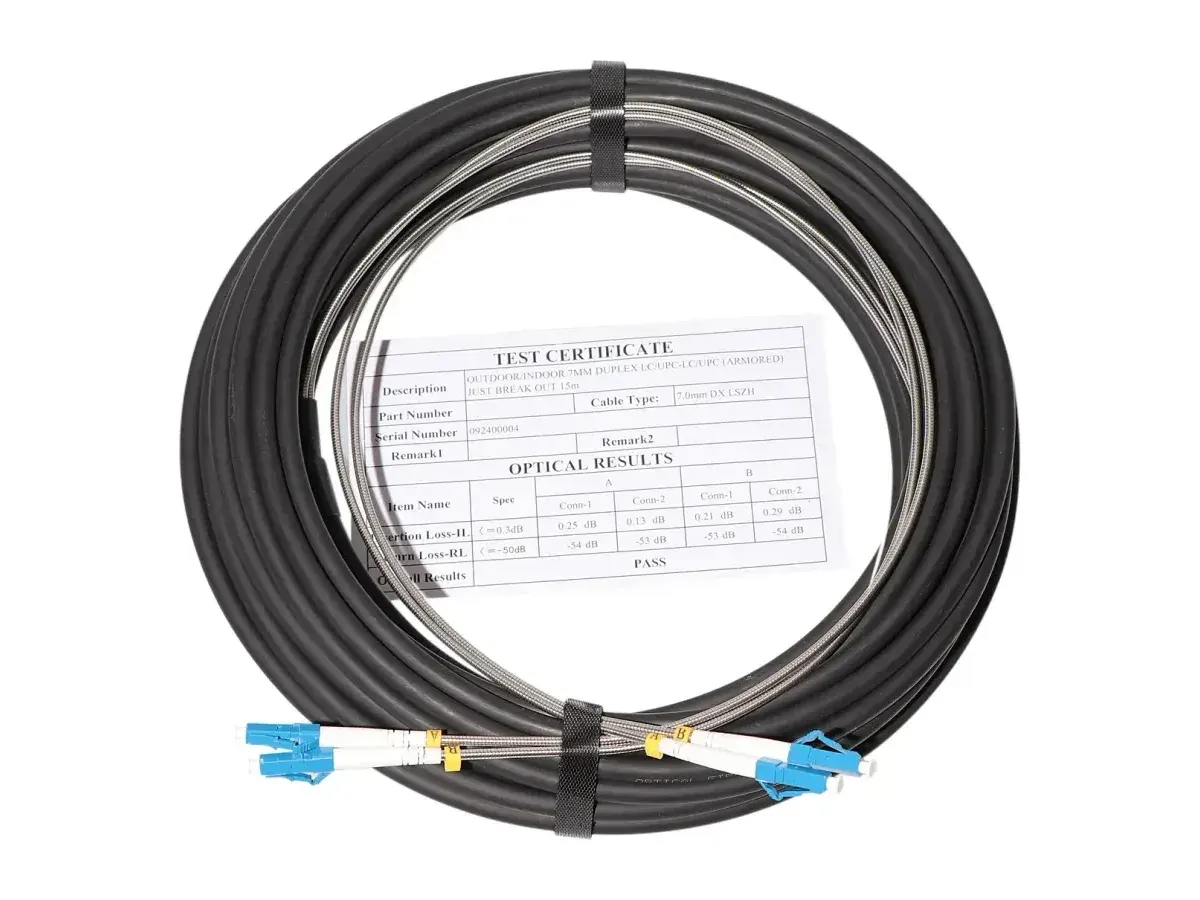

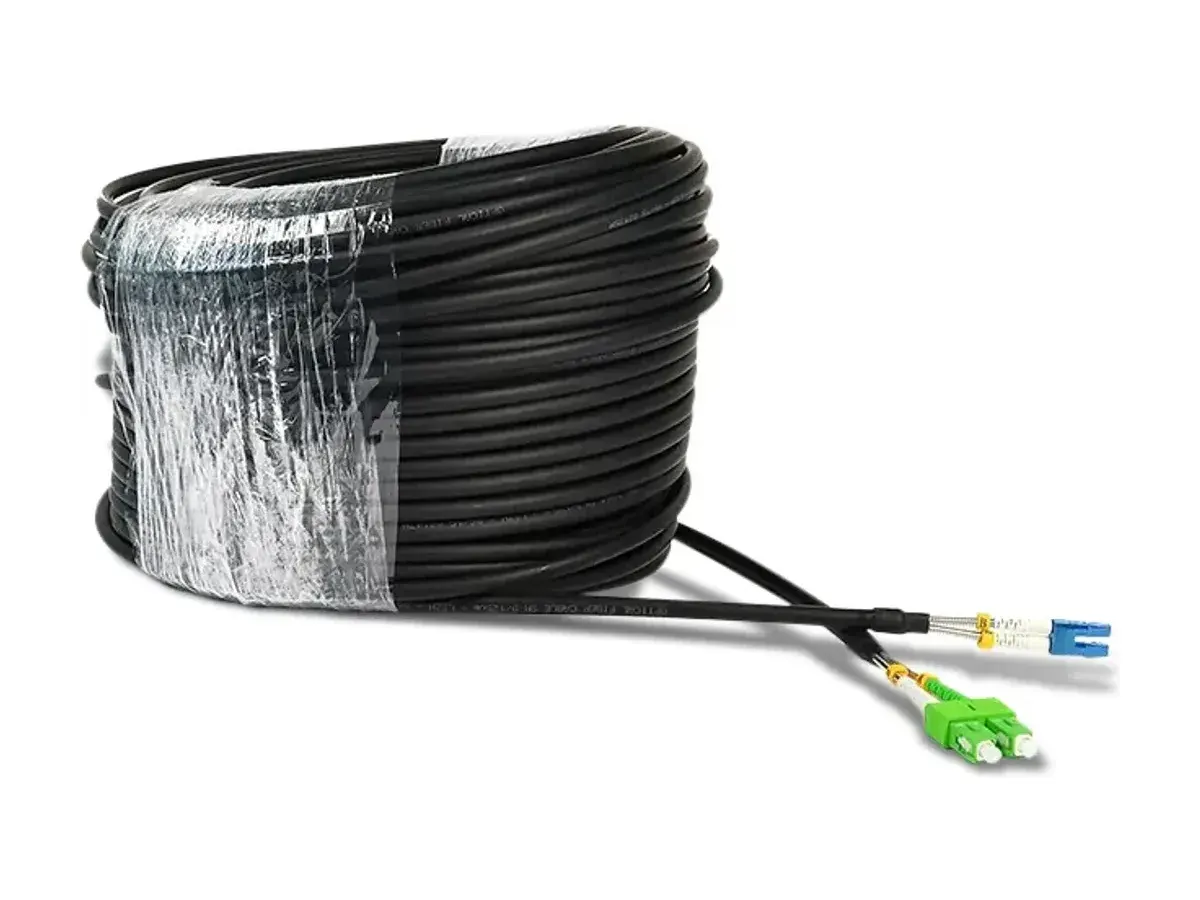

The CPRI LC outdoor cable assembly is a multi-purpose connector for connection between the distribution box and the RRH in Remote Radio Head cell tower applications.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description
The CPRI LC outdoor cable assembly is a multi-purpose connector for connection between the distribution box and the RRH in Remote Radio Head cell tower applications. Its mechanical performance meets the IEC 61754-20 standard, and its end-face geometry and quality are superior to IEC and GR-326 standards.
The jumper cable uses all-weather, UV-resistant materials, allowing new jumper cables to be easily added or installed for future network expansion.
Technical Specifications
Connector Types
| Type | Reference | Note |
|---|---|---|
| LC | IEC 61754-20 | Single mode duplex — APC: green connectors, green boots; UPC: blue connectors, white boots. Multi mode duplex — UPC: beige connectors, white boots |
Available Variants (Length Tolerance)
| Length L (m) | Tolerance △L (m) |
|---|---|
| L ≤ 50 | 0 < △L ≤ 0.3 |
| 50 < L ≤ 100 | 0 < △L ≤ 0.5 |
| L > 100 | 0 < △L ≤ 1.0 |
Cable Parameters
| Variant | Fiber count | Outer jacket dia. (mm) | Max tensile, short / long (N) | Max crush, short / long (N/100mm) | Min bend radius, short / long | Storage temp (°C) |
|---|---|---|---|---|---|---|
| 1 | 2 | 5.0 ± 0.3 | 400 / 200 | 1000 / 500 | 20d / 10d | -20 ~ +70 |
| 2 | 2 | 5.0 ± 0.3 | 400 / 200 | 3000 / 1000 | 20D / 10D | -20 ~ +70 |
| 3 | 2 | 7.0 ± 0.3 | 400 / 200 | 1000 / 500 | 20D / 10D | -20 ~ +70 |
| 4 | 2 | 7.0 ± 0.3 | 400 / 200 | 3000 / 1000 | 20D / 10D | -20 ~ +70 |
Optical Characteristics
| Item | Single mode | Multi mode | Reference |
|---|---|---|---|
| Insertion loss | ≤ 0.30 dB | ≤ 0.30 dB | IEC 61300-3-34 |
| Return loss | ≥ 60 dB (APC); ≥ 50 dB (UPC) | ≥ 30 dB (PC) | IEC 61300-3-6 |
End-Face Geometry
| Item | UPC | APC |
|---|---|---|
| Radius of curvature (mm) | 5 to 30 | 5 to 12 |
| Fiber height (nm) | -100 to 50 | -100 to 50 |
| Apex offset (μm) | 0 to 70 | 0 to 70 |
| APC angle (°) | — | 8° ± 0.5° |
| Key error (°) | — | 0.5° max |
End-Face Quality
Inspected per IEC 61300-3-35:2015. Core, cladding, adhesive and contact zones require no scratches and no defects for both single-mode and multi-mode ferrules.
Mechanical Characteristics
| Parameter | Specification |
|---|---|
| Pull tensile | IEC 61300-2-4 |
| Vibration | IEC 61300-2-1 |
| Torsion | IEC 61300-2-5 |
| Plug and play | IEC 61300-2-2 |
| Bend | IEC 61300-2-44 |
| Impact | IEC 61300-2-12 |
| Temperature | IEC 61300-2-22 |
| Humidity | IEC 61300-2-21 |
Features
- Mechanical performance: IEC 61754-20 standard
- Easily add/install jumper cables for future expansion
- Flexibility with small bending radius and excellent cable routing properties
- End-face geometry and quality superior to IEC and GR-326 standards
- All-weather and UV-resistant jumper cable materials
- RoHS and REACH compliant materials
Applications
- Multi-purpose outdoor
- Connection between distribution box and RRH
- Deployment in Remote Radio Head cell tower applications
Related products
NSN Boot Duplex LC Outdoor Connector
IP67 NSN-style duplex LC assembly for 1–3 fibre-pair RRH runs — armored or non-armored, UV-resistant sheath.
View details
FULLX (LC) Outdoor Waterproof Connector
IP68 LC connector with an open bulkhead — swap the SFP transceiver without opening the RRH; floating Z-axis plug.
View details
ODVA Connector (SC, LC, MPO)
Cost-effective IP68 industrial-LC (ODVA) connector — intermatable with IEC 61076-3-106 adapters, field-installable without special tools.
View details

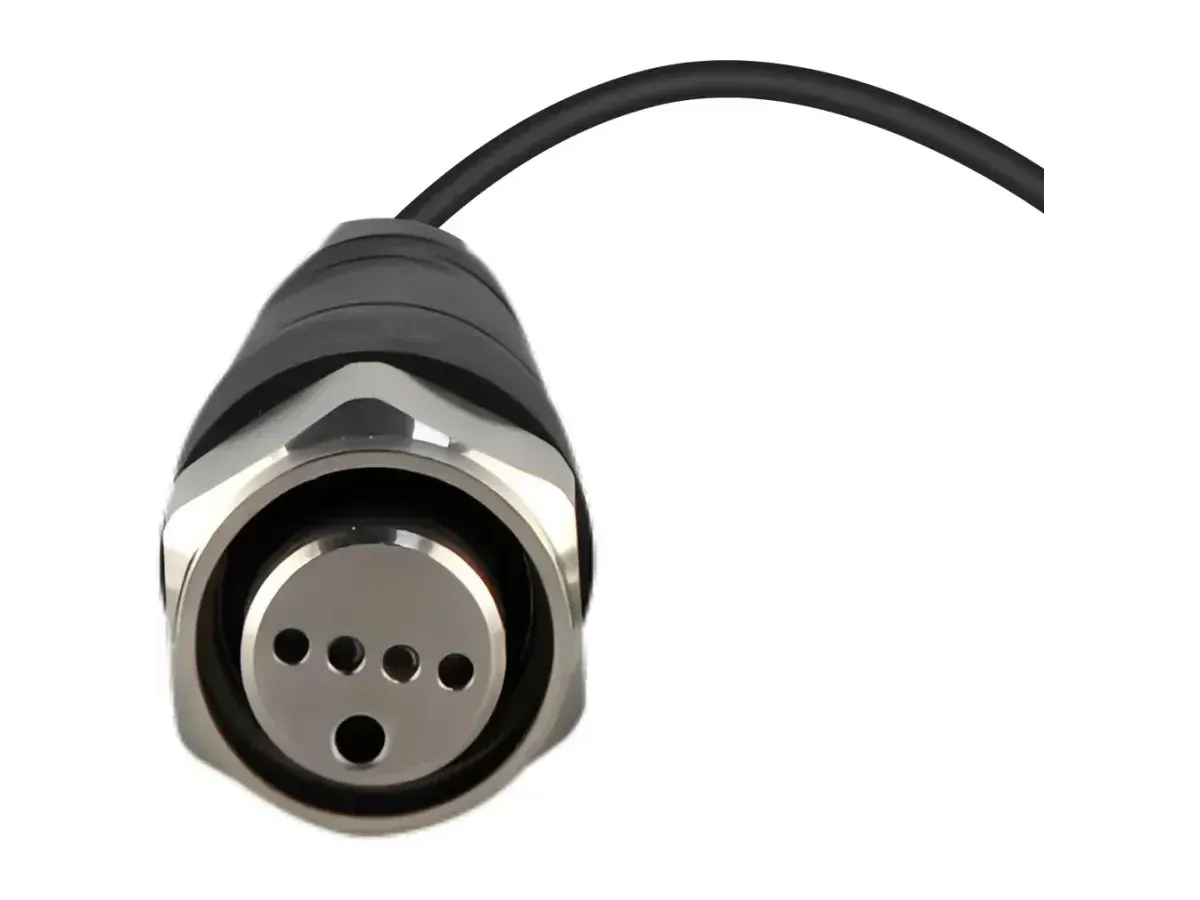

AARC Outdoor Waterproof Connector
