FTTH Cabling Series

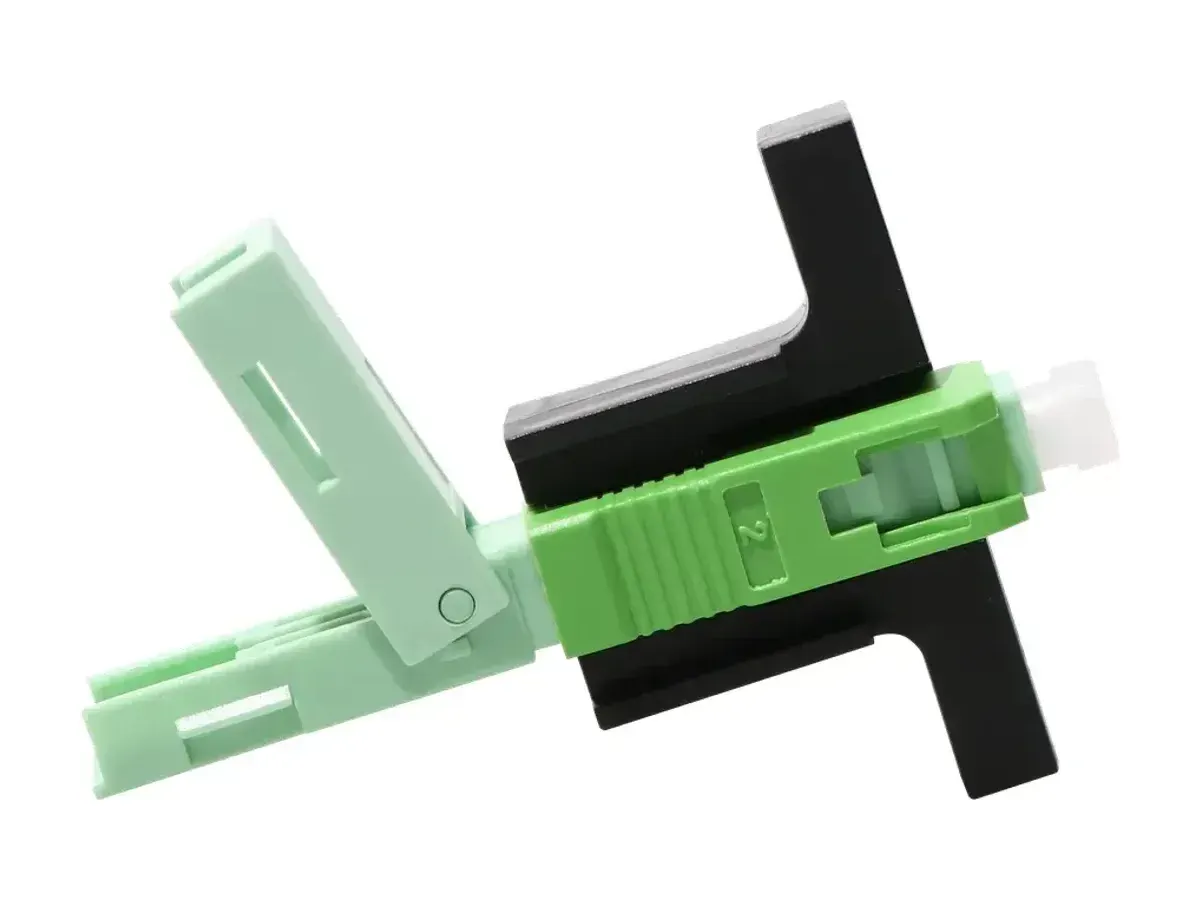

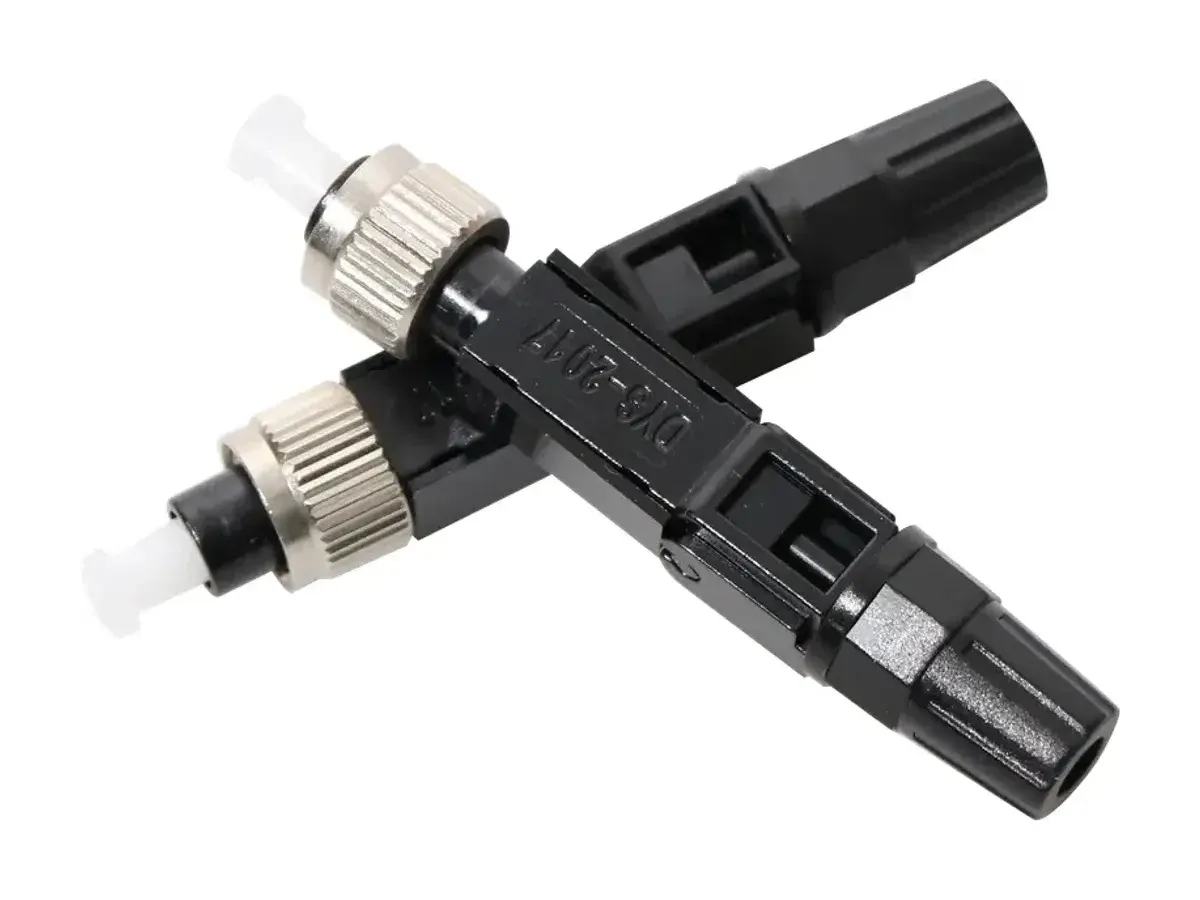

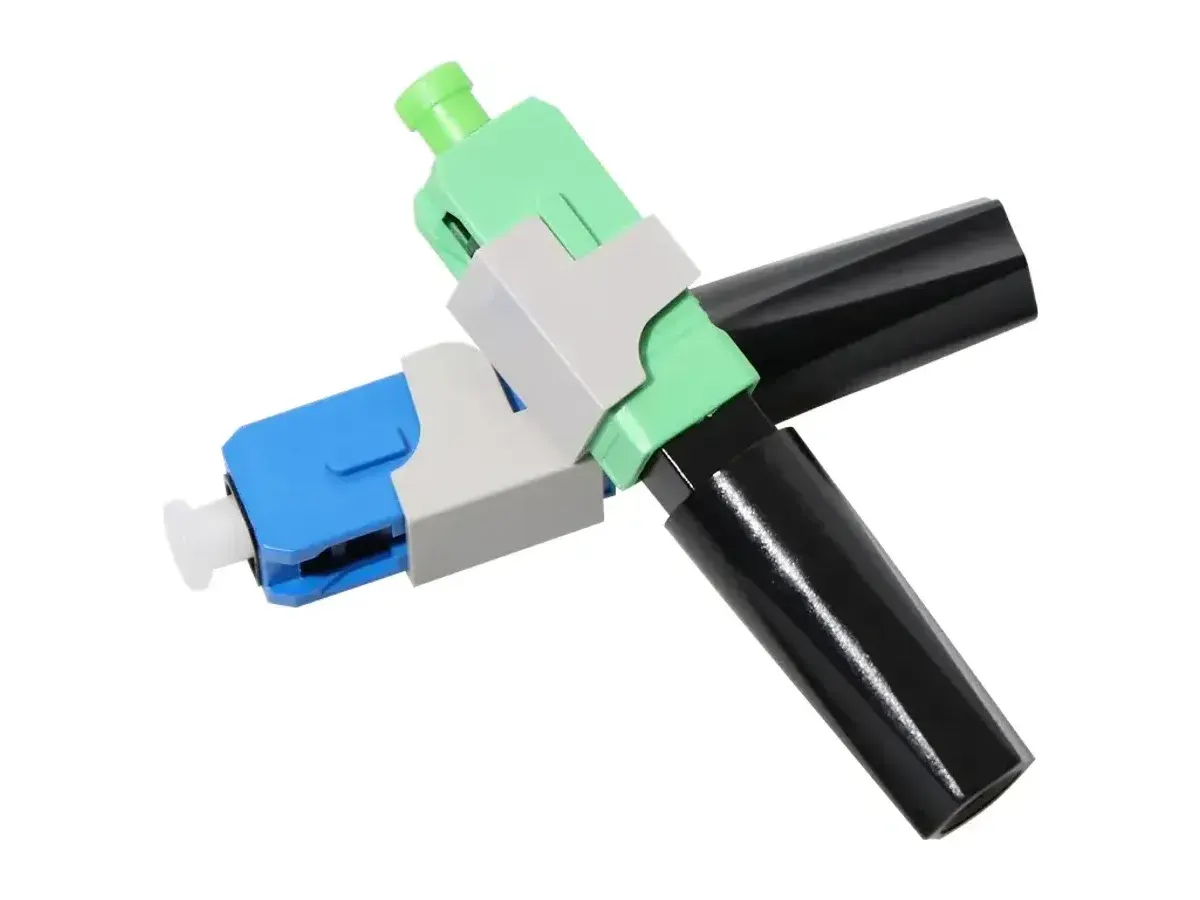

Fast Connector (LC / SC / FC)
The Fast Connector uses an embedded optical-fiber structure with a new, unique pressure-welding design that requires no injection, no grinding and no consumable materials.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description
The Fast Connector uses an embedded optical-fiber structure with a new, unique pressure-welding design that requires no injection, no grinding and no consumable materials. It delivers high installation quality and a high success rate, can be reused, and is easy to carry — supporting efficient field termination of fiber optic networks.
Technical Specifications
Type | SM-UPC (Typ. / Max) | SM-APC (Typ. / Max) | MM-UPC (Typ. / Max) |
|---|---|---|---|
Insertion Loss | ≤0.1 / ≤0.35 dB | ≤0.15 / ≤0.35 dB | ≤0.05 / ≤0.3 dB |
Return Loss | ≥45 dB | ≥55 dB | ≥30 dB |
Durability | 500 mating cycles | 500 mating cycles | 500 mating cycles |
Working Temperature | -40 to +85 ℃ | -40 to +85 ℃ | -40 to +85 ℃ |
Features
- Single fiber, SC / LC / ST / FC based connector
- In-line connection available
- Operating temperature: -40 to +85 ℃
- Cable diameter range: 2.0 mm, 3.0 mm, 2.0×3.0 mm
Applications
- Opening the FTTH fiber terminal end
- Cabling into boxes and cabinets
- Fiber repair and maintenance after faults
- LAN, WAN, data and video transmission
- Fiber end-user access construction and maintenance
- Optical fiber access of mobile base stations
