Outdoor Terminal Box

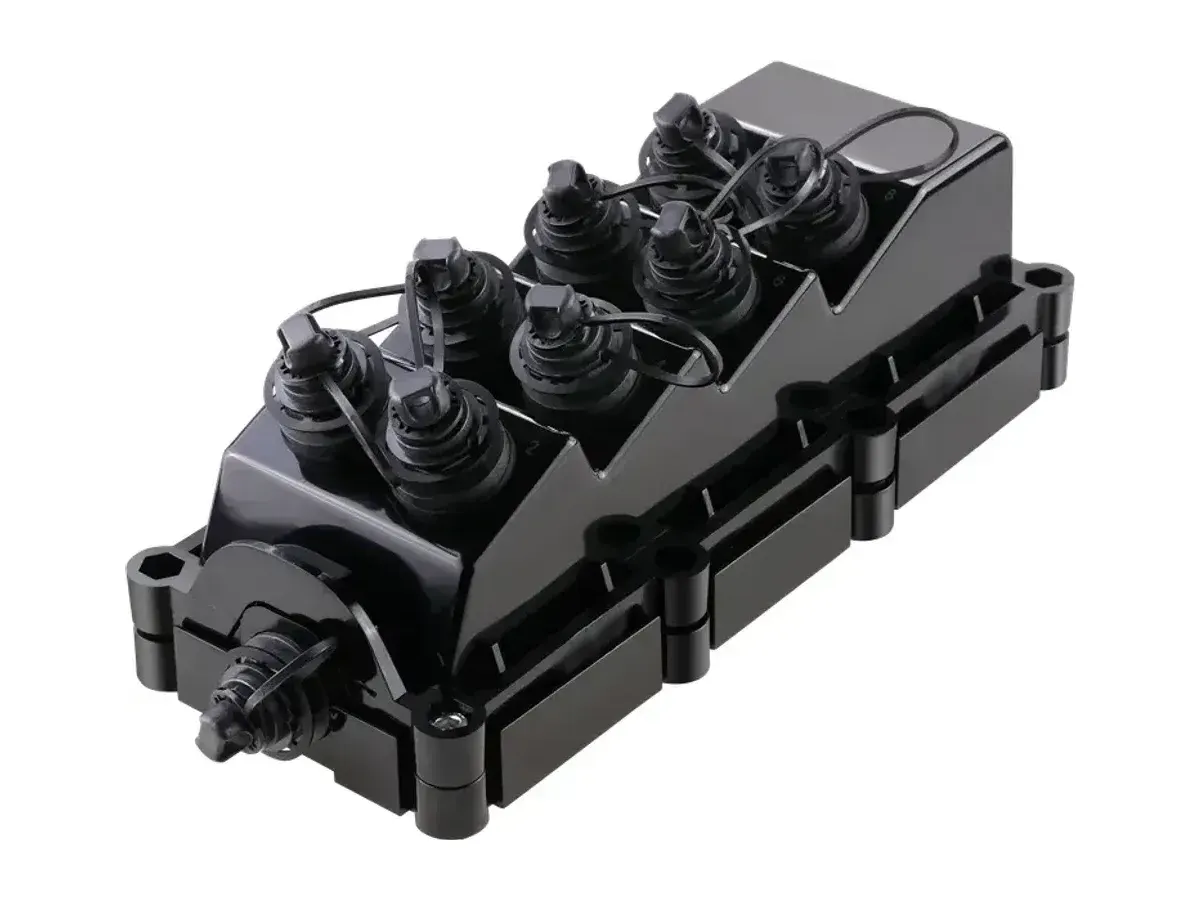

FTTX-A MST Box
The FTTX-A multiport service terminal connects a feeder cable to multiple distribution cables as a compact, weather-resistant junction point for fiber access networks.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

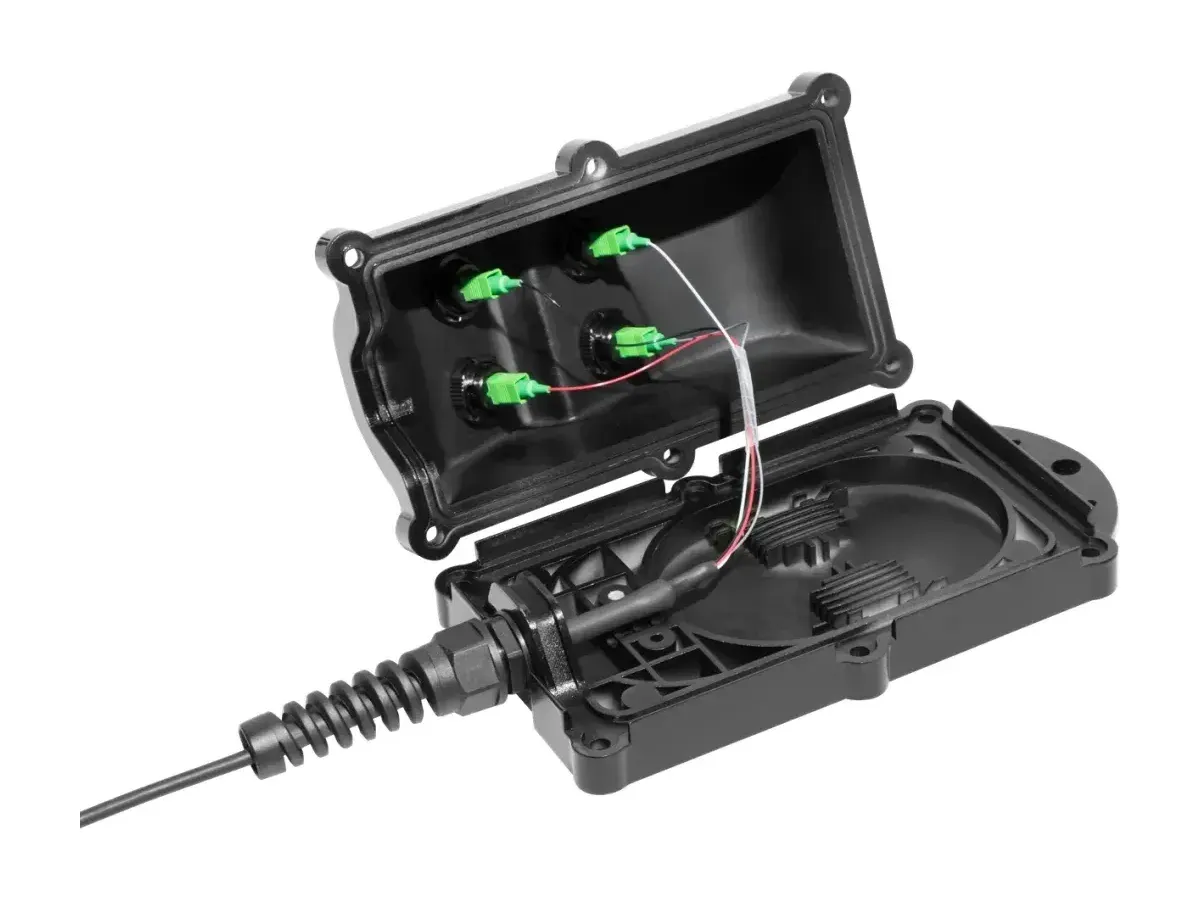

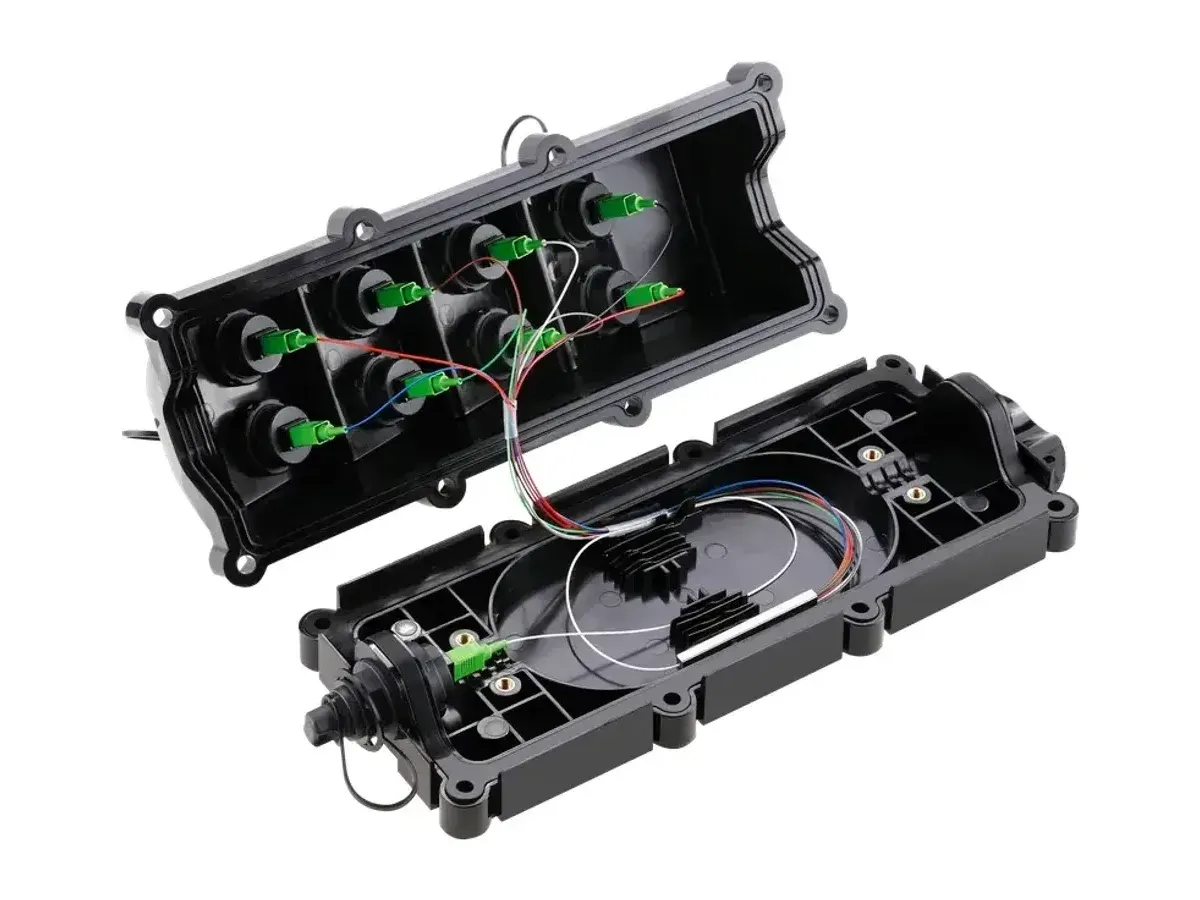

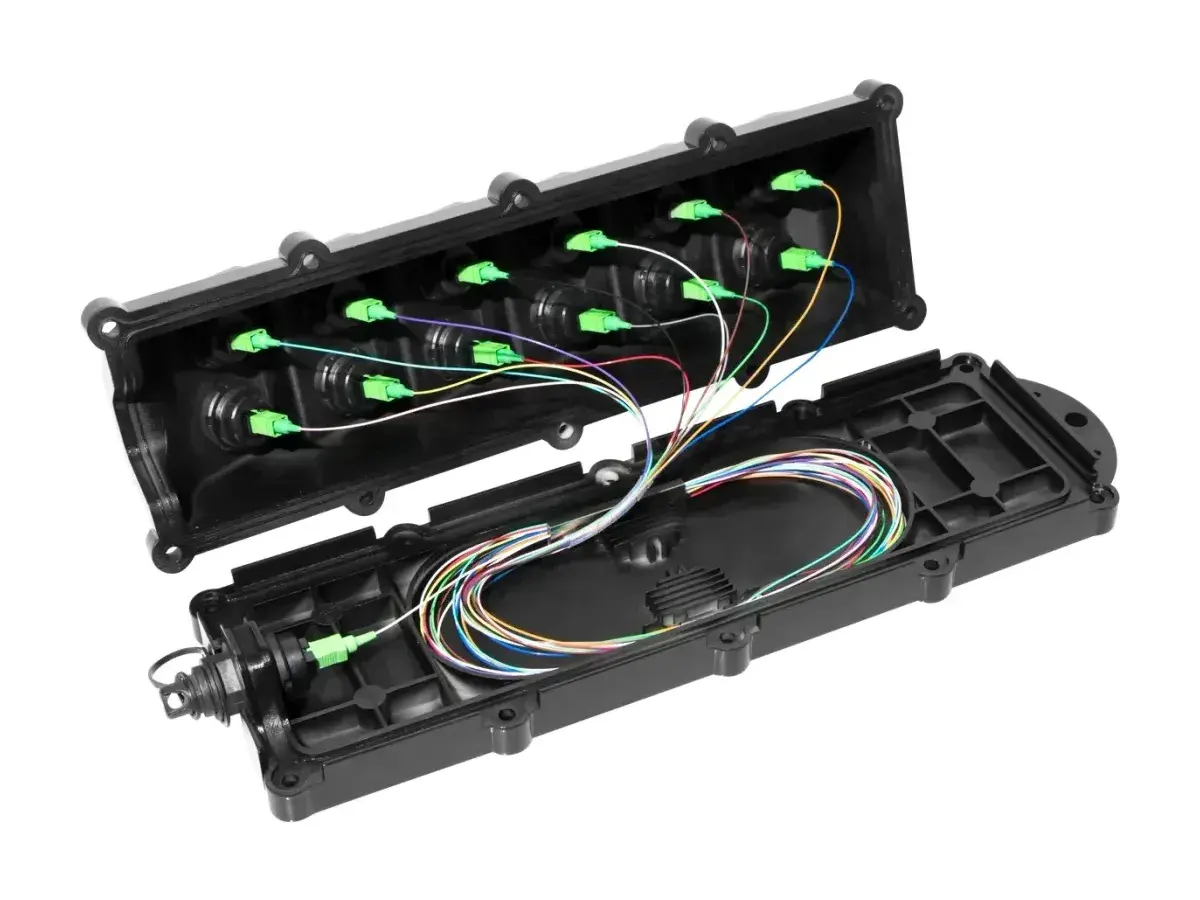

The FTTX-A multiport service terminal connects a feeder cable to multiple distribution cables as a compact, weather-resistant junction point for fiber access networks. Its interior can be loaded with a PLC splitter, pigtails, MPO cable, or a customized solution, eliminating the loss associated with excess fusion splices.
Technical Specifications
Product Parameters
| Item | Specification |
|---|---|
| Dimensions (L×W×H) | 200×120×85 mm (4 core) / 280×120×85 mm (8 core) / 418×120×85 mm (12 core) |
| Material | PC |
| Waterproof grade | IP68 |
| Temperature range | -40 ~ +85 ℃ |
| Input cable diameter | 15 mm |
| Round cable OD | 6.0 mm to 12.0 mm |
| Flat cable dimension | 4.0×7.0 mm, 4.0×8.0 mm, 4.5×8.5 mm, 6.0×11.0 mm |
| Cable jacket material | LSZH, PE or TPU |
| Bending radius | 20D |
| Cable crush resistance | 500 N/cm long term |
| Tensile strength | 1200 N long term |
| UV resistance | ISO 4892-3 |
| Fire protection rating | UL94-V0 |
| Number of fusion protection tubes | ≥24 pcs |
PLC Splitter Options by Capacity
| Capacity | PLC splitter |
|---|---|
| 4 core | 1 pc (SC 1×4 PLC) |
| 8 core | 1 pc (SC 1×8 PLC) or 1 pc (LC 1×8 PLC) |
| 12 core | 1 pc (SC 1×12 PLC) |
| — | 1 pc (SC 1×16 PLC) / 1 pc (SC 1×24 PLC) |
Port Configuration
| Item | Standard | Optional |
|---|---|---|
| Input hole | PG13.5 | Mini SC, H connector (Optitap), Stap, MPO, ODVA or customized |
| Output hole | Mini SC, H connector | Mini SC, H connector (Optitap), Stap, MPO, ODVA or customized |
| Extend hole | Closed | Mini SC, H connector (Optitap), Stap, MPO, ODVA or customized |
Features
- Different connector ports for option, such as ODVA (SC, LC, MPO), H connector (match Optitap), Stap (match Optitap), Mini SC (match fast connect).
- Lower installation cost and increased speed of customer inter-connection.
- IP68 waterproof — eliminates water ingress potential and prevents unwanted entry in the field.
- Eliminates loss associated with excess fusion splices.
- Inside can be loaded with PLC splitter, pigtails, MPO cable, or customized solution.
Applications
- Outside plant fiber access networks
- Fiber-to-the-x (FTTx) and access network deployments
- Wall mount, aerial mount, pole mount, pedestal mount
Related products

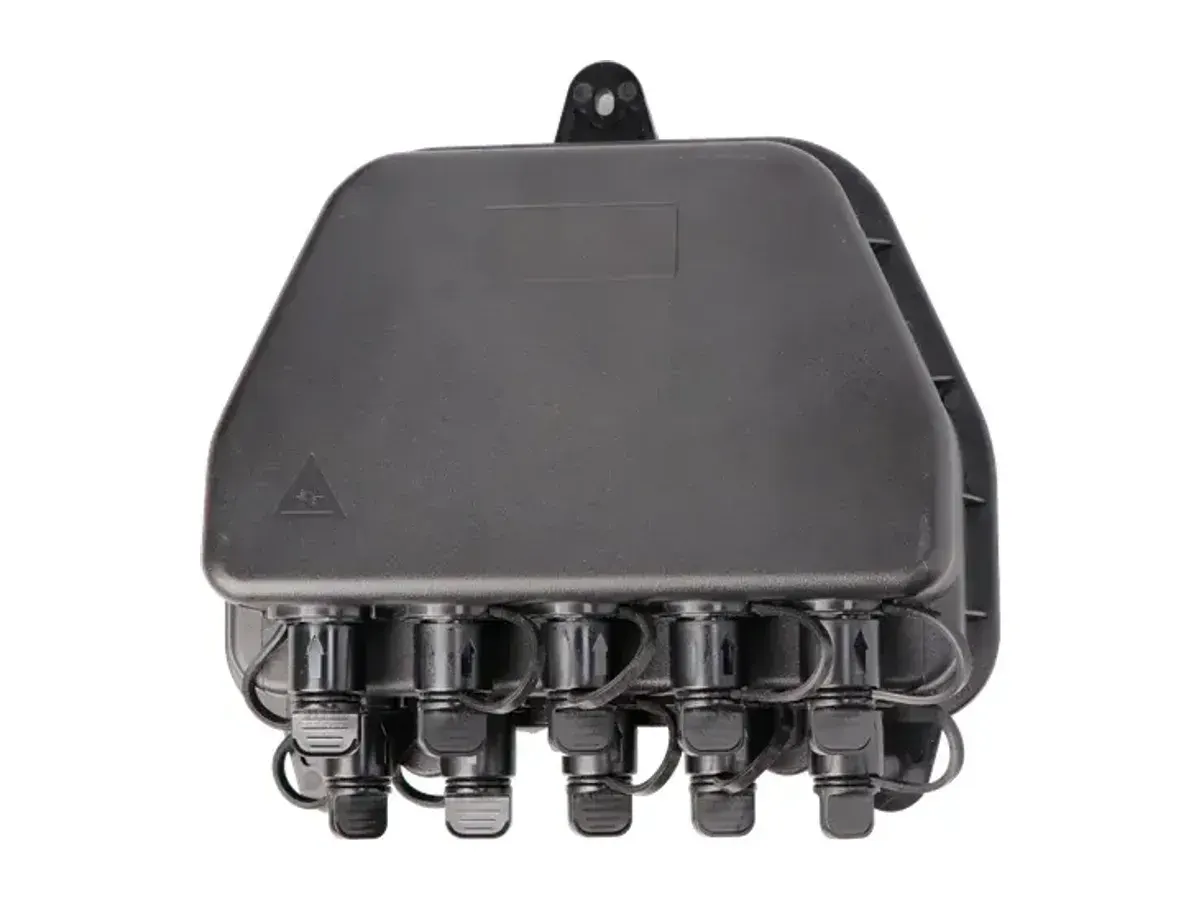

FTTH-061 SUB Box
DYS Model No. FTTH-061 connects the drop cable with feeder cable as the termination point in the FTTx network, able to meet at least 8 and 9 user requirements.
View details

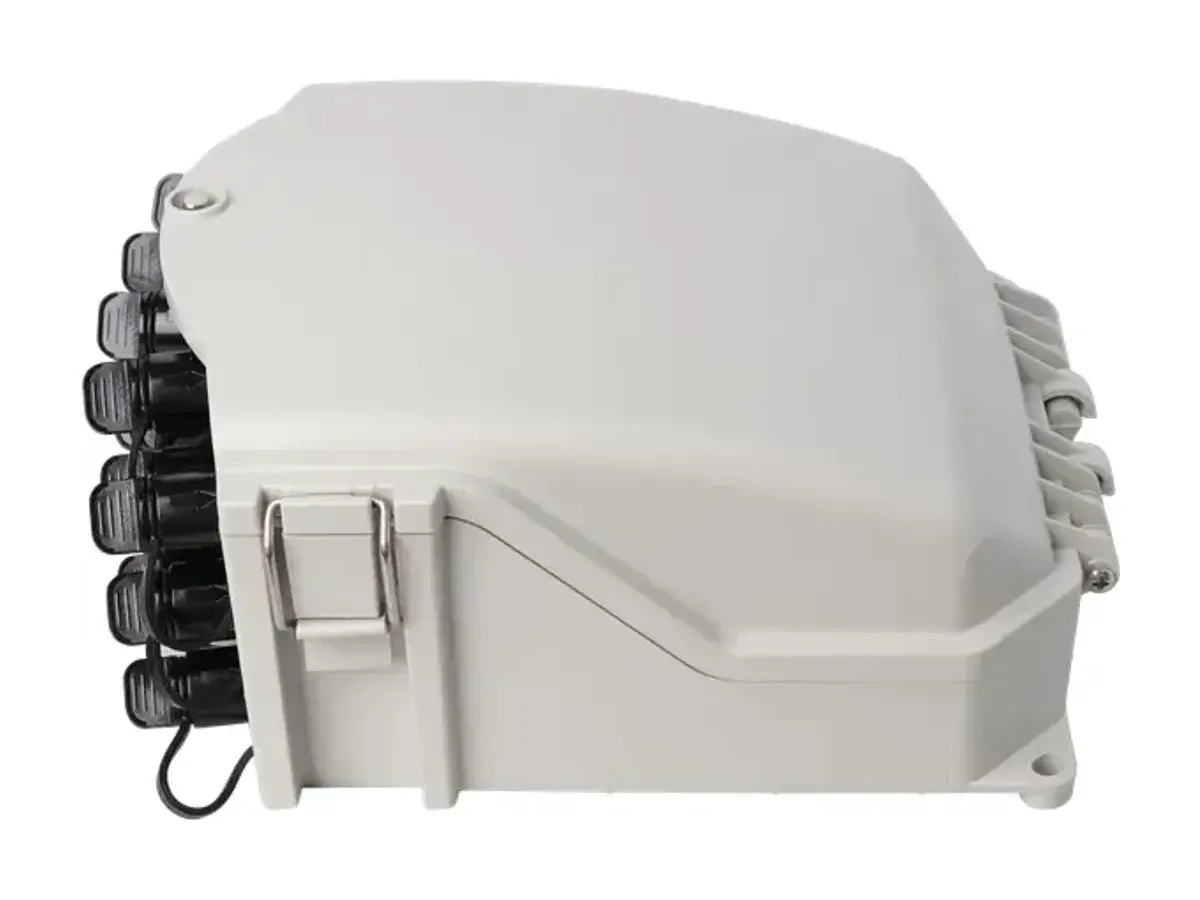

FTTH-047 HUB Box
FTTH-047 is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network systems.
View details

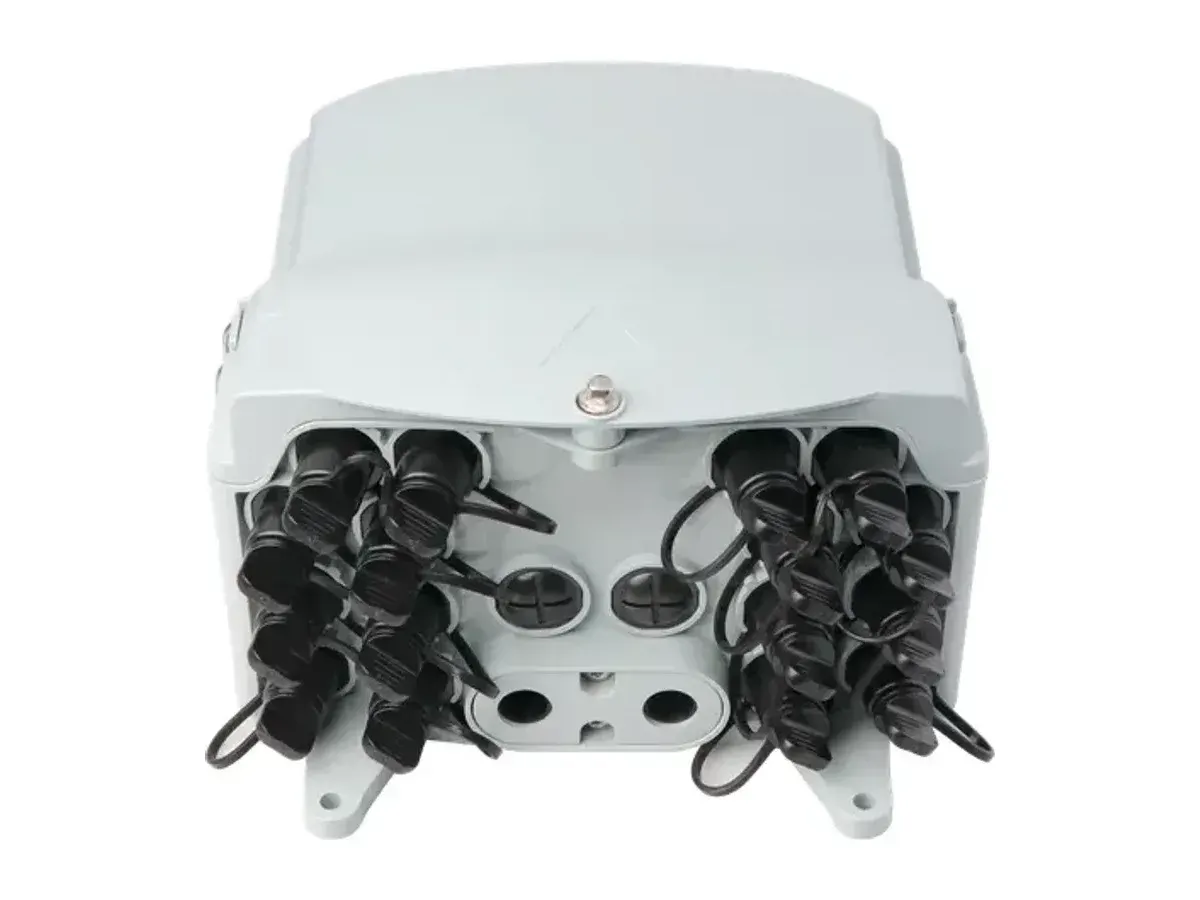

FTTH-103 HUB Box
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network systems.
View details

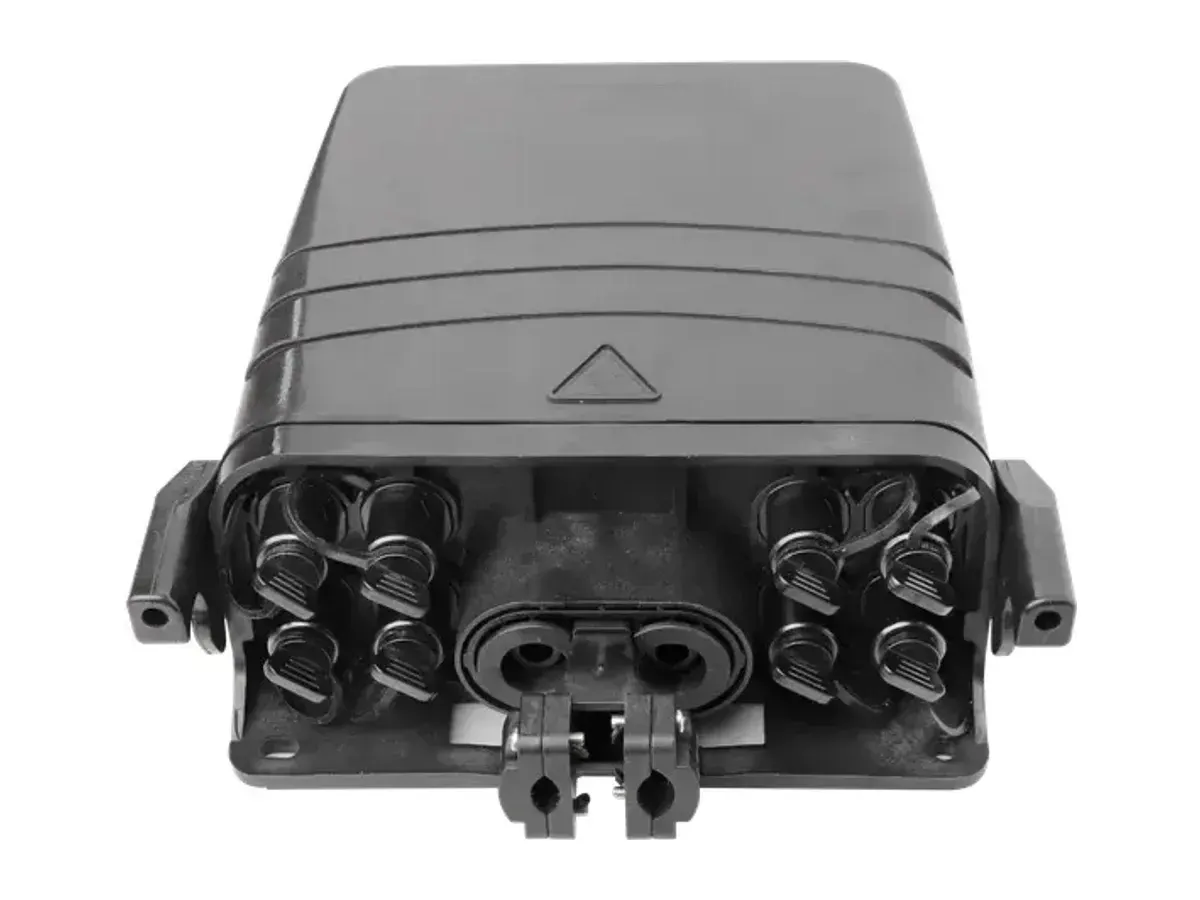

FTTH-144 HUB Box
