Outdoor Terminal Box
FTTH-103 HUB Box
This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network systems.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

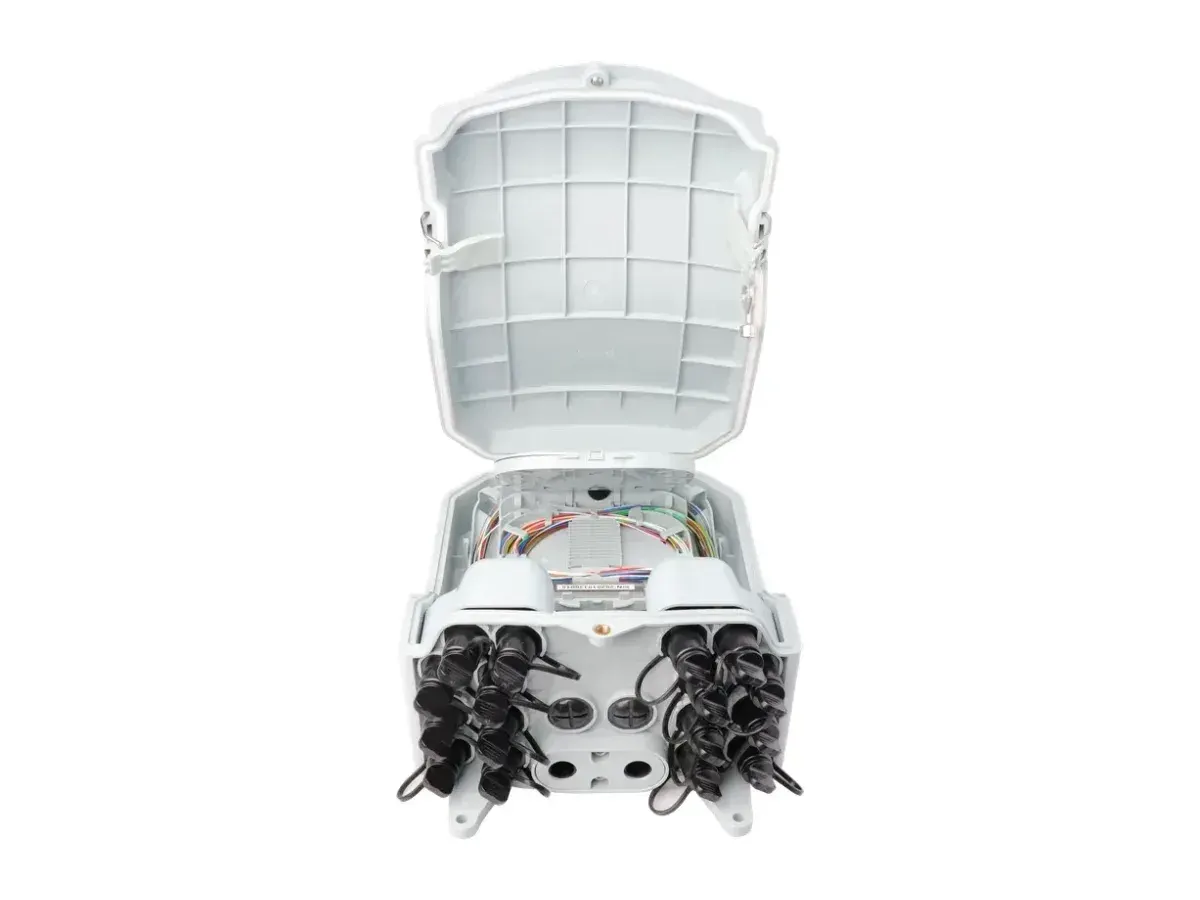

This box is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network systems. It integrates fiber splicing, splitting, distribution, storage, and cable connection in one unit, while providing solid protection and management for the FTTx network buildout.
Technical Specifications
| Item | Specification |
|---|---|
| Part number | FTTH-103-16 |
| Dimensions | 320.6 × 218 × 133.5 mm |
| Color | Black or white |
| Material | PC+ABS, ABS |
| Capacity | 16 cores |
| Protection level | IP65 |
| Flame retardant performance | Non-flame retardant |
| Application | Pole / wall, aerial |
| Splitter | Can be fitted with 1:16 tube splitter |
| Atmospheric pressure | 70 kPa ~ 106 kPa |
Features
- Total enclosed structure, in a clean shape.
- Protects and manages cable effectively.

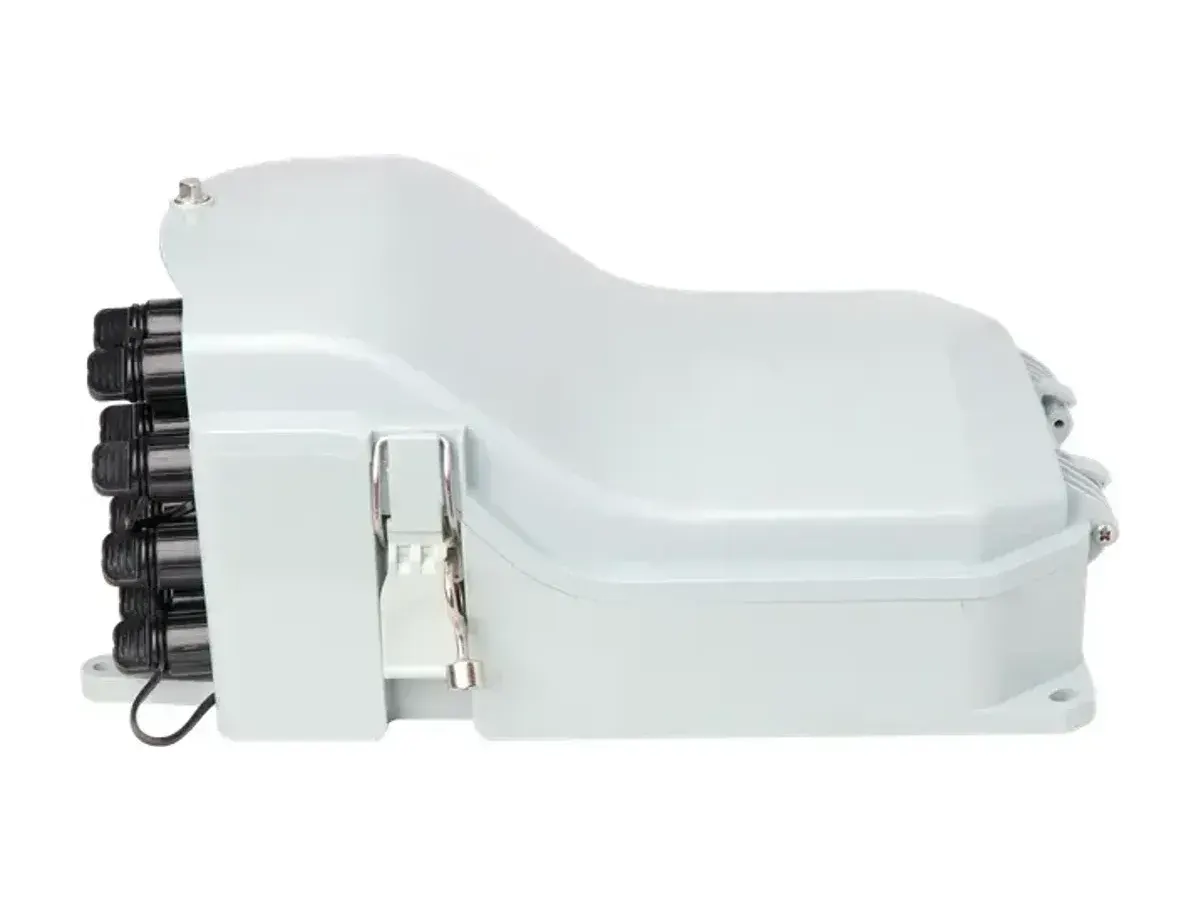

- Secured with an anti-theft locking mechanism.
- Standard size, light weight.
- High quality PC+ABS material.
- Good dust and moisture proofing, IP65.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, and distribution all in one.

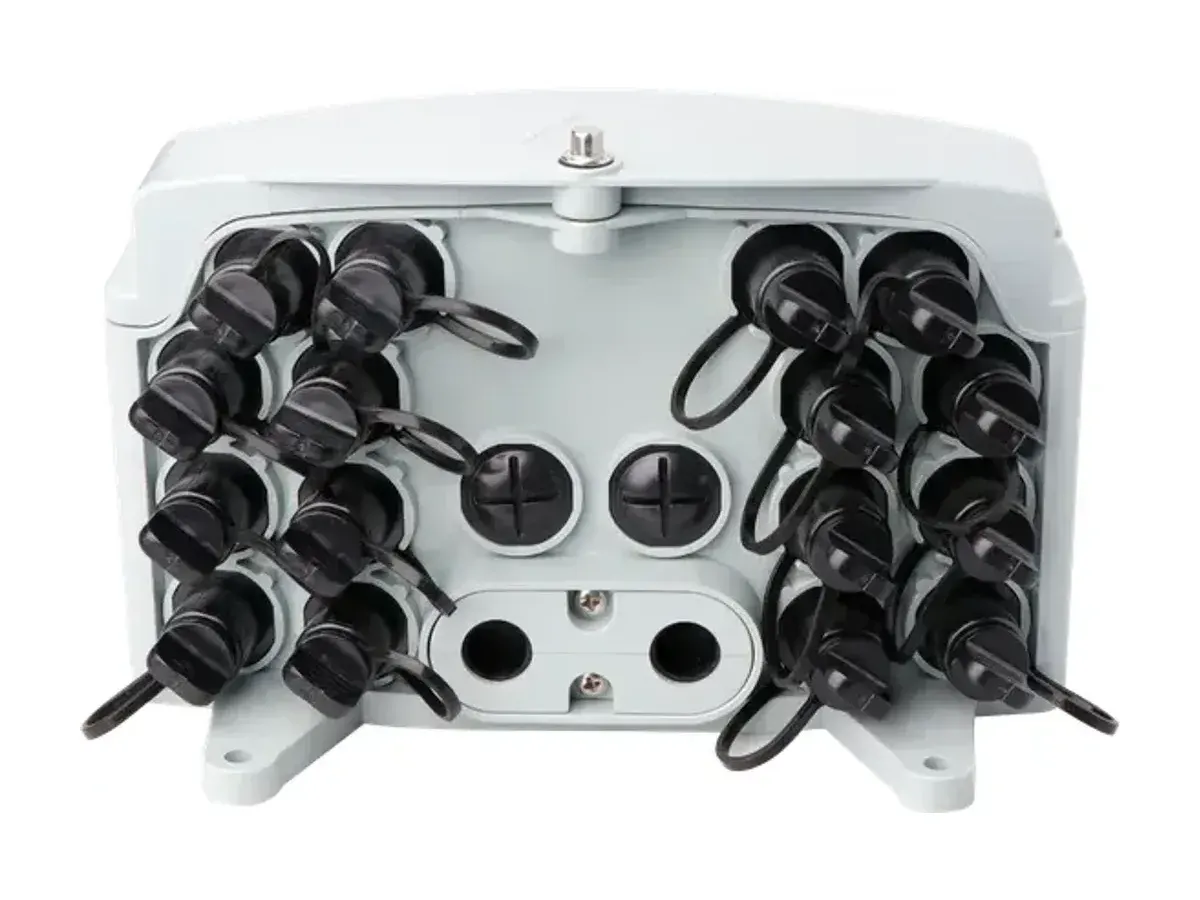

- Suitable for outdoor waterproof adapters.
- Easy to operate.
- Wall and pole mountable (accessories optional).
- Suitable for both outdoor and indoor use.
Applications
- Fiber to the Home (FTTH) and FTTx networks
- Telecommunication central offices
- Broadband access and last-mile distribution
