Outdoor Terminal Box
FTTH-047 HUB Box
FTTH-047 is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network systems.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description
FTTH-047 is used as a termination point for the feeder cable to connect with drop cable in FTTx communication network systems. Fiber splicing, splitting, and distribution can all be done in this box, while it provides solid protection and management for the FTTx network buildout.
Technical Specifications
| Item | Specification |
|---|---|
| Part number | FTTH-047 |
| Dimensions | 208 × 241 × 117 mm |
| Color | Black, grey white |
| Material | PC+ABS |
| Capacity | 16 cores |
| Protection level | IP65 |
| Flame retardant performance | Non-flame retardant |
| Application | Pole / wall, aerial |
| Splitter | Can be fitted with 1×1:16 tube splitter |
| Max inlet cable diameter | 18 mm |
Features

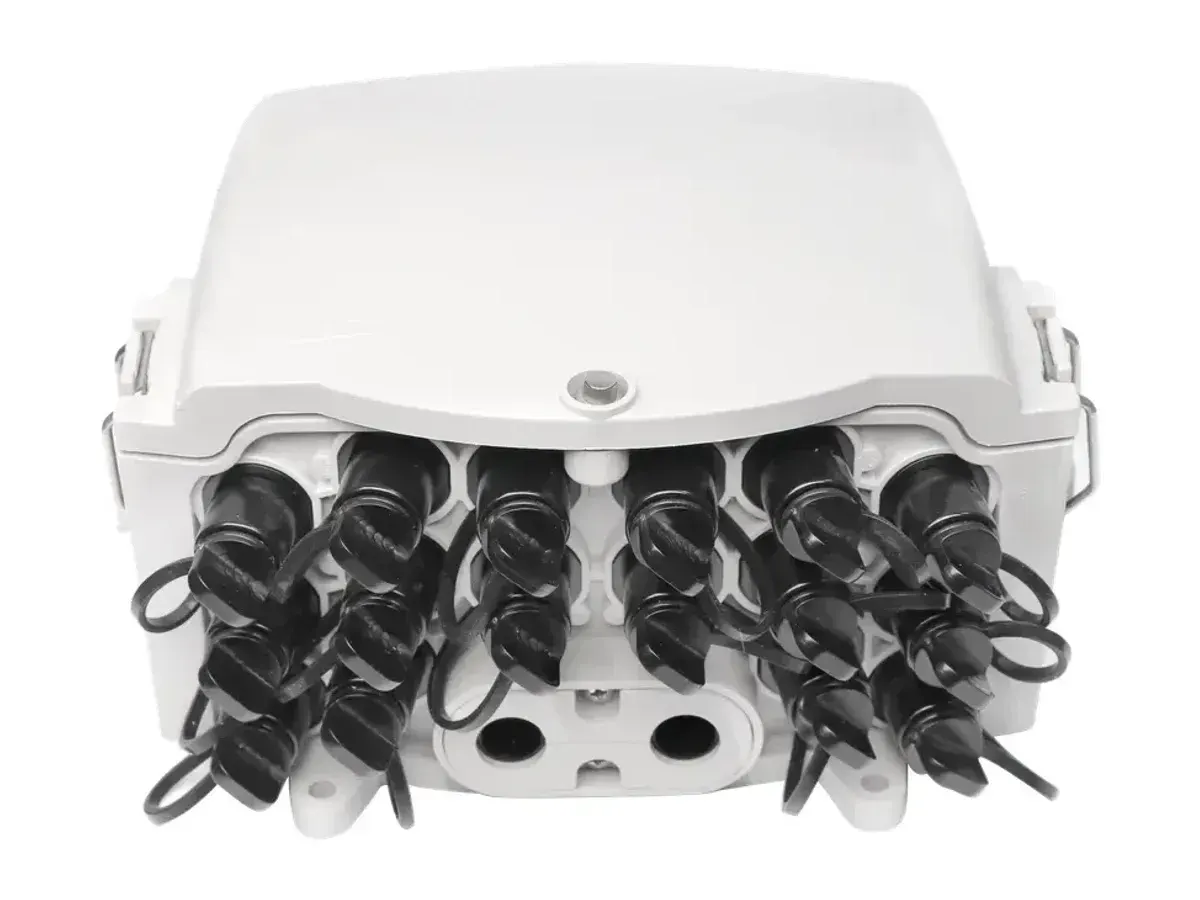

- Total enclosed structure.
- Material: PC+ABS — wet-proof, water-proof, dust-proof, anti-aging, protection level up to IP65.
- Clamping for feeder cable and drop cable, fiber splicing, fixation, storage, and distribution all in one.

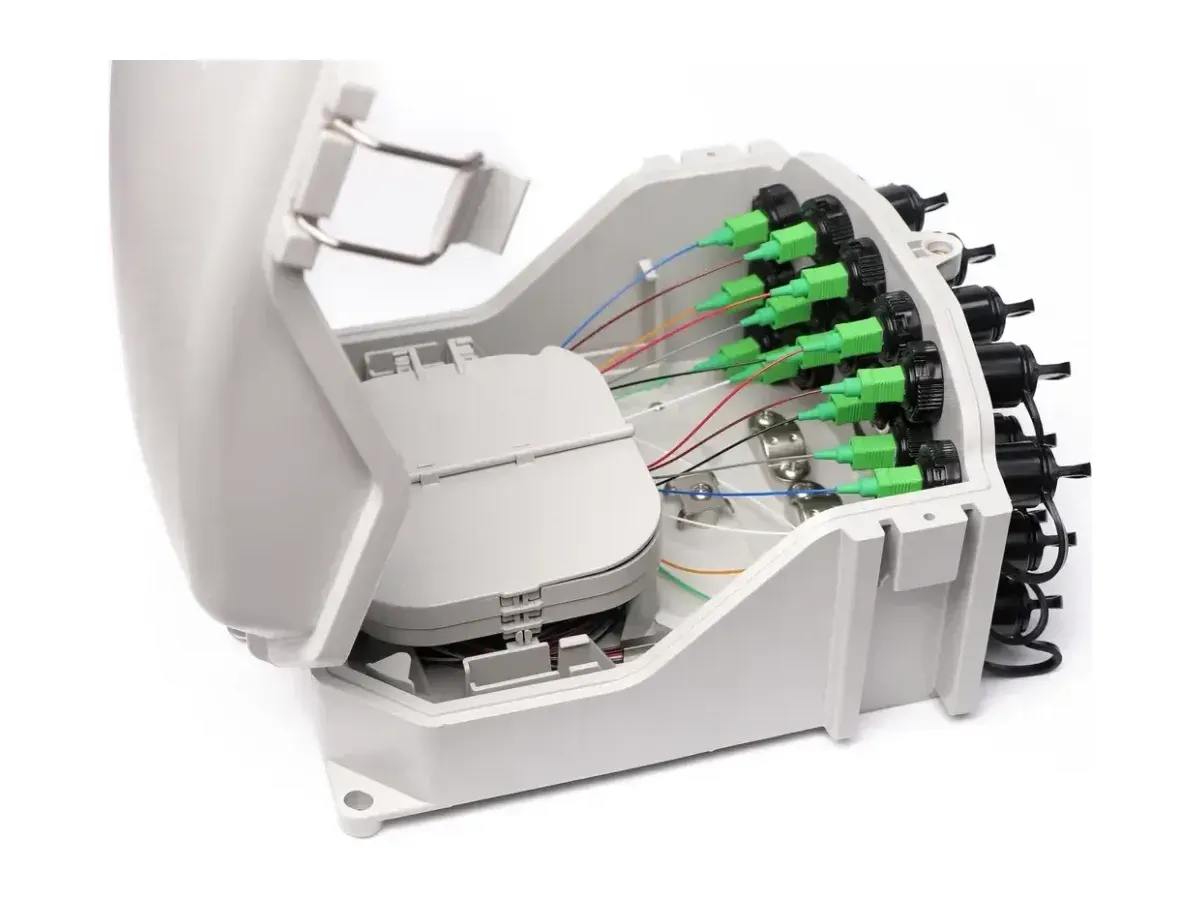

- Cable, pigtails, and patch cords run through their own paths without disturbing each other; supports micro PLC splitter installation for easy maintenance.

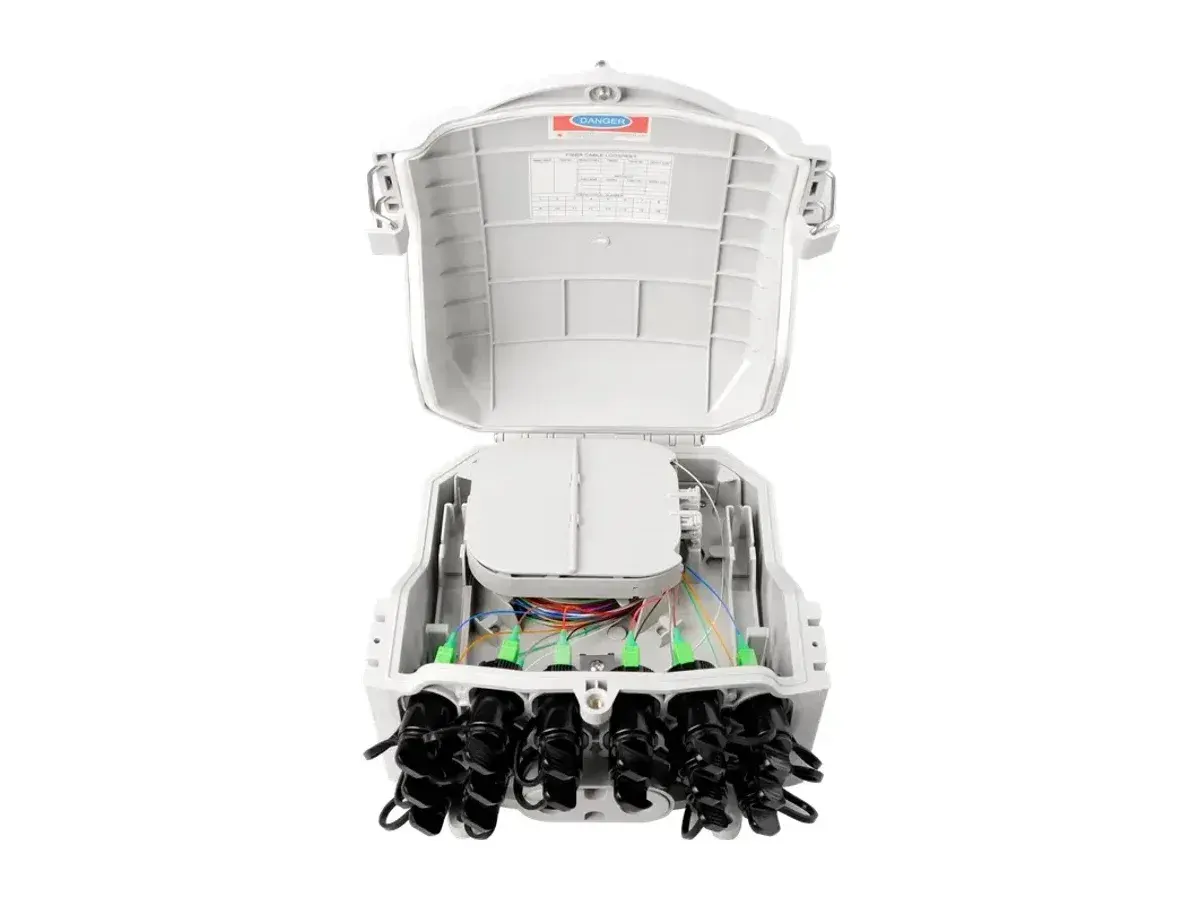

- Distribution panel can be flipped up and the feeder cable placed through the expression port, making maintenance and installation easy.
- Wall-mounted or pole-mounted installation, suitable for both indoor and outdoor use.
Applications
- Fiber to the Home (FTTH) and FTTx networks
- Telecommunication central offices
- Broadband access and last-mile distribution
Packing
| Item | Size |
|---|---|
| Plastic bag | 350 × 350 mm |
| Inner box (single corrugated) | 250 × 210 × 120 mm |
| Carton (double corrugated) | 450 × 290 × 700 mm (10 pcs/box) |
