GYTA53 Outdoor Cable

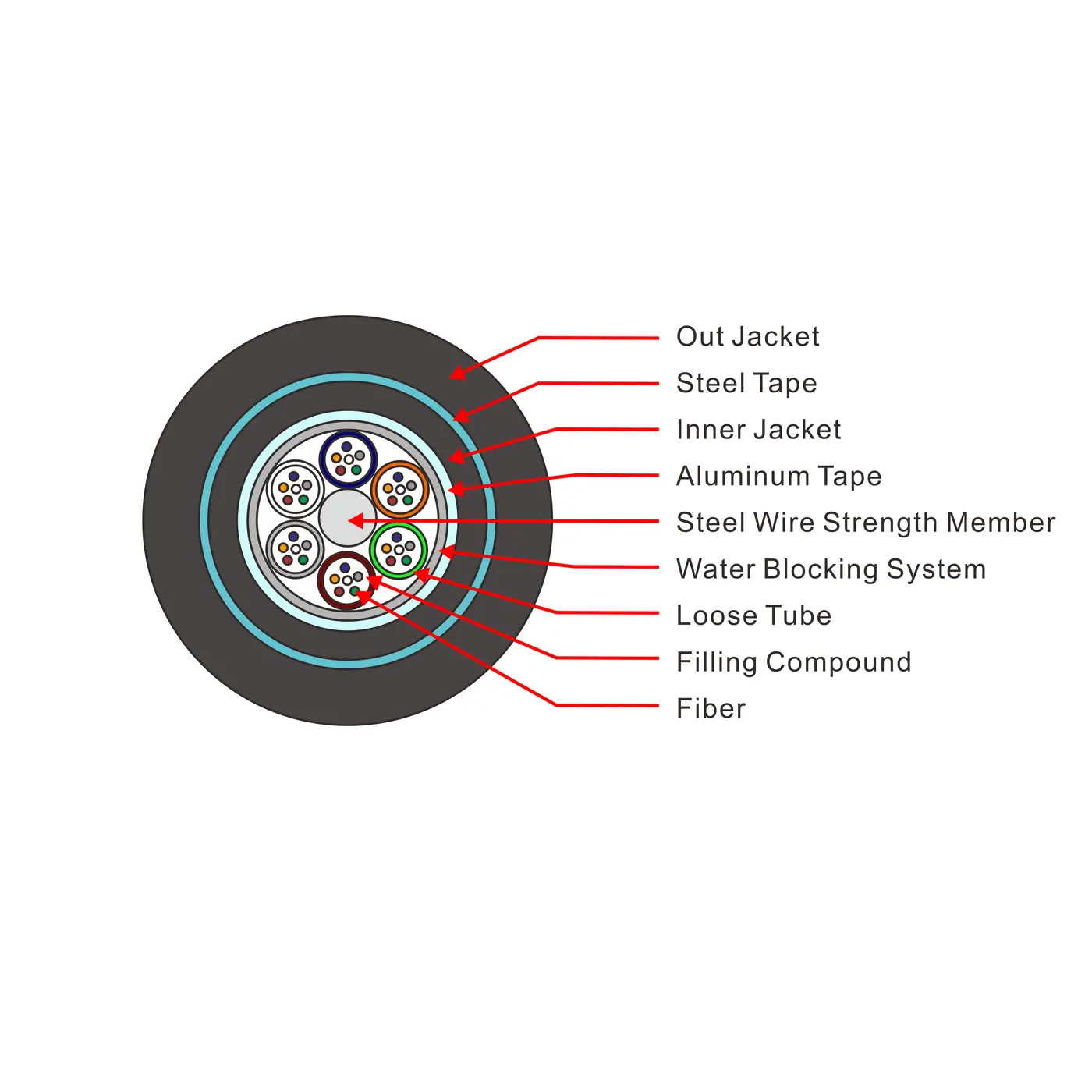

GYTA53 Outdoor Cable used for Double-jacket structure provide the cable nice properties of moisture resistance and crush resistance. Double armored structure provide cable good property of rodent-resistance.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description
GYTA53 Outdoor Cable used for Double-jacket structure provide the cable nice properties of moisture resistance and crush resistance. Double armored structure provide cable good property of rodent-resistance. It can be used for duct and direct buried application, suitable for harsh environments.
Technical Specifications
| Cable type | OD (mm) | Nominal weight (kg/km) | Tensile short-term (N) | Tensile long-term (N) | Crush short-term (N/100mm) | Crush long-term (N/100mm) | Bend radius dynamic | Bend radius static |
|---|---|---|---|---|---|---|---|---|
| GYTA53-12~48Xn | 14.5±0.5 | 228.0 | 3000 | 1000 | 3000 | 1000 | 20D | 15D |
| GYTA53-60~72Xn | 16±0.5 | 263.0 | 3000 | 1000 | 3000 | 1000 | 20D | 15D |
| GYTA53-74~96Xn | 17.5±0.5 | 305.0 | 3000 | 1000 | 3000 | 1000 | 20D | 15D |
| GYTA53-98~120Xn | 20.5±0.5 | 376.0 | 3000 | 1000 | 3000 | 1000 | 20D | 15D |
| GYTA53-122~144Xn | 22.5±0.5 | 423.0 | 3000 | 1000 | 3000 | 1000 | 20D | 15D |
Storage / working temperature: -40 to +70 ℃. (D = optical-cable outer diameter.)
Notes:
- Note: Xn is fiber optic model and D is the diameter of optical cable.
Features
- Metal strength member provides excellent strain performance.
- Double-jacket structure ensures moisture resistance and crush resistance.
- Good ultra violet radiation resistant property.
Applications
- Suitable for aerial, pipeline laying method.
- Long distance and local area network comm.
- Adopted to outdoor distribution specially used where good mechanical performance and rodent resistance are expected.
Packing
- Standard wooden drum with protection.
- Standard reel length: 2/3 km/reel, other length is also available.
