Outdoor Fiber Optic Cable

GYTS Outdoor Cable

Name: GYTS Outdoor Cable
Brand: DYS Fiber Optic
SKU: gyts-outdoor-cable

GYTS is the outdoor fiber optic cable type used for duct and aerial applications. The loose tube stranding technology make the fibers have good secondary excess length.

Request a Quote Customize this product

Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.

100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof

Description

GYTS is the outdoor fiber optic cable type used for duct and aerial applications. The loose tube stranding technology make the fibers have good secondary excess length.

Technical Specifications

Cable type	OD(mm)	Nominal Weight (Kg/Km)	Tensile Strength(N)	Crush Resistance (N/100MM)	Bending Radius(mm)

			Short-term	Long-term	Short-term	Long-term	Dynamic	Static
GYTS-2~60Xn	10.5±0.5	88.0	1500	600	1000	300	20D	15D
GYTS-62~72Xn	11.5±0.5	102.0	1500	600	1000	300	20D	15D
GYTS-74~96Xn	13.0±0.5	130.0	1500	600	1000	300	20D	15D
GYTS-98~144Xn	15.8±0.5	156.0	1500	600	1000	300	20D	15D

Storage/Working temperature(℃)

-40~+70

Notes:

Note: Xn is fiber optic model and D is the diameter of optical cable.

Features

Up to 144 fiber cores.
The loose tube stranding technology make the fibers have good secondary excess length.
Metal strength member provides excellent strain performance..

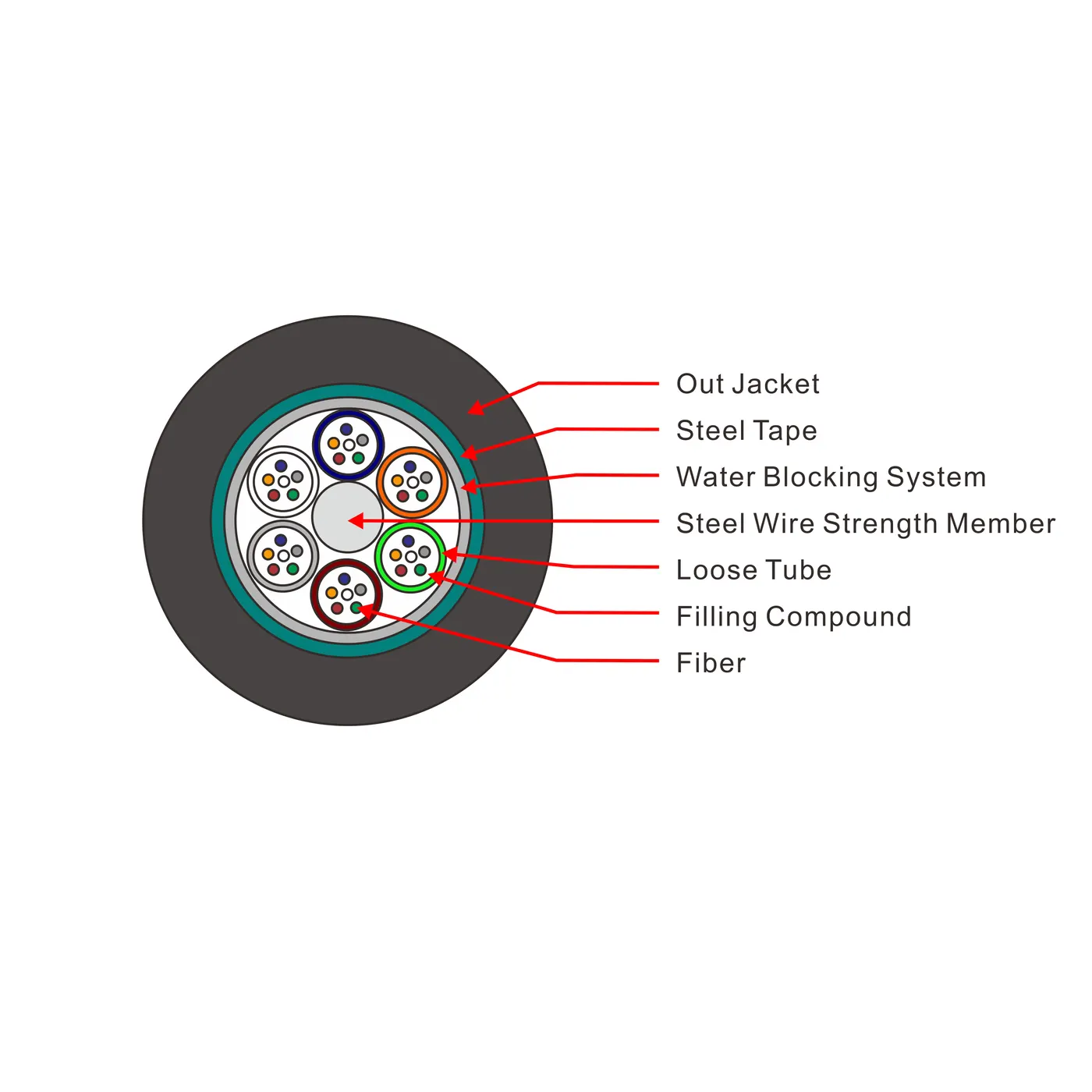

Corrugated steel tape armored and PE outer sheath providing property crush resistance and gun shot resistance features.
The fibers free movement in the tube, which keeps the fiber stress-free while the cable is subjected to longitudinal stress.

Applications

Stallation in aerial or duct environment for long haul communication.
LAN, especially suitable for the situation of high requirements to lateral pressure resistance.
