Outdoor Fiber Optic Cable
GYXTS Outdoor Cable
GYXTS cable structure is to insert a single or multimode fiber loose tube, made of high modulus plastic it external wire winding layers of double-sided plastic corrugated steel belt longitudinal packaging, as well as…
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

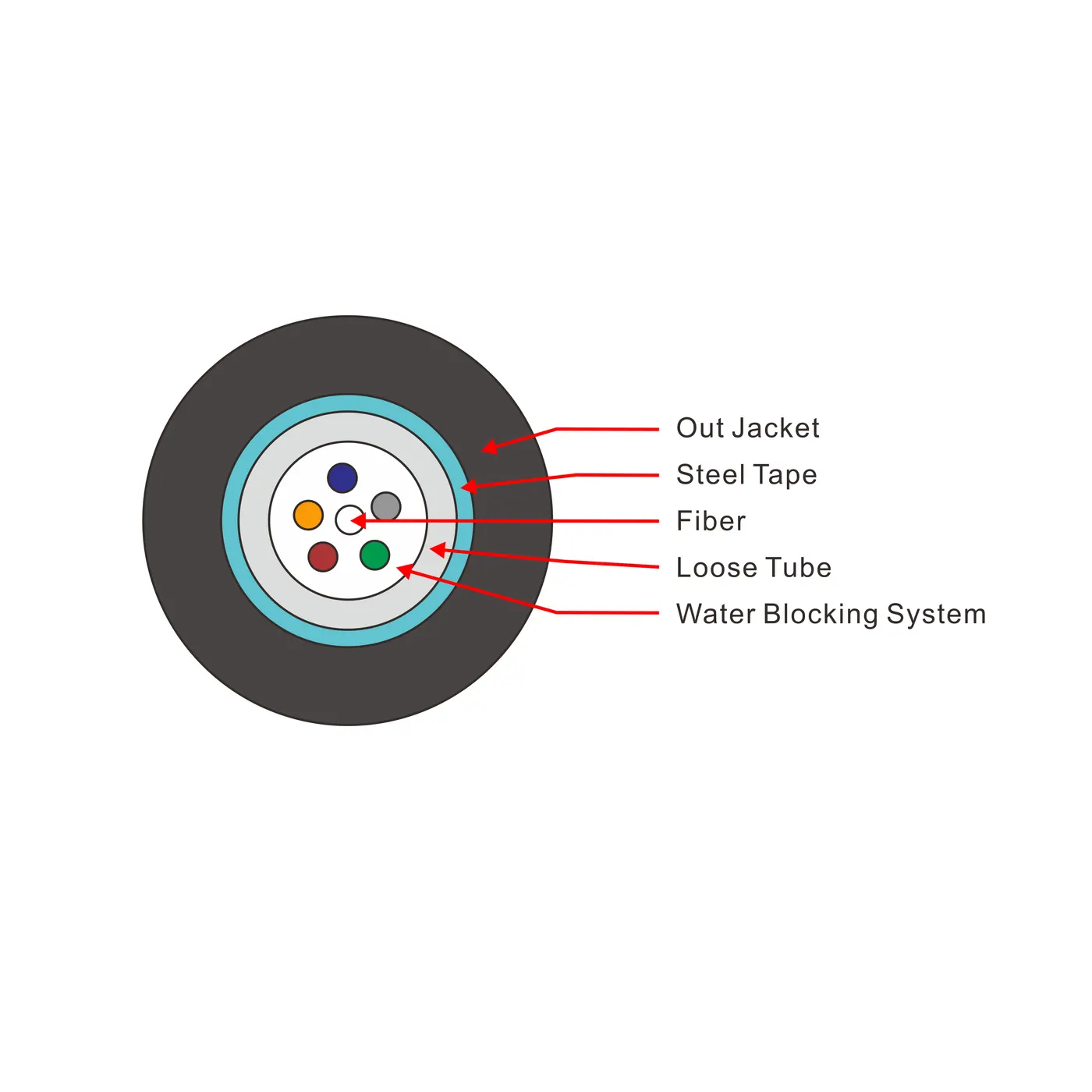

GYXTS cable structure is to insert a single or multimode fiber loose tube, made of high modulus plastic it external wire winding layers of double-sided plastic corrugated steel belt longitudinal packaging, as well as the extrusion of PE fiber optic cable outer sheath formation.
Technical Specifications
| Cable type | OD(mm) | Nominal Weight (Kg/Km) | Tensile Strength(N) | Crush Resistance (N/100MM) | Bending Radius(mm) |
|---|---|---|---|---|---|
| Short-term | Long-term | Short-term | |||
| GYXTS-12Xn | 1.8±0.2 | 60.0 | 1000 | 200 | 1000 |
| Storage/Working temperature(℃) | -40~+70 |
Notes:
- Note: Xn is fiber optic model and D is the diameter of optical cable.
Features
- Stainless steel or galvanized steel self-supporting.
- Small cable diameter, light cable weight, easily to install.
- Excellet mechanical and environmental performance.
- Proper design, precise control for fiber excess length render the cable excellent mechanical and environmental characteristics.
Applications
- Adopted to Outdoor distribution.
- Suitable for aerial duct and buried method.
- Long distance and local area network communication.
Packing
- Standard wooden drum with protection.
- Standard reel length: 2/3 km/reel, other length is also available.
