Pre-terminated Cable
DYS has long provided high-quality pre-terminated cables for indoor and/or outdoor applications, with fanout numbers ranging from 12 to 144.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

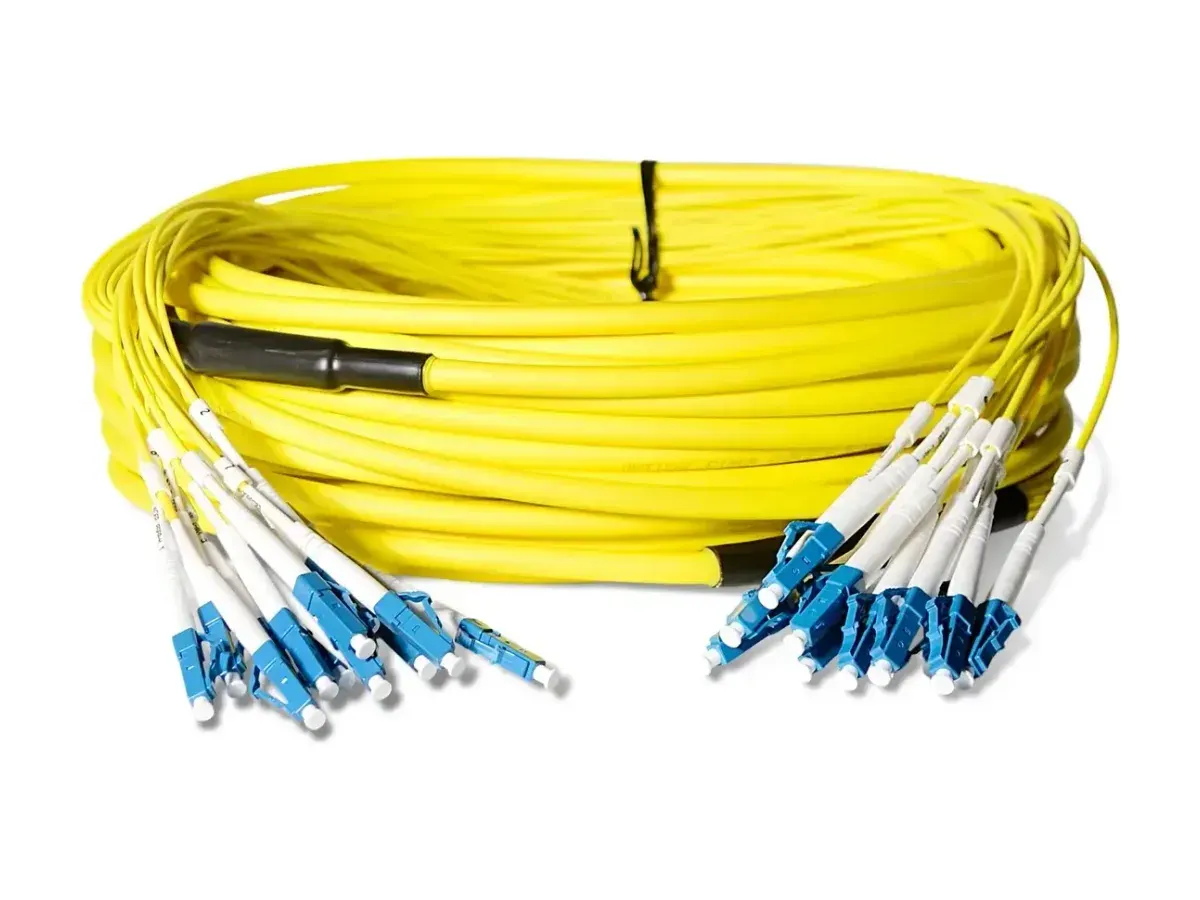

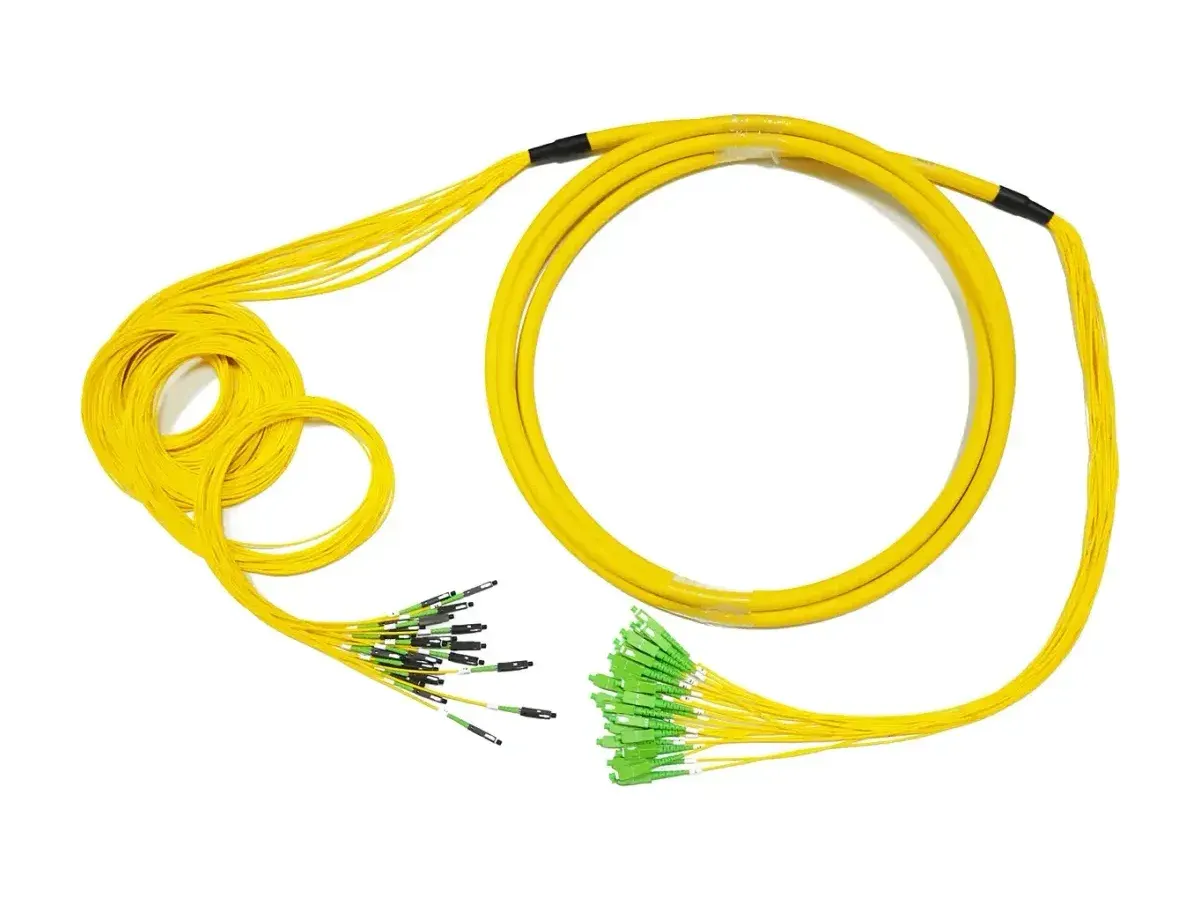

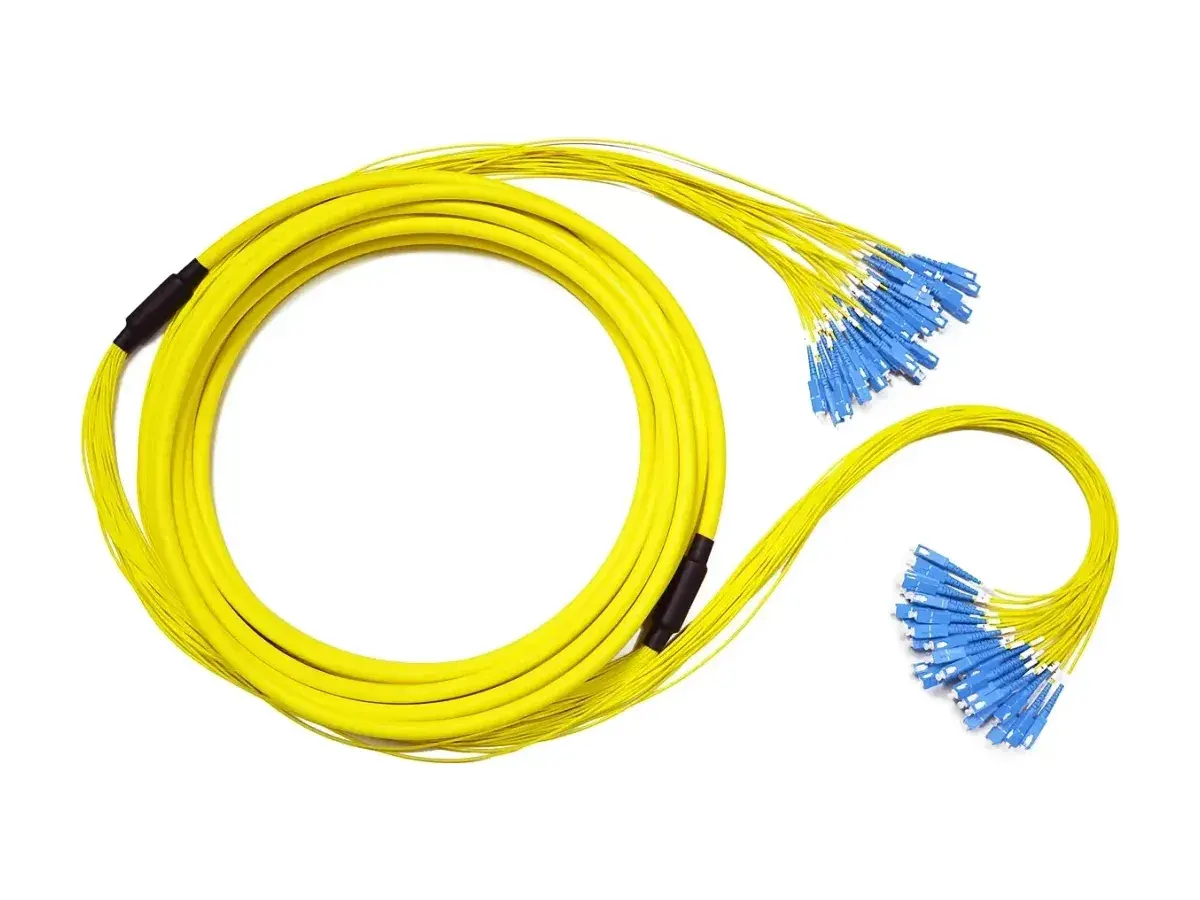

DYS has long provided high-quality pre-terminated cables for indoor and/or outdoor applications, with fanout numbers ranging from 12 to 144. Available connector types include MPO, SC, LC, FC, LSH, and MU; available fanout kits include steel-tube, round, box, and barrel types; and available fanout types include bare fiber, 0.9mm, 1.2mm, 2.0mm, and 3.0mm. The fanout length can be up to 10 meters, with fanout tolerance as small as 0.5cm.

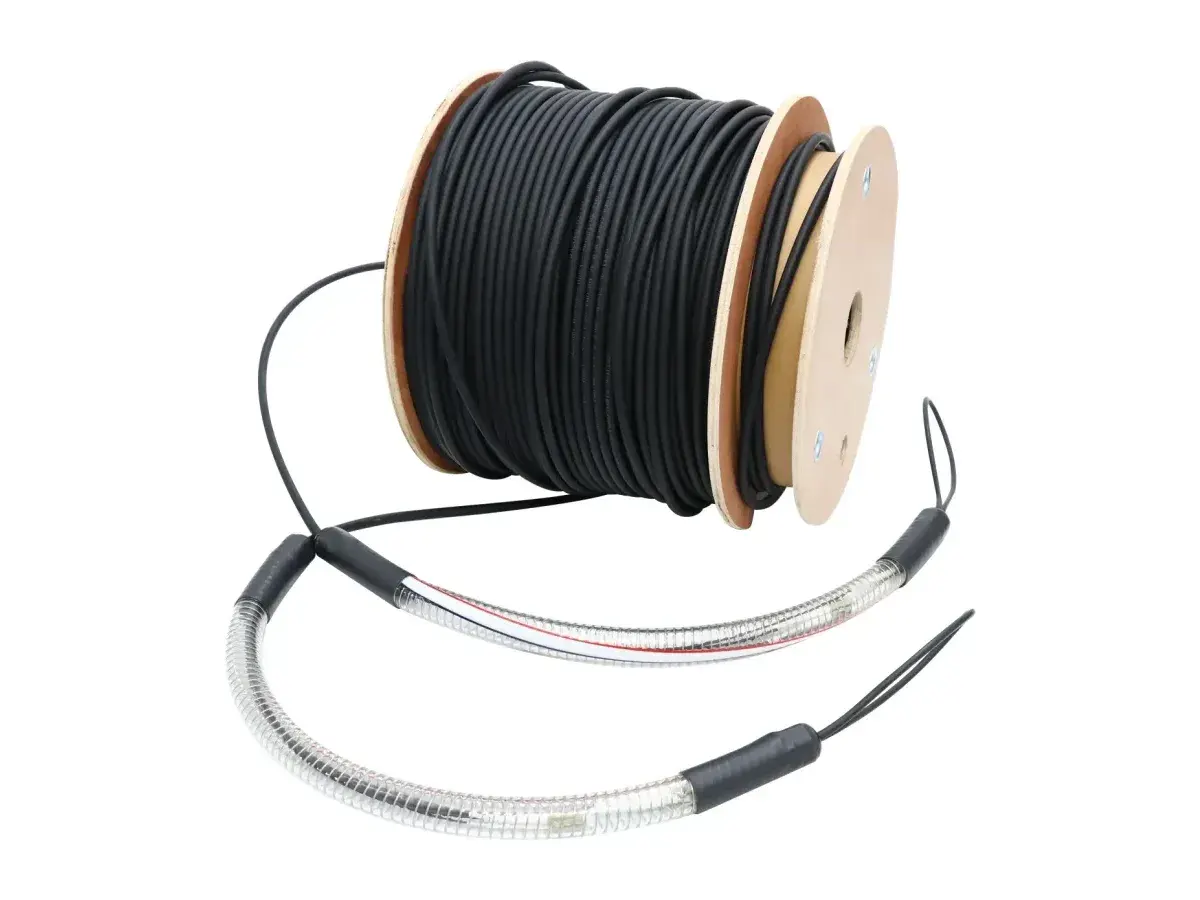

Indoor/outdoor non-armored assemblies suit a wide range of applications, while outdoor non-armored assemblies serve aerial or duct-burial jobs. For the most extreme conditions, outdoor armored direct-burial/aerial and ADSS self-supporting aerial assemblies provide outstanding durability. All products are tailor-made to customer specifications — connector type, fanout type, fanout length/tolerance, and cable structure — for applications including FTTC, FTTB, FTTH, FTTA, data center, industrial, robotic, and healthcare fields.
Technical Specifications
Optical Performance
| Connector | Mode | Endface | Standard IL max (dB) | Standard RL min (dB) | Elite IL max (dB) | Elite RL min (dB) |
|---|---|---|---|---|---|---|
| LC/SC/FC/ST | SM | APC | ≤0.30 | ≥60 | ≤0.20 | ≥65 |
| LC/SC/FC/ST | SM | UPC | ≤0.20 | ≥50 | ≤0.10 | ≥50 |
| LC/SC/FC/ST | MM | PC | ≤0.20 | ≥30 | ≤0.10 | ≥30 |
Mechanical Properties
| Item | Criteria | Conformance |
|---|---|---|
| ΔIL after 50 matings (MPO/MTP) | ≤0.3 dB | GR-1435 |
| ΔIL after 500 matings (LC/SC/FC/ST) | ≤0.2 dB | IEC 61300-2-2 |
| Min bend radius (dynamic) | 20 × OD (cable diameter) | — |
| Min bend radius (static) | 15 × OD (cable diameter) | — |
Environmental Conditions
| Item | Criteria | Conformance |
|---|---|---|
| Operating temperature | -40 ~ 60 ℃ | IEC 61753-1 |
| Storage temperature | -45 ~ 85 ℃ | — |
Features
- 100% pre-terminated and tested in factory to ensure transfer performance
- Rapid configuration and networking, reduces installation time
- Supports 40G and 100G network applications
- Jacket material: LSZH, OFNR, OFNP available
- Supports up to 12F, 24F, 48F, 72F, 96F, 144F; customized products available
Applications
- Connected with trunk cables on one end, equipment port on the other end
- Connected with transfer modules on one end, equipment port on the other end
