DYS MT ferrule assembly component for parallel optical transceiver modules

MPO/MTP Data Center Cabling

MT Assembly

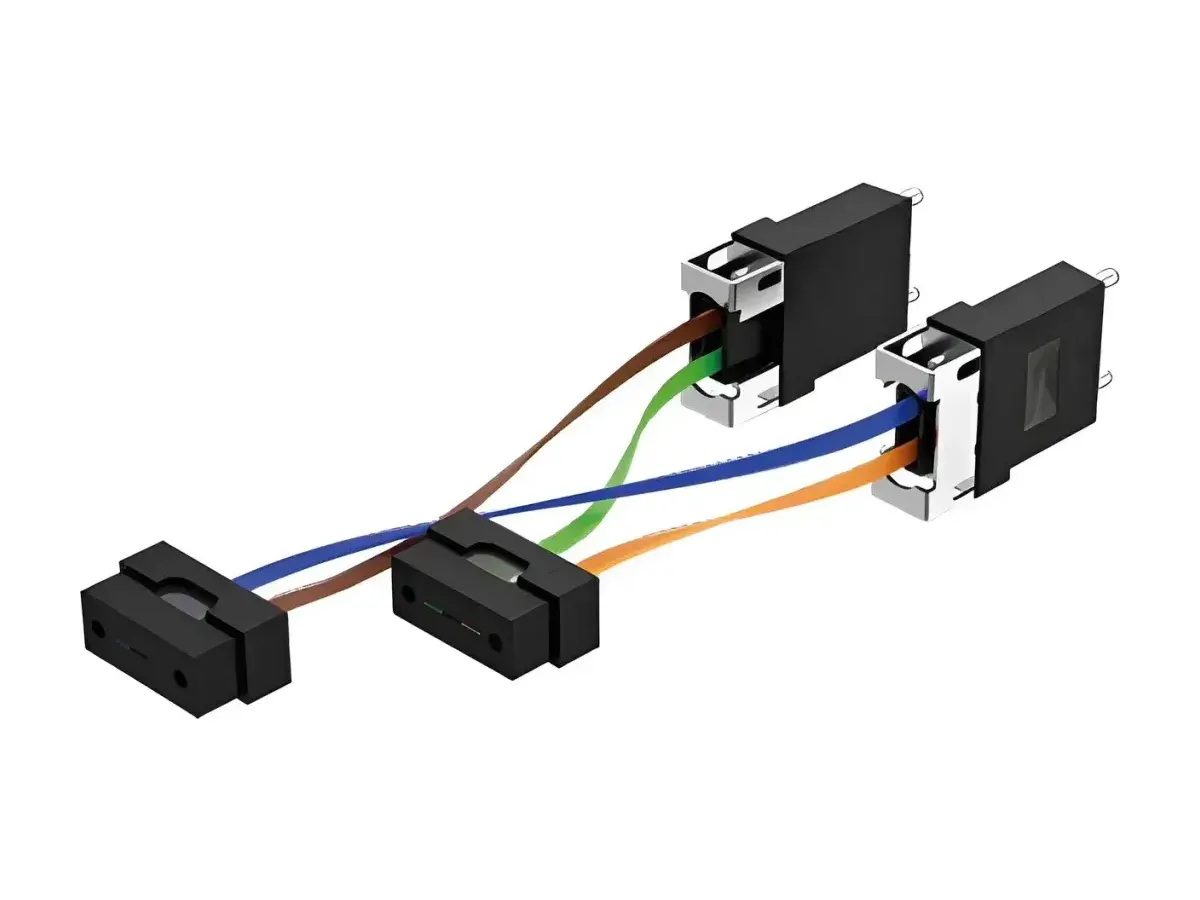

The MT assembly family covers passive optical interconnect components built on the MT ferrule for QSFP, SFP+ active optical cables, parallel optical transceiver modules, and embedded silicon photonics.

Request a QuoteCustomize this product

Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.

  • 100% Pre-Shipment Tested

    Insertion & return loss (IL/RL) verified on every assembly

  • 17-Year Manufacturer

    Three in-house factories with 100+ production lines

  • Vertically Integrated

    Cable extrusion, molds and assembly under one roof

Description

The MT assembly family covers passive optical interconnect components built on the MT ferrule for QSFP, SFP+ active optical cables, parallel optical transceiver modules, and embedded silicon photonics. The simple structure makes it easy to locate, keeps cost low, and supports fully customized builds. DYS produces several MT component configurations within this family:

  • MT Components — MT ferrule with guide pin to customized jumper/lens (Usconect Prizm/Lensed MT); 2F/4F/8F/12F/16F/24F ribbon; supports 200G (8×25G) and 400G (8×50G); passive coupling with guide pins at 0°/8°/10° or active coupling with light source at 0–45°.

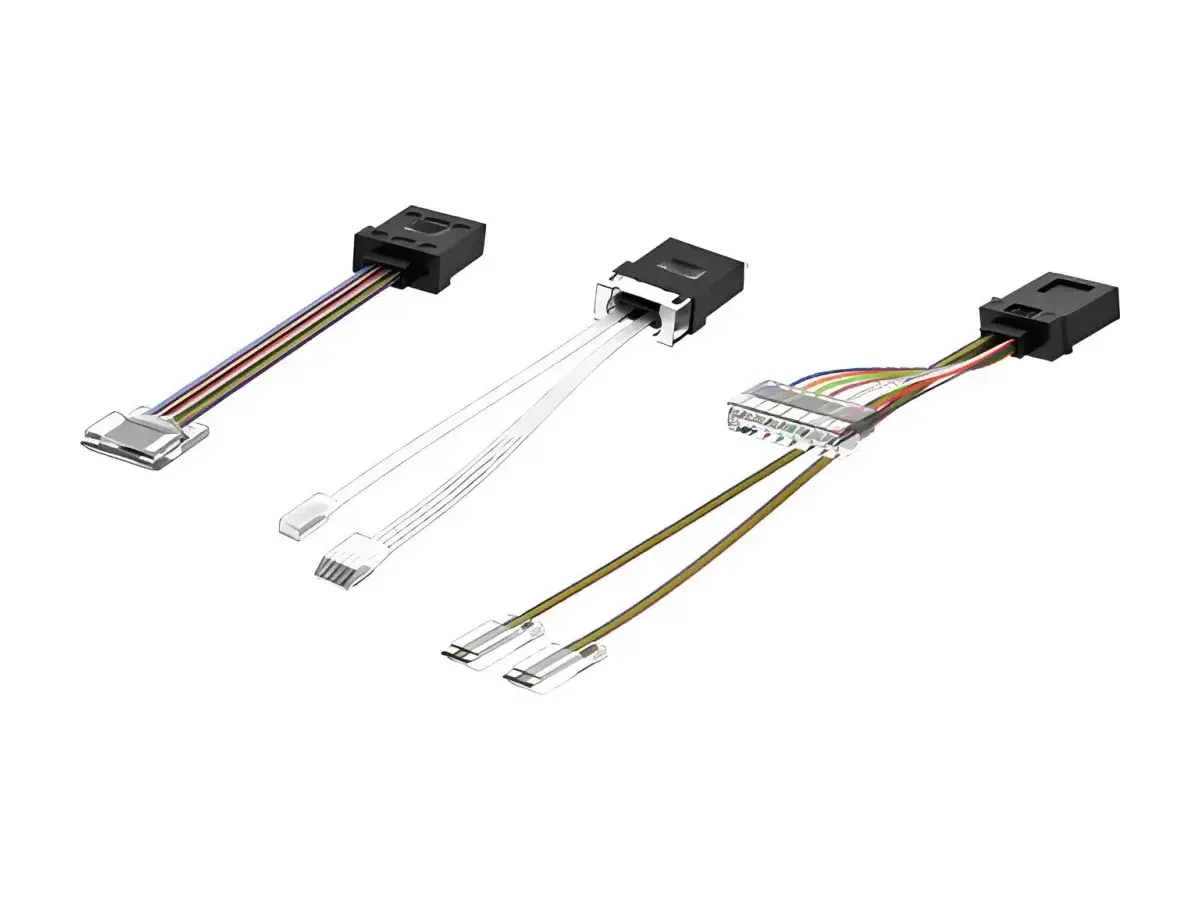

  • FA-MT Components — MT ferrule with guide pin to FA interface (customized size/angle); 12F ribbon or single fibers; supports 40G (4×10G) and 100G (4×25G).

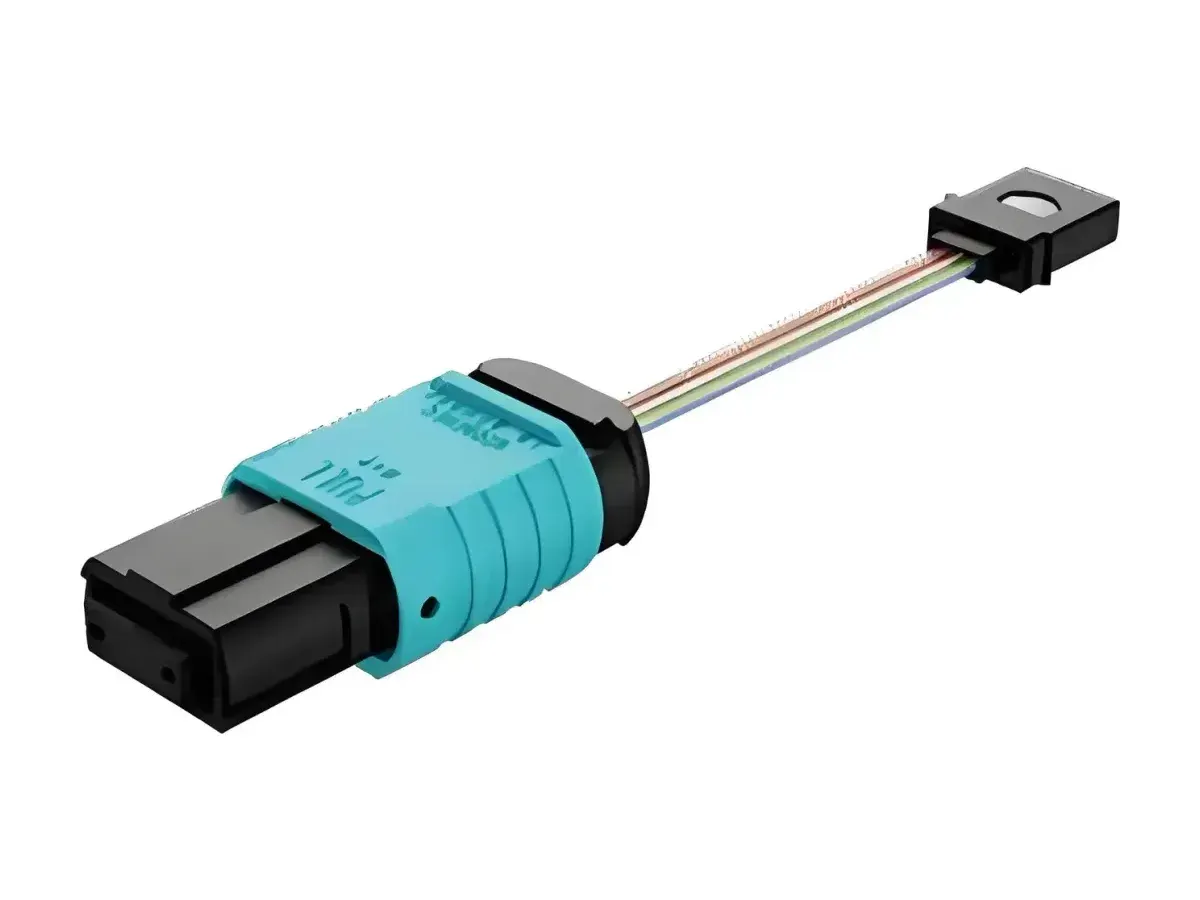

  • MPO-MT Components — MPO to MT ferrule for optical modules, optical FPGA, and silicon photonic chips on PCB; 12F/24F ribbon; supports 40G (4×10G), 100G (4×25G), and 100G (10×10G); passive coupling with guide pins at 0°/8°.

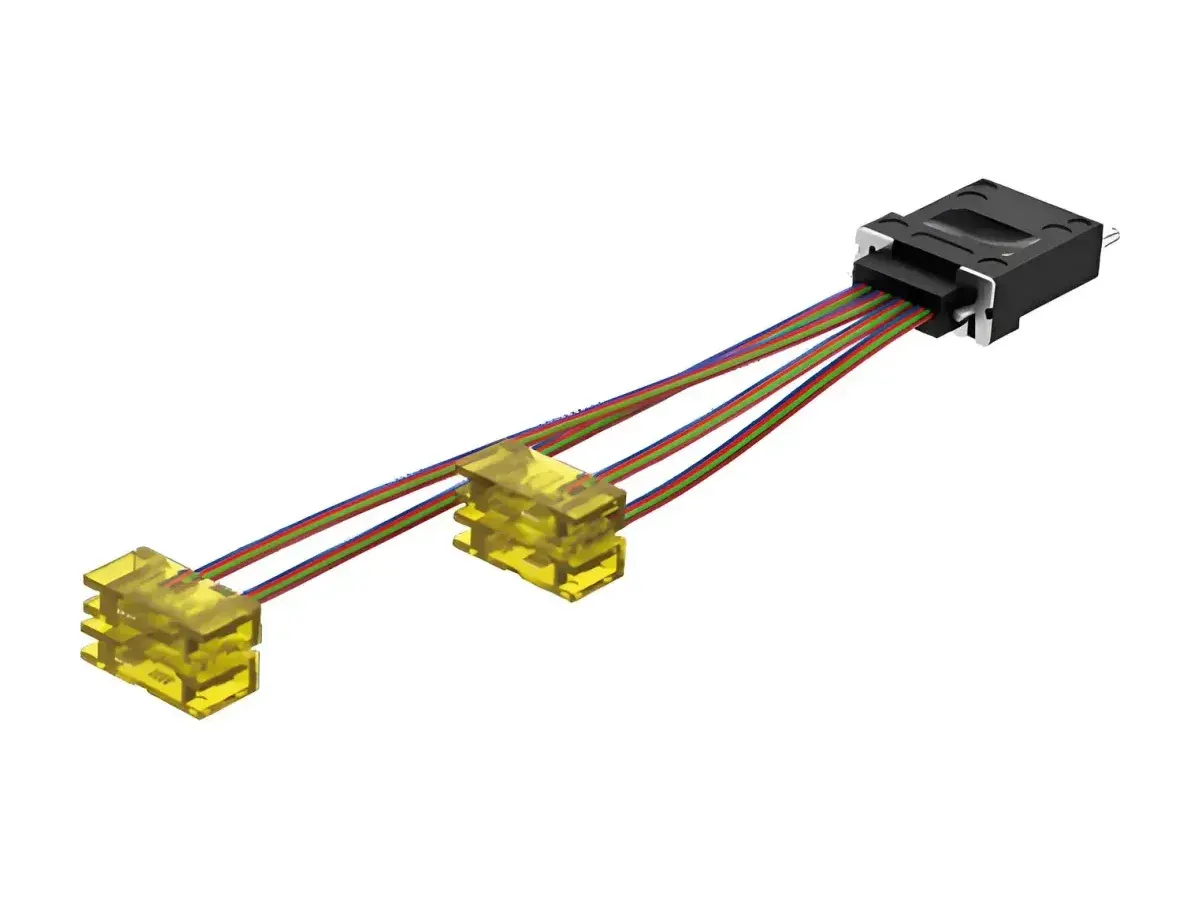

  • Jumper Components — MT ferrule with guide pin to customized jumper/lens; 2F–24F ribbon; supports 200G (8×25G) and 400G (8×50G).

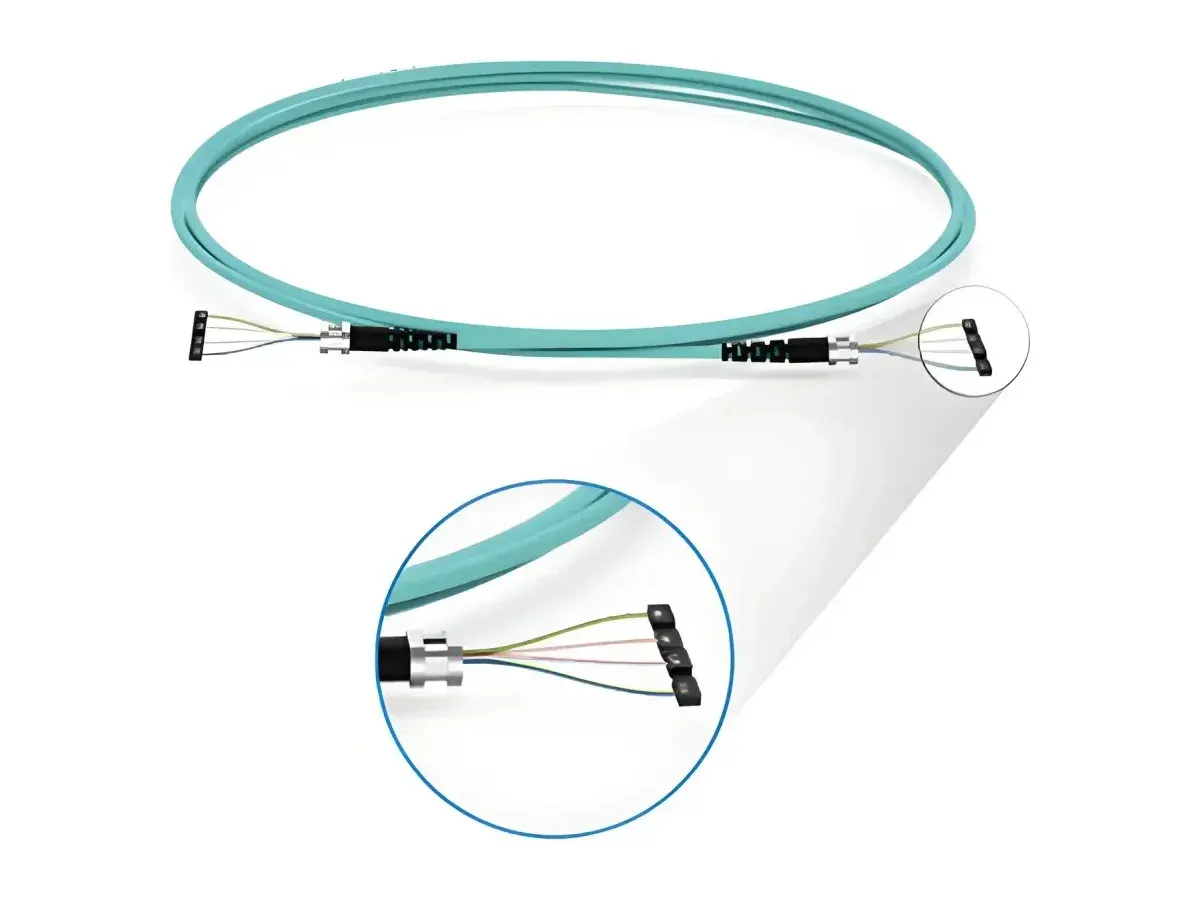

  • MT-MT AOC Jumper — MT ferrule to MT ferrule round cable; 8F/12F/16F/24F; supports 40G up to 800G (8×100G); Φ3.0mm/Φ3.6mm cable in LSZH/OFNR/OFNP; cable lengths from 1M to 100M.

All component families are GR-1435 and GR-1221 compliant, use multi-channel serial and parallel transmission, and offer high accuracy.

Technical Specifications

Optical Performance (MT Assembly)

Connector Mode Endface Standard IL max (dB) Standard RL min (dB) Elite IL max (dB) Elite RL min (dB)
MT SM 12F/APC ≤0.50 ≥60 ≤0.35 ≥60
MT MM 12F/PC ≤0.50 ≥20 ≤0.35 ≥20

Test wavelength: SM @ 1310/1550nm, MM @ 850/1300nm. Standard conformance: GR-326, GR-1435.

Component Optical Performance

Item Specification
MT insertion loss ≤0.60 dB (typical 0.20 dB)
MT return loss ≥20 dB
Operating temperature -40 ℃ ~ +85 ℃

Component Configurations

Component Connector A Connector B Fiber shape Fiber counts Fiber type Length
MT Components MT ferrule with guide pin Customized jumper/lens, Usconect Prizm/Lensed MT Ribbon 2F/4F/8F/12F/16F/24F OM3, OM4, OM5 20–50mm (customized)
FA-MT Components MT ferrule with guide pin FA (customized size/angle) Ribbon / single fibers 12F OM3, OM4, OS1, OS2 20–50mm (customized)
MPO-MT Components MPO MT ferrule Ribbon 12F/24F OM2, OM3, OM4 50–80mm (customized)
Jumper Components MT ferrule with guide pin Customized jumper/lens, Usconect Prizm/Lensed MT Ribbon 2F/4F/8F/12F/16F/24F OM3, OM4, OM5 20–50mm (customized)
MT-MT AOC Jumper MT ferrule MT ferrule Round cable 8F/12F/16F/24F OM2, OM3, OM4, OM5 1M–100M

Length tolerance: ±0.30 ~ ±0.50mm (±0.50mm for MPO-MT). MT-MT AOC jumper cable diameter Φ3.0mm/Φ3.6mm; jacket LSZH/OFNR/OFNP/LSZH+OFNR.

Features

  • Transmission rate: 40Gbps / 100Gbps / 168Gbps
  • GR-1435 compliant
  • Simple structure, easy to locate
  • Low cost
  • Customized products available

Applications

  • QSFP (quad small form-factor pluggable)
  • SFP+ active optical cables
  • Parallel optical transceiver modules
  • Supercomputers
  • Communication
  • Military applications
  • Data centers
Back to MPO/MTP Data Center Cabling
