IP-Series MPO/MTP Assemblies
Ruggedized ODVA/IP-Series fiber assemblies for outdoor and industrial links, with SC, LC or MPO interfaces and model-specific sealing, temperature and optical specifications.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

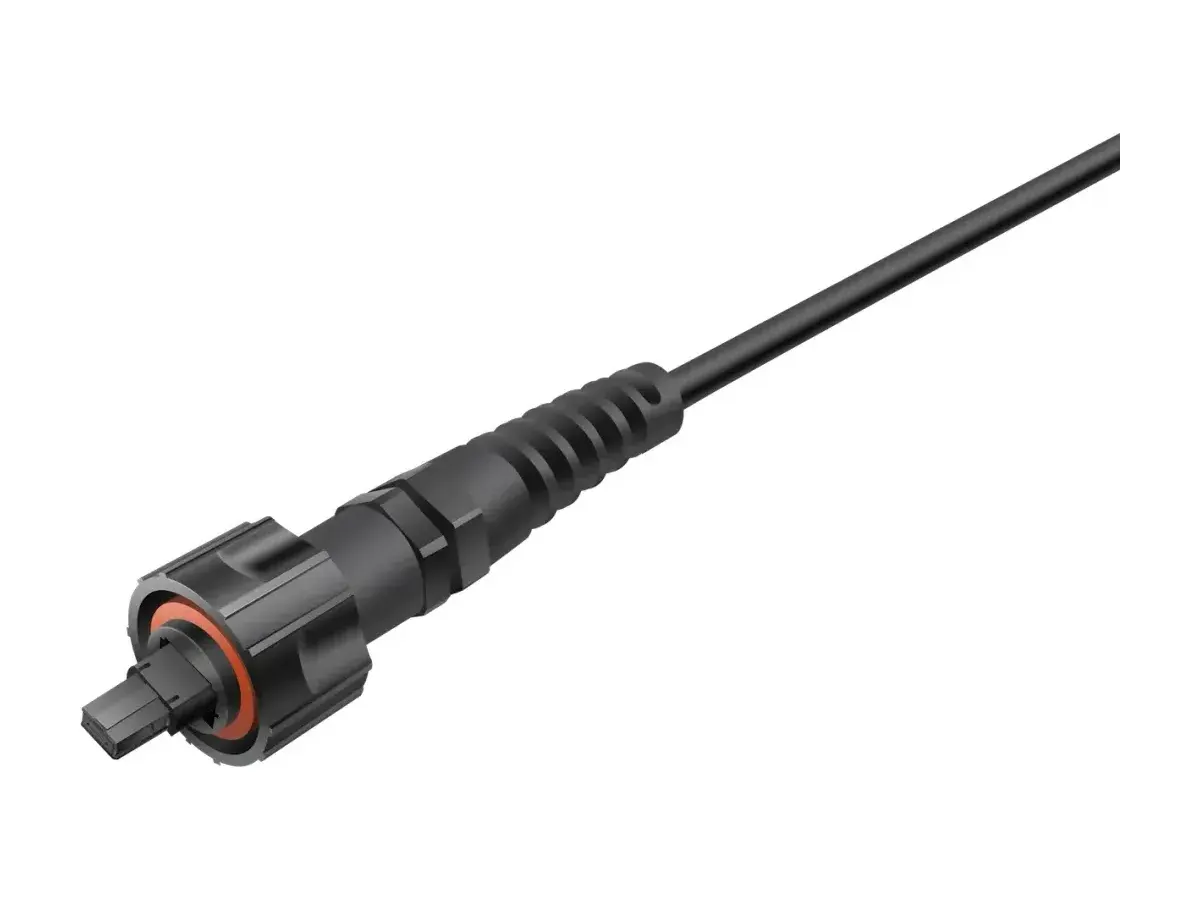

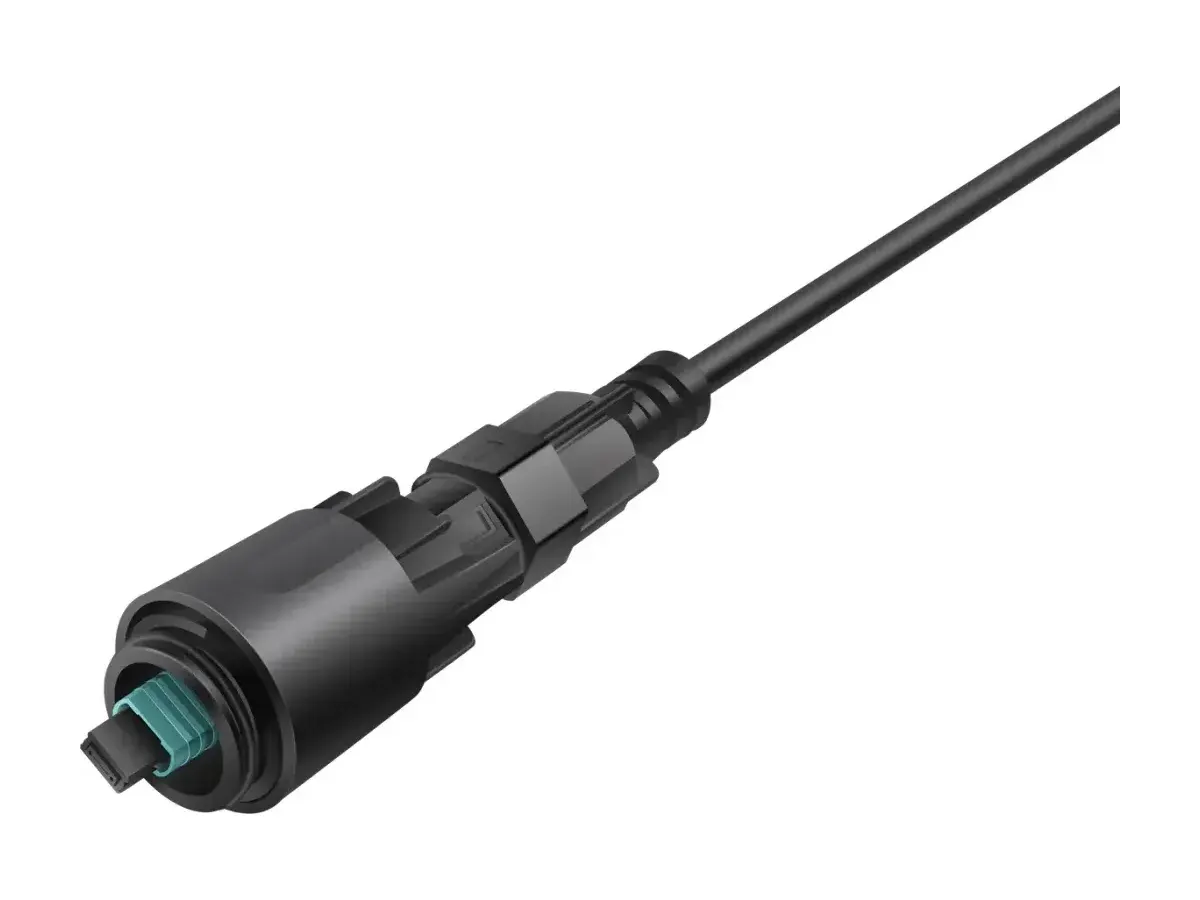

DYS ODVA/IP-Series assemblies protect SC, LC or MPO optical interfaces for FTTA, industrial and other harsh-environment links. Sealing level, temperature range and immersion condition are tied to the specific housing, adapter and cable assembly; one tested sample is not used as a universal rating for every interface.
Representative Configurations
Configuration | Interface and construction | Temperature | Waterproof evidence | Use note |
|---|---|---|---|---|
VA LC armored assembly | VA LC/UPC ↔ LC/UPC; single-mode G.657A2; armored cable | -20 to +70 °C | Design note: IP68 at 1 m water depth for 1 hour | Representative assembly drawing |
ODVA LC one-end waterproof adapter | Industrial LC adapter; IEC 61076-3-106 intermatable | -40 to +85 °C | Model-specific adapter construction | Temperature belongs to the adapter drawing |
VA MTPA 12C tested sample | VA MTPA ↔ VA MTPA; armored 12-core sample | Test report condition only | Passed 0.015 MPa immersion, equivalent to 1.5 m, for 24 hours | Stronger condition applies only to report R2026033101 sample |
The same general housing concept may be offered with different internal connectors, but SC, LC and MPO variants must be confirmed separately for temperature and immersion limits.
Ordering Information
Detail | What to provide |
|---|---|
Interface | SC, LC or MPO format and mating adapter at each end |
Fiber and cable | Fiber grade/count, cable construction, armor and length |
Environment | Required IP level, immersion condition, temperature and UV/chemical exposure |
Mechanical | Locking method, mounting style and pull/tension requirement |
Verification | Required drawing, report or sample validation for the selected model |
Technical Specifications
Optical Performance
Interface | Single-mode insertion loss | Multimode insertion loss | Return loss |
|---|---|---|---|
SC / LC | Typical ≤0.15 dB; max ≤0.30 dB | Typical ≤0.15 dB; max ≤0.30 dB | Model and endface dependent |
MPO | Typical ≤0.15 dB; max ≤0.30 dB | Typical ≤0.15 dB; max ≤0.30 dB | Model and endface dependent |
Assembly loss includes connector loss plus cable attenuation and must be confirmed for the specified length and fiber type.
Environmental Conditions by Model
Model evidence | Operating range | Ingress condition |
|---|---|---|
VA LC armored assembly drawing | -20 to +70 °C | IP68, 1 m / 1 hour design note |
ODVA LC adapter drawing | -40 to +85 °C | Adapter-specific construction |
VA MTPA 12C report R2026033101 | Test condition in report | 1.5 m equivalent / 24-hour tested sample |
Features
• Ruggedized SC, LC and MPO interface options
• Tool-free mating and model-specific bayonet or industrial locking designs
• Armored cable and customized length options for outdoor deployment
• Model-specific IP68, temperature, salt-mist and humidity requirements
• Drawings and tested-sample evidence available for configuration review
Applications
• FTTA and remote-radio outdoor links
• Industrial and harsh-environment optical connections
• Outdoor data communication and access networks
• Applications requiring sealed, serviceable fiber interfaces
