DYS MTP-to-LC 24F single-mode harness breakout cable

MPO/MTP Cabling

MPO/MTP Harnesses Cable

Factory-tested MPO/MTP harness assemblies break a high-density MPO/MTP interface out to LC, SC or other specified connectors, with controlled fiber mapping, leg lengths and loss limits.

Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.

  • 100% Pre-Shipment Tested

    Insertion & return loss (IL/RL) verified on every assembly

  • 17-Year Manufacturer

    Three in-house factories with 100+ production lines

  • Vertically Integrated

    Cable extrusion, molds and assembly under one roof

Description

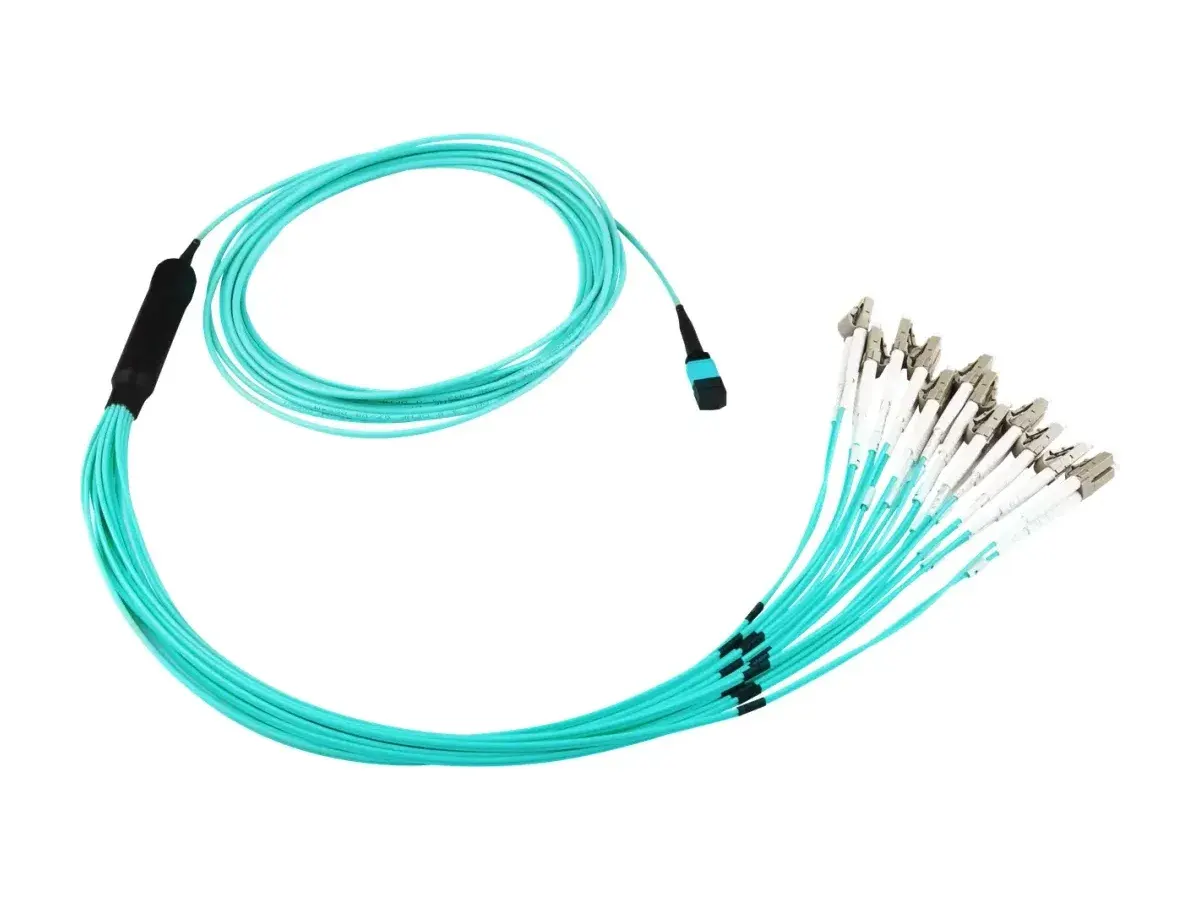

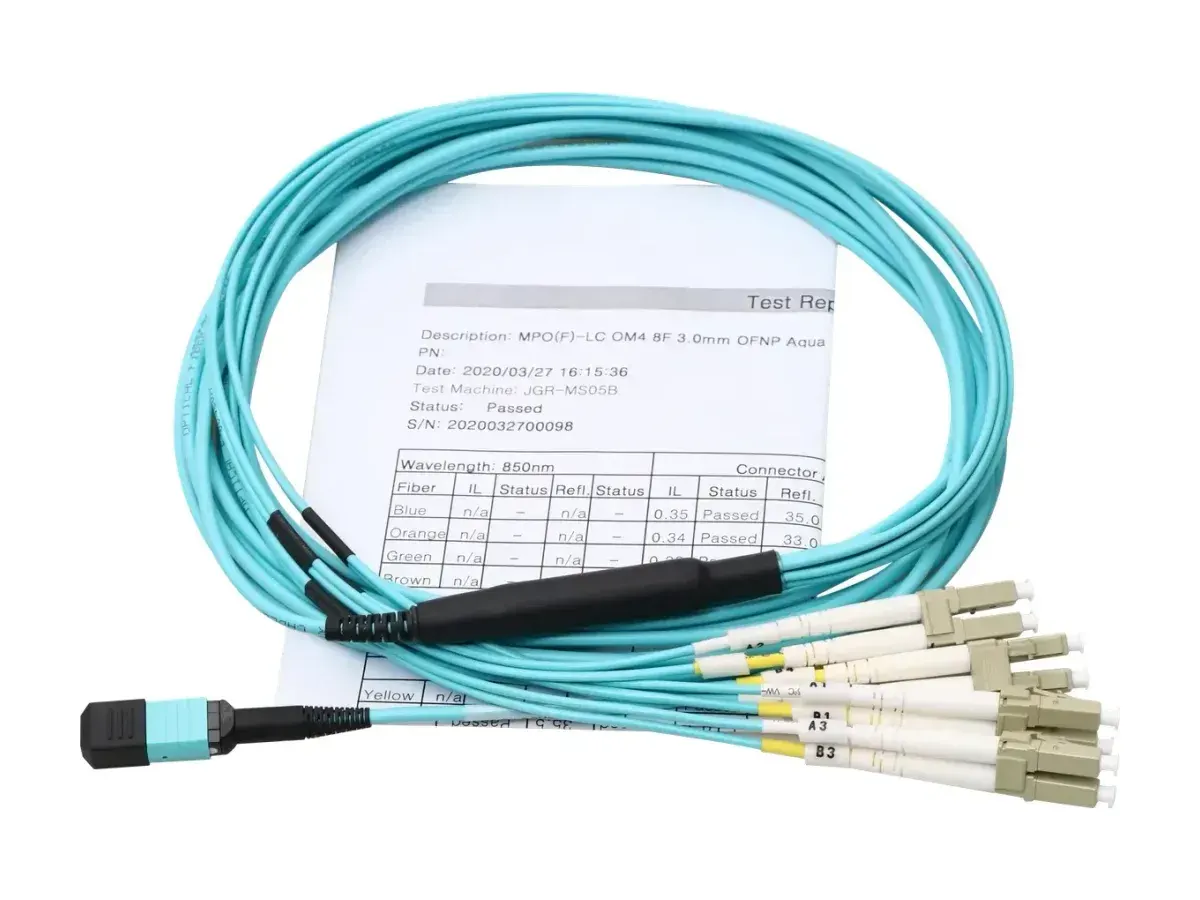

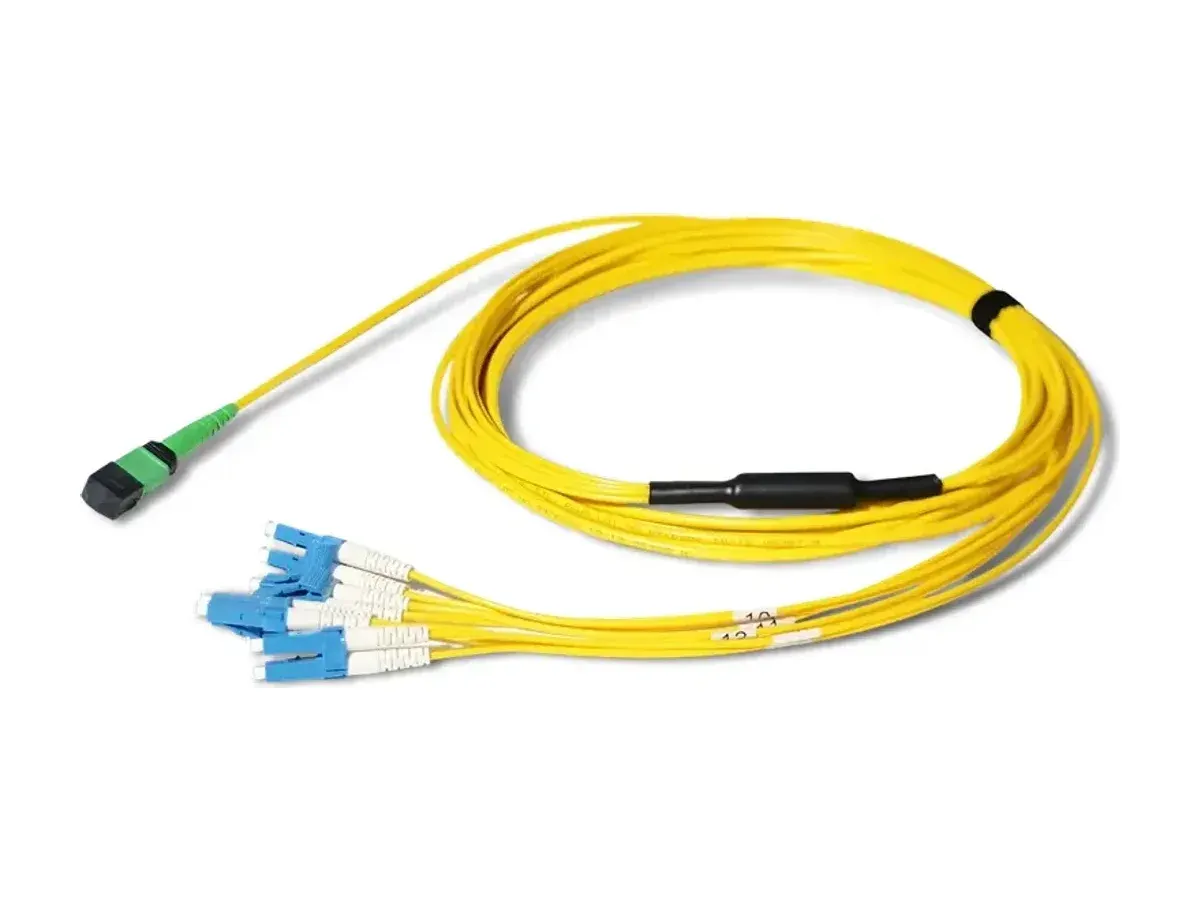

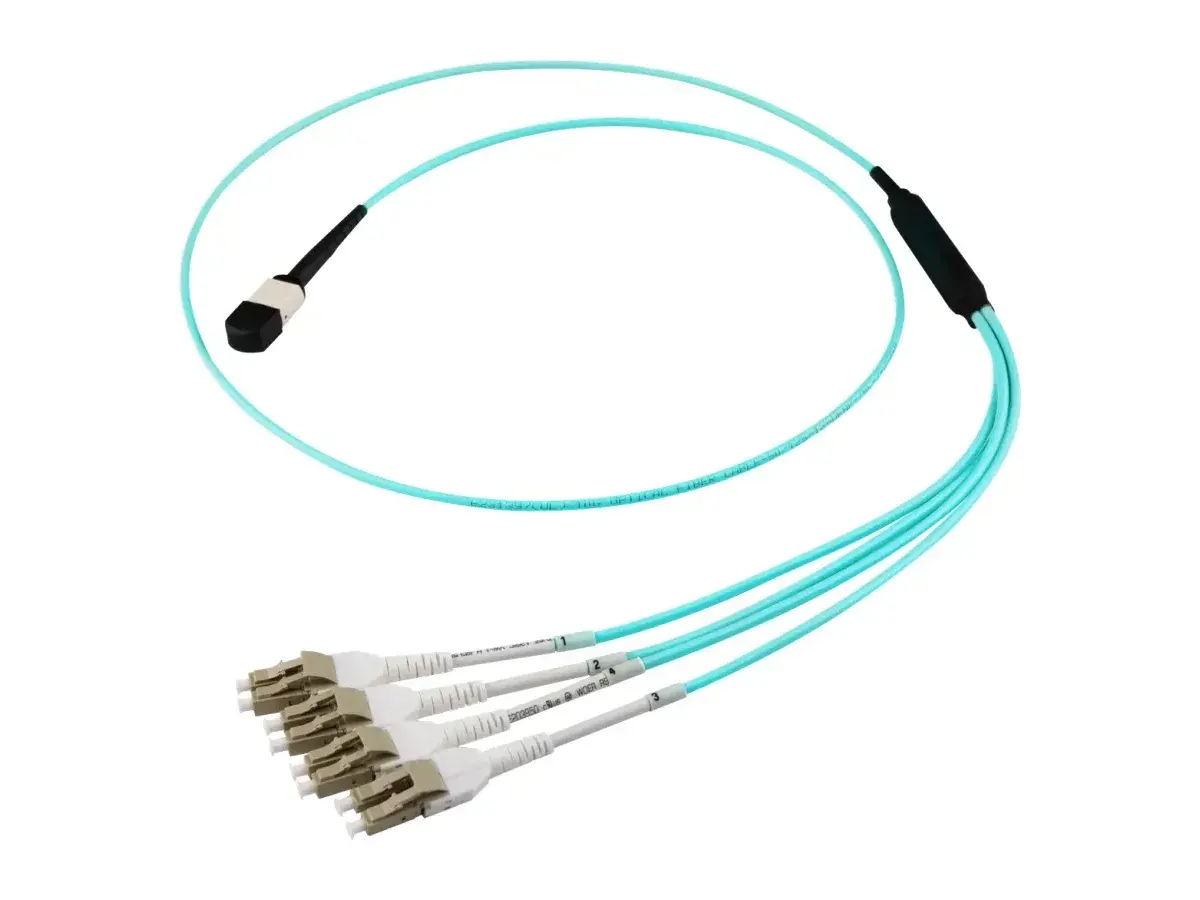

DYS MPO/MTP harness assemblies convert one high-density MPO/MTP interface into individual LC, SC, FC, ST or other specified connections. Unlike a trunk, the output connector type, fiber mapping, branch identification and leg lengths are central ordering details and are reviewed for every project.

Representative Configurations

Configuration

Interfaces

Fiber and branches

Mapping

Optical limits

Additional control

AR-coated 12F fan-out

MPO/APC female ↔ 12 × LC/UPC simplex

12F G.657A1; 3.0±0.2 mm main cable; 12 × 2.0±0.1 mm branches

Numbered 1–12; blue, orange, green, brown, gray, white, red, black, yellow, purple, pink, aqua

MPO IL ≤0.35 dB / RL ≥60 dB; LC IL ≤0.30 dB / RL ≥50 dB at 1310/1550 nm

350–400 mm fan-out; ferrule AR coating R<0.25% at 1310–1550 nm

0.9 mm 12-color assembly

Elite MPO/APC male ↔ 6 × duplex LC/UPC

12F G.657A2 in 0.9 mm Hytrel loose buffers

Method U2; controlled 12-color sequence

MPO IL ≤0.35 dB / RL ≥60 dB; LC IL ≤0.30 dB / RL ≥50 dB

Branch lengths 320±20, 340±20 and 360±20 mm as shown on the drawing

The AR coating and the listed branch lengths apply only to the representative configurations above. Other connector, fiber and leg arrangements require a reviewed drawing.

Ordering Information

Detail

What to provide

MPO/MTP end

Fiber count, gender, UPC/APC endface and Standard/Elite grade

Breakout end

Connector type, simplex/duplex format and quantity

Mapping

Polarity method or approved port-to-fiber map

Branches

Leg count, color/number identification and each required length

Cable

Fiber grade, total length, jacket material/color and installation conditions

Documents

Requested drawing, label format and sample test information

Samples and Lead Time

Current product-family baseline: MOQ 50 pcs, free samples in 3–5 days, and regular batch lead time of 7–15 days. Final terms depend on the approved mapping, branch construction and quantity.

Technical Specifications

Optical Performance

Connector

Mode

Endface

Standard IL max (dB)

Standard RL min (dB)

Elite IL max (dB)

Elite RL min (dB)

MPO/MTP

SM

12F/APC

≤0.70

≥60

≤0.35

≥60

MPO/MTP

SM

24F/APC

≤0.75

≥60

≤0.35

≥60

MPO/MTP

SM

48F/APC

≤0.75

≥60

—

—

MPO/MTP

MM

12F/PC

≤0.50

≥20

≤0.35

≥20

MPO/MTP

MM

24F/PC

≤0.50

≥20

≤0.35

≥20

MPO/MTP

MM

48F/PC

≤0.50

≥20

—

—

LC/SC/FC/ST

SM

APC

≤0.30

≥60

≤0.10

≥60

LC/SC/FC/ST

SM

UPC

≤0.20

≥50

≤0.10

≥50

LC/SC/FC/ST

MM

PC

≤0.20

≥30

≤0.10

≥30

Test wavelength: SM @ 1310/1550nm, MM @ 850/1300nm. Standard conformance: GR-326, GR-1435.

Mechanical Properties

Item

Criteria

Conformance

ΔIL after 50 matings (MPO/MTP)

≤0.3 dB

GR-1435

ΔIL after 500 matings (LC/SC/FC/ST)

≤0.2 dB

IEC 61300-2-2

Min bend radius (dynamic)

20 × OD (cable diameter)

—

Min bend radius (static)

15 × OD (cable diameter)

—

Environmental Conditions

Item

Criteria

Conformance

Operating temperature

-40 ~ 60 ℃

IEC 61753-1

Storage temperature

-45 ~ 85 ℃

—

Features

• High-density MPO/MTP input with project-specific LC, SC, FC or ST breakout options

• Controlled fiber mapping, color sequence, branch identification and leg lengths

• Standard and Elite loss grades with IL/RL testing before shipment

• AR-coated ferrule option for the documented 12F single-mode configuration

• Custom fiber grade, jacket, printing, labels, packaging and OEM/ODM branding

Applications

  • Data communication network
  • Optical system access network
  • Storage area networking / fiber channel
  • High-density architectures
