DYS MPO APC-to-LC 12-core 0.9mm single-mode fan-out patch cord

MPO/MTP Data Center Cabling

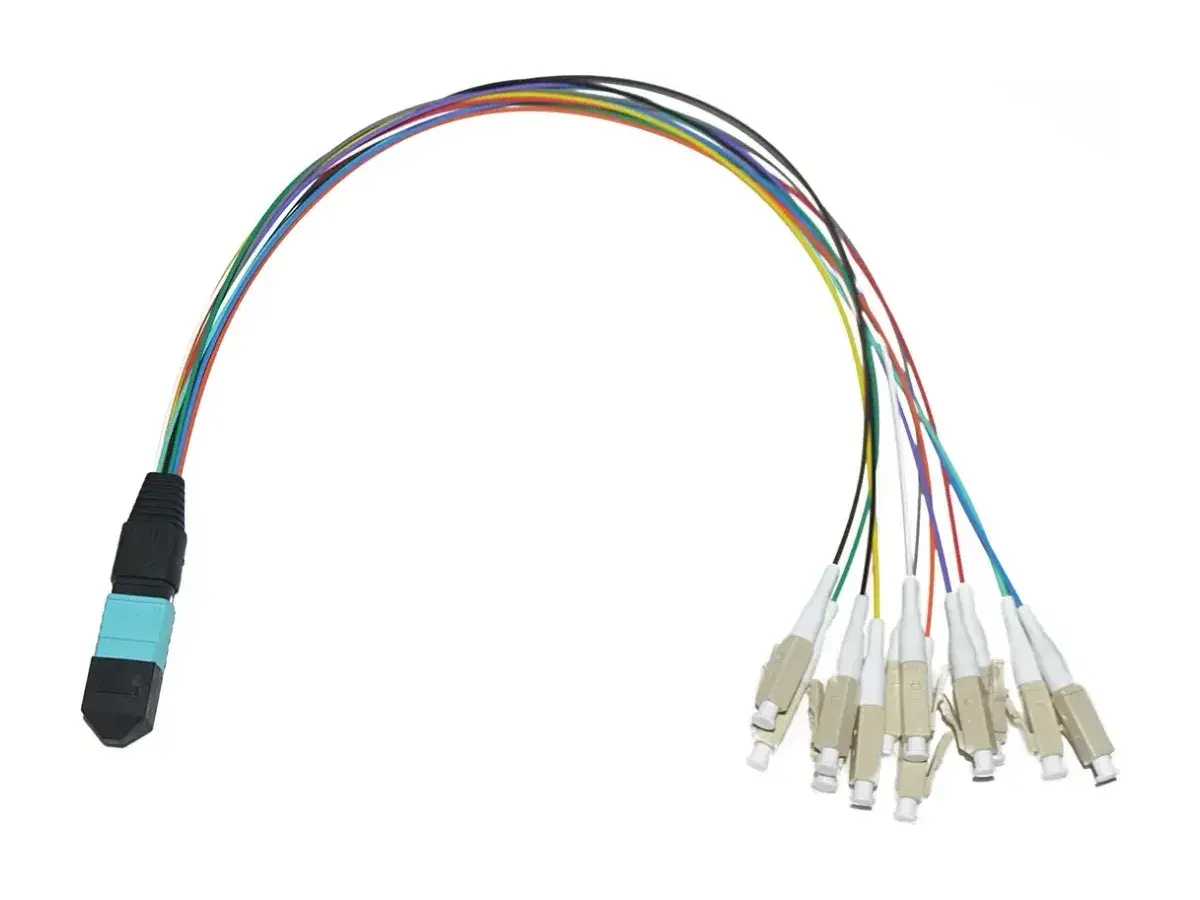

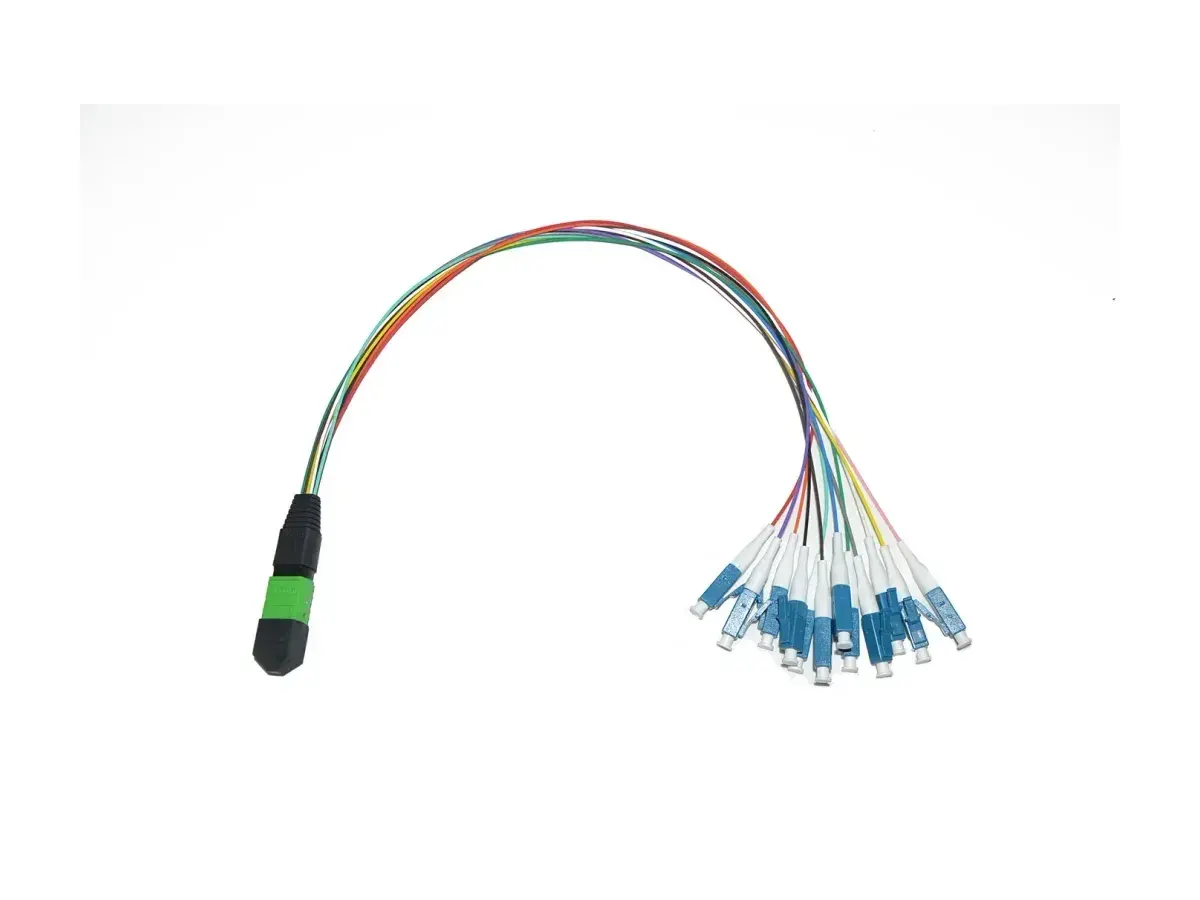

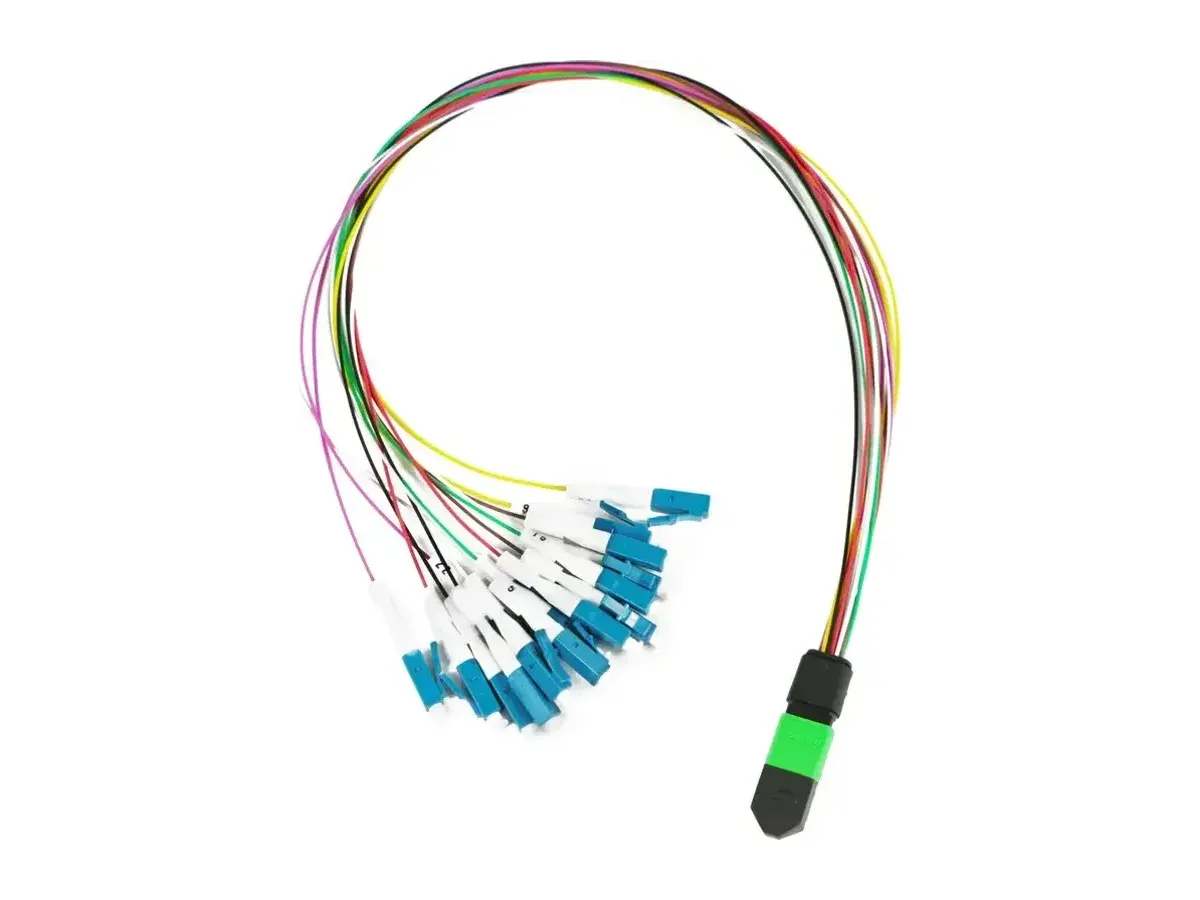

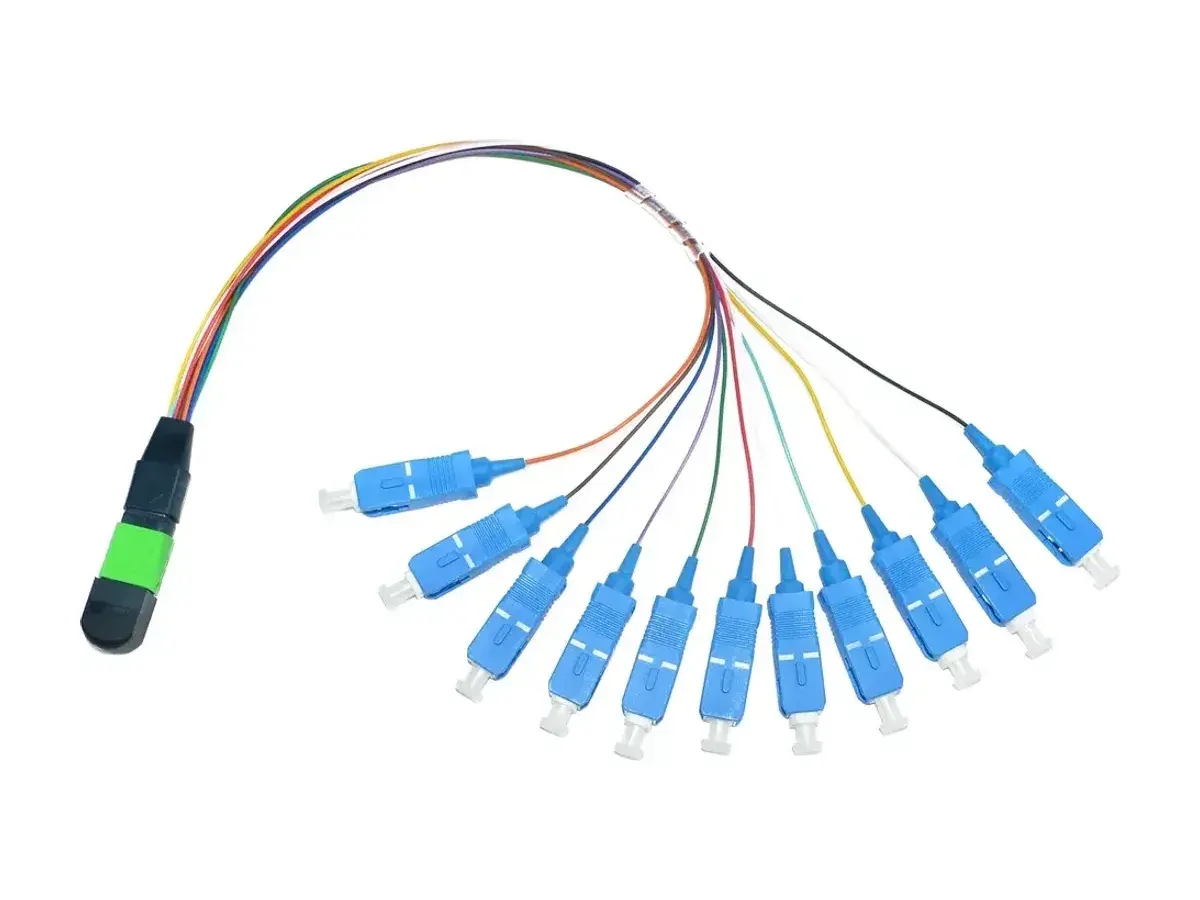

MPO/MTP Fan-out 0.9mm Patch Cord

The fan-out design is engineered for both low-loss and standard-loss SM and MM applications.

Request a QuoteCustomize this product

Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.

  • 100% Pre-Shipment Tested

    Insertion & return loss (IL/RL) verified on every assembly

  • 17-Year Manufacturer

    Three in-house factories with 100+ production lines

  • Vertically Integrated

    Cable extrusion, molds and assembly under one roof

Description

The fan-out design is engineered for both low-loss and standard-loss SM and MM applications. Ruggedized round cable, oval cable, and bare ribbon options are available, and color-coded housings can be supplied to differentiate fiber type, polish type, and/or connector grade. The product offers good repeatability and exchangeability.

Technical Specifications

Optical Performance

Connector Mode Endface Standard IL max (dB) Standard RL min (dB) Elite IL max (dB) Elite RL min (dB)
MPO/MTP SM 12F/APC ≤0.70 ≥60 ≤0.35 ≥60
MPO/MTP SM 24F/APC ≤0.75 ≥60 ≤0.35 ≥60
MPO/MTP SM 48F/APC ≤0.75 ≥60 — —
MPO/MTP MM 12F/PC ≤0.50 ≥20 ≤0.35 ≥20
MPO/MTP MM 24F/PC ≤0.50 ≥20 ≤0.35 ≥20
MPO/MTP MM 48F/PC ≤0.50 ≥20 — —
LC/SC/FC/ST SM APC ≤0.30 ≥60 ≤0.10 ≥60
LC/SC/FC/ST SM UPC ≤0.20 ≥50 ≤0.10 ≥50
LC/SC/FC/ST MM PC ≤0.20 ≥30 ≤0.10 ≥30

Test wavelength: SM @ 1310/1550nm, MM @ 850/1300nm. Standard conformance: GR-326, GR-1435.

Mechanical Properties

Item Criteria Conformance
ΔIL after 50 matings (MPO/MTP) ≤0.3 dB GR-1435
ΔIL after 500 matings (LC/SC/FC/ST) ≤0.2 dB IEC 61300-2-2
Min bend radius (dynamic) 20 × OD (cable diameter) —
Min bend radius (static) 15 × OD (cable diameter) —

Environmental Conditions

Item Criteria Conformance
Operating temperature -40 ~ 60 ℃ IEC 61753-1
Storage temperature -45 ~ 85 ℃ —

Features

  • Economical solution for mass-termination of fiber
  • Designed for low-loss and standard-loss SM and MM applications
  • Ruggedized round cable, oval cable, and bare ribbon options available
  • Color-coded housings available to differentiate fiber type, polish type, and/or connector grade
  • Good repeatability and exchangeability

Applications

  • Data communication network
  • Optical system access network
  • Storage area networking / fiber channel
  • High-density architectures
