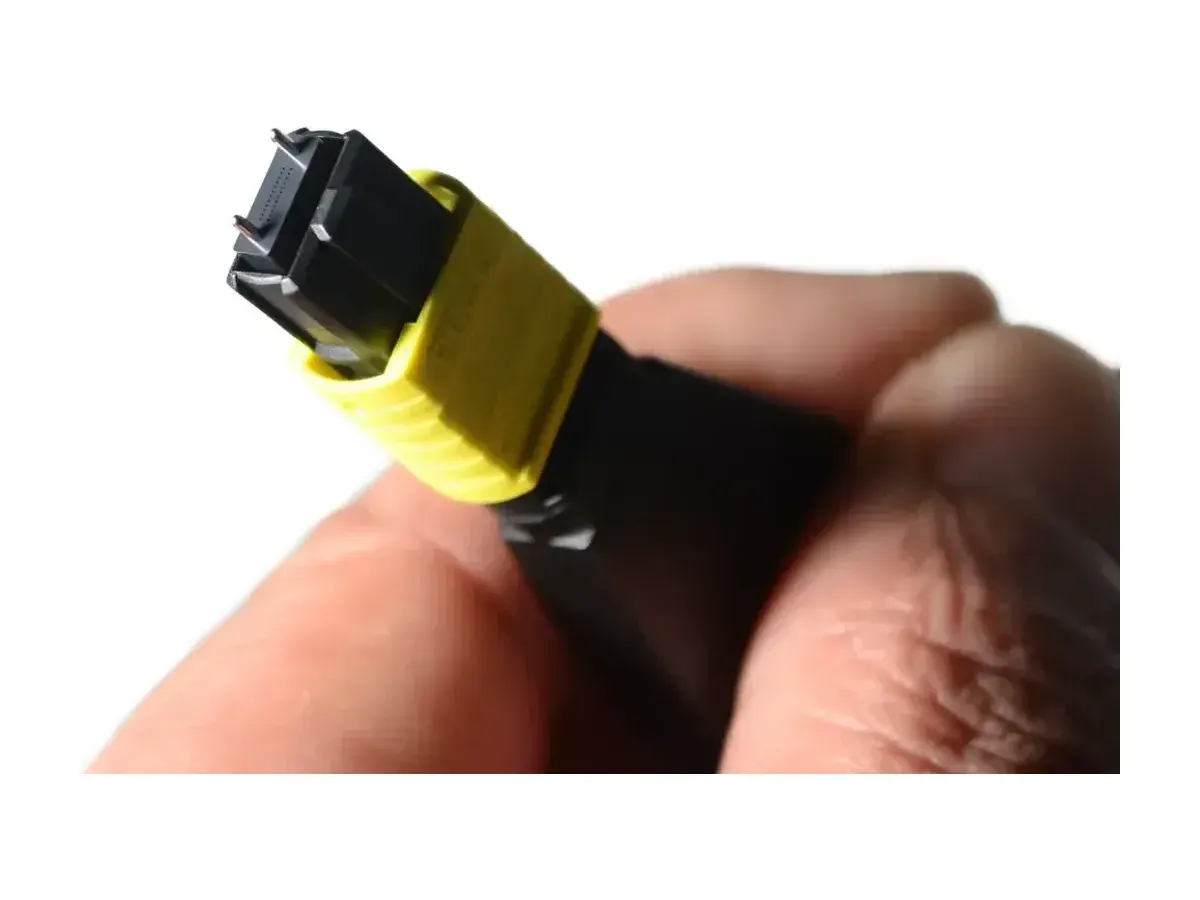

DYS MPO male 12F single-mode loopback module

MPO/MTP Data Center Cabling

MPO/MTP Loopback

These loopbacks are offered in a wide variety of wiring configurations and fiber types, and all units meet TIA/EIA and IEC intermateability standards.

Request a QuoteCustomize this product

Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.

  • 100% Pre-Shipment Tested

    Insertion & return loss (IL/RL) verified on every assembly

  • 17-Year Manufacturer

    Three in-house factories with 100+ production lines

  • Vertically Integrated

    Cable extrusion, molds and assembly under one roof

Description

These loopbacks are offered in a wide variety of wiring configurations and fiber types, and all units meet TIA/EIA and IEC intermateability standards. They install and remove easily, are available with or without pull tabs, and are compact and portable with a lanyard feature.

Technical Specifications

Optical Performance

Connector Mode Endface Standard IL max (dB) Standard RL min (dB) Elite IL max (dB) Elite RL min (dB)
MPO/MTP SM 12F/APC ≤0.70 ≥60 ≤0.35 ≥60
MPO/MTP SM 24F/APC ≤0.75 ≥60 ≤0.35 ≥60
MPO/MTP MM 12F/PC ≤0.50 ≥20 ≤0.35 ≥20
MPO/MTP MM 24F/PC ≤0.50 ≥20 ≤0.35 ≥20

Test wavelength: SM @ 1310/1550nm, MM @ 850/1300nm. Standard conformance: GR-326, GR-1435.

Mechanical Properties

Item Criteria Conformance
ΔIL after 50 matings (MPO/MTP) ≤0.3 dB GR-1435
ΔIL after 500 matings (LC/SC/FC/ST) ≤0.2 dB IEC 61300-2-2
Min bend radius (dynamic) 20 × OD (cable diameter) —
Min bend radius (static) 15 × OD (cable diameter) —

Environmental Conditions

Item Criteria Conformance
Operating temperature -40 ~ 60 ℃ IEC 61753-1
Storage temperature -45 ~ 85 ℃ —

Features

  • Available in a wide variety of wiring configurations and fiber types
  • All loopbacks meet TIA/EIA and IEC intermateability standards
  • 8, 12, and 24 fiber available
  • Easy installation/removal, available with or without pull tabs
  • Compact and portable with lanyard feature

Applications

  • 40GbE QSFP+ optical testing
  • Research and development
  • Manufacturing test
  • Troubleshooting
  • Quality control
  • Training
