FAU
Equipped with mature grinding, assembly and calibration technologies, DYS provides customized fiber arrays with single-mode fiber, multimode fiber and polarization-maintaining fiber.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description
Equipped with mature grinding, assembly and calibration technologies, DYS provides customized fiber arrays with single-mode fiber, multimode fiber and polarization-maintaining fiber. Our products can meet diverse requirements on fiber count, pitch and overall dimensions. They are widely applied in silicon photonics chip coupling, PLC splitters, high-speed optical modules and coherent optical communication systems, serving as key components for high-density and high-efficiency connection of multi-channel optical paths.
Technical Specifications
Performance Characteristics
Item | Unit | Specification | |
Fiber Type | - | PANDA Polarization-Maintaining Fiber | |
Operating Wavelength | - | 850nm / 1310nm / 1550nm | |
Cable Type | - | Ø0.25 Fiber Ribbon, Ø0.9, Ø2.0, Ø3.0 Optical Cable | |
Polishing Type | - | UPC / APC | |
Connector Type | - | LC / FC / SC | MPO/MTP®/MT |
Insertion Loss | dB | ≤ 0.3 | ≤ 0.35 |
Return Loss | dB | UPC: ≥ 50, APC: ≥ 60 | |
Extinction Ratio | dB | ≥ 20 | |

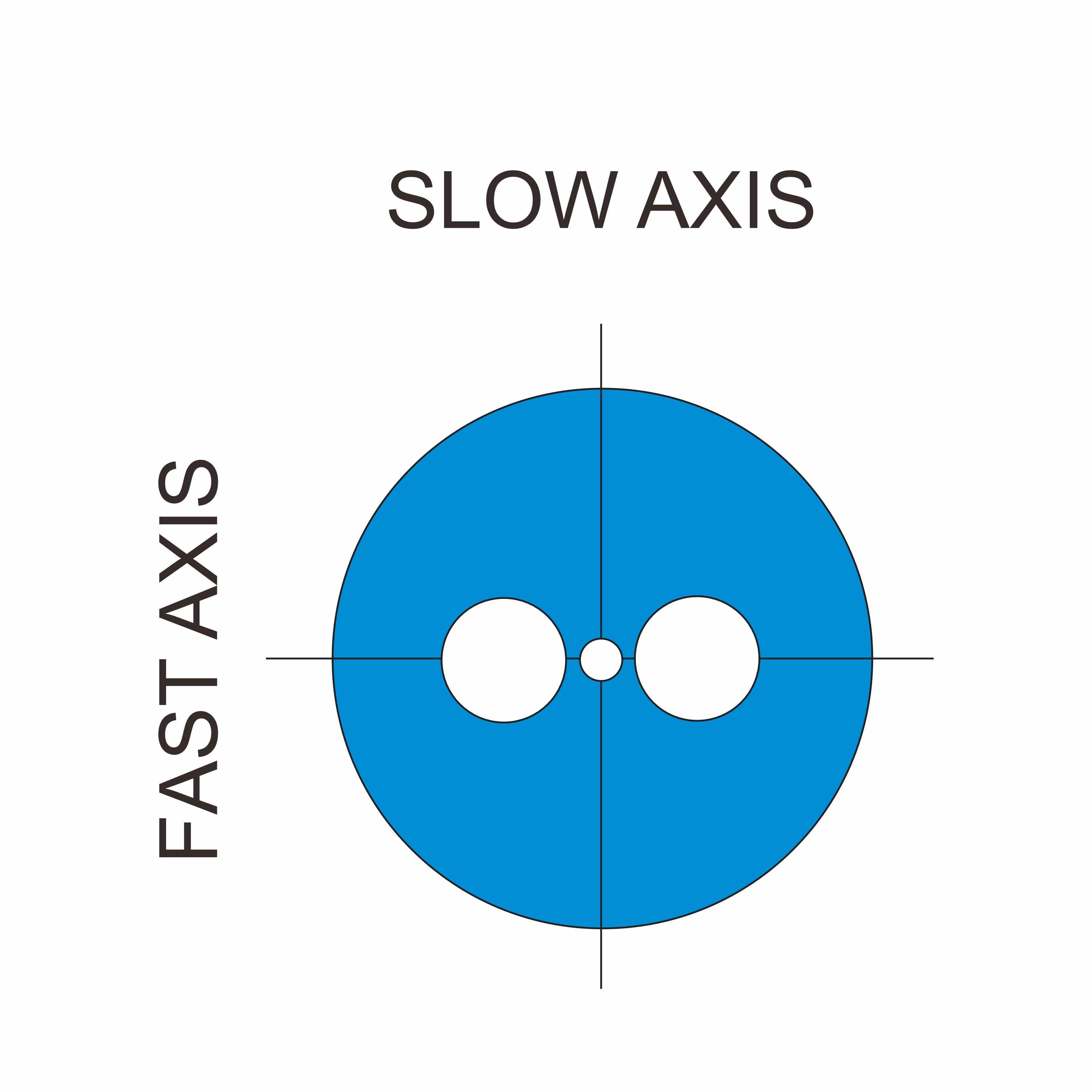

Slow Axis Angle | ° | 0, 90 or customizable | |
Slow Axis Angle Tolerance | ° | ≤ 3° or customizable | |
Operating Temperature | °C | -20 ~ 75 | |
Storage Temperature | °C | -40 ~ 85 | |
Features
• High polarization extinction ratio
• Low insertion loss
• Low angular deviation (≤3°)
• Excellent compatibility with standard connectors
• Customizable length

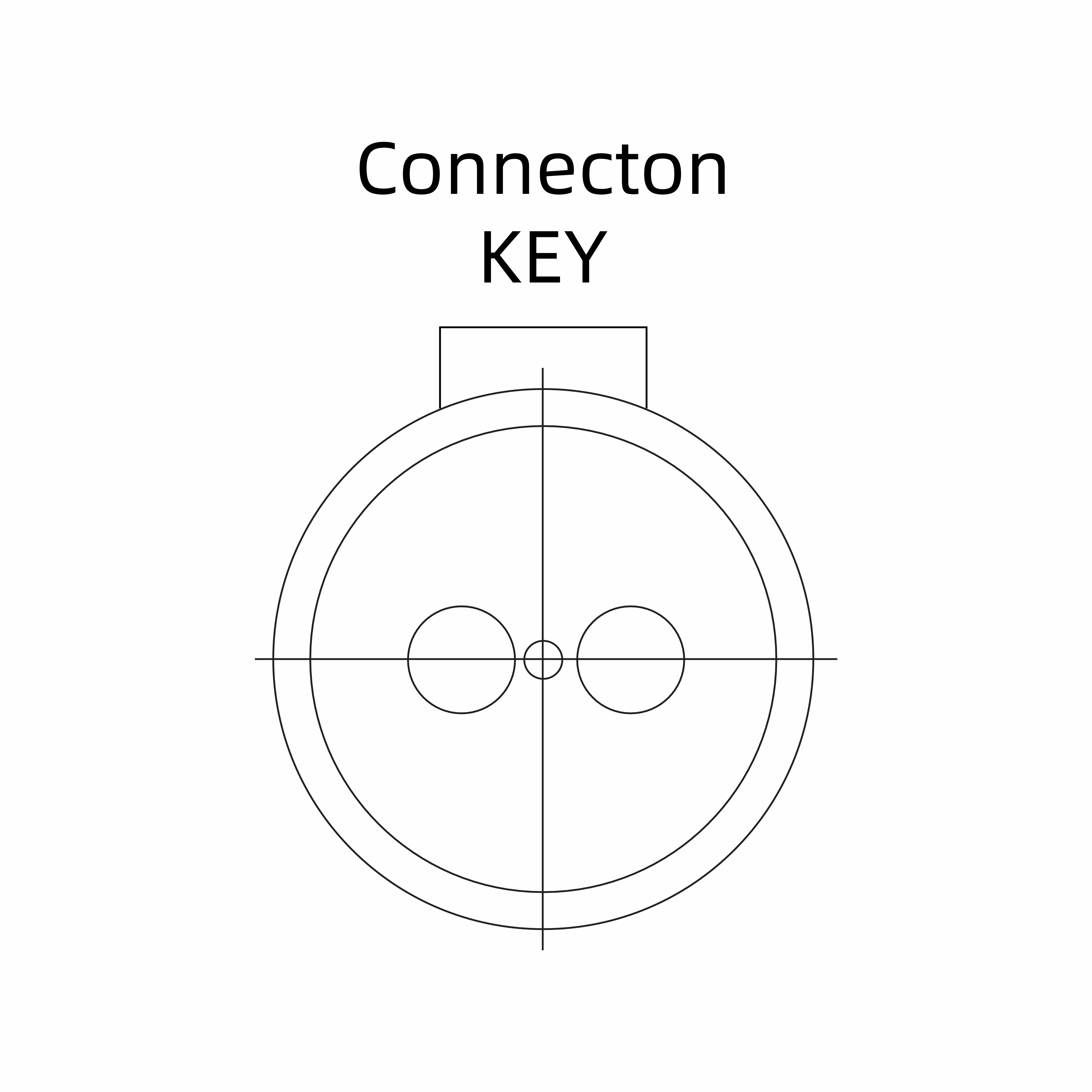

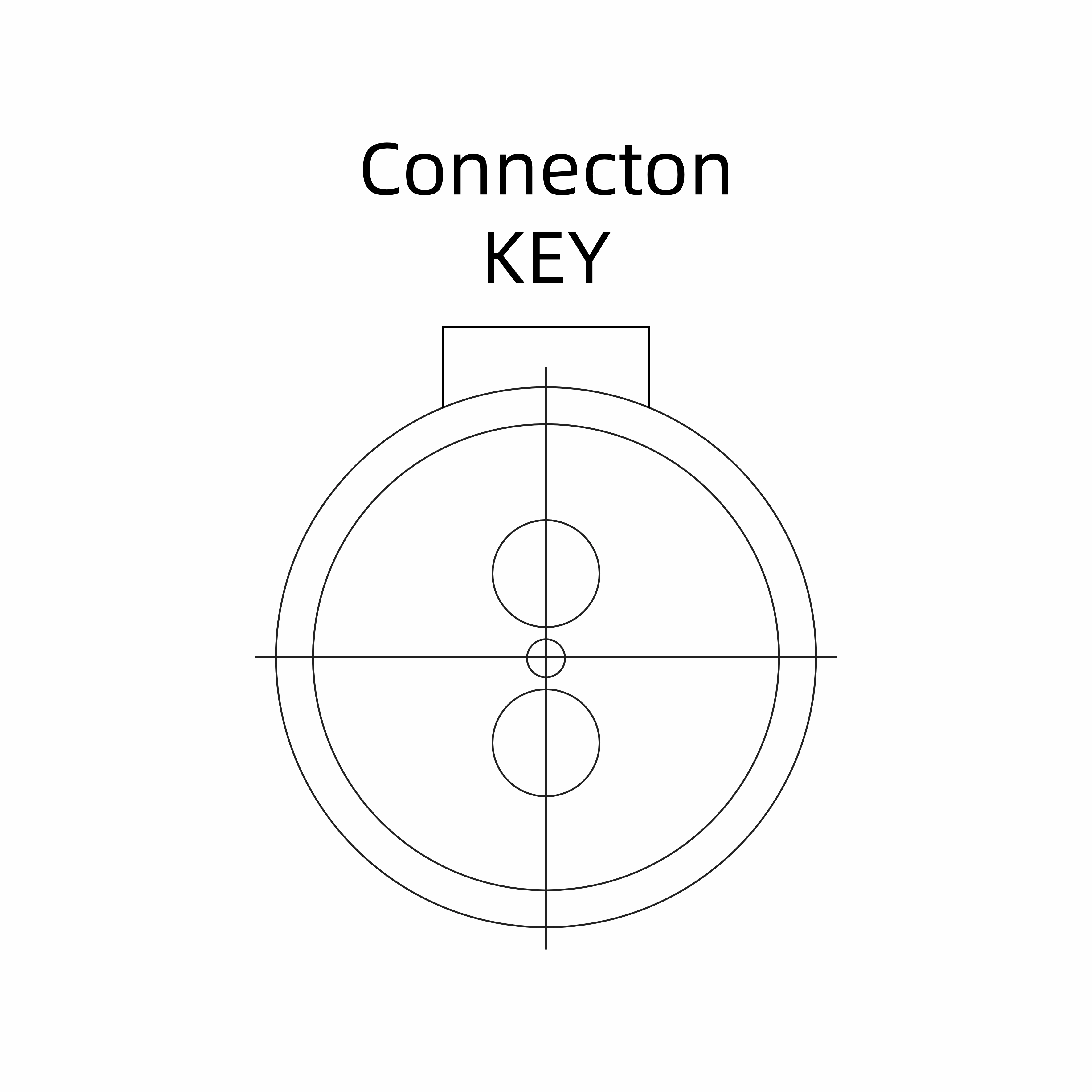

• Customizable axial angles including fast axis, slow axis and other orientations as required
• Optional polarization-maintaining fibers for 850nm, 980nm, 1310nm, 1550nm and other wavelengths
• RoHS compliant
Applications

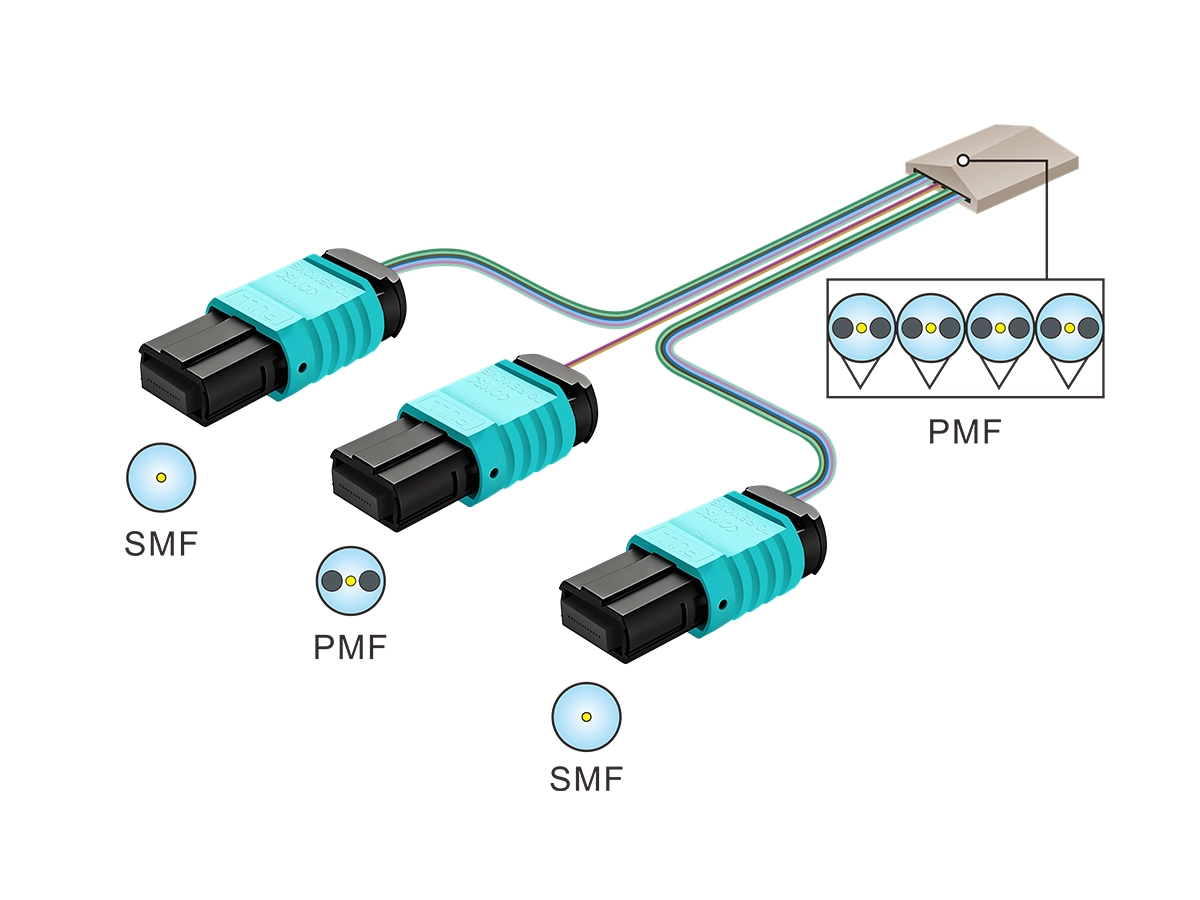

Our multi-channel high-precision FAU adopts a hybrid packaging solution combining polarization-maintaining fiber (PMF) and standard single-mode fiber (SMF). It satisfies the comprehensive requirements of CPO systems for high density, multi-channel transmission and polarization-stable coupling.
