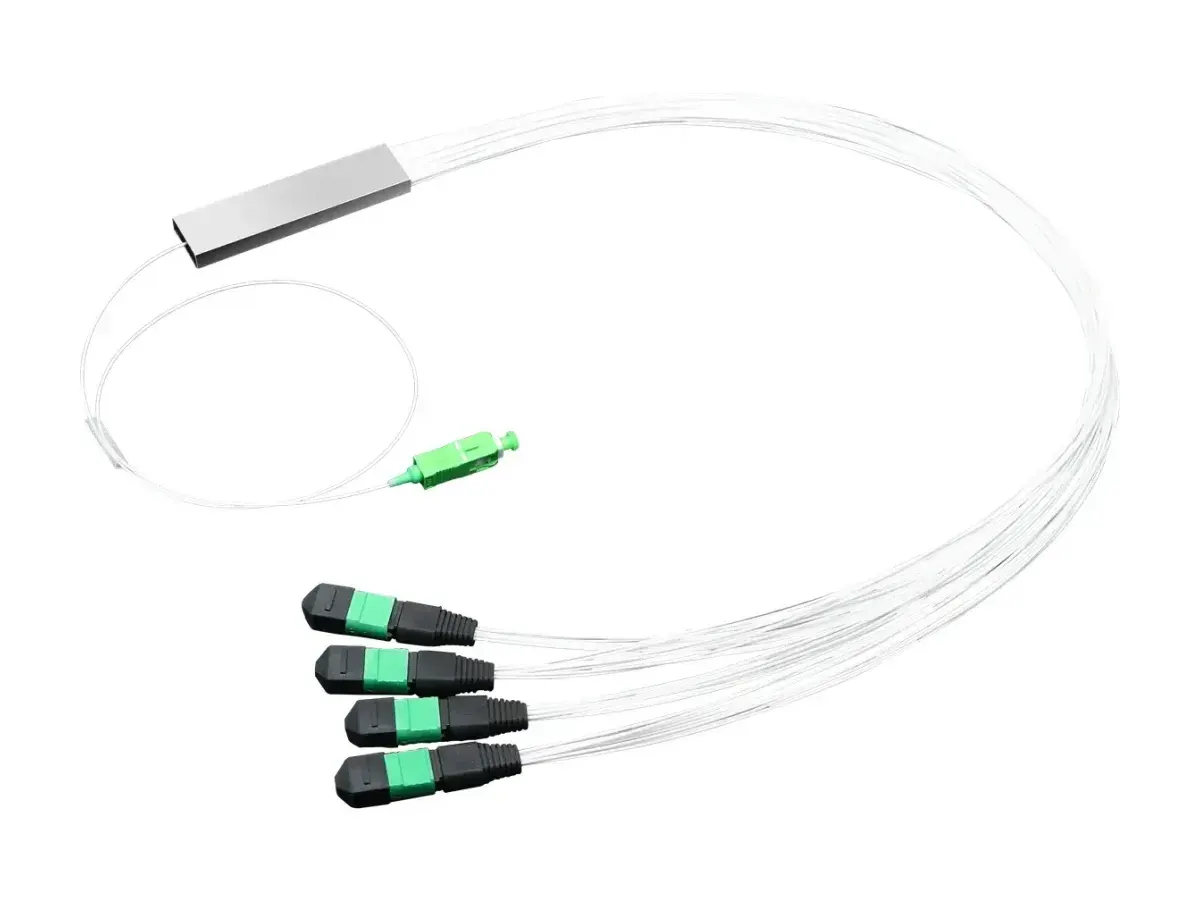

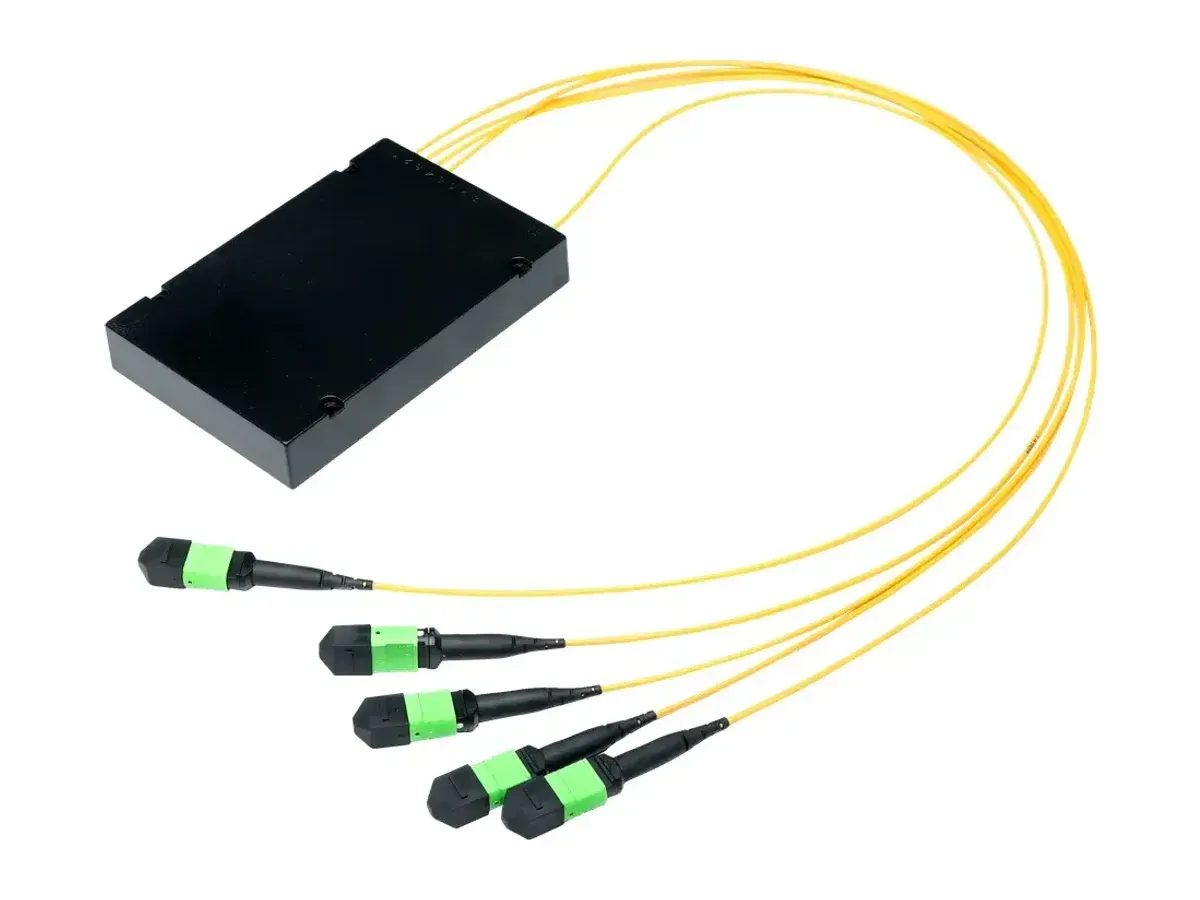

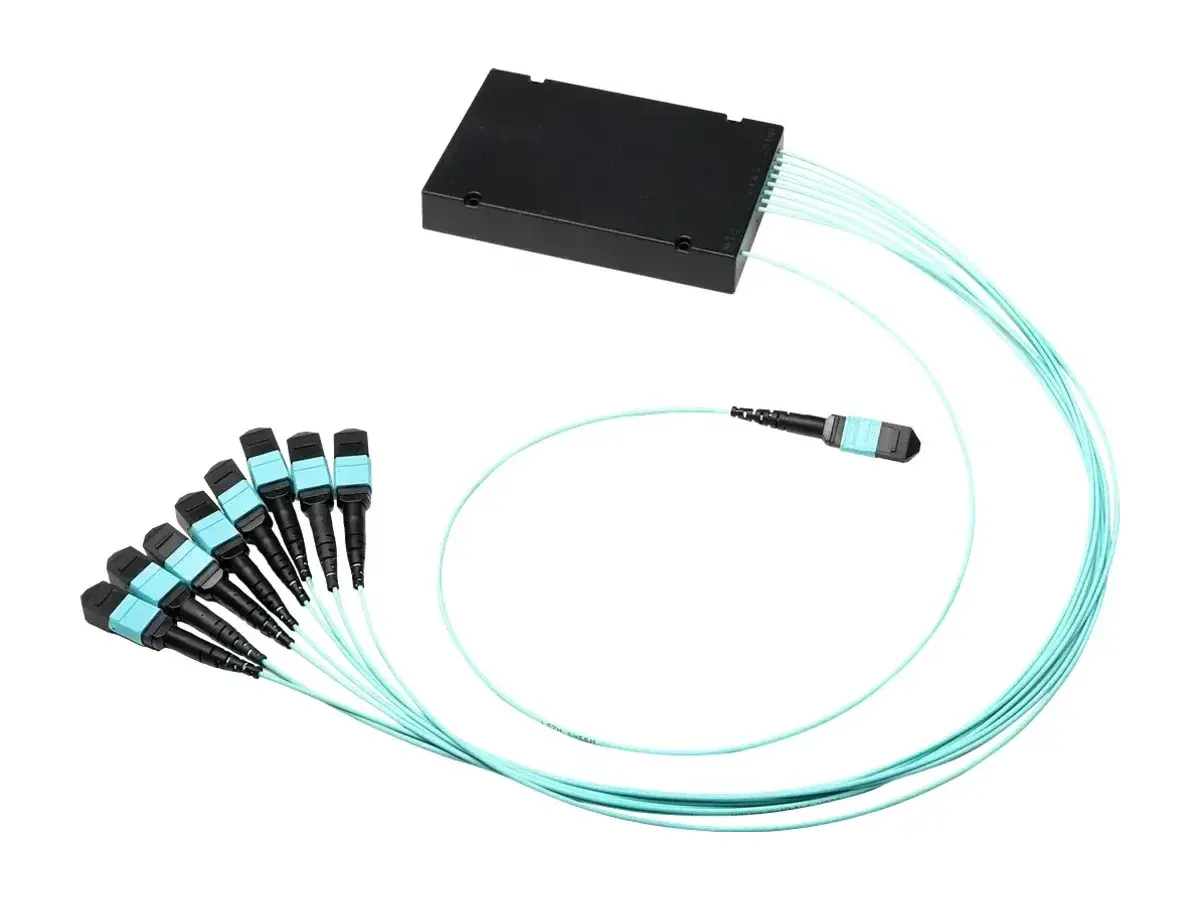

MPO/MTP Type PLC Splitter
These PLC splitters combine high-density, plug-and-play fiber optic interconnects with pre-terminated cable assemblies that eliminate field termination time and guarantee optical performance.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description
These PLC splitters combine high-density, plug-and-play fiber optic interconnects with pre-terminated cable assemblies that eliminate field termination time and guarantee optical performance. A wide variety of cable and connector options is available, with MPO/MTP interfaces offered in both standard-loss and elite-loss grades.
Technical Specifications
Insertion Loss — 1xN Configurations (dB)
| Output / Connector | 1×2 | 1×3 | 1×4 | 1×6 | 1×8 | 1×12 | 1×16 | 1×24 | 1×32 |
|---|---|---|---|---|---|---|---|---|---|
| LC/SC/FC/ST | ≤4.2 | ≤6.5 | ≤7.8 | ≤9.6 | ≤10.9 | ≤12.9 | ≤13.9 | ≤15.5 | ≤17.2 |
| MPO/MTP (STD loss) | ≤4.6 | ≤6.9 | ≤8.2 | ≤10.0 | ≤11.3 | ≤13.3 | ≤14.3 | ≤15.9 | ≤17.9 |
| MPO/MTP (Elite loss) | ≤4.3 | ≤6.6 | ≤7.9 | ≤9.7 | ≤11.0 | ≤13.0 | ≤14.0 | ≤15.6 | ≤17.3 |
Insertion Loss — 2xN Configurations (dB)
| Output / Connector | 2×2 | 2×4 | 2×8 | 2×12 | 2×16 | 2×24 | 2×32 |
|---|---|---|---|---|---|---|---|
| LC/SC/FC/ST | ≤4.4 | ≤8.0 | ≤11.2 | ≤13.2 | ≤14.2 | ≤15.8 | ≤17.5 |
| MPO/MTP (STD loss) | ≤4.8 | ≤8.4 | ≤11.6 | ≤13.6 | ≤14.6 | ≤16.2 | ≤17.9 |
| MPO/MTP (Elite loss) | ≤4.5 | ≤8.1 | ≤11.3 | ≤13.3 | ≤14.3 | ≤15.9 | ≤17.6 |
Other Optical Parameters
| Item | Specification |
|---|---|
| Polarization loss | ≤0.3 dB (all configurations) |
| Channel uniformity (fixed wavelength) | ≤0.6 dB (1×2/1×3) to ≤1.5 dB (1×24/1×32) |
| Channel uniformity (full bandwidth) | ≤1.1 dB (1×2/1×3) to ≤2.0 dB (1×24/1×32) |
| Return loss (without connector) | ≥55 dB |
| Return loss (with connector) | UPC ≥50 dB, APC ≥55 dB |
| Directionality | ≥55 dB |
| Operating temperature | -40 ~ 85 ℃ |
| Reference | GR-1221-CORE, GR-1209-CORE |
Insertion loss test wavelengths: 1310nm, 1490nm, 1550nm. In the 1260–1300nm and 1600–1650nm ranges, add 0.3 dB to the IL values above. Channel uniformity in those ranges increases by 0.5 dB. For adaptive devices, adaptive losses must be added.
Features
- High density, plug-and-play fiber optic interconnects
- Pre-terminated cable assemblies eliminate field termination time and guarantee optical performance
- Available with a wide variety of cable and connector options
Applications
- Gigabit Ethernet
- Active device / transceiver interface
- Optical switch interframe connections
- Telecommunication networks
