DYS RS144-1U high-density MPO/MTP fiber patch panel

MPO/MTP Data Center Cabling

MPO/MTP Patch Panel

DYS's HD Series patch panels offer an extra slot that accepts up to four adapter panels or MPO cassettes in the 1RU footprint, achieved by staggering the mounting ears.

Request a QuoteCustomize this product

Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.

  • 100% Pre-Shipment Tested

    Insertion & return loss (IL/RL) verified on every assembly

  • 17-Year Manufacturer

    Three in-house factories with 100+ production lines

  • Vertically Integrated

    Cable extrusion, molds and assembly under one roof

Description

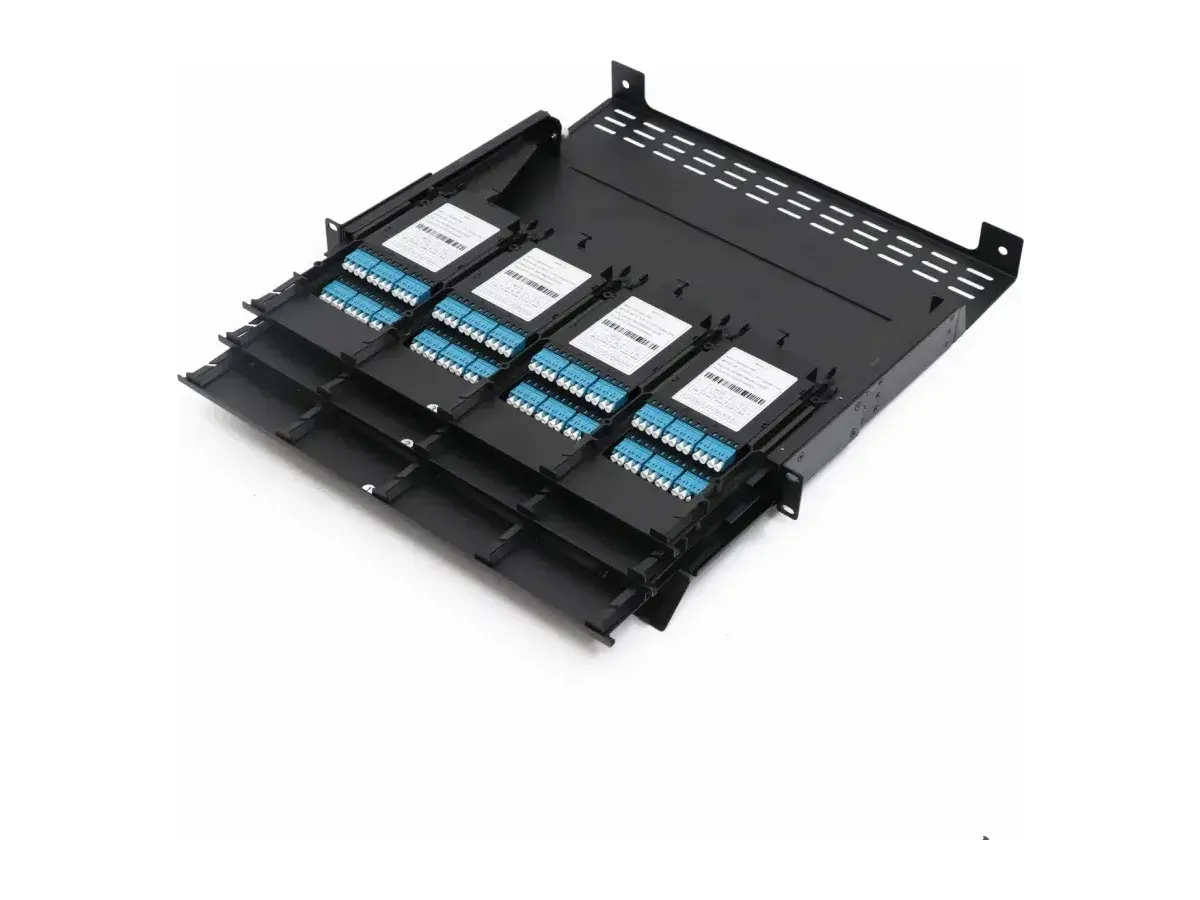

DYS's HD Series patch panels offer an extra slot that accepts up to four adapter panels or MPO cassettes in the 1RU footprint, achieved by staggering the mounting ears. The HD patch panels are ideal for high fiber-count applications and fit into any standard 19" or 23" rack by rotating the panel's mounting ears. The sliding tray design makes the panel easy to operate and maintain.

Technical Specifications

Item Specification
Rack mount 19" / 23" standard (rotatable mounting ears)
Form factor 1RU
Max capacity Up to 144 fiber per 1U
Adapter capacity Up to 4 adapter panels or MPO cassettes
Finishing Powder coated

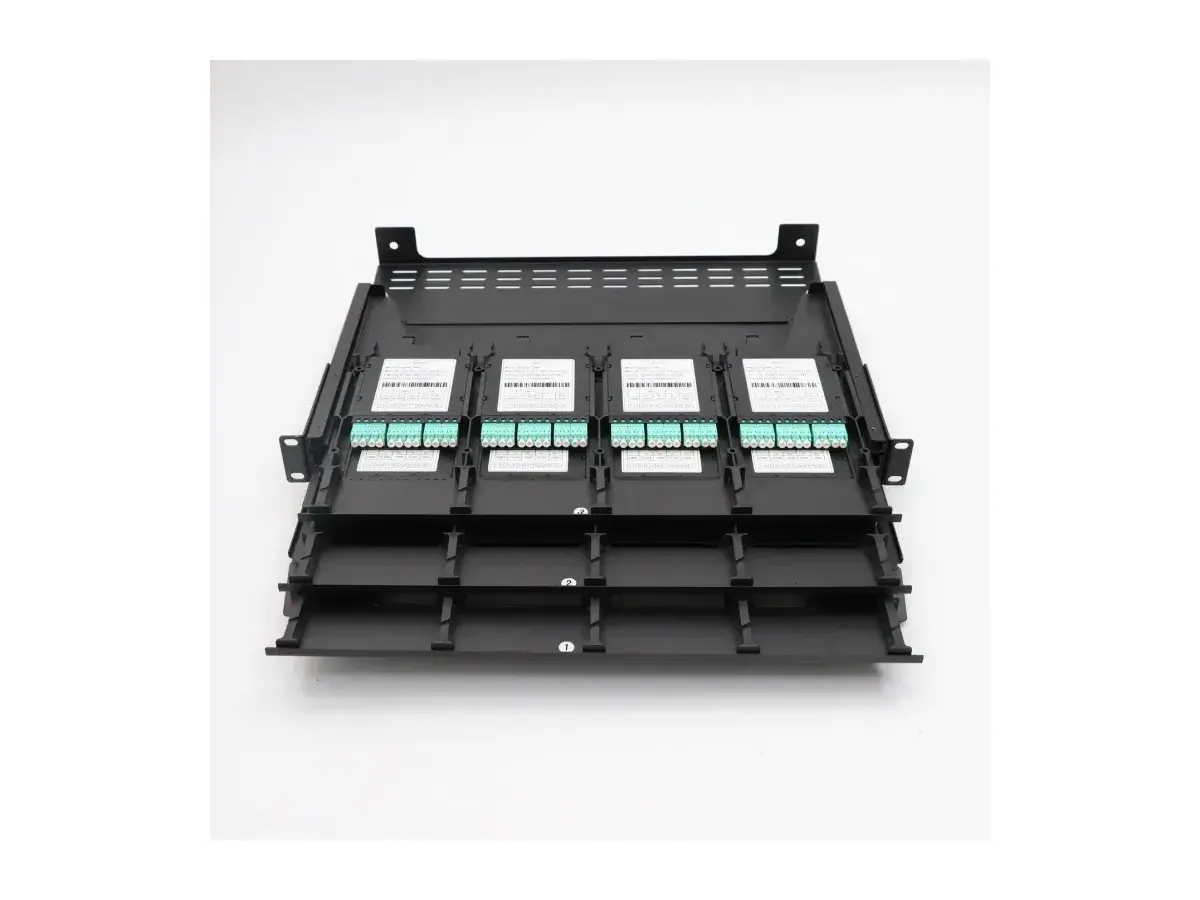

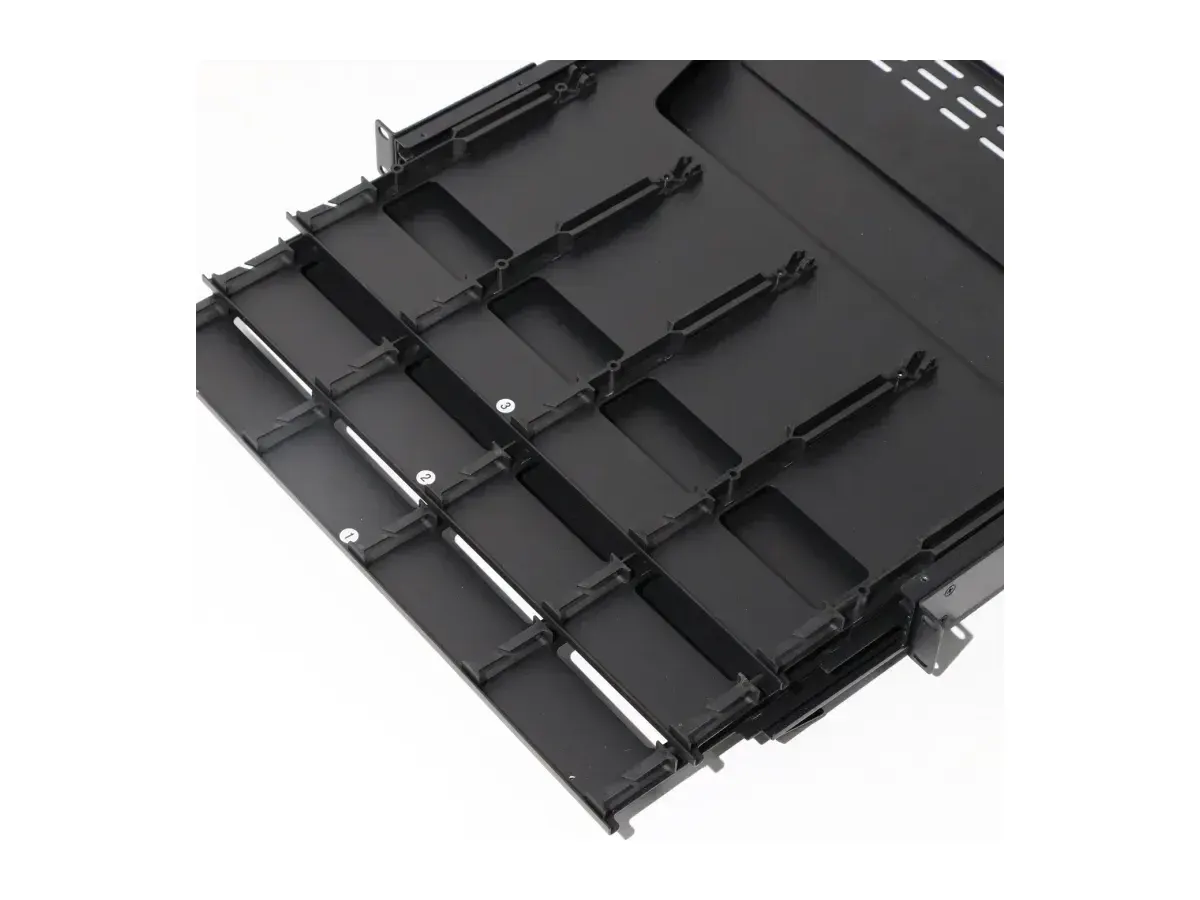

Tray Sliding tray design

Features

  • Finishing: powder coated
  • Fits into 19 inch installations
  • Maximum capacity up to 144 fiber for 1U
  • Sliding tray design
  • Easy to operate and maintain

Applications

  • Data centers, pre-terminated installations
  • Telecommunication networks
  • Storage area networking / fiber channel
  • High-density architectures
