Indoor Fiber Optic Cable
GJBFJV Break out Cable
GJBFJV Breakout Cable contains several tight-buffered fibers, kevlar/aramid strength members to stiffen the cable and prevent kinking.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description
GJBFJV Breakout Cable contains several tight-buffered fibers, kevlar/aramid strength members to stiffen the cable and prevent kinking. Three cable fire ratings, Riser/Plenum/LSZH for your choice to meet different installation environments.
Technical Specifications
Cable type | OD(mm) | Nominal Weight (Kg/Km) | Tensile Strength(N) | Crush Resistance (N/100MM) | Bending Radius(mm) |
|---|
|
|
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static |
GJBFJV-4Xn | 7.4±0.2 | 45.5 | 660 | 200 | 1000 | 300 | 20D | 15D |
GJBFJV-6Xn | 9.0±0.3 | 63.0 | 660 | 200 | 1000 | 300 | 20D | 15D |
GJBFJV-8Xn | 10.0±0.3 | 84.0 | 660 | 200 | 1000 | 300 | 20D | 15D |
GJBFJV-12Xn | 12.5±0.3 | 148.0 | 660 | 200 | 1000 | 300 | 20D | 15D |
Storage/Working temperature(℃) | -20~+60 |
|
|
|
|
Notes:
- Note: Xn is fiber optic model and D is the diameter of optical cable.
Features
- Subcabled fiber is environmentally and mechanically protected.
- Non-metal FRP central strength member, anti-electromagnetic interference.
- Riser/LSZH jacket, used for backbone, horizontal, and intrabuilding runs.
- Perfect for horizontal distribution for Fiber-to-the-desk.
- Used in optical connections in optical apparatus and equipment.
Applications
- Indoor cabling as branch cable; building access.
- Interconnection of fiber optic equipments.
- Used in patch cords and pigtails.
Packing
- Standard wooden drum with protection.
- Standard reel length: 2/3 km/reel, other length is also available.
Related products
3.0mm SM Armored Optical Cable
Characteristic： The armored fiber optic cable which “can be freely used like electrical wire”,this item is protected by flexible stainless steel…
View details
GJFJBV Duplex Flat Cable
GJFJBV Duplex Flat Cable use 900um or 600um flame-retardant tight buffer fiber as optical communication medium.
View details
GJFJV Simplex Round Cable
GJFJV Simplex Round Cable use 900um tight buffer fiber as optical communication medium, the tight buffer fiber wrapped with a layer of yarn as…
View details

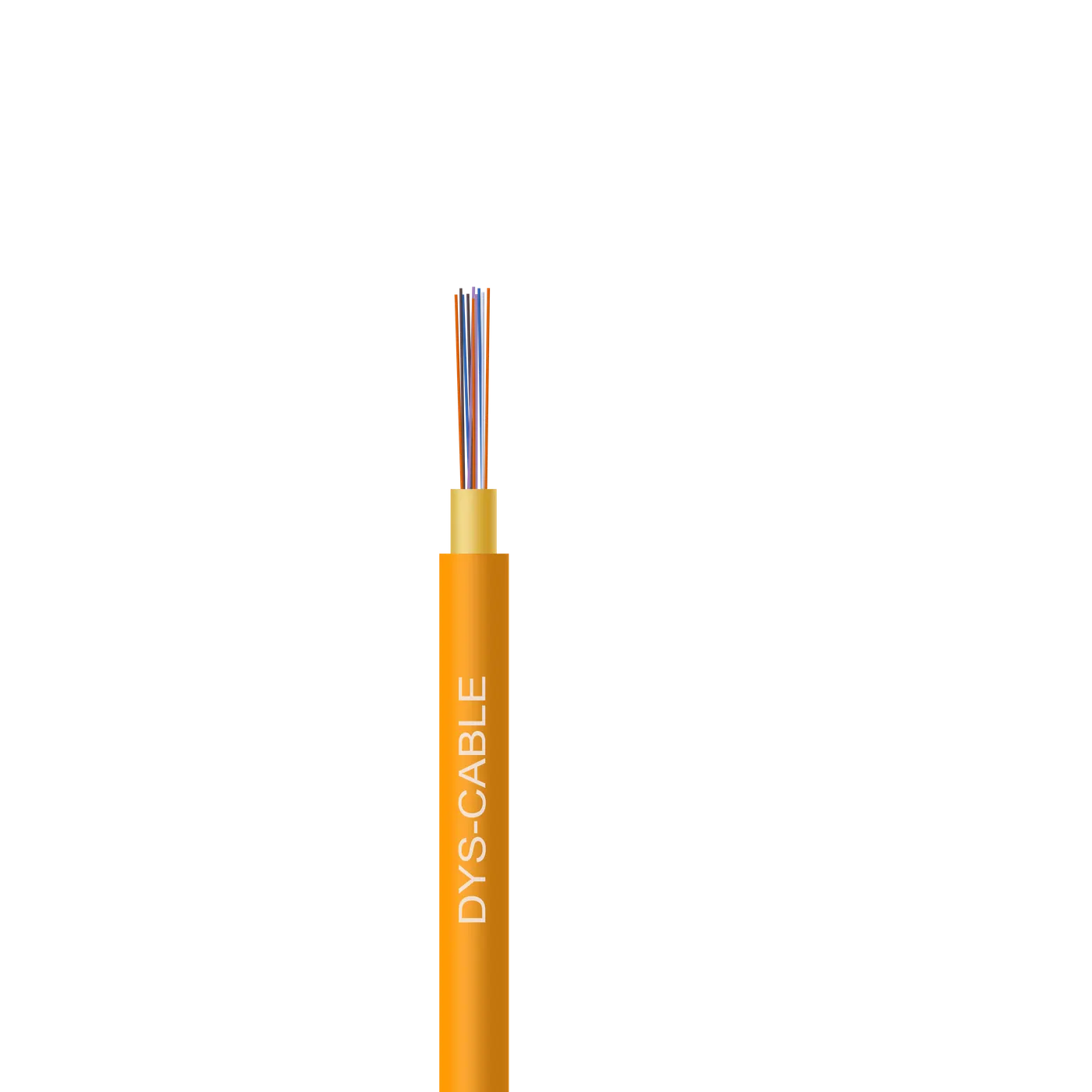

GJPFJV Distribution Cable
