FTTH Drop Cable
GYTC8H Round Self-Suppot Cable
GYTC8H Round Self-Suppott Cable use 900um flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of yarn as strength member units.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

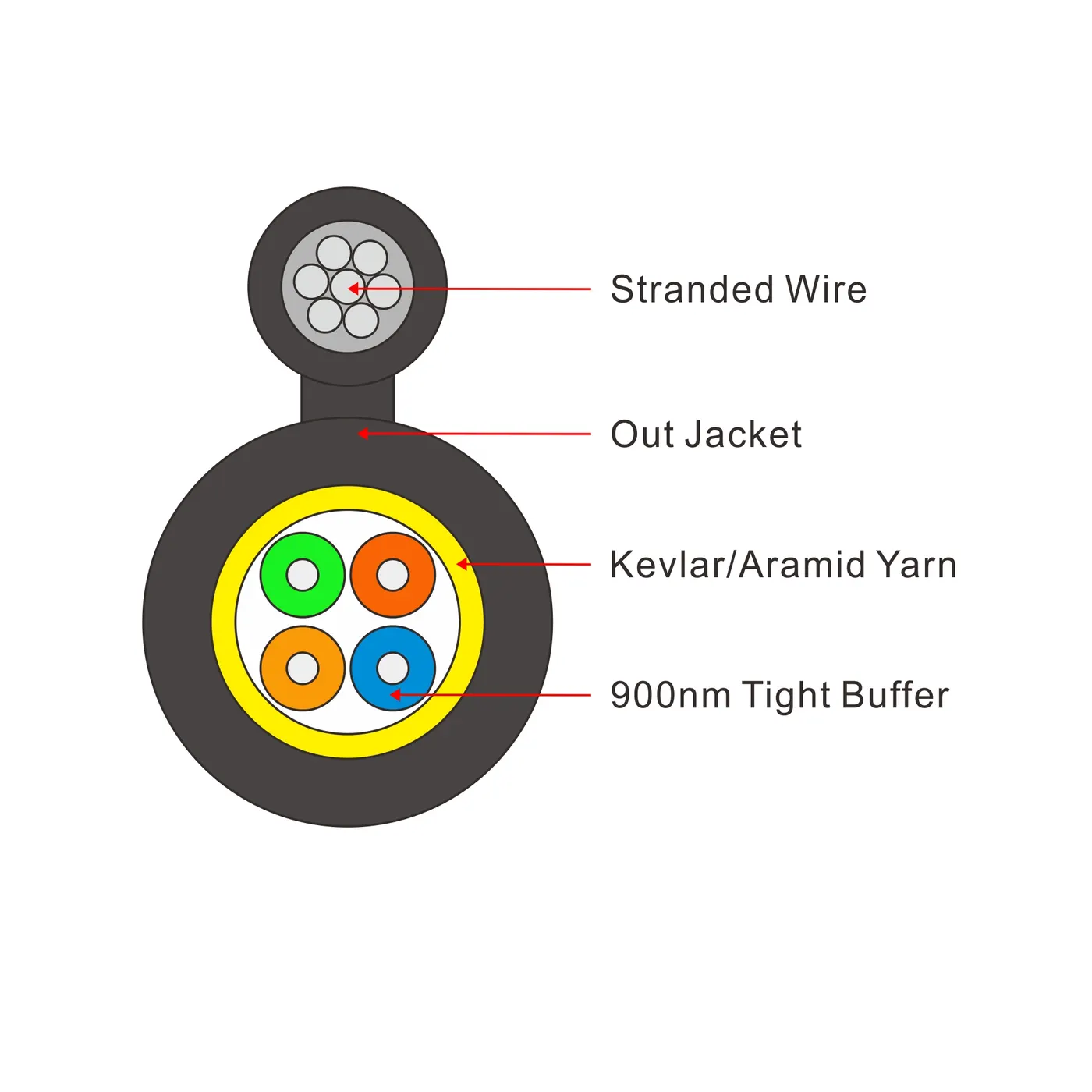

GYTC8H Round Self-Suppott Cable use 900um flame-retardant tight buffer fiber as optical communication medium. The tight buffer fiber wrapped with a layer of yarn as strength member units. Then the wire rope is integrated into an 8 - shaped LSZH sheath cable.
Technical Specifications
Cable type | OD(mm) | Nominal Weight (Kg/Km) | Tensile Strength(N) | Crush Resistance (N/100MM) | Bending Radius(mm) |
|---|
|
|
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static |
GYTC8H-1Xn | （3.5±0.1）*（6.5±0.3） | 40.5 | 1200 | 600 | 1000 | 300 | 20D | 15D |
GYTC8H-2Xn | （5.0±0.1）*（8.0±0.3） | 42.0 | 1200 | 600 | 1000 | 300 | 20D | 15D |
GYTC8H-3Xn | （5.0±0.1）*（8.0±0.3） | 43.5 | 1200 | 600 | 1000 | 300 | 20D | 15D |
GYTC8H-4Xn | （5.0±0.1）*（8.0±0.3） | 45.0 | 1200 | 600 | 1000 | 300 | 20D | 15D |
Storage/Working temperature(℃) | -20~+60 |
|
|
|
|
Notes:
- Note: Xn is fiber optic model and D is the diameter of optical cable.
Features
- High strength Kevlar yarn member.
- Excellent temperature performance.
- Suitable for installation, operation, and convenient for maintenance.
Applications
- Outdoor aerial application.
- Used in the FTTH projects.
- High speed optical routes in building.
Packing
- Standard wooden drum with protection.
- Standard reel length: 2/3 km/reel, other length is also available.
