FTTH Drop Cable
GJYXFCH self-support Flat Drop Cable

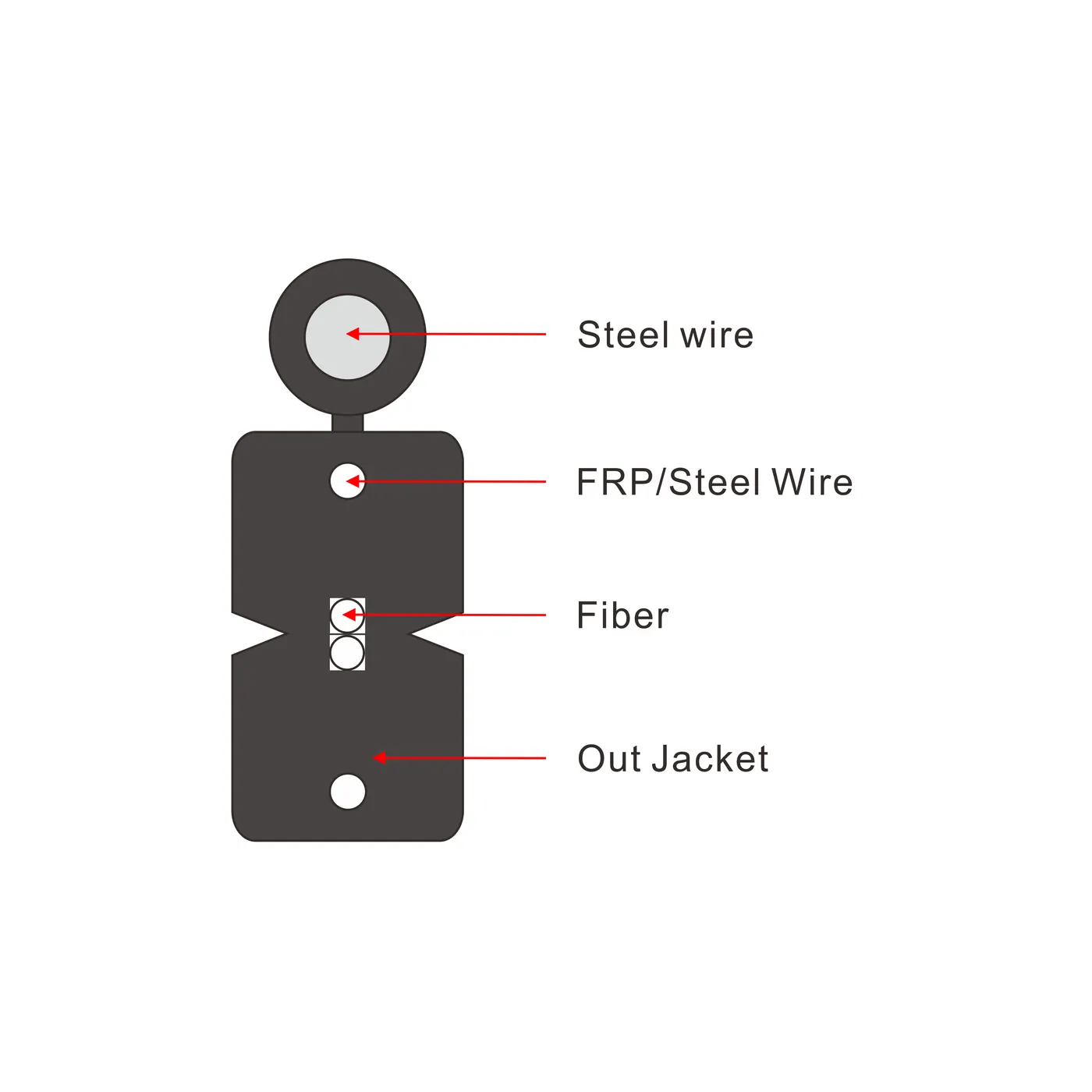

Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A). The cable is protected by a dielectric strength member, suitable for direct aerial installation into the houses in FTTH projects.
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description
Self-supporting FTTH drop cable is constructed with one or two single-mode fiber (G.657A). The cable is protected by a dielectric strength member, suitable for direct aerial installation into the houses in FTTH projects.
Technical Specifications
Cable type | OD(mm) | Nominal Weight (Kg/Km) | Tensile Strength(N) | Crush Resistance (N/100MM) | Bending Radius(mm) |
|---|
|
|
| Short-term | Long-term | Short-term | Long-term | Dynamic | Static |
GJYXFCH-1Xn | （2.0±0.1）*（6.2±0.3） | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
GJYXFCH-2Xn | （2.0±0.1）*（6.2±0.3） | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
GJYXFCH-3Xn | （2.0±0.1）*（6.2±0.3） | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
GJYXFCH-4Xn | （2.0±0.1）*（6.2±0.3） | 23.6 | 600 | 300 | 2200 | 1000 | 20D | 15D |
Storage/Working temperature(℃) | -20~+60 |
|
|
|
|
Notes:
- Note: Xn is fiber optic model and D is the diameter of optical cable.
Features
- Small diameter and light weight, water-resistant, soft and bendable, easy to deploy and maintenance.
- Meet the requirement of thunder-proof, anti-rodent or waterproof.
- Good to use for fiber to the home last mile solution.
Applications
- Outdoor aerial application.
- Used in the FTTH projects.
- High speed optical routes in building.
Packing
- Standard wooden drum with protection.
- Standard reel length: 2/3 km/reel, other length is also available.
