DYS MPO/MTP single-mode trunk cable for high-density data center backbone

MPO/MTP Cabling

MPO/MTP Trunk Cable

Factory-tested MPO/MTP trunk assemblies for high-density backbones, with documented 12F single-mode and 24F OM3 configurations, Standard or Elite loss grades, and project-specific polarity.

Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.

  • 100% Pre-Shipment Tested

    Insertion & return loss (IL/RL) verified on every assembly

  • 17-Year Manufacturer

    Three in-house factories with 100+ production lines

  • Vertically Integrated

    Cable extrusion, molds and assembly under one roof

Description

DYS MPO/MTP trunk cables are factory-terminated and tested backbone assemblies for connecting patch panels, cassettes and distribution points. Connector gender, endface, fiber type, total fiber count and polarity are confirmed for each build rather than inferred from network speed alone.

Representative Configurations

Configuration

Interfaces

Fiber and cable

Polarity

Optical limits

Build details

Standard 12F single-mode trunk

MPO/APC female ↔ MPO/APC female

12F G.657A1; 3.0±0.2 mm yellow LSZH(Eca)

Method B

IL ≤0.70 dB for L≤30 m; RL ≥60 dB at 1310/1550 nm

500 mating cycles; -20 to +70 °C

Elite 24F multimode breakout trunk

24F MPO/APC male ↔ 2 × 12F MPO/APC male

24F OM3; 3.0±0.2 mm aqua LSZH

Method A

IL ≤0.35 dB for L≤30 m; RL ≥35 dB at 850/1300 nm

500–550 mm branch length; 500 mating cycles; -20 to +70 °C

These are representative controlled configurations, not default specifications for every MPO/MTP trunk. Final availability is confirmed against the requested connector format, fiber, length and loss requirement.

Ordering Information

Detail

What to provide

Interfaces

Connector format, gender and UPC/APC endface at end A and end B

Fiber

Total fiber count, positions per connector and fiber grade

Polarity

Method A/B/C or an approved wiring map

Cable

Length, tolerance, jacket material/color and installation conditions

Identification

Printing, labels, packaging and OEM/ODM branding

Verification

Standard or Elite loss requirement and any requested report or drawing

Samples, Lead Time and Test Evidence

Current product-family baseline: MOQ 50 pcs, free samples in 3–5 days, and regular batch lead time of 7–15 days. Final terms depend on the approved configuration and order schedule.

A public shipment report is available for a 12F Elite MPO female-to-female G.657A1 Method A sample. Its readings document that tested sample and must not be presented as universal limits for every trunk configuration.

Technical Specifications

Optical Performance

Connector

Mode

Endface

Standard IL max (dB)

Standard RL min (dB)

Elite IL max (dB)

Elite RL min (dB)

MPO/MTP

SM

12F/APC

≤0.70

≥60

≤0.35

≥60

MPO/MTP

SM

24F/APC

≤0.75

≥60

≤0.35

≥60

MPO/MTP

SM

48F/APC

≤0.75

≥60

—

—

MPO/MTP

MM

12F/PC

≤0.50

≥20

≤0.35

≥20

MPO/MTP

MM

24F/PC

≤0.50

≥20

≤0.35

≥20

MPO/MTP

MM

48F/PC

≤0.50

≥20

—

—

Test wavelength: SM @ 1310/1550nm, MM @ 850/1300nm. Standard conformance: GR-326, GR-1435.

Mechanical Properties

Item

Criteria

Conformance

ΔIL after 50 matings (MPO/MTP)

≤0.3 dB

GR-1435

ΔIL after 500 matings (LC/SC/FC/ST)

≤0.2 dB

IEC 61300-2-2

Min bend radius (dynamic)

20 × OD (cable diameter)

—

Min bend radius (static)

15 × OD (cable diameter)

—

Environmental Conditions

Item

Criteria

Conformance

Operating temperature

-40 ~ 60 ℃

IEC 61753-1

Storage temperature

-45 ~ 85 ℃

—

Features

• 100% factory pre-terminated and IL/RL tested before shipment

• Standard and Elite low-loss grades for different channel budgets

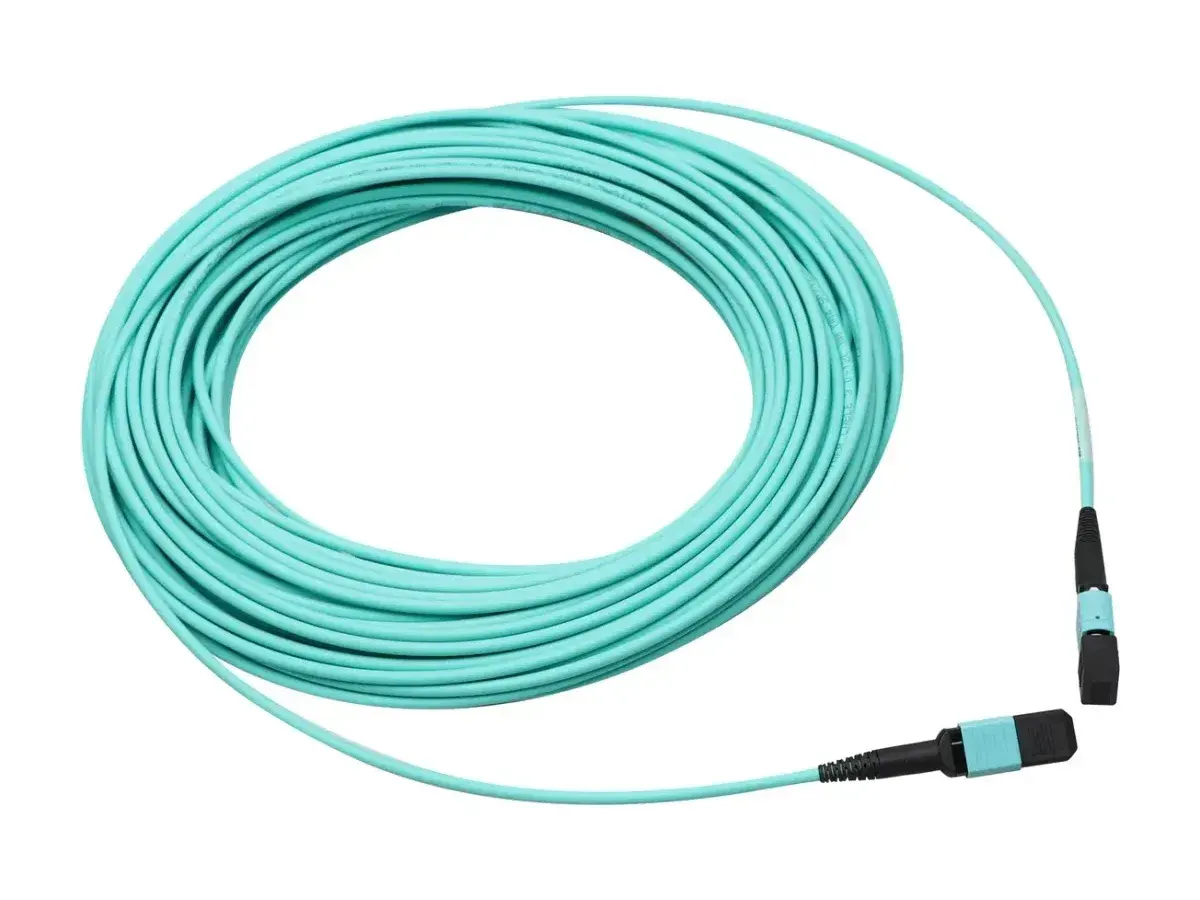

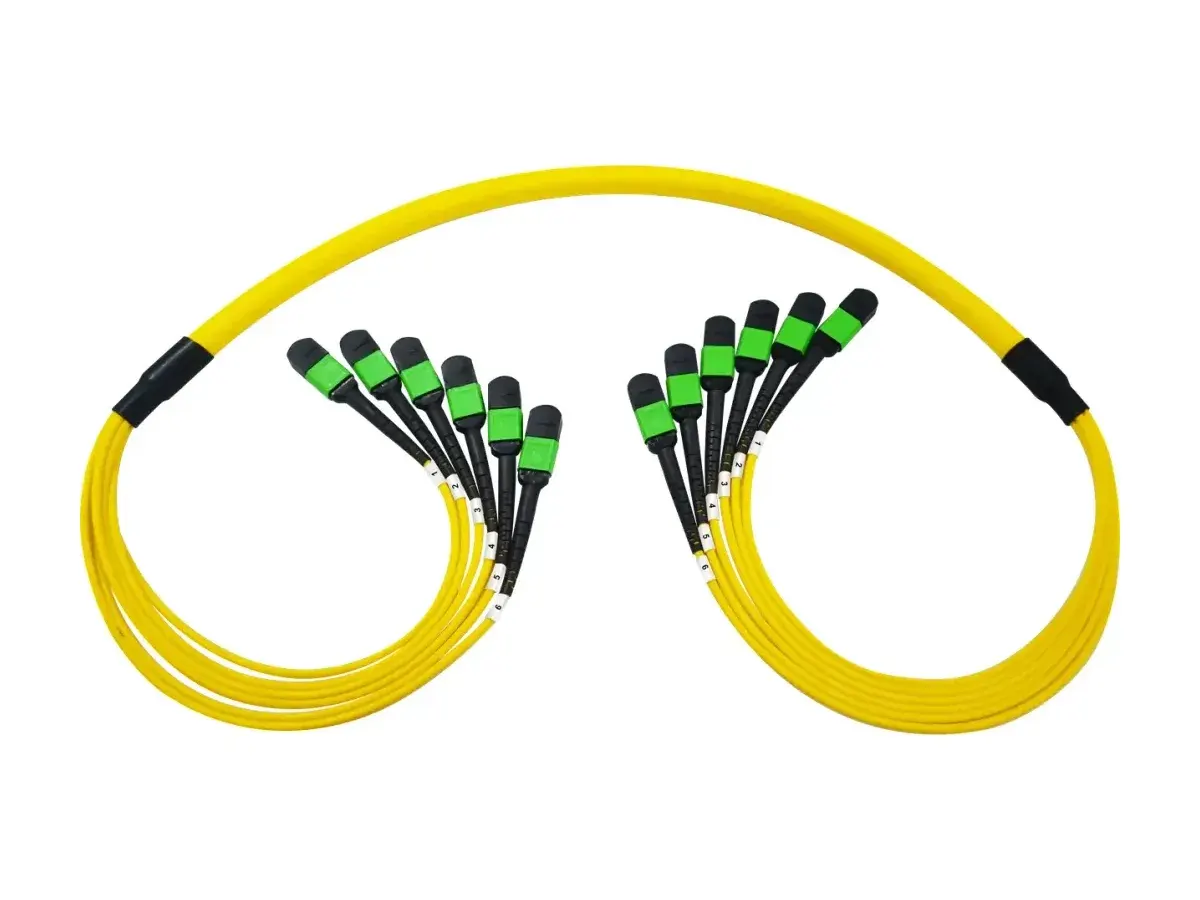

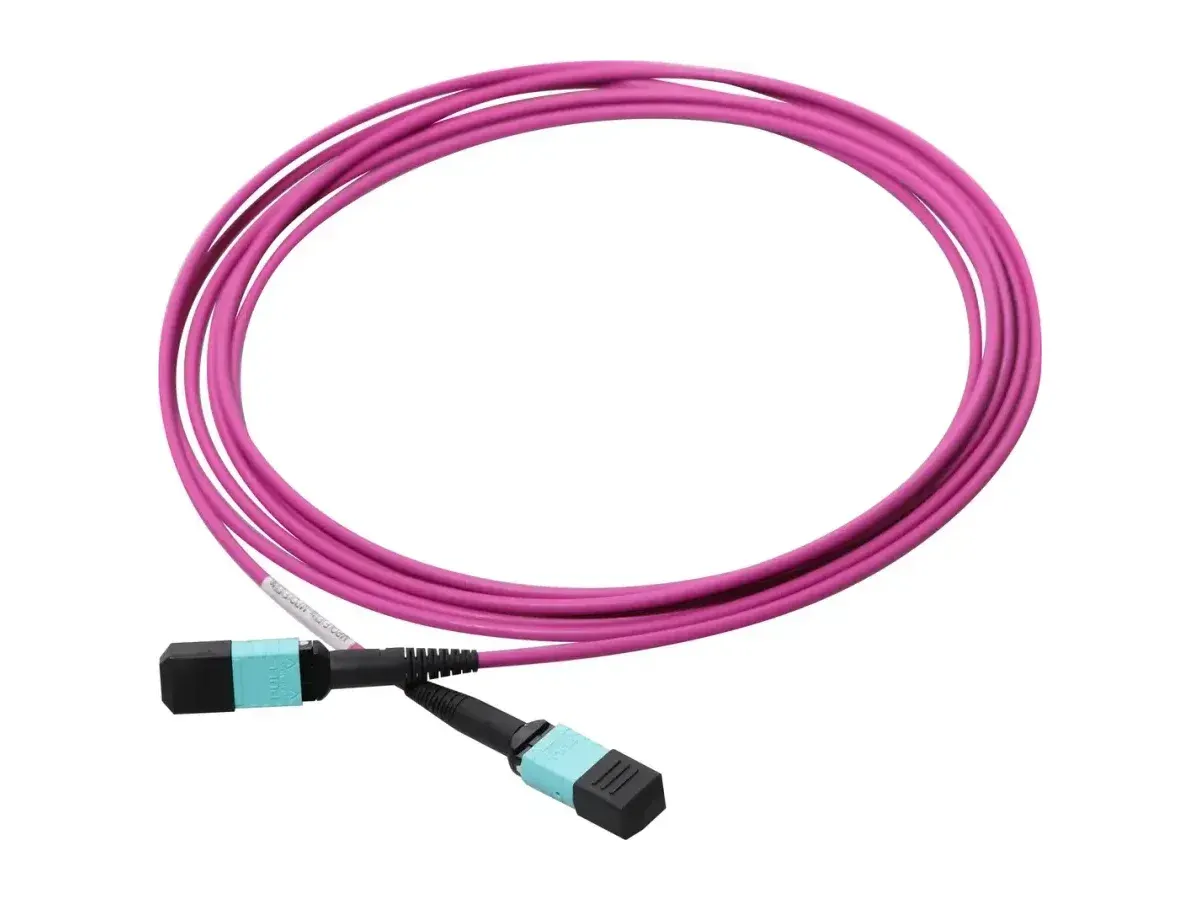

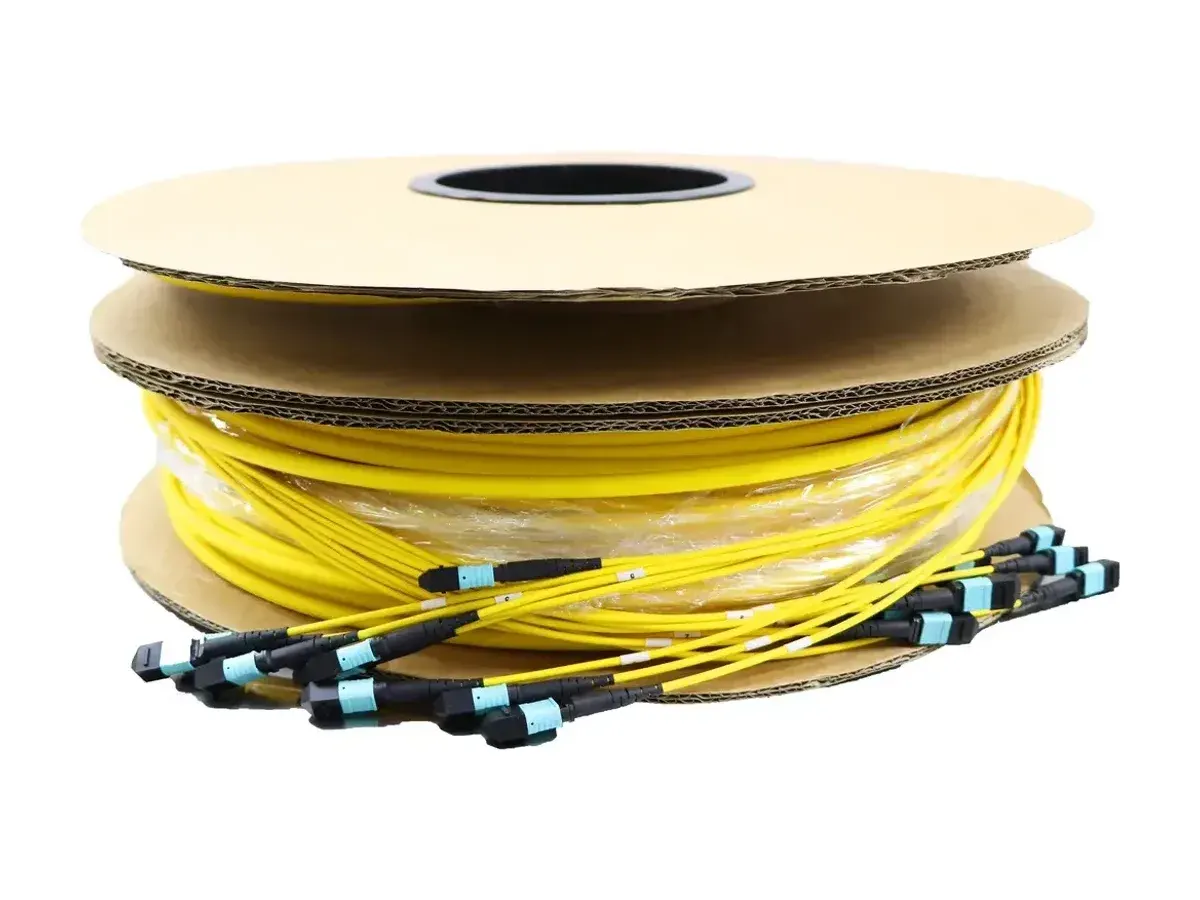

• 12F, 24F, 48F, 72F, 96F and 144F series options, subject to configuration review

• LSZH, OFNR and OFNP jacket options

• Configurable connector gender, endface, polarity, length, labels and packaging

Applications

  • Data communication network
  • Optical system access network
  • Storage area networking / fiber channel
  • High-density architectures

Before you order

Detail

Information to provide

Connection and interfaces

Equipment or module at each end; MPO/MTP connector format and number of connectors.

Fiber count

Total fibers in the assembly and fiber positions per connector are separate details. Confirm both.

Fiber type

State the required single-mode or multimode grade if known; do not choose from link speed alone.

Pinning, endface and polarity

Confirm end A and end B separately. Provide a wiring reference, or ask our team to help.

Length and jacket

Required length, tolerance, installation conditions and jacket requirement; the series lists LSZH, OFNR and OFNP.

Optical requirement

Use the applicable SM/MM and Standard/Elite row. Confirm whether the requirement is for a mated connection or the full channel.

Quantity and delivery

Quantity and target date. Availability, minimum order and delivery conditions are confirmed for the project.

Documents

Request specifications or test information. Email a BOM or drawing; this form does not accept attachments.

Fill in only known requirements. Listed series options do not mean every combination is available. Existing loss values and test wavelengths apply only to their documented configurations; a dash is not a zero-loss specification. Our team will confirm the appropriate configuration.
