GJYWFJH2 Indoor/Outdoor Cable
GJYWFJH2 Indoor/Outdoor Cable used as the optical transmission medium with 900um subcable, a layer of aramid yarn is placed outside the compact fiber to enhance the element, protected by flexible stainless steel tube,…
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description

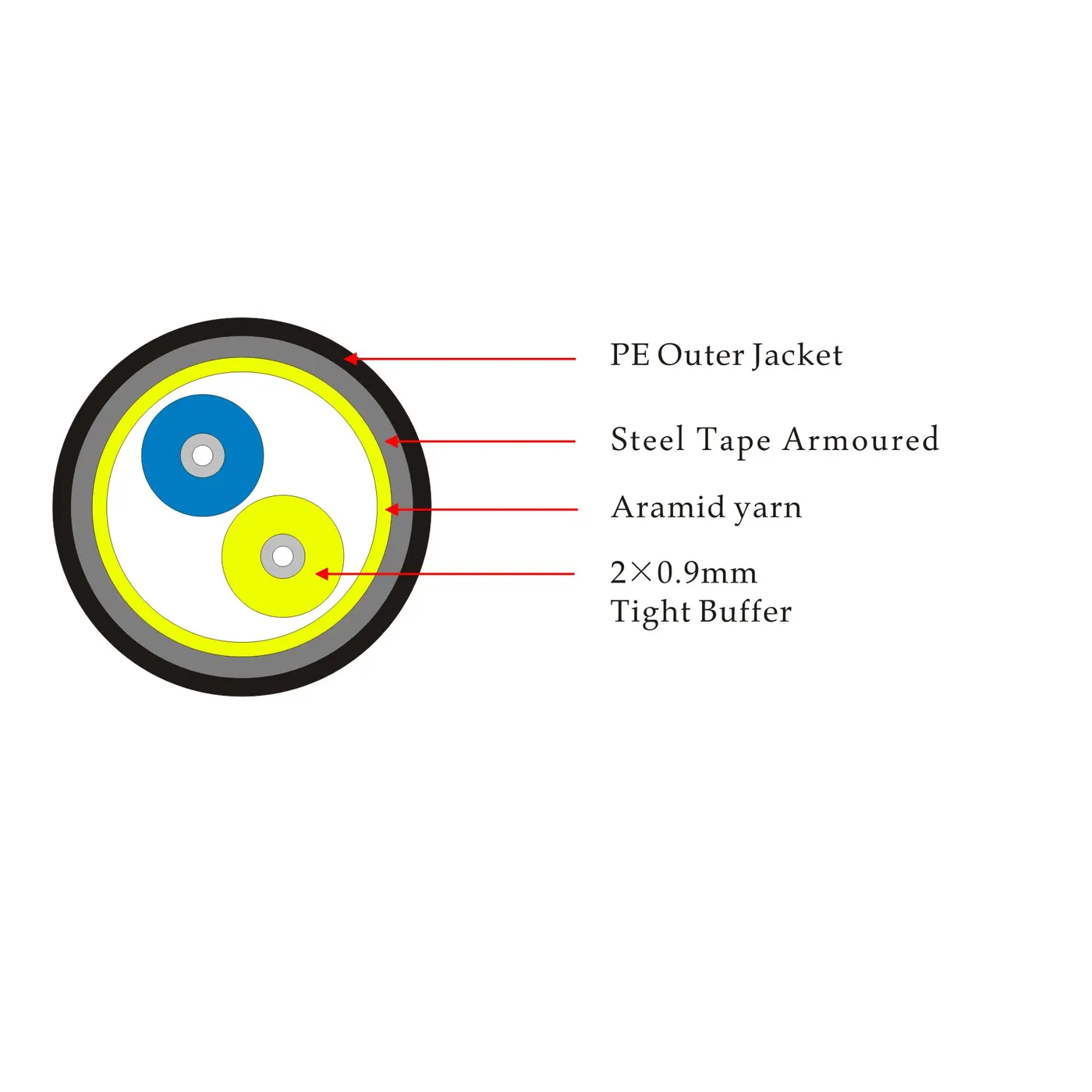

GJYWFJH2 Indoor/Outdoor Cable used as the optical transmission medium with 900um subcable, a layer of aramid yarn is placed outside the compact fiber to enhance the element, protected by flexible stainless steel tube, and the cable is completed with outside jacket(PVC,LSZH,TPU, PE or other materials according to customer's requirements ).
Technical Specifications
| Cable type | OD(mm) | Nominal Weight (Kg/Km) | Tensile Strength(N) | Crush Resistance (N/100MM) | Bending Radius(mm) |
|---|---|---|---|---|---|
| Short-term | Long-term | Short-term | |||
| GJYWFJH2-2Xn | 4.8±02 | 28.3 | 800 | 400 | 3000 |
| Storage/Working temperature(℃) | -40~+70 |
Notes:
- Note: Xn is fiber optic model and D is the diameter of optical cable.
Features
- Good mechanical and temperature characteristics.
- Good lateral compression and flexibility.
- Small diameter, light weight, easy to connect, and support large capacity data transmission.
- Mini armored layer used to decrease the outer diameter and cable weight, also convenient for laying and splice.
- Outer jacket material has the advantages of water proof, flame retardant, environmental protection.
Applications
- Remote base station communication such as RRU or BBU.
- Smart substation and CATV Outdoor application.
- Emergency access to optical fiber communication.
- Used in FTTX, from residence to data center and cabling level and vertical, also used in FTTH cable.
Packing
- Standard wooden drum with protection.
- Standard reel length: 2/3 km/reel, other length is also available.
