Air Blown Fiber Optic Cable
Air Blown Cable
Cable technical parameters
Full specifications, samples and bulk pricing on request — we typically reply within 24 hours.
100% Pre-Shipment Tested
Insertion & return loss (IL/RL) verified on every assembly
17-Year Manufacturer
Three in-house factories with 100+ production lines
Vertically Integrated
Cable extrusion, molds and assembly under one roof
Description
Cable technical parameters
Technical Specifications
| Fiber type | Attenuation | OFL bandwidth | Effective model bandwidth | 10G Ethenet SX | Min bend radius |
|---|---|---|---|---|---|
| Conditions | 1310/1550nm | 850/1300nm | 850/1300nm | 850nm | 850nm |
| Typical | Maximum | Typical | Maximum | ||
| Unit | dB/km | dB/km | dB/km | dB/km | MHZ.km |
| G652D | 0.36/0.22 | 0.4/0.3 | --- | --- | --- |
| G657A1 | 0.36/0.22 | 0.4/0.3 | --- | --- | --- |
| G657A2 | 0.36/0.22 | 0.4/0.3 | --- | --- | --- |
| 50/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥500/500 |
| 62.5/125 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥200/500 |
| OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 |
| OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 |
| BI-OM3 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥1500/500 |
| BI-OM4 | --- | --- | 3.0/1.0 | 3.5/1.5 | ≥3500/500 |
Applications
- Used for air-blown laying in micro-tube
- Cable characteristics
- Small size, light weight, low friction coefficient
- Plasticity shrink back small, can operating in low temperature and temperature difference environment Rigidity high, can blow farther in conduit track comparatively straight
- Cable sheath marking
- White color printing at each meter distance of cable sheath
- The standard printing contents are as below, alternative contents available on request 1.Meter mark
- Cable model
- Fiber count 4.Company/Brand name
- 5.Manufacture month and year
- Labelling of wooden reel
- The standard label contents are as below (alternative labelling available on request) 1.Cable model
- Fiber count
- Length of cable packed on reel 4.Gross weight KGS
- 5.Total no. of reels of the batch of cargoes 6.Manufacture month and year
Related products

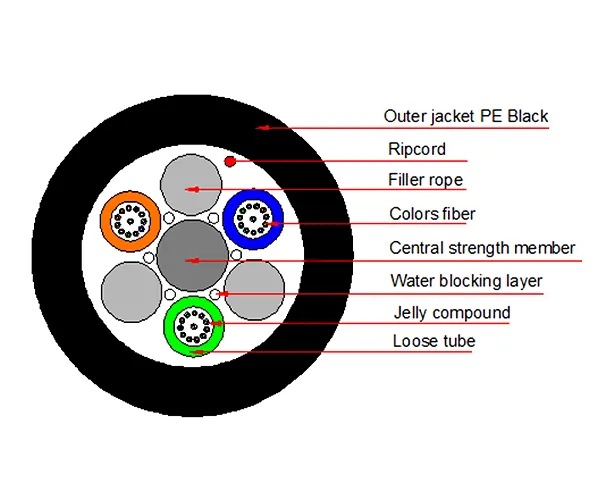

GCYFTY Air Blown Cable
Cable characteristics Small size, light weight, low friction coefficient Plasticity shrink back small, can operating in low temperature and…
View details

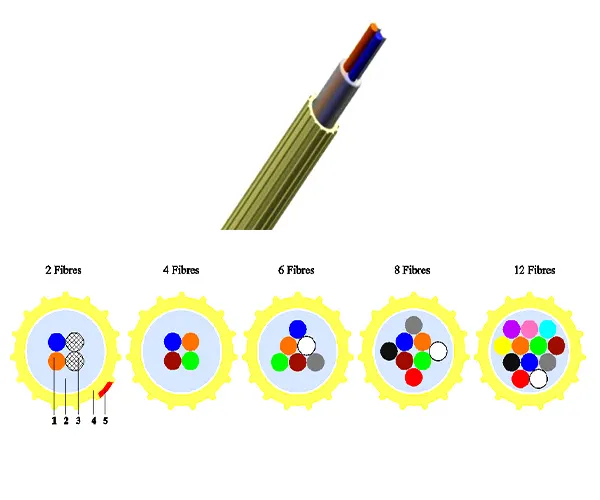

Air-blown fiber unit
Introduction ABF is the important part of the series, and it is the most popular product of the indoor optical fiber cables for generic cabling in Europe, Japan, and South Korea etc.
View details

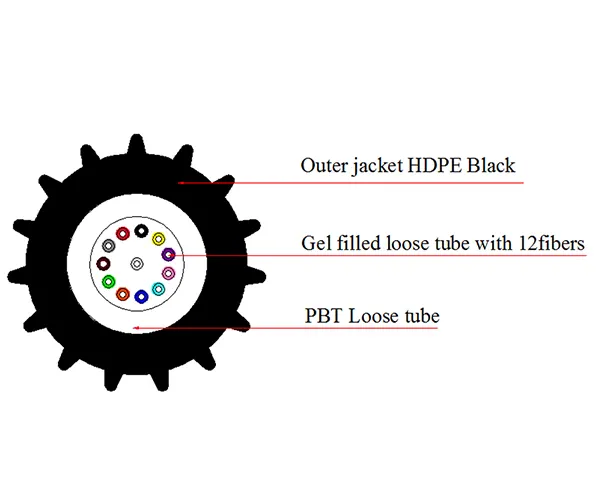

GCYFXTY air blown micro cable
