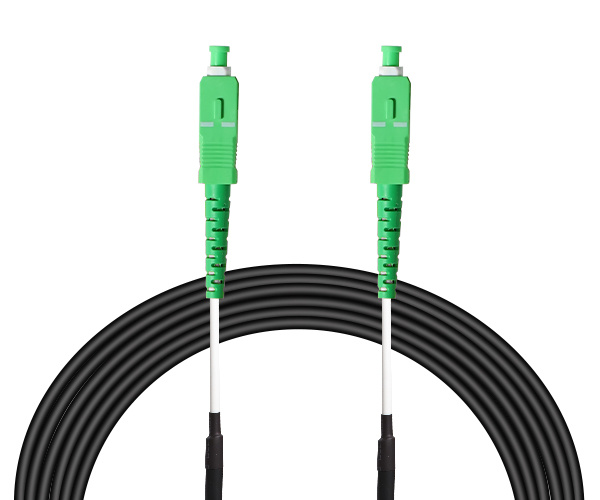

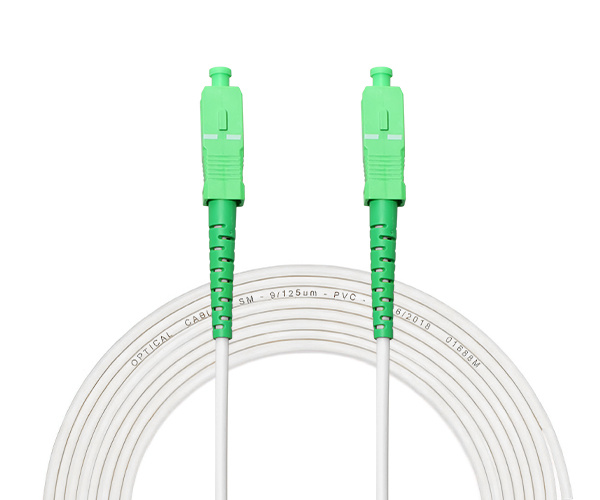

FTTH Round Patch Cord
Applications
FTTH network for indoor and outdoor
Local area network and building cabling network
Interconnect between instruments, terminal box and communication
Features
Cost effective solution for in house termination
Low insertion loss
The material in the patch cord is UV-resistant
Mechanical performance: IEC 61754-4 standard
RoHS and REACH materials compliant
Product Parameters
|
Item |
Parameter |
|||||
|
Insertion Loss |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
≤0.15dB |
≤ 0.3dB |
≤0.15dB |
≤ 0.3dB |
≤0.15dB |
≤ 0.3dB |
|
|
Return Loss |
Min.50 dB |
Min. 60 dB |
Min. 30 dB |
|||
|
Operating Wave Length |
1310nm ~1550nm |
850nm ~1300nm |
||||
|
Test Wave Length |
1310nm & 1550nm |
850nm & 1300nm |
||||
|
Durability |
200 cycles |
|||||
|
Operating Temperature |
-20 to +70°C |
|||||
|
Storage Temperature |
-20 to +70°C |
|||||
|
Installation Temperature |
-10 to +70°C |
|||||
|
Cable Diameter Range |
0.9mm - 5.0mm |
|||||
|
Standards |
Comply to GR-1320 , IEC61753-1, IEC61754-4 |
|||||
|
Assembly |
||||||
|
Insertion Loss |
Max.0.3dB+0.35dB/km*L |
Max.0.3dB+3.0dB/km*L |
||||
|
Return Loss |
Min.50 dB |
Min. 60 dB |
Min. 30 dB |
|||
