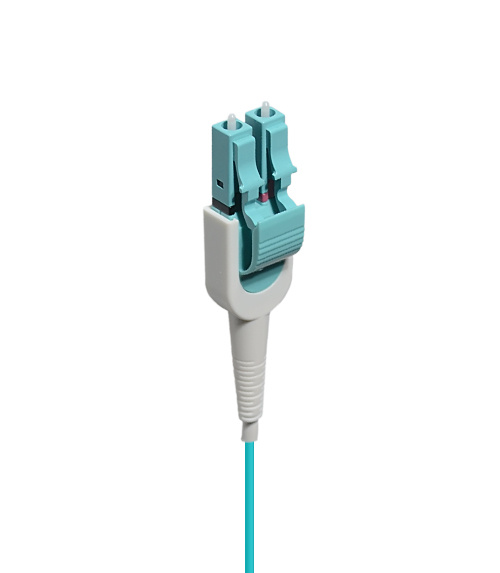

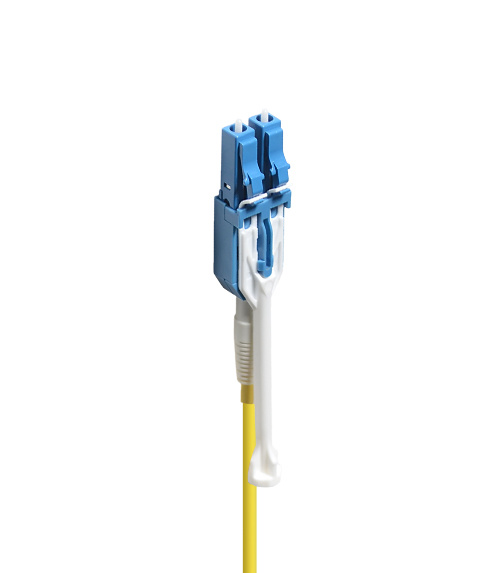

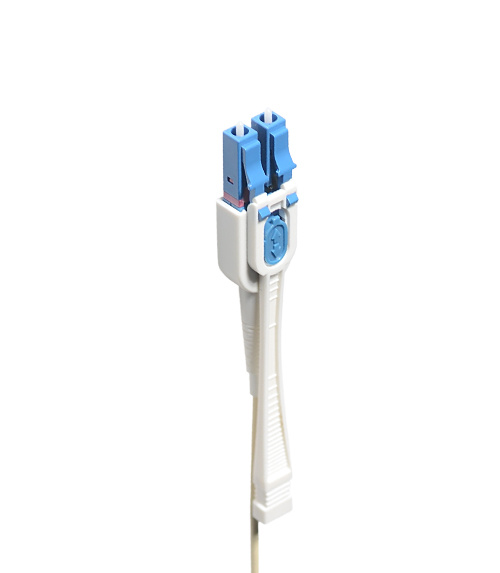

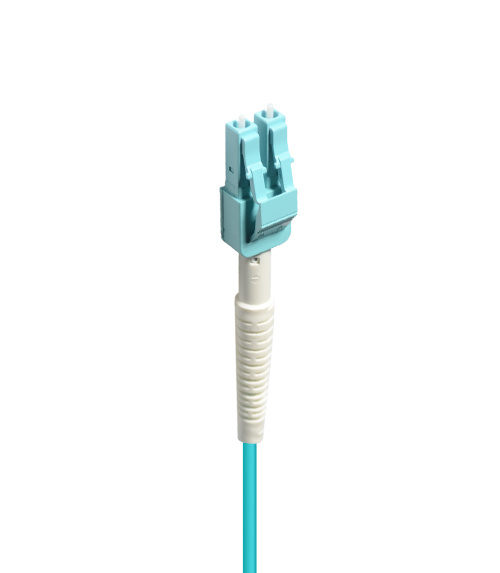

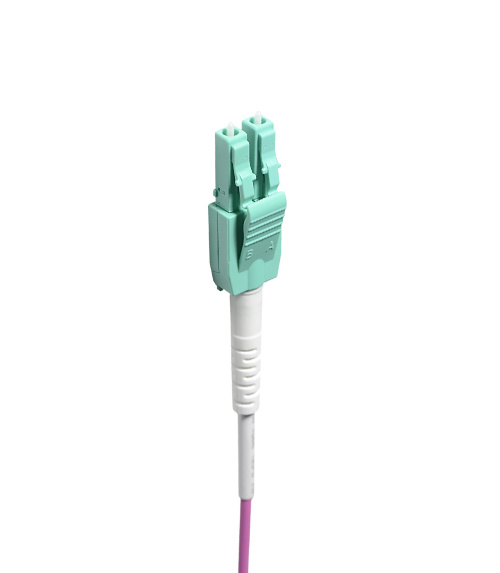

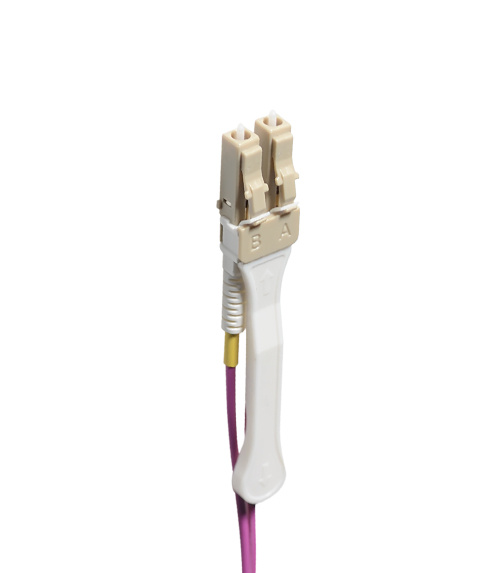

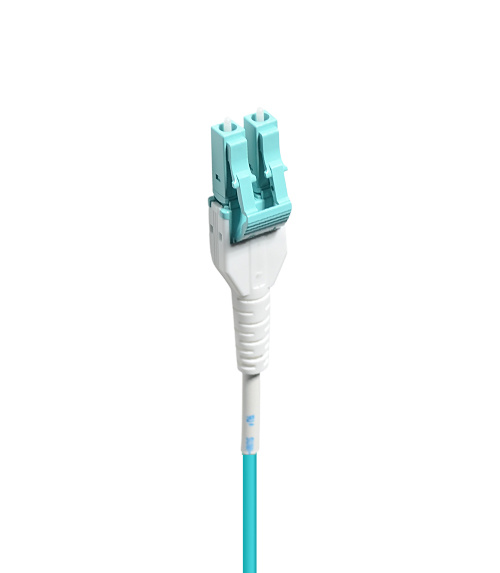

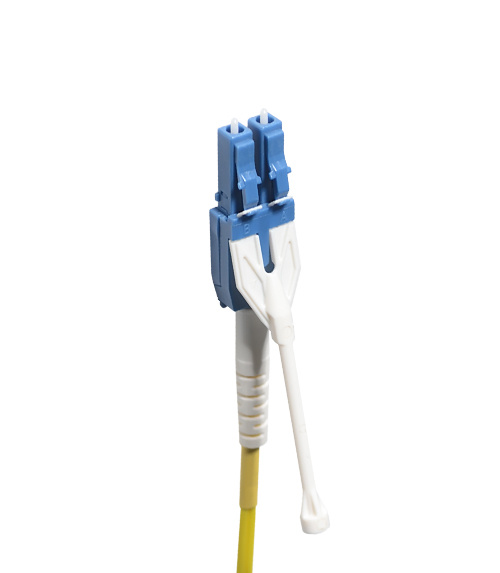

LC Uniboot
APPLICATIONS
Data Centers
Local Area Networks
High-Density Applications
Interconnects
Cross-connects
FEATURES
Uniboot with a Single Housing
Unique Push-Pull Design and Function
Easy to Assemble and Use
Low Insertion Loss and Back Reflection
High Repeatability and Reliability
Telcordia GR-326 Qualified
PRODUCT PARAMETERS
|
Mode |
Single mode |
Multimode |
|
|
Polish |
UPC |
APC |
PC |
|
Insertion Loss |
≤0.30dB |
≤0.20dB |
≤0.20dB |
|
Return Loss |
≥50dB |
≥60dB |
≥30dB |
|
Test Wavelength |
1310/1550nm |
850/1310nm |
|
|
Durability(500 Matings) |
≤0.2dB |
||
|
Operating Temperature |
-40℃~+60℃ |
||
|
Storage Temperature |
-45℃~+85℃ |
||
|
Fire Resistant |
IEC 60794-2-30 |
||
|
Standards-Compliant |
ROHS,IEC and GR-326 |
||
|
Fiber type |
Single mode: |
(1)9/125-G652D |
(2)9/125-G655 |
(3)9/125-G657A,G657A2 |
(4)9/125-G657B3 |
|
|
Multimode: |
(5)50/125-OM2 |
(6)62.5/125-OM1 |
(7)50/125-OM3 |
(8)50/125-OM4 |
(9)50/125-OM5 |
|
|
Fiber Brand |
YOFC, Corning, Sumitomo, Fujikura |
|||||
|
Connector |
SC/PC, SC/APC, LC/PC, LC/APC, FC/PC, FC/APC, ST/PC, E2000/PC, E2000/APC, MU/PC, MTRJ/Female, MTRJ/Male, MPO/MTP, DIN/PC, SMA/PC, D4/PC |
|||||
|
Cord type |
Simplex ,Duplex |
|||||
|
Cable diameter |
0.9mm ,1.2mm, 1.6mm, 1.8mm, 2.0mm, 2.8mm, 3.0mmm, 4.1mm |
|||||
|
Cable jacket |
PVC, OFNR, LSZH, OFNP |
|||||
|
length(M) |
0.5m,1m,2m,5m,10m,25m,50m,100m…Customized |
|||||
