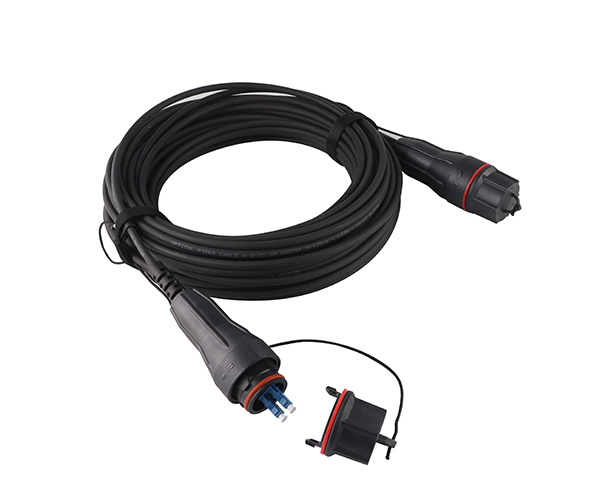

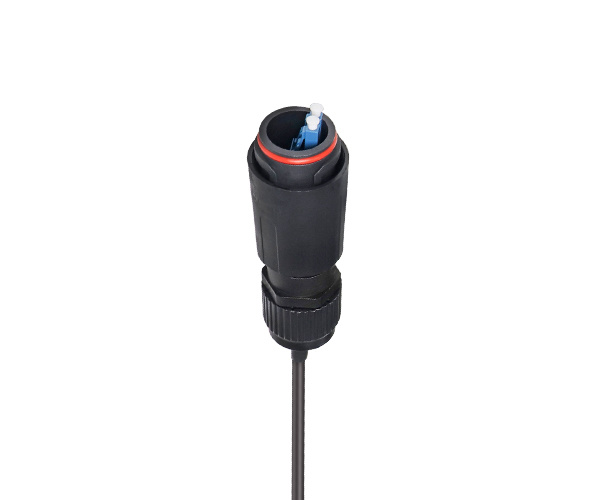

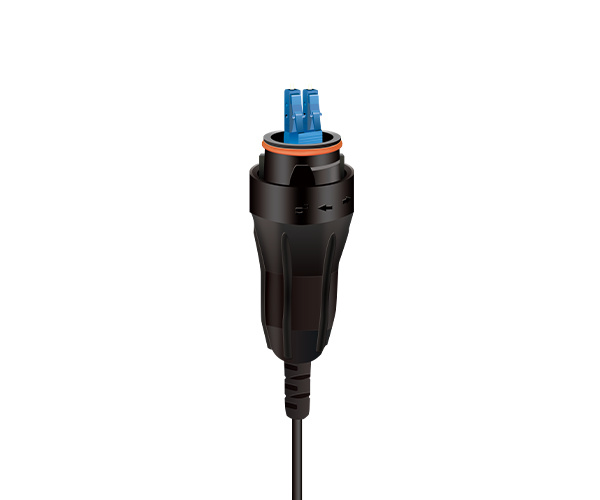

FULLX(LC)
APPLICATION
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
FEATURES
Open bulkhead for easy access to SFP
IP68 water and dust protection
Bulkhead cutout allows for removal of transceiver through the bulkhead
No need to open remote radio head (RRH) for transceiver replacement
Water proof, dust proof and corrosion resistant
Plug has tolerance free design, free floating on Z-axis
PRODUCT PARAMETERS
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥30dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
IP68 waterproof
Rodent-proof
Anti-UV
