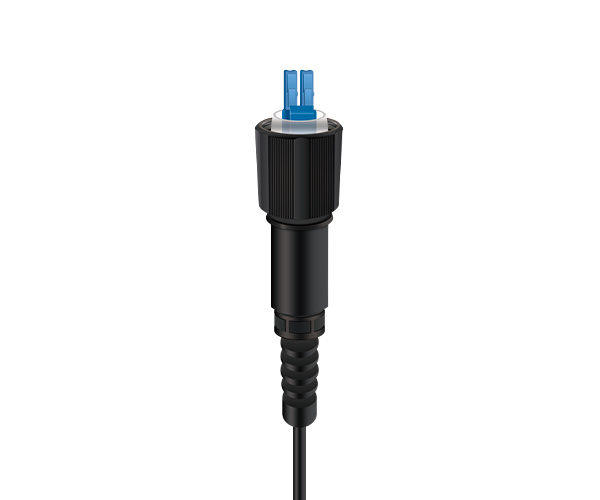

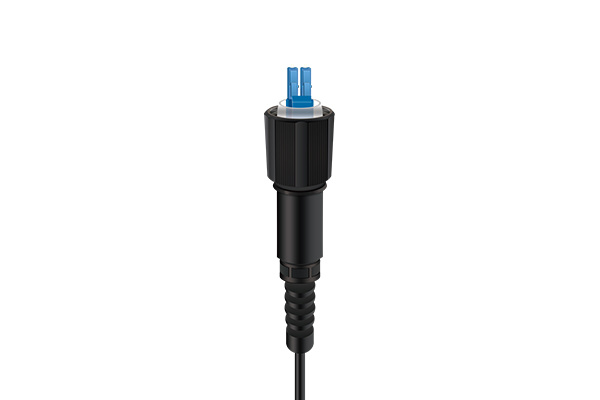

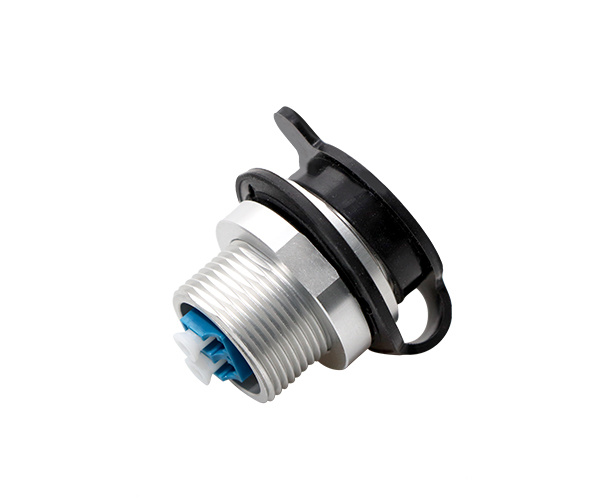

PDLC
APPLICATION
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
FEATURES
Standard DLC connector, well connected with standard LC adaptor
Available Single mode and Multimode
IP68 water and dust protection
Compact design
Broad temperature range and wide range of indoor and outdoor cables
Easy Operation, reliable and cost-effective installation
PRODUCT PARAMETERS
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥30dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
IP68 waterproof
Rodent-proof
Anti-UV
