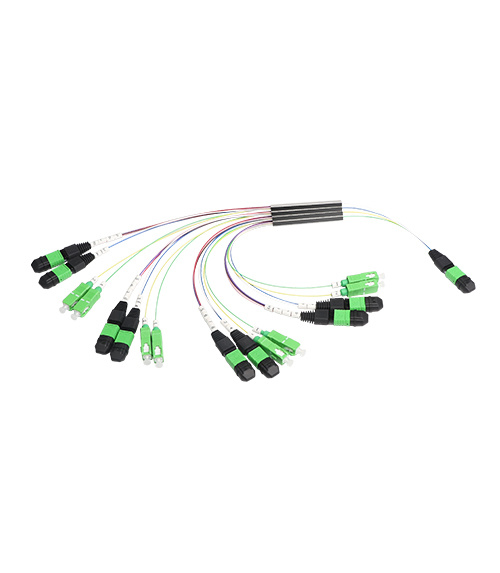

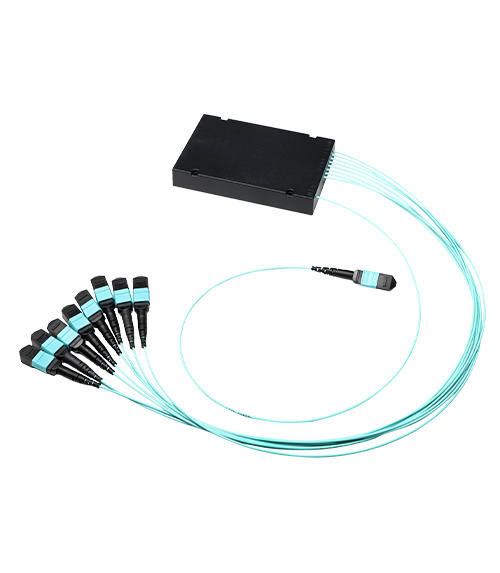

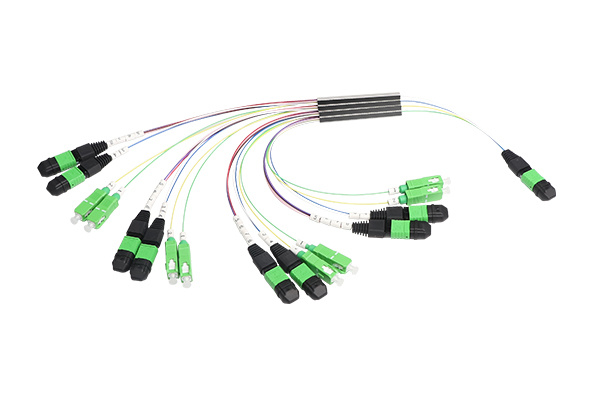

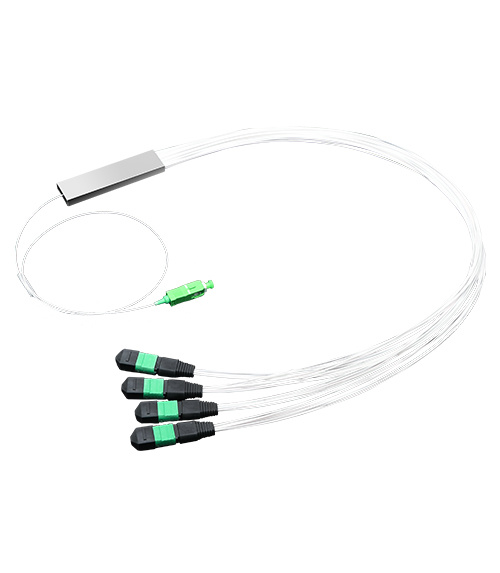

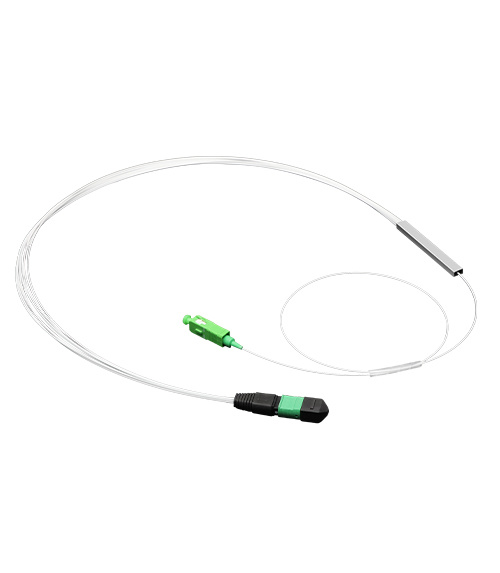

MPO/MTP Type PLC Splitter
Applications
Gigabit Ethernet
Active Deviced/Transceiver Interface
Optical Switch interframe connections
Telecommunication Networks
Features
High density, plug and play fiber optic interconnects
Pre-terminated cable assemblies eliminate field termination time and guarantee optical performance
Available with a wide variety of cable and connector options
Optical Performance
|
Item Parameter |
1*2 |
1*3 |
1*4 |
1*6 |
1*8 |
1*12 |
1*16 |
1*24 |
1*32 |
|
|
IL&RL |
IL(dB) |
|||||||||
|
With Connector |
||||||||||
|
LC/SC/FC/ST |
≤4.2dB |
≤6.5dB |
≤7.8dB |
≤9.6dB |
≤10.9dB |
≤12.9dB |
≤13.9dB |
≤15.5dB |
≤17.2dB |
|
|
MPO/MTP (STD Loss) |
≤4.6dB |
≤6.9dB |
≤8.2dB |
≤10.0dB |
≤11.3dB |
≤13.3dB |
≤14.3dB |
≤15.9dB |
≤17.9dB |
|
|
MPO/MTP (Elite Loss) |
≤4.3dB |
≤6.6dB |
≤7.9dB |
≤9.7dB |
≤11.0dB |
≤13.0dB |
≤14.0dB |
≤15.6dB |
≤17.3dB |
|
|
Item Parameter |
2*2 |
/ |
2*4 |
/ |
2*8 |
2*12 |
2*16 |
2*24 |
2*32 |
|
|
IL&RL |
IL(dB) |
|||||||||
|
With Connector |
||||||||||
|
LC/SC/FC/ST |
≤4.4dB |
|
≤8.0dB |
|
≤11.2dB |
≤13.2dB |
≤14.2dB |
≤15.8dB |
≤17.5dB |
|
|
MPO/MTP (STD Loss) |
≤4.8dB |
|
≤8.4dB |
|
≤11.6dB |
≤13.6dB |
≤14.6dB |
≤16.2dB |
≤17.9dB |
|
|
MPO/MTP (Elite Loss) |
≤4.5dB |
|
≤8.1dB |
|
≤11.3dB |
≤13.3dB |
≤14.3dB |
≤15.9dB |
≤17.6dB |
|
|
Polarization Loss(dB) |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
≤0.3dB |
|
|
Channel Uniformity(dB) |
Fixed Operating Wavelength |
≤0.6dB |
≤0.6dB |
≤0.7dB |
≤0.7dB |
≤1.0dB |
≤1.2dB |
≤1.2dB |
≤1.5dB |
≤1.5dB |
|
Full Operating Bandwidth |
≤1.1dB |
≤1.1dB |
≤1.2dB |
≤1.2dB |
≤1.5dB |
≤1.7dB |
≤1.7dB |
≤2.0dB |
≤2.0dB |
|
|
Without Connector RL(dB) |
≤55dB |
|||||||||
|
With Connector RL(dB) |
≤UPC:50dB,≤APC:55dB, |
|||||||||
|
Directionality (dB) |
≤55dB |
|||||||||
|
Operating Temperature |
-40~85°C |
|||||||||
|
Reference |
GR-1221-CORE GR1209-CORE |
|||||||||
|
Adaptive devices: Adaptive losses need to be added. |
||||||||||
|
Insertion loss in the table of the test wavelength: 1310nm, 1490nm, 1550nm. In the 1260nm-1300nm and 1600nm-1650nm wavelength range of insertion loss in the above indicators based on an increase of 0.3dB;
Channel uniformity test wavelengths in the table are: 1310nm, 1490nm, 1550nm. In the 1260nm-1300nm and 1600nm-1650nm wavelength interval of the channel uniformity index on the basis of the above index by 0.5dB. |
||||||||||
