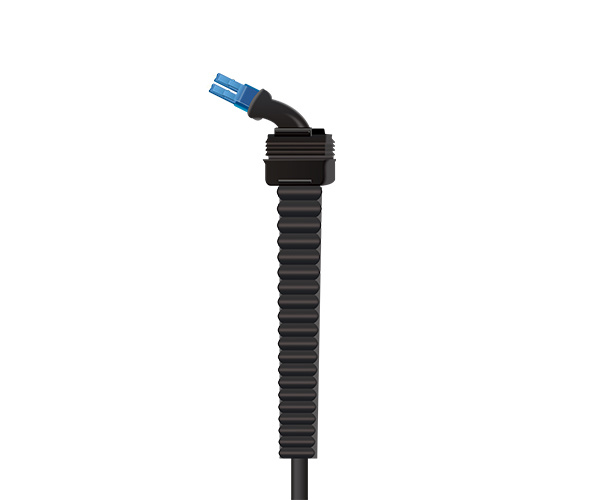

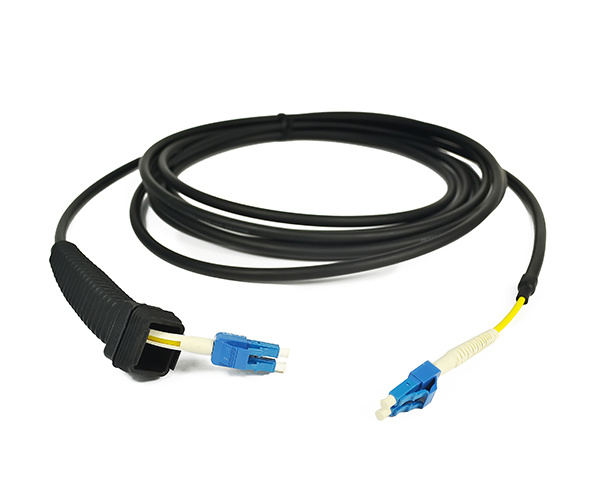

NSN Boot Duplex LC
APPLICATION
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
FEATURES
IP67 water and dust protection
Capacity 1 to 3 fiber pairs, LC connector or vendor specified connector
Corrugated steel armor or non armor
Outer sheath of UV resistant
Temperature range -40℃to +85℃
PRODUCT PARAMETERS
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥30dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
IP67 waterproof
Rodent-proof
Anti-UV
