Quotation

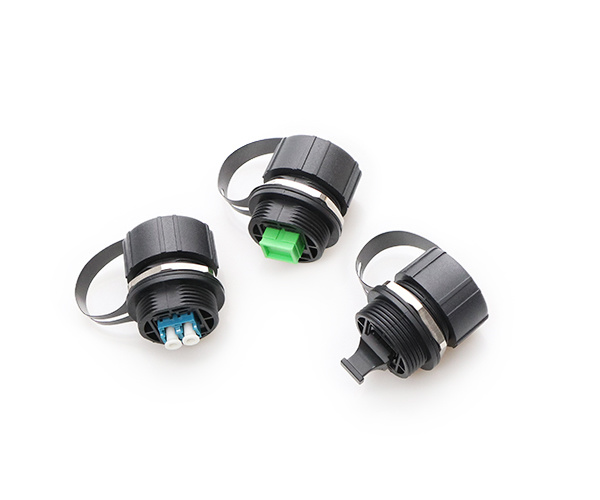

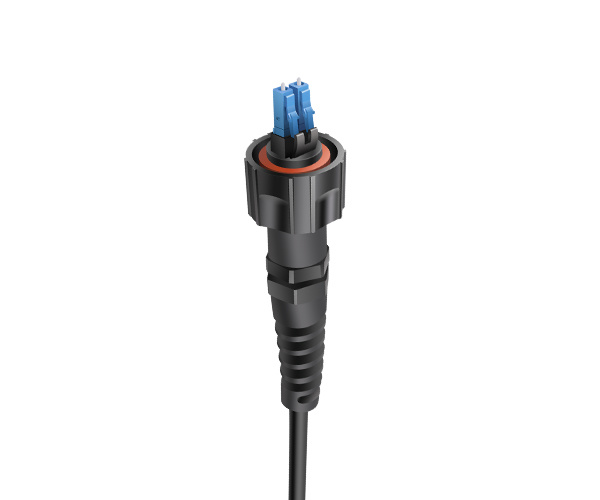

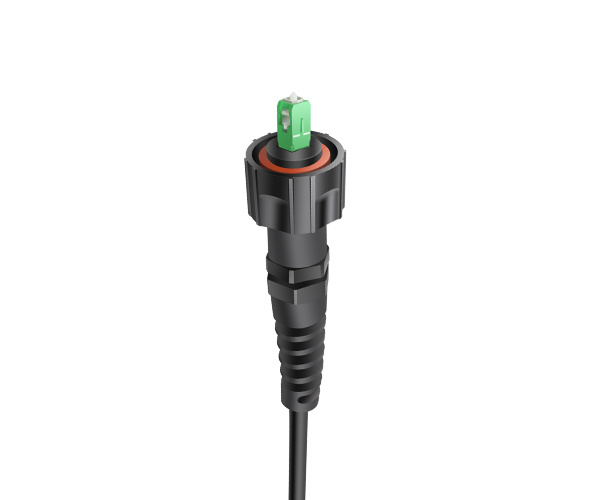

ODVA (SCLC,MPO)
APPLICATION
Multi-purpose Outdoor
For connection between distribution box and RRH
Deployment in Remote Radio Head cell tower applications
FEATURES
Cost effective solution for in house termination
IP68 water and dust protection
Wide range of operational temperature for outside plant -40 to +85°C
Different cable diameter can be available
Intermatable to other Industrial LC adaptor per IEC 61076-3-106
No need special tools for assembly
PRODUCT PARAMETERS
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥30dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
IP68 waterproof
Rodent-proof
Anti-UV
