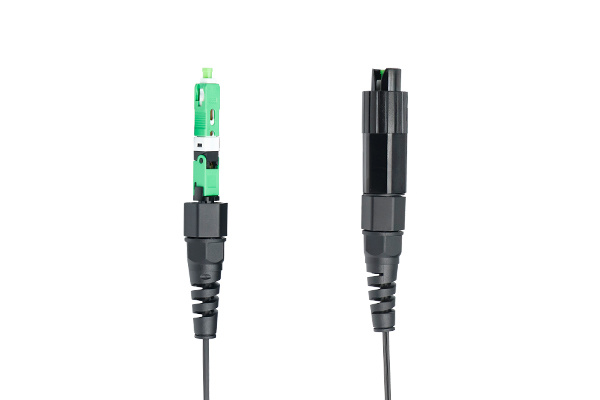

IPSCAPC Fast Connector

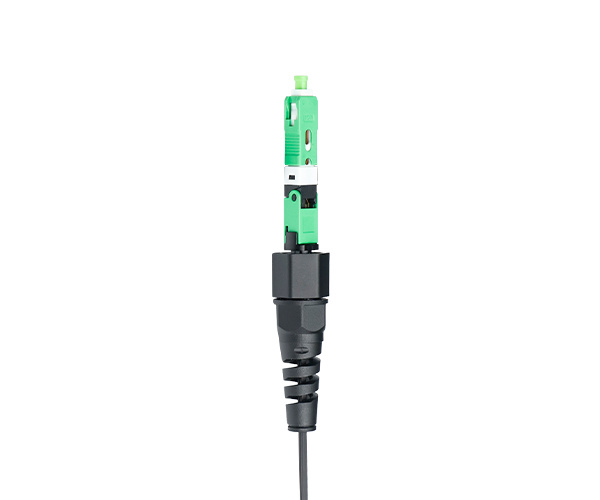

type1

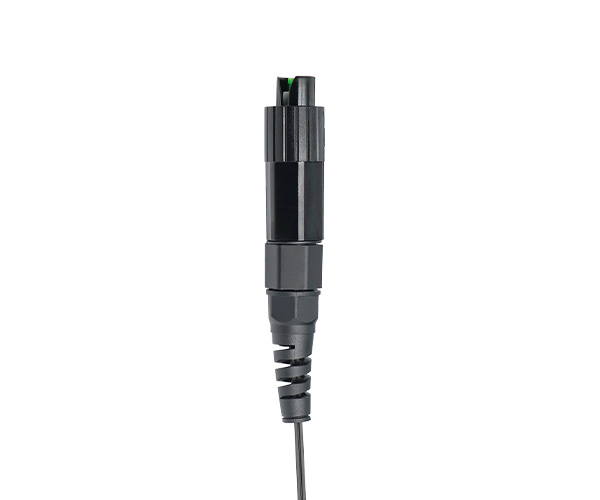

type2

IPSCAPC Fast Connector

Applications

Fiber optic communications in harsh outdoor environments

Outdoor communications equipment connection

Waterproof fiber equipment SC port

Remote wireless base station

FTTX wiring projiect

Features

Fast deployment, plug and play

Lower insertion loss SC technology

Flat cable support aerial self-supporting and ground duct application

Fast locked connector design

Product Parameters

Item	Parameter
Insertion Loss	SM-UPC		SM-APC		MM-UPC
	Typical	MAX	Typical	MAX	Typical	MAX
	≤0.2dB	≤ 0.4dB	≤0.2dB	≤ 0.4dB	≤0.2dB	≤ 0.4dB
Return Loss	Min.50 dB		Min. 60 dB		Min. 30 dB
Operating Wave Length	1310nm ~1550nm				850nm ~1300nm
Test Wave Length	1310nm & 1550nm				850nm & 1300nm
Durability	200 cycles
Operating Temperature	-10 to +60°C
Storage Temperature	-40 to +85°C
Installation Temperature	-10 to +60°C
Waterproofing Grade	IP68 (1M,1hour)
Cable Diameter Range	3.0mm - 5.0mm;2x3mm Butterfly; 2x5mm Butterfly;
Standards	Comply to GR-1320 , IEC61753-1, IEC61754-4
Assembly
Insertion Loss	Max.0.3dB+0.35dB/km*L		Max.0.3dB+3.0dB/km*L
Return Loss	Min.50 dB		Min. 60 dB		Min. 30 dB
