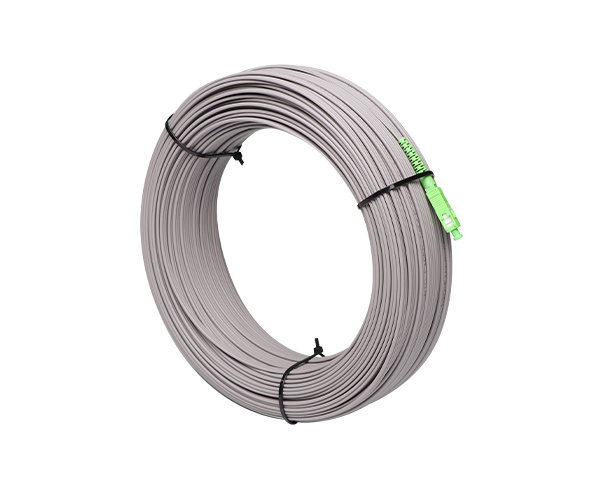

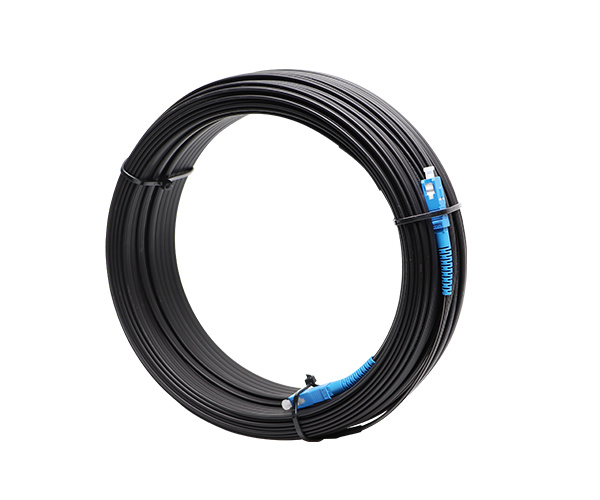

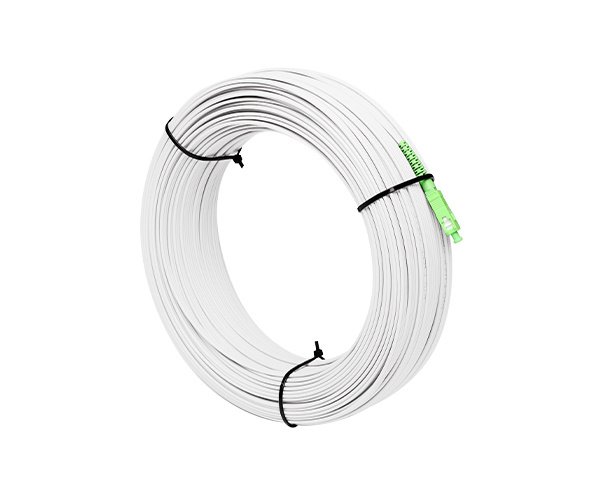

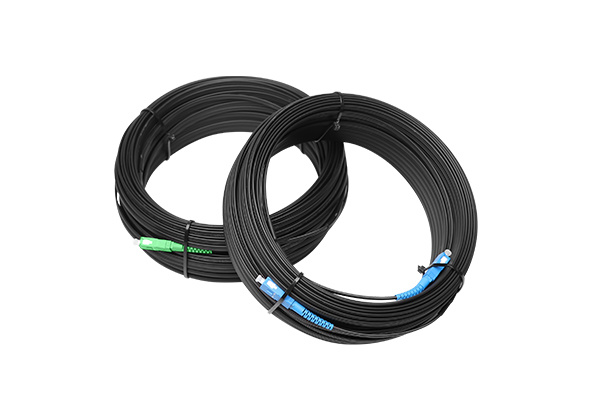

FTTH Drop Jumper
APPLICATION
FTTH network for indoor and outdoor
Local Area Network and Building Cabling Network
Interconnect between instruments,
terminal box and communication
FEATURES
Low insertion loss, high return loss
Available FTTH Drop cable diameters: Φ2.0*5.0mm; Φ2.0*3.0mm
Connector Types: LC, FC, SC,ST for option
Fiber Mode: G652D, G.657A1, G657A2, G657B3
Ferrule Interface Type: UPC to UPC, APC to APC, APC to UPC
Compliant to IEC standard
PRODUCT PARAMETERS
|
Type |
SM-UPC |
SM-APC |
MM-UPC |
|||
|
Typical |
MAX |
Typical |
MAX |
Typical |
MAX |
|
|
Insertion loss |
≤0.1 |
≤0.3dB |
≤0.15 |
≤0.3dB |
≤0.05 |
≤0.3dB |
|
Return loss |
≥50dB |
≥60dB |
≥30dB |
|||
|
Durability |
500 mating cycles |
|||||
|
Working temperature |
-40 to + 85℃ |
|||||
ISO SGS
TL9000
ROHS
