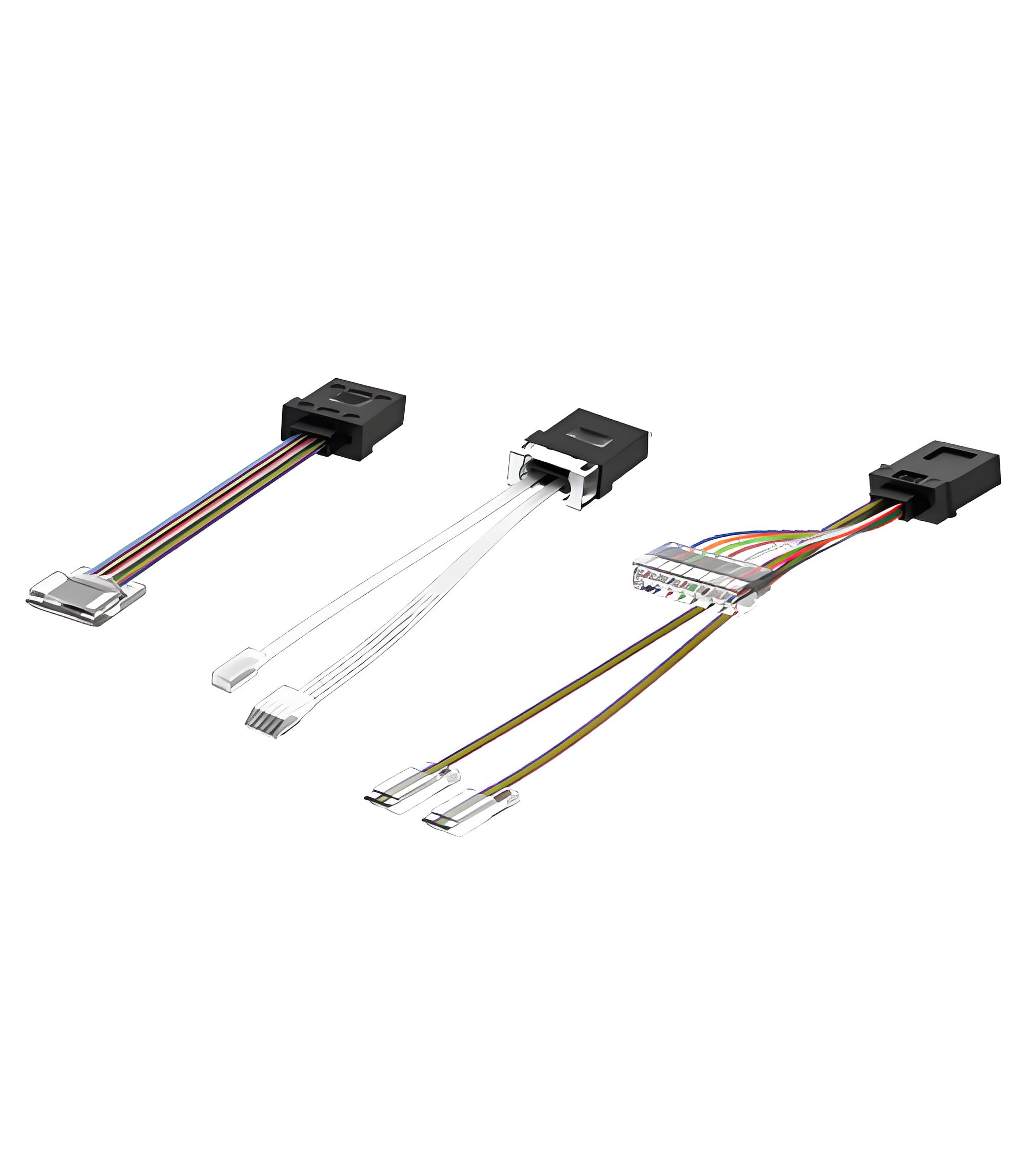

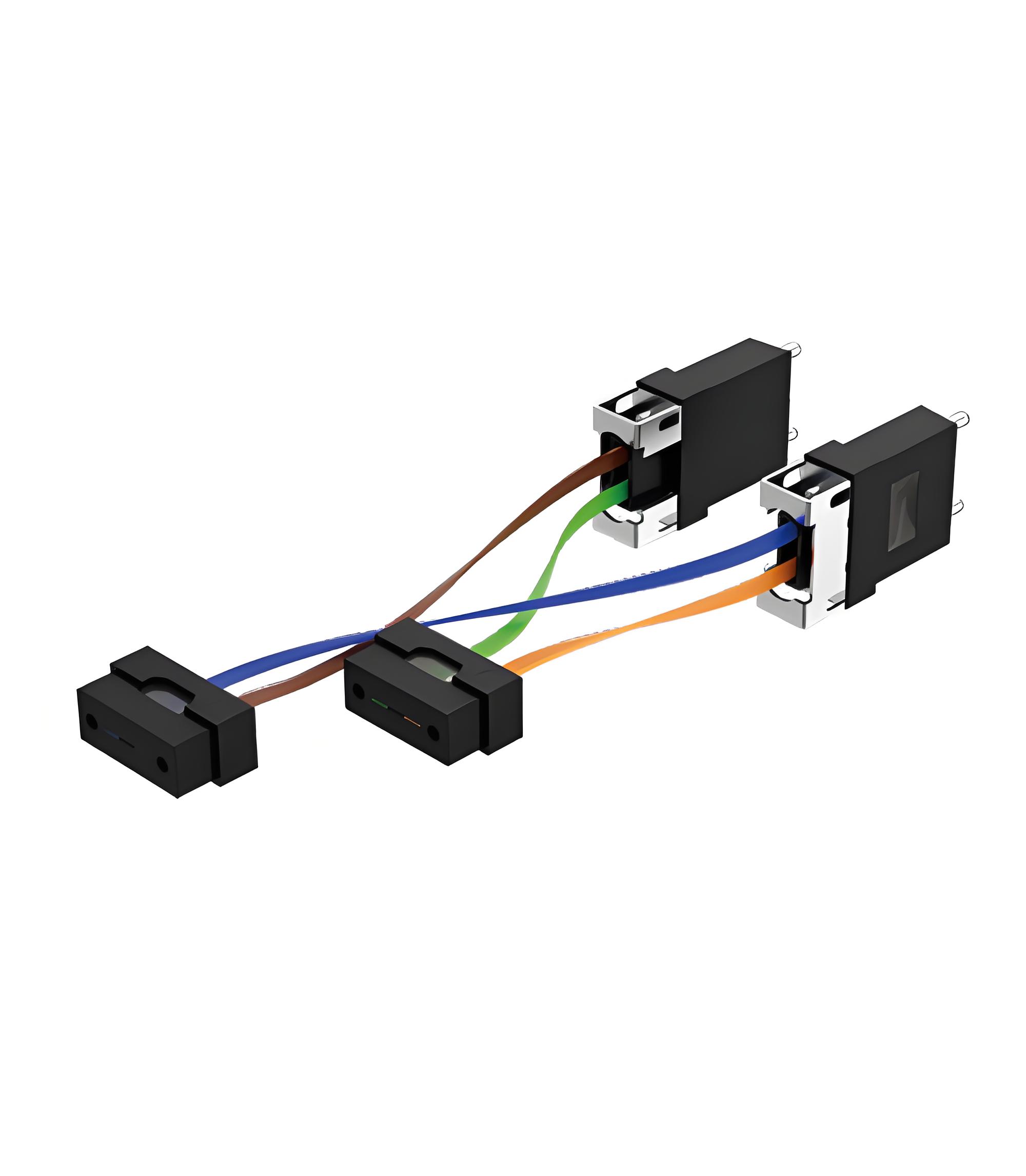

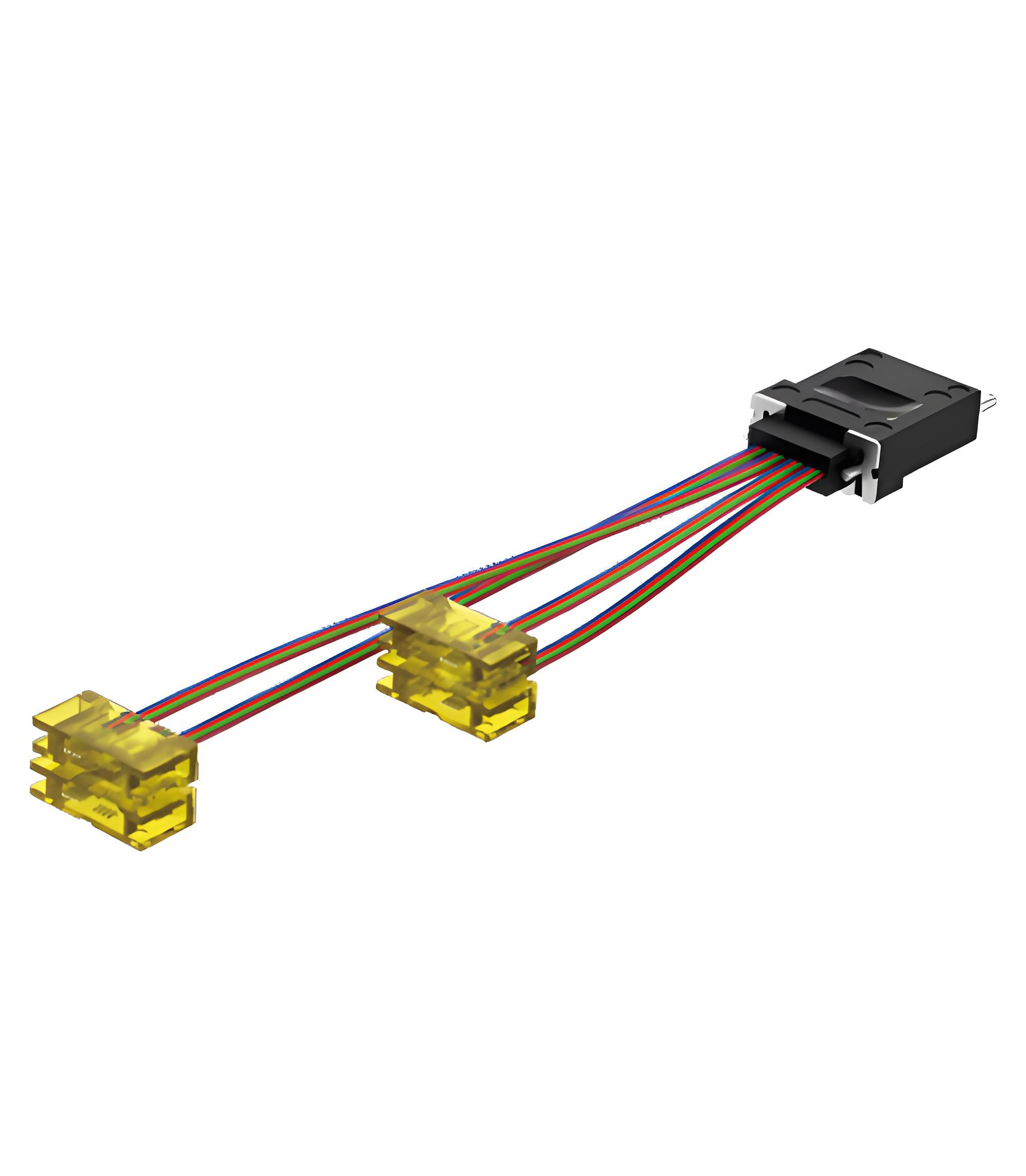

QSFP MT Assembly
APPLICATION
QSFP（quad small form-factor pluggable
SFP+active optical cables
Parallel light optical transceiver module
Super computers
Communication
Military applications
Data centers
FEATURES
Transmission rate: 40Gbps/100Gbps/168Gbps
GR-1435 compliant
Simple structure easy to locate
Low cost
Customized products available
PRODUCT PARAMETERS
|
Performance Level |
Standard |
Elite |
||||
|
Connector |
Mode |
Endface |
IL(max) (dB) |
RL(min) (dB) |
IL(max) (dB) |
RL(min) (dB) |
|
MT |
SM |
12F/APC |
≤0.50 |
≥60 |
≤0.35 |
≥60 |
|
MM |
12F/PC |
≤0.50 |
≥20 |
≤0.35 |
≥20 |
|
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
|
Environment Conditions |
||
|
Item |
Criteria |
Conformance |
|
Operation Temperature |
-40~60°C |
IEC 61753-1 |
|
Storage Temperature |
-45~85°C |
|
