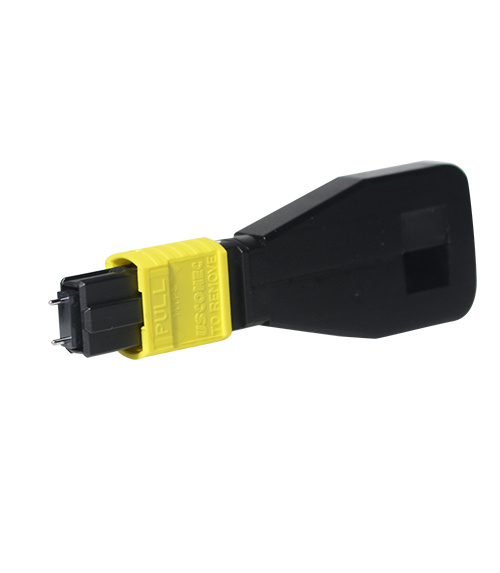

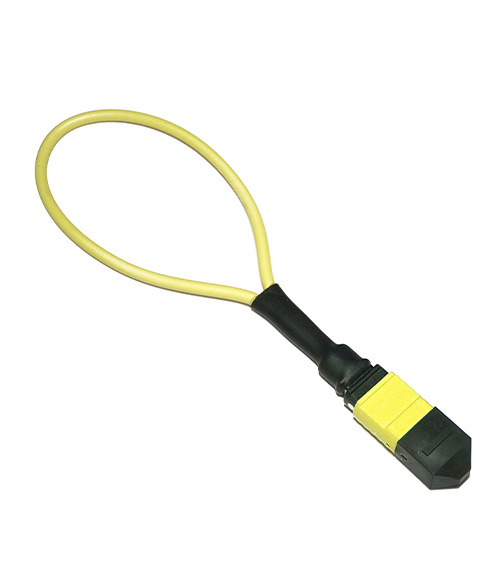

MPO/MTP Loopback
APPLICATION
40GbE QSFP+ Optical Testing
Research and Development
Manufacturing Test
Troubleshooting
Quality Control
Training
FEATURES

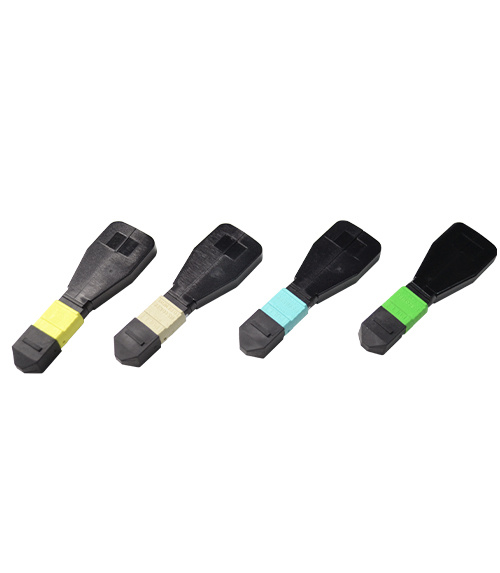

Available in a wide variety of wiring configurations and fiber types
All loopbacks meet TIA/EIA and IEC intermateability standards
8 , 12, and 24 Fiber available
Easy Installation/Removal,available with or without Pull tabs
Compact and portable with lanyard feature
PRODUCT PARAMETERS
|
Performance Level |
Standard |
Elite |
||||
|
Connector |
Mode |
Endface |
IL(max) (dB) |
RL(min) (dB) |
IL(max) (dB) |
RL(min) (dB) |
|
MPO/MTP |
SM |
12F/APC |
≤0.70 |
≥60 |
≤0.35 |
≥60 |
|
24F/APC |
≤0.75 |
≥60 |
≤0.35 |
≥60 |
||
|
MM |
12F/PC |
≤0.50 |
≥20 |
≤0.35 |
≥20 |
|
|
24F/PC |
≤0.50 |
≥20 |
≤0.35 |
≥20 |
||
Note:
1.Test wavelength:SM@1310/1550nm,MM@850/1300nm;
2.Standard conformance: GR-326,GR-1435.
|
Mechanical Properties |
|||
|
Item |
Criteria |
Conformance |
|
|
△IL After 50 Matings |
MPO/MTP |
≤0.3dB |
GR-1435 |
|
△IL After 500 Matings |
LC/SC/FC/ST |
≤0.2dB |
IEC 61300-2-2 |
|
Min Bend Radius (Dynamic) |
20*OD (Cable Diameter) |
||
|
Min Bend Radius (Static ) |
15*OD (Cable Diameter) |
||
|
Environment Conditions |
||
|
Item |
Criteria |
Conformance |
|
Operation Temperature |
-40~60°C |
IEC 61753-1 |
|
Storage Temperature |
-45~85°C |
|
